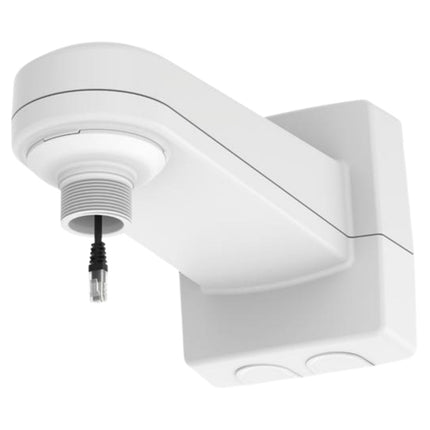

The AXIS T91H61 Wall Mount is a sturdy mount for Axis dome cameras with 1.5" NPS threads. It includes an RJ45 cable, space for accessories, and offers reliable indoor/outdoor protection with optional pole or corner installation.
Features
-
Built-in RJ45 Cable – Includes a pre-mounted Ethernet cable with male-to-male connectors for quick setup.
-
Spacious Internal Compartment – Houses connectivity devices, service loops, and optional midspans (not included).
-
Weather & Impact Resistant – Rated IP66 and IK10 for harsh outdoor and vandal-prone environments.
-
Supports 1.5” NPS Pendant Kits – Compatible with many Axis fixed dome models.
-
Flexible Mounting Options – Mount on walls, poles, or corners using available accessories.
-
Neat Cable Routing – Internal routing via back hole or bottom conduit entries (x2).
-
Durable Construction – Made of powder-coated aluminum for long-term outdoor use.
What’s Included:
- AXIS T91H61 Wall Mount
- Built-in Ethernet cable with RJ45 connectors (with gasket C M20)
- Foam gaskets and silicone strap (pre-mounted)
- Cable ties
- Installation Guide
DOWNLOADS
Tech Specs
| Specification |
Details |
| Mount Type |
Wall mount with internal accessory space |
| Supported Products |
Axis fixed dome cameras with 1.5” NPS pendant kits |
| Material |
Powder-coated aluminum |
| Color |
White (NCS S 1002-B) |
| Cable Routing |
Back cable hole, bottom conduit entrances (x2) |
| Environment |
Indoor / Outdoor |
| Impact Rating |
IK10 (IEC 62262) |
| Weatherproofing |
IP66, NEMA 250 Type 4X |
| Shock/Vibration |
IEC 60068-2-27 (Shock), IEC 60068-2-6 (Sinus), MIL-STD 810G |
| Dimensions |
185 x 214 x 404 mm (7.28 x 8.43 x 15.9 in) |
| Weight |
3.9 kg (8.6 lb) |
| Maximum Load |
30 kg (66 lb) |
| Warranty |
5-year Axis limited hardware warranty |
Q&A
Q1: What type of cameras are supported?
A: It supports fixed dome cameras using 1.5” NPS thread pendant kits, such as AXIS P32-VE, P33-VE, Q35-VE, Q36-VE, and P3707-PE.
Q2: Can it be used outdoors?
A: Yes, it’s weather-resistant with IP66 and NEMA 4X ratings, suitable for all environments.
Q3: Does it come with a pre-attached Ethernet cable?
A: Yes, it includes a built-in RJ45 cable with male-to-male connectors and a waterproof gasket.
Q4: Can I install this on a pole or corner?
A: Yes, with optional accessories like AXIS T91A57 Pole Mount and T91A64 Corner Mount.
Q5: Is it compatible with midspans?
A: Yes, it has room for midspans like AXIS T8133 and T81B22, but they are sold separately.
