Name: Axis T91R61 Tiltable Wall-Mount for D2110-VE (Wall Mount) – 01516-001
Brand: Axis
SKU: T91R61
Price: 258.0 AUD

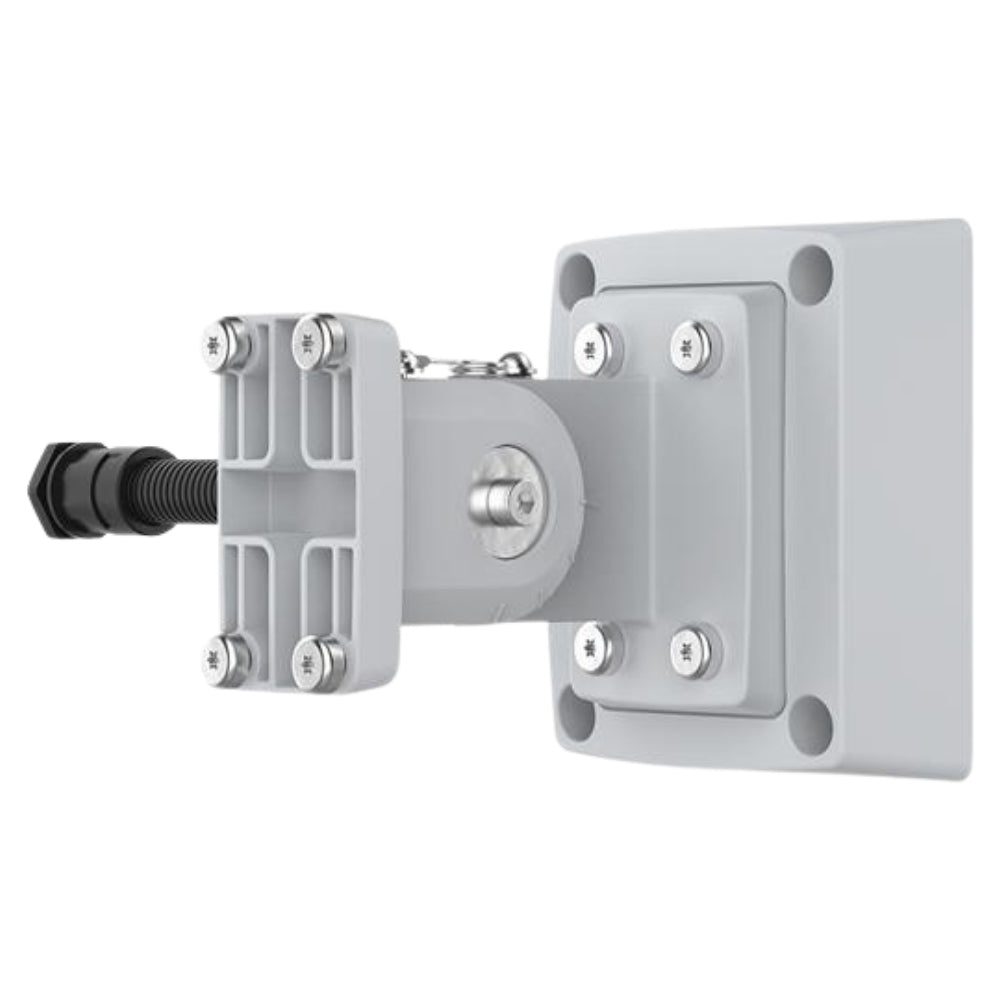

Axis T91R61 Tiltable Wall-Mount for D2110-VE (Wall Mount) – 01516-001

VendorAxis
Share
- WhatsApp
- Deel
- Messenger
- Email

Description

The AXIS T91R61 Wall Mount is a compact, durable mount for Axis security radars, offering 90° tilt for optimal detection. It includes a conduit back box and is weather- and impact-resistant with IK08 and NEMA 4X ratings.

Features

Adjustable Tilt Arm – Supports up to 90° tilt to fine-tune radar positioning.
Rugged Build Quality – IK08-rated and made of powder-coated aluminum for durability.
Weatherproof Design – NEMA 250 Type 4X rated for outdoor resistance to rain, dust, and corrosion.
Integrated Cable Management – Includes conduit back box for clean and protected cable routing.
Multi-directional Cable Entry – Cable access from back, side, or bottom conduit holes (M20/¾").
Easy Installation – Pre-drilled holes and included accessories make mounting quick and simple.
Radar-Compatible – Designed specifically for Axis security radars like AXIS D2050-VE.

What’s Included:

AXIS T91R61 Wall Mount
AXIS TQ1601–E Conduit Back Box
Installation Guide

DOWNLOADS

Datasheet	AXIS T91R61 Datasheet
Installation Guide	AXIS T91R61 Installation Guide

Tech Specs

Specification	Details
Mount Type	Adjustable wall mount with tilting arm
Supported Products	AXIS D2050-VE Network Radar Detector
Material	Powder-coated chromated aluminum
Color	White (NCS S 1002-B)
Cable Routing	Back, side, or bottom conduit holes (M20 / ¾”)
Environment	Indoor / Outdoor
Impact Rating	IK08 (IEC/EN 62262)
Weatherproofing	NEMA 250 Type 4X
Shock/Vibration	IEC 60068-2-6, IEC 60068-2-27
Temperature/Humidity	IEC 60068-2-1/-2/-14/-78
Dimensions	147 x 80 x 120 mm (5.75 x 3.13 x 4.75 in)
Weight	0.9 kg (2 lb)
Maximum Load	5 kg (11 lb)
Warranty	5-year Axis limited hardware warranty

Q&A

Q1: Is this mount compatible with all Axis radar devices?
A: It’s specifically designed for the AXIS D2050-VE Network Radar Detector and other Axis radars with similar mounting standards.

Q2: Can it be tilted to optimise detection angles?
A: Yes, the adjustable arm supports up to 90° vertical tilt for precise alignment.

Q3: Does it support outdoor use?
A: Absolutely, it is NEMA 4X-rated for weather resistance and IK08-rated for impact protection.

Q4: What accessories are included?
A: It comes with the AXIS TQ1601–E Conduit Back Box and an Installation Guide.

Q5: Can it be installed on a pole or corner?
A: Yes, with optional accessories like the AXIS T91B47 Pole Mount and AXIS T94R01B Corner Bracket.
