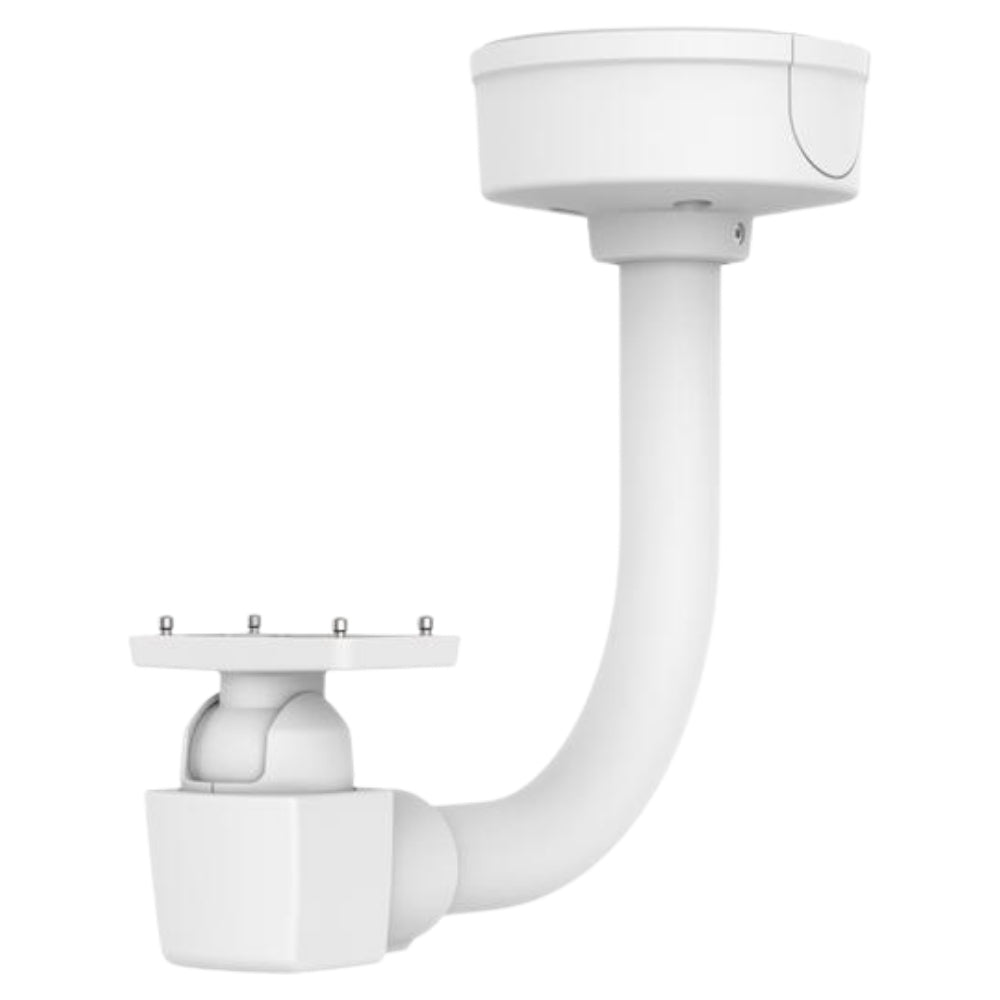

The AXIS T94Q01F Ceiling-and-Column Mount is a rugged and versatile mount designed for both indoor and outdoor use. Built from corrosion-resistant aluminum, it allows fixed camera housings to be securely installed under ceilings, on parapets, poles, or column tops. The internal cable routing protects against weather and vandalism, while the swivel arm enables flexible positioning and easy maintenance.
Features
-
Versatile Mounting – Supports ceiling, soffit, column, and parapet installations both indoors and outdoors.
-
Swivel Arm for Flexibility – Offers 360° arm rotation with tilt and pan adjustments for easy camera maintenance.
-
Rugged Design – Made of NEMA 4X- and IK10-rated powder-coated aluminum for high durability.
-
Internal Cable Routing – Conceals cables through the pipe for protection against the elements and vandalism.
-
Wide Camera Compatibility – Works with AXIS T92E, T93F, T93E05, Q16-E, P13-E, M11-E, and more.
-
Corrosion-Resistant Finish – Built to last in tough outdoor conditions with white NCS S 1002-B coating.
-
Supports Axis Conduit Adapters – Compatible with AXIS ACI ¾″ NPS and U-shape conduit accessories.
What’s Included:
- AXIS T94Q01F Mount
- Installation Guide
DOWNLOADS
Tech Specs
| Specification |
Details |
| Mount Type |
Ceiling and column (parapet) mount |
| Supported Products |
AXIS T92E, T93F, T93E05, T93G05, Q16-E, P13-E, M11-E, Q1775-E |
| Load Capacity |
Up to 5 kg (11 lb) |
| Material |
Powder-coated aluminum (NEMA 4X-, IK10-rated) |
| Color |
White (NCS S 1002-B) |
| Cable Routing |
Internal routing via pipe; back and side conduit entries (M25 ¾″) |
| Adjustments |
Arm: 360°, Tilt: +25° to -65°, Pan: +100° to -100° |
| Environmental Ratings |
Indoor/Outdoor; corrosion-resistant |
| Dimensions |
271 × 300.4 × 129.7 mm (11 × 12 × 5 in) |
| Weight |
1.3 kg (3 lb) |
| Approvals |
IEC/EN/UL 60950-1/-22, Vibration Class 4M3, REACH, CE, EN 50581 |
| Optional Accessories |
AXIS ACI Conduit Adapter ¾″ NPS, U-Shape 30 mm, AXIS Bird Control Spike |
| Warranty |
3-year limited warranty |
| Sustainability |
Visit axis.com/environmental-responsibility
|
Q&A
Q1: Can this mount be used outdoors year-round?
A: Yes. The AXIS T94Q01F is made from NEMA 4X- and IK10-rated powder-coated aluminum, making it highly resistant to weather, corrosion, and physical impact, suitable for continuous outdoor use.
Q2: Is the cable fully protected from exposure?
A: Yes. The mount features internal cable routing through the pipe, keeping wiring hidden and protected from both vandalism and environmental conditions.
Q3: What kind of surfaces can it be installed on?
A: It can be mounted under hard ceilings, soffits, beams, and canopies, as well as on parapets, poles, or horizontal building structures like column tops.
Q4: Which cameras are compatible with the T94Q01F?
A: It supports multiple Axis fixed camera housings including the T92E, T93F, Q16-E, P13-E, M11-E series, and more. Always check the latest compatibility list on axis.com.
Q5: Are any accessories needed for conduit connection?
A: Optional AXIS ACI conduit adapters (3/4″ NPS or U-shape) can be used to route cables through the side for further protection and flexibility.
