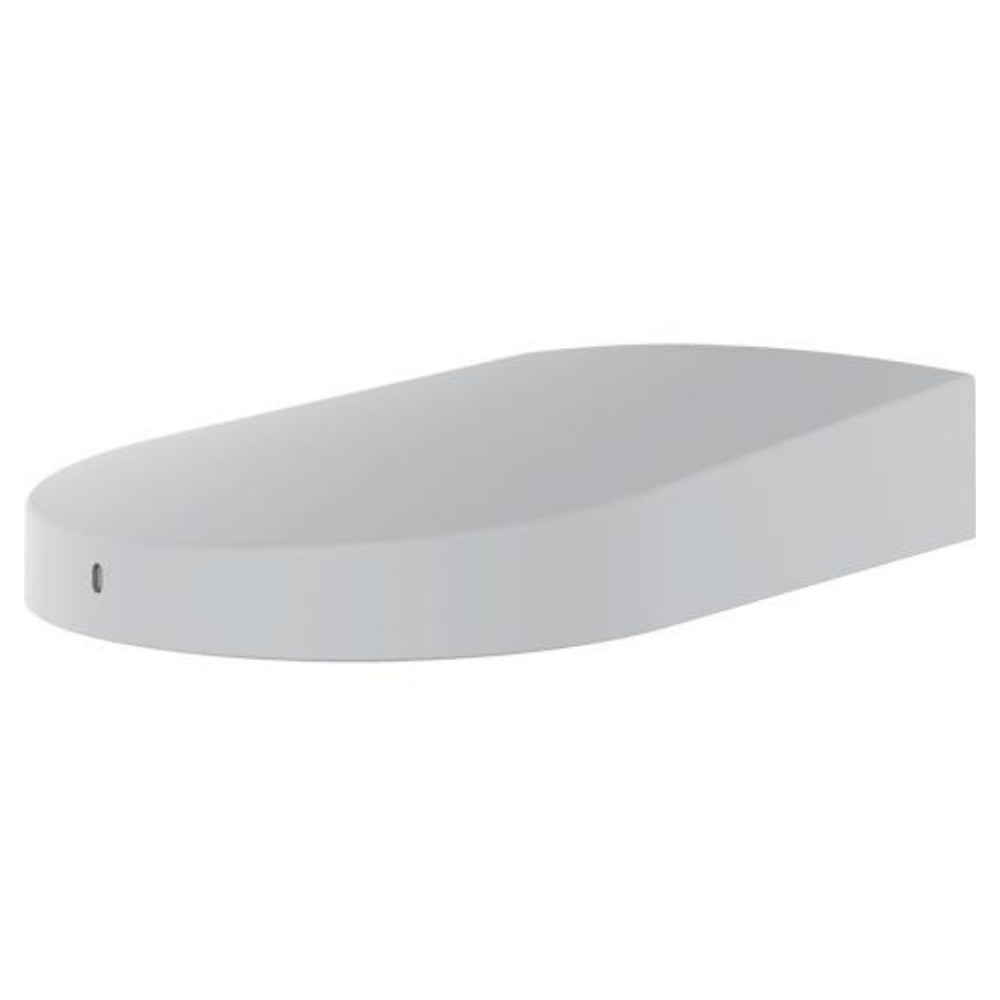

The AXIS TM3101 Pendant Wall Mount provides an elegant solution for mounting Axis mini dome cameras on walls, ceilings, or counters. With concealed cabling and a built-in compartment for accessories like microphones or connectivity modules, it supports both aesthetics and functionality. Available in white or black, it’s ideal for retail spaces, offices, or any indoor location requiring discreet surveillance hardware.
Features
-
Sleek Wall Integration – Modern design blends seamlessly into interior spaces.
-
Concealed Mounting – Hides screws and cabling for a clean appearance.
-
Built-In Storage Compartment – Space for Axis microphones or connectivity devices.
-
Flexible Installation Options – Supports wall, ceiling, or counter mounting.
-
Color Choices – Available in white or black to match installation surfaces.
-
Durable and Lightweight – Constructed with high-quality plastic and polyamide for easy handling.
-
Eco-Conscious Design – PVC-free and made with 22% recycled plastics.
What’s Included:
- AXIS TM3101 Pendant Wall Mount
- Installation Guide
- Camera Mount Screws
DOWNLOADS
Tech Specs
| Specification |
Details |
| Models |
AXIS TM3101 Pendant Wall Mount, WhiteAXIS TM3101 Pendant Wall Mount, Black |
| Supported Products |
AXIS M20, M30, M31, M42 SeriesAXIS P39 Series (not for onboard use) |
| Material |
Cover: PC ABS blendBracket: Glass fiber-reinforced polyamide |
| Color Options |
White (NCS S 1002-B)Black (NCS S 9000-N) |
| Dimensions |
175 x 124 x 39 mm (6.9 x 4.9 x 1.5 in) |
| Weight |
159 g (0.35 lb) |
| Maximum Load |
1.5 kg (3.3 lb) |
| Environment |
Indoor use only |
| Operating Conditions |
-10 °C to 50 °C (14 °F to 122 °F), 10–85% RH (non-condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Sustainability |
PVC free, 22% recycled plastics |
| Warranty |
5-year limited hardware warranty |
Q&A
Q1: Can I use this mount outdoors?
A: No. The AXIS TM3101 is designed for indoor use only. It does not have weatherproof or temperature protection for outdoor environments.
Q2: Which cameras are supported by this mount?
A: It supports a range of mini fixed domes, including the AXIS M20, M30, M31, M42, and P39 series (when not used onboard). For the latest compatibility, visit axis.com.
Q3: Is the cabling hidden once mounted?
A: Yes. The design conceals both the mounting screws and cabling to maintain a clean, tamper-resistant appearance.
Q4: Can it hold extra accessories inside?
A: Yes. The mount has an internal compartment suitable for microphones or connectivity modules like the AXIS T6101 or T8643.
Q5: Are both white and black versions available?
A: Yes. You can choose between white (NCS S 1002-B) and black (NCS S 9000-N) to best match your interior.
