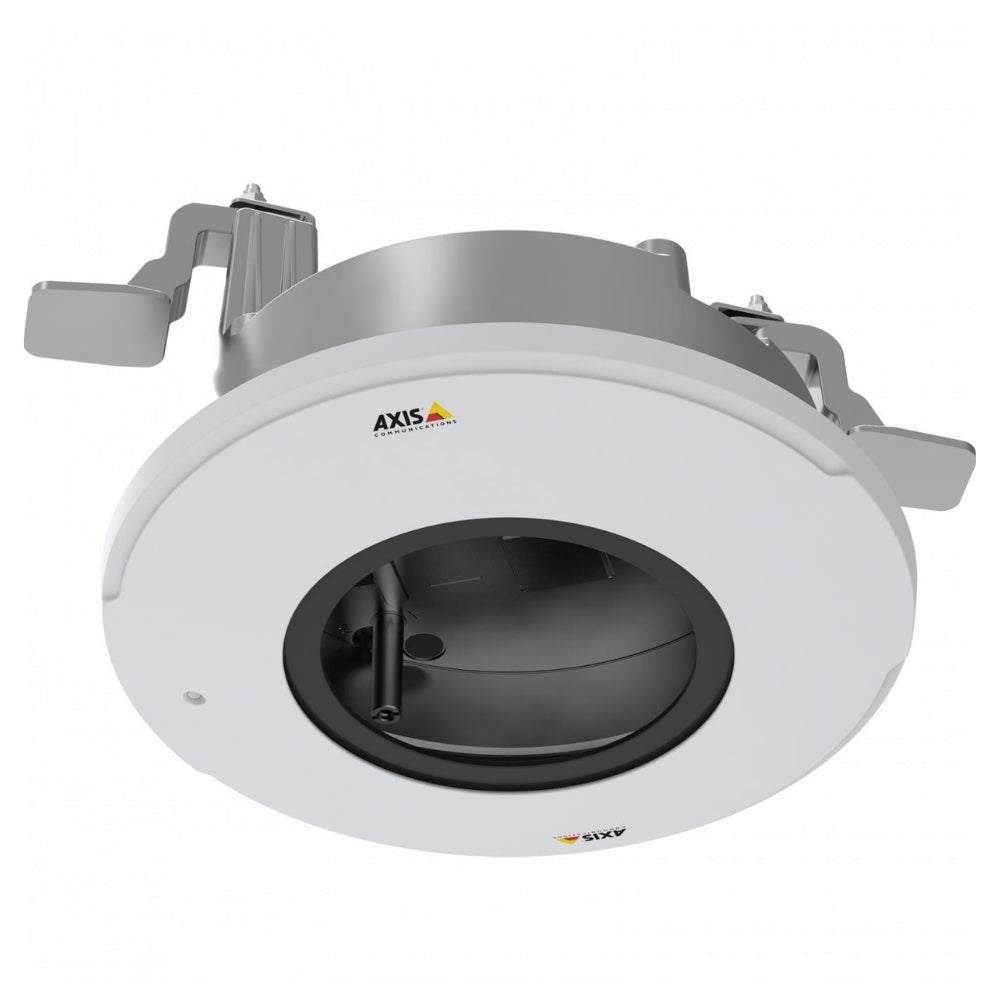

The AXIS TP3201 Recessed Mount is a robust and discreet ceiling mounting solution designed for fixed dome cameras. Ideal for environments requiring a clean, low-profile installation—such as offices, retail spaces, or public buildings—it allows the camera to blend seamlessly into the ceiling. The mount offers reliable support, cable management, and easy integration with compatible Axis cameras.
Features
-
Flush Ceiling Integration – Installs directly into suspended ceilings for a clean, low-profile look.
-
Discreet Surveillance – Only the camera dome remains visible, ideal for indoor areas requiring subtle monitoring.
-
Easy Installation – Includes mounting hardware and cutout template for quick, secure setup.
-
Durable Construction – Made from robust materials to ensure long-term stability and performance.
-
Internal Cable Routing – Hides cables for tamper-resistant and professional-looking installations.
-
Compatible with Select Cameras – Works with specific Axis fixed dome models (see axis.com for details).
-
Lightweight and Compact – Designed for minimal ceiling load while maximizing coverage efficiency.
What's Included:
- AXIS TP3201 Recessed Mount
- Mounting bracket and hardware
- Installation guide
- Cutout/dimension reference
DOWNLOADS
Tech Specs
| Specification |
Details |
| Outer Diameter |
Ø246 mm (9.69 in) |
| Mount Opening Diameter |
Ø107 mm (4.22 in) |
| Depth (Recessed) |
138 mm (5.43 in) |
| Mounting Hole Diameter |
Ø5 mm (0.20 in) |
| Cable Hole Diameter |
Ø19 mm (0.75 in), Ø15 mm (0.59 in) |
| Bracket Arm Widths |
56 mm (2.19 in), 76 mm (2.99 in), 42 mm (1.67 in) |
| Screw Spacing |
52 mm (2.03 in), 47 mm (1.84 in), 18 mm (0.69 in), 20 mm (0.77 in) |
| Component Height |
168 mm (6.60 in) |
| Flange Thickness |
27 mm (1.06 in) |
| Side Profile Depth |
19 mm (0.75 in), 57 mm (2.23 in) |
| Drawing Reference |
Axis drawing v.01, released 2019-08-19, scale 1:4 |
Q&A
Q1: Is the TP3201 mount visible after installation?
A: Only the dome of the camera is visible—this mount is designed to keep the housing flush with the ceiling for a discreet look.
Q2: Can I use this with any Axis dome camera?
A: No. It is compatible only with certain models. Always check the camera’s datasheet or axis.com for compatibility.
Q3: Is it suitable for hard ceilings or concrete?
A: No, it’s designed for drop/suspended ceilings. For hard surfaces, a surface-mount option is better suited.
Q4: Does it affect camera performance?
A: Not at all. It’s designed to maintain optimal field of view and airflow while improving aesthetics.
Q5: Is it hard to install?
A: Not at all. The mount includes everything needed and is engineered for easy setup.
