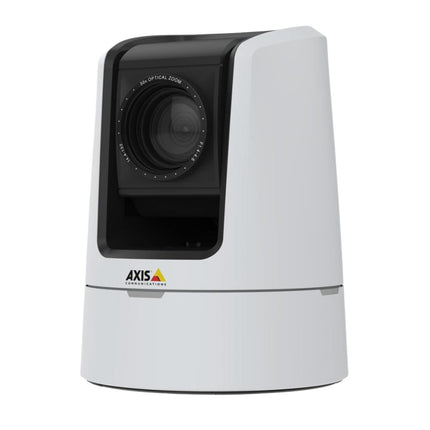

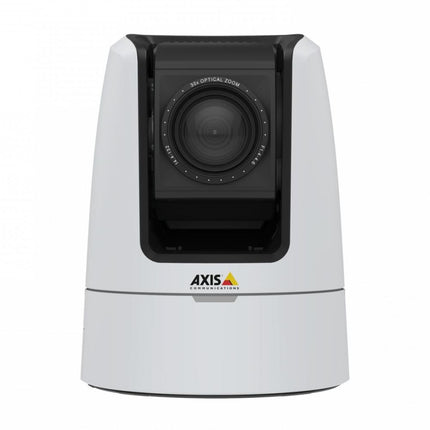

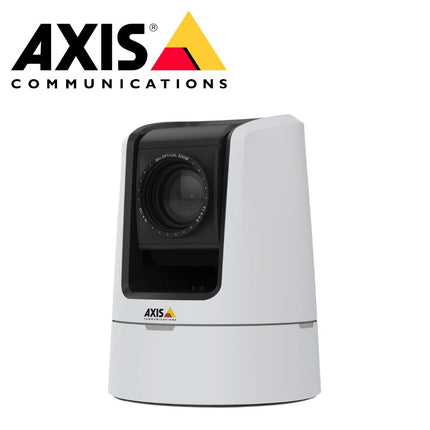

The Axis V5925 PTZ Camera is a professional-grade HD video solution designed for live production, lecture capture, and broadcast-quality streaming. With powerful 30x optical zoom and support for HDMI, 3G-SDI, and IP streaming, this versatile camera adapts to a variety of setups — from classrooms and houses of worship to auditoriums and conference halls. It combines superior image quality, smooth PTZ control, and advanced Axis technologies, making it an ideal choice for anyone who demands reliable, high-performance video.
Features
-
Broadcast-Quality PTZ – Delivers crisp 1080p HD video with fluid pan/tilt/zoom control ideal for live streaming and production.
-
30x Optical Zoom Lens – Capture fine details even from long distances with professional-grade precision.
-
Versatile Streaming Support – Stream via HDMI, 3G-SDI, and IP simultaneously for maximum flexibility in any AV setup.
-
Advanced Low-Light Tech – Lightfinder® and Wide Dynamic Range (WDR) provide sharp, balanced images in challenging lighting.
-
Smooth Autofocus & Auto Exposure – Keeps subjects sharp and correctly lit without manual adjustment.
-
Open VISCA Control Protocol – Seamlessly integrates into AV systems with standardized PTZ control.
-
Built-In Audio Support – Connect external microphones via balanced XLR inputs for professional sound capture.
-
Secure & Reliable – Axis Zipstream and cybersecurity features help protect bandwidth and your network.
-
Ideal for Events & Education – Perfect for lecture halls, worship venues, concerts, town halls, and more.
DOWNLOADS
Extra Info
Precision Video Control for Any Environment
The Axis V5925 features a high-quality PTZ motor that allows smooth transitions and rapid repositioning. Whether you're tracking a speaker across a stage or focusing in on an audience member, its 30x zoom and full HD clarity keep your footage sharp and professional.
Multiple Streaming Outputs
Equipped with HDMI, 3G-SDI, and IP streaming outputs, this camera fits effortlessly into complex AV infrastructures. Stream to a projector, a video mixer, and an online platform — all at once — without additional converters.
Superior Image Processing
Axis’s Lightfinder technology allows the V5925 to capture full-color images even in low-light settings, while WDR ensures details are visible in both bright and dark areas. This is essential for venues where lighting conditions change rapidly, such as stages or chapels.
Flexible Audio Integration
With a balanced XLR input and 48 V phantom power support, the camera can connect directly to professional microphones, improving the audio quality of your video recordings or streams.
Easy Control Integration
Support for VISCA over IP and serial control makes it easy to integrate with third-party control systems. This gives installers and operators seamless compatibility with control panels, joystick controllers, and software platforms.
Tech Specs
| Image Sensor |
1/2.8" Progressive Scan RGB CMOS |
| Lens |
4.4–132 mm, F1.4–4.6
Horizontal FOV: 62°–2.3°
Vertical FOV: 37°–1.3°
Autofocus, P-iris control |
| Minimum Illumination |
Color: 1.0 lux at 30 IRE, F1.4
Black & White: 0.03 lux at 30 IRE, F1.4 |
| Day/Night Function |
Automatically removable IR-cut filter |
| Shutter Speed |
1/10000 s to 1 s |
| Pan/Tilt Range |
Pan: ±170° at 0.2–100°/s
Tilt: -20° to +90° at 0.2–90°/s |
| Zoom |
30x Optical, 12x Digital, Total 360x |
| PTZ Features |
256 presets
Control queue
On-screen directional indicator
Adjustable zoom speed
PTZ response profiles |
| System on Chip |
ARTPEC-7 |
| Memory |
1 GB RAM, 512 MB Flash |
| Video Compression |
H.264 (Baseline/Main/High)
H.265 (Main Profile)
Motion JPEG |
| Resolution |
1920x1080 to 160x90
HDMI/SDI: 1080p@50/60 fps |
| Frame Rate |
Up to 60/50 fps in all resolutions |
| Video Streaming |
Multiple configurable streams
H.264, H.265, MJPEG
Axis Zipstream in H.264/H.265
VBR/ABR/MBR support |
| Audio Streaming |
Two-way stereo
SDI: AES3 24-bit, 48 kHz
HDMI: LPCM
Network: AAC LC, G.711, G.726, Opus, LPCM |
| XLR Audio Input |
2 Balanced Inputs
48 V Phantom Power
Max Level: 4.4 Vrms
20 Hz–20 kHz (±3 dB)
SNR: >85 dB |
| 3.5 mm Audio Input |
Unbalanced Mic/Line In
5 V via 2.2 kΩ
Max Level: 2.2 Vrms
SNR: >87 dB |
| 3.5 mm Audio Output |
Stereo Out
Output Impedance: <100 Ω
Max Level: >0.707 Vrms
SNR: >87 dB |
| HDMI/SDI Audio Out |
20 Hz–20 kHz (±3 dB)
THD+N: <0.03%
SNR: >87 dB |
| Network Protocols |
IPv4/v6, HTTP/S, FTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS, NTP, RTSP/RTP/RTCP, SFTP, TCP/UDP, IGMP, DHCP, ARP, SIP, MQTT, LLDP, CDP, Secure syslog, VISCA |
| API & Integration |
Open API, VAPIX®, ONVIF Profiles G, M, S, T
One-click cloud connection
SIP for VoIP & PBX |
| Event Triggers |
Audio detection, device status, PTZ movement,
storage alerts, scheduled events, analytics, I/O triggers |
| Event Actions |
Video recording, FTP/SFTP uploads, email alerts,
PTZ presets, overlay text, MQTT publish |
| Built-in Tools |
Pixel counter, leveling guide |
| Analytics |
AXIS Motion Detection
AXIS PTZ Autotracking
Supports third-party apps via ACAP |
| Cybersecurity |
Signed firmware, secure boot, SD encryption
802.1X, MACsec, HTTPS, TLS 1.2/1.3, NTS
Firewall, OAuth 2.0, X.509 PKI |
| Power |
11–13 V DC (12 V adapter included)
Typical: 14 W
Max: 25 W |

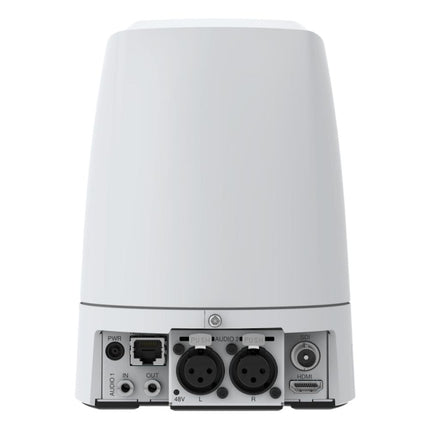

| Connectors |
RJ45 Ethernet
3.5 mm Mic/Line In & Line Out
XLR-3 Left/Right
HDMI Type A
BNC for SDI
DC input
RS232 for VISCA |
| Storage Options |
microSD/microSDHC/microSDXC
NAS recording support
SD Card Encryption (AES-XTS 256-bit) |
| Operating Conditions |
0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10–85% RH (non-condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 5–95% RH (non-condensing) |
| Approvals |
EMC: EN/FCC/VCCI/ICES/RCM/KC
Safety: IEC/EN/UL 62368-1
Environment: IEC 60068
Network: NIST SP500-267 |
| Dimensions |
Height: 180 mm (7.1 in)
Diameter: 136 mm (5.4 in) |
| Weight |
1.5 kg (3.3 lb) |
| Included Accessories |
Power supply
Wall/ceiling mount
I/O terminal block
Installation guide
Windows decoder license
Camstreamer 3-month trial |
| Optional Accessories |
AXIS T8310 Control Board
AXIS VISCA Cable |
| Languages Supported |
English, German, French, Spanish, Italian,
Russian, Simplified/Traditional Chinese,
Japanese, Korean, Portuguese, Dutch, Czech,
Swedish, Finnish, Turkish, Thai, Vietnamese |
| Warranty |
5-year Axis warranty (with registration) |
Q&A
Q: Can the Axis V5925 be used for live streaming events?
A: Yes, it supports simultaneous HDMI, 3G-SDI, and IP streaming, making it ideal for live broadcasts or event streaming.
Q: Is it suitable for low-light environments?
A: Absolutely. It features Lightfinder and WDR technologies that ensure high-quality image capture even in challenging lighting conditions.
Q: Can I connect a microphone directly to this camera?
A: Yes, it has a balanced XLR input with phantom power, perfect for professional-grade microphones.
Q: What kind of control systems does it support?
A: The camera supports VISCA, VISCA over IP, and other industry-standard protocols, allowing full PTZ control integration.
Q: What is the optical zoom capability?
A: It features a powerful 30x optical zoom lens that allows you to focus on distant subjects without losing clarity.
Q: Does it support SDI for long cable runs?
A: Yes, the built-in 3G-SDI output allows high-quality video transmission over long distances, ideal for large venues.
