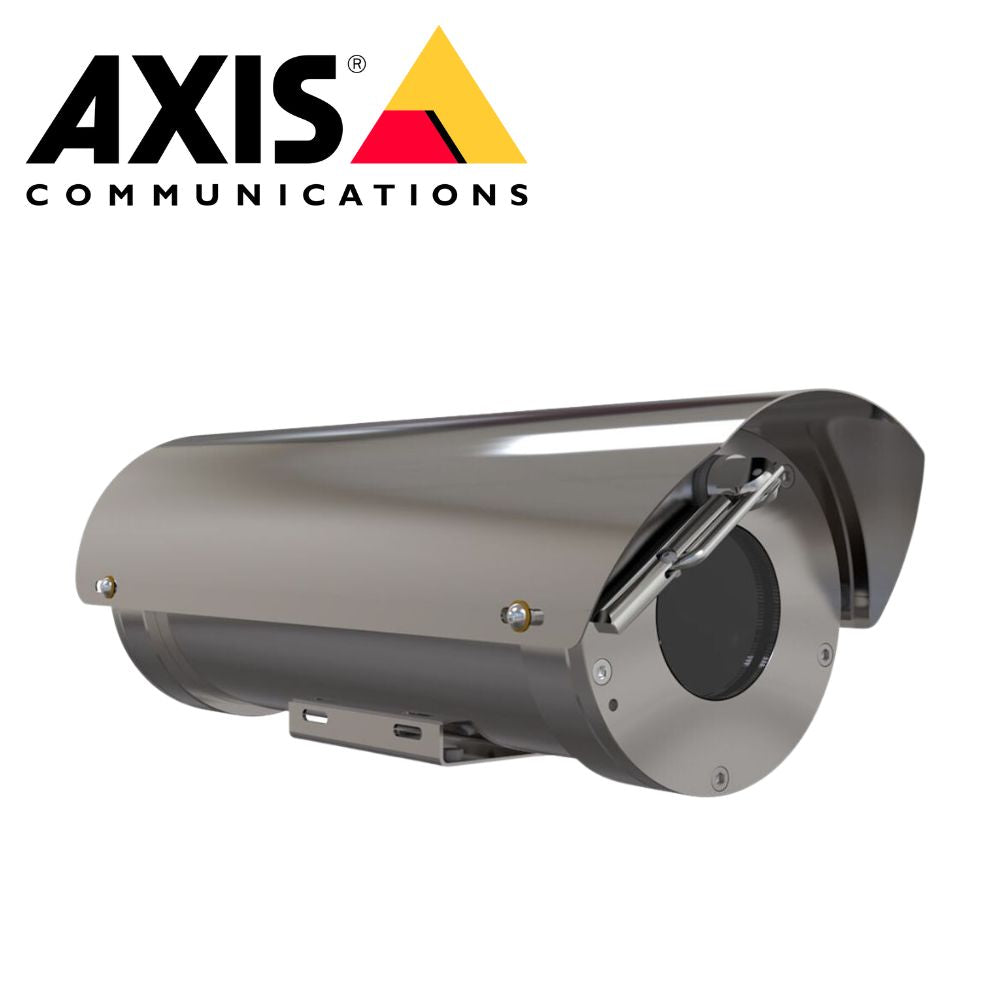

The AXIS XF40-Q1765 is an explosion-protected 1080p fixed camera in stainless steel, designed for hazardous environments. It offers zoom, global safety certifications, and remote access for reliable industrial and offshore monitoring.
Feature
-
316L Stainless Steel Housing – Robust explosion-protected enclosure certified for use in flammable gas, vapor, dust, or fiber environments.
-
HDTV 1080p Imaging – Delivers high-resolution, full-frame video for detailed monitoring, even in challenging lighting conditions.
-
18x Optical Zoom with Autofocus – Provides close-up surveillance capabilities and crisp focus across variable distances.
-
Wide Environmental Range – Operates from -60°C to 70°C with full IP66/IP67/IP68 and IK10/IK08 ratings for water, dust, and impact protection.
-
Flexible IP Integration – Supports VAPIX, ONVIF, and ACAP for integration with access control, fire detection, and third-party VMS.
-
Built-In Analytics – Includes motion detection and tampering alarms; supports additional apps via AXIS Camera Application Platform.
-
5-Year Warranty – Backed by Axis’s extended product warranty for long-term system reliability and support.
What's Included:
- AXIS XF40-Q1765 Camera (certified variant)
- Sunshield
- AXIS Surveillance microSDXC™ Card 64 GB
- Installation Guide
- Windows decoder 1-user license
DOWNLOADS
Key Info
Built for Hazardous Areas
The XF40-Q1765 prevents internal sparks from igniting hazardous air and is certified to ATEX, IECEx, UL, CSA, and other global standards for flammable zones.
High-Detail Surveillance
With 1080p video, 18x optical zoom (216x total with digital zoom), and a wide field of view, this camera ensures detailed monitoring of equipment and processes.
Rugged Marine-Grade Build
Its electropolished 316L stainless steel body resists corrosion, salt, chemicals, and physical damage—perfect for offshore rigs and industrial plants.
Smart Event Handling
Features edge storage, pixel counter, alarm triggers, and configurable actions like SNMP trap, overlays, and video upload.
Cybersecurity & Compatibility
Supports HTTPS encryption, centralized certificate management, digest authentication, and full network protocol compliance.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.9” progressive scan RGB CMOS |
| Lens |
4.7–84.6 mm, F1.6–2.8, autofocus |
| Field of View |
Horizontal: 59°–4°, Vertical: 35°–2° |
| Day/Night |
Automatically removable IR-cut filter |
| Min. Illumination |
Color: 0.5 lux / B&W: 0.04 lux |
| Shutter Speed |
1/28000 s to 2 s |
| Zoom |
18x optical, 12x digital (216x total zoom) |
| **Video** |
|
| Compression |
H.264 (Baseline/Main), Motion JPEG |
| Resolution |
1920x1080 to 160x90 |
| Frame Rate |
Up to 30/25 fps (60/50 Hz) |
| Streaming |
Multiple streams, VBR/CBR, frame rate/bandwidth control |
| Image Settings |
WDR, color, exposure zones, overlays, white balance, rotation, etc. |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, FTP, CIFS, SMTP, RTSP, SNMP, SSH, etc. |
| Security |
Passwords, IP filtering, HTTPS, digest auth, certificate management |
| Connectors |
M20 (standard), 3/4" NPT (UL models) |
| **System Integration** |
|
| API |
VAPIX, ONVIF S/G, ACAP |
| Events |
Analytics, motion, edge storage, alarms |
| Actions |
SNMP trap, video recording/upload, overlays, email alerts |
| Built-in Tools |
Pixel counter |
| **Analytics** |
|
| Included |
AXIS Video Motion Detection, Tampering Alarm |
| Supported |
AXIS Camera Application Platform (ACAP) |
| **Cybersecurity** |
|
| Storage |
Encrypted microSD/microSDXC, NAS support |
| Certifications |
ATEX, IECEx, UL, Inmetro, CNEX, CCOE, CSA, KCC, EAC, IA |
| **General** |
|
| Casing |
316L stainless steel, IP66/IP67/IP68, IK10/IK08 |
| Power |
24V AC (28W max) |
| Operating Conditions |
-60°C to 70°C, 10–100% RH (condensing) |
| Dimensions |
165 x 176 x 480 mm |
| Weight |
14 kg (31 lb) |
| Warranty |
5-year warranty |
Q&A
Q1: What makes this camera explosion-protected?
A: The stainless steel housing is certified to prevent any internal sparks from igniting external hazardous materials like gases or dust.
Q2: Is this suitable for marine or offshore use?
A: Yes, the IP68-rated 316L stainless steel housing ensures corrosion resistance and durability in saltwater environments.
Q3: What integration options are available?
A: The XF40-Q1765 supports VAPIX, ONVIF, ACAP, and third-party VMS integration.
Q4: Can it record locally?
A: Yes, it supports edge recording to encrypted microSD cards and NAS.
Q5: How long is the warranty?
A: The XF40-Q1765 comes with a 5-year manufacturer warranty from Axis.
