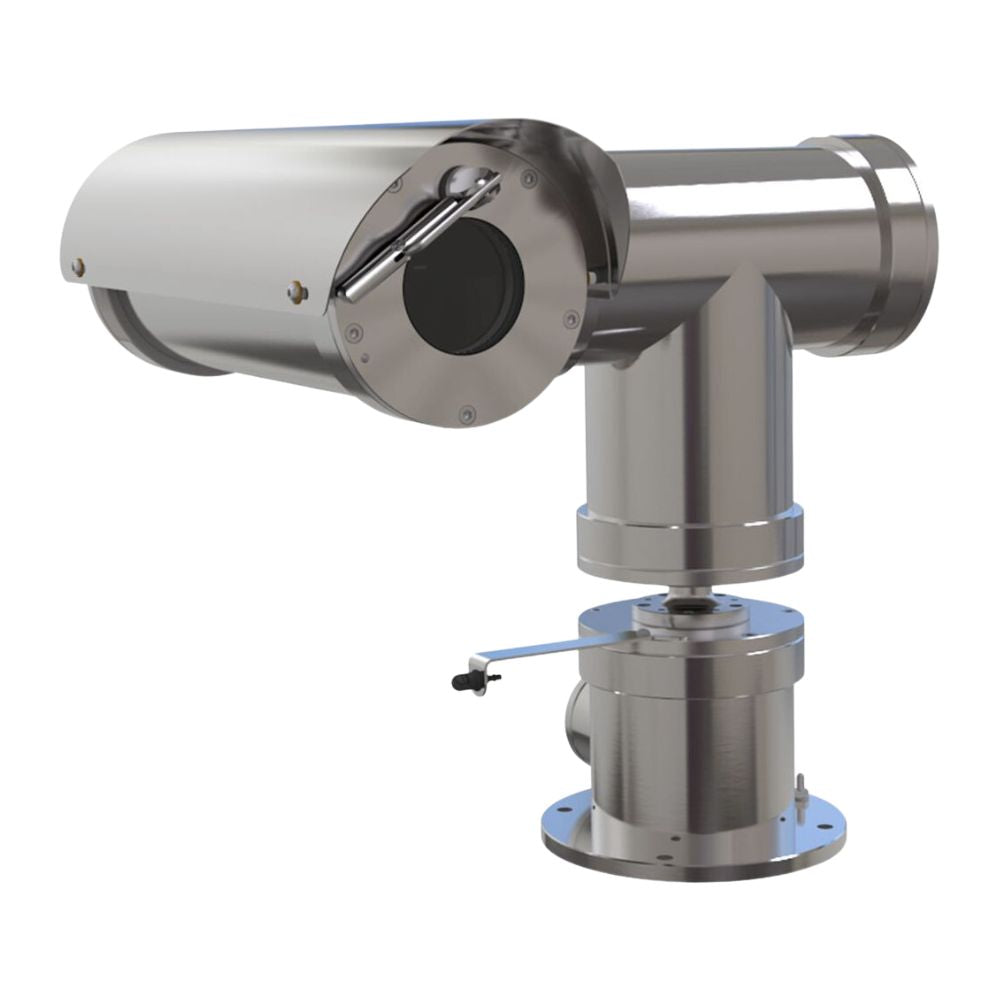

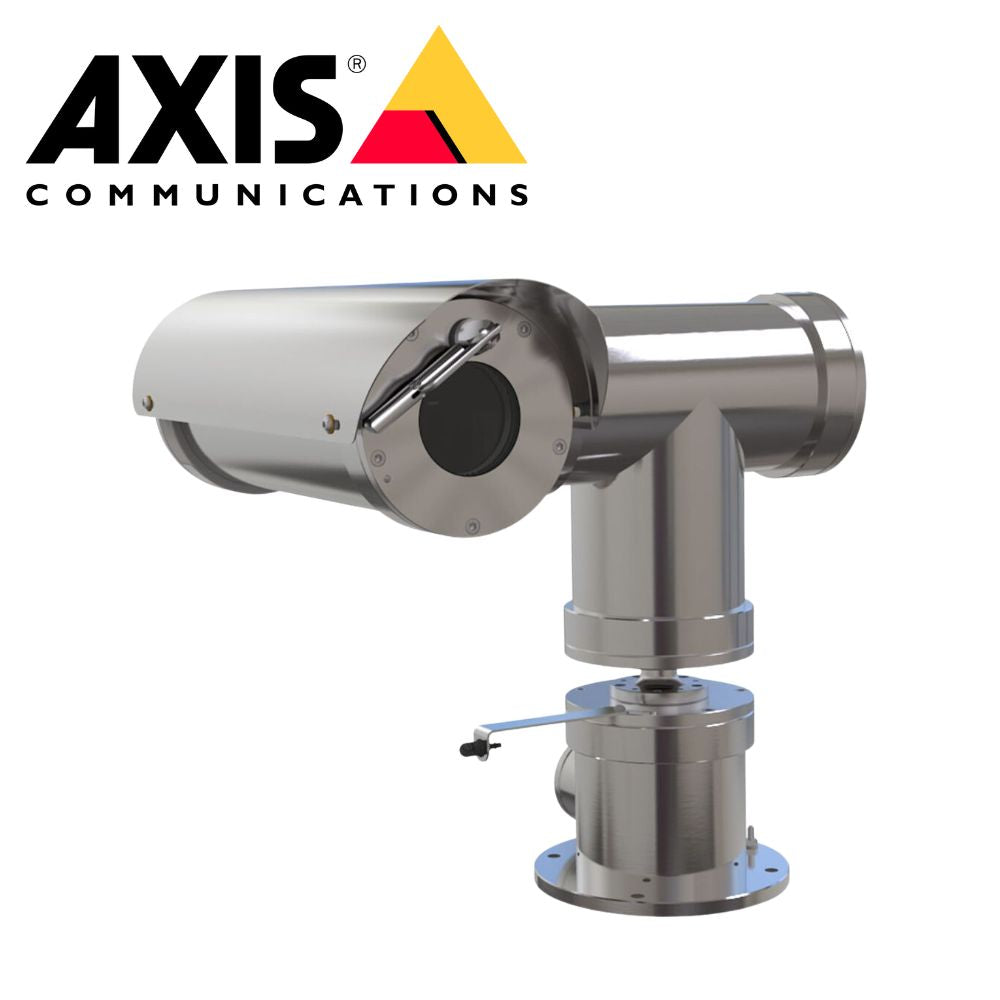

The AXIS XP40-Q1765 is a robust, explosion-protected PTZ network camera designed for hazardous industrial, offshore, and marine environments. Encased in a corrosion-resistant 316L stainless steel housing, it complies with global certifications including ATEX, IECEx, and UL. Featuring full HDTV 1080p, 18x optical zoom, and flexible integration with safety systems, this camera ensures top-tier surveillance even in volatile conditions.
Feature
-
Explosion-Proof Stainless Steel Housing – Constructed with electropolished SAE 316L stainless steel for maximum corrosion resistance and certified for use in explosive gas and dust zones.
-
Full PTZ Functionality – Offers continuous 360° pan, ±90° tilt, and 18x optical zoom with autofocus, enabling wide-area coverage and detailed surveillance.
-
HDTV 1080p with Autofocus – Delivers crystal-clear video quality with up to 30 fps in all resolutions for reliable identification of people, objects, and vehicles.
-
Flexible Remote Access – Supports IP-based remote control and seamless integration with access control, fire alarms, and video management systems.
-
Wide Operating Range – Built to operate in extreme temperatures from -60°C to 70°C and up to 100% humidity (condensing).
-
Certified Safety – Meets global explosion protection standards including ATEX, IECEx, UL, Inmetro, CNEX, and more.
- Rugged IP66/IP67 & IK10 Design – Dust-tight, water-resistant, and impact-resistant for harsh outdoor use.
What's Included:
- AXIS XP40-Q1765 Camera (certified variant)
- Sunshield
- AXIS Surveillance microSDXC™ Card 64 GB
- Installation Guide
- Windows decoder 1-user license
DOWNLOADS
Key Info
Built for Hazardous Zones Designed to prevent internal sparks or explosions from igniting external gases or dust, the XP40-Q1765 supports safe operation in Class I/II/Zone 1 hazardous areas. Certified for ATEX, IECEx, UL, CSA, Inmetro, and more.
Rugged Performance in Harsh Climates The IP66/IP67-rated stainless steel housing resists salt, chemicals, and impact (IK10), making it ideal for offshore rigs, chemical plants, and refineries.
Precision PTZ Surveillance With 360° endless pan, ±90° tilt, and 18x optical zoom (216x total with digital zoom), it provides complete situational awareness. Autofocus ensures clarity during patrol or zoomed inspections.
Smart Integration & Storage Seamlessly integrates with safety systems and VMS via ONVIF, VAPIX, and ACAP. Supports edge recording to encrypted microSD card and NAS.
Certified Safety at Every Level Tested to IEC/EN 60079 standards and certified by multiple authorities for explosion protection in oil, gas, and heavy industrial settings.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.9” progressive scan RGB CMOS |
| Lens |
4.7–84.6 mm, F1.6–2.8, autofocus |
| Field of View |
Horizontal: 59°–4°, Vertical: 35°–2° |
| Day/Night |
Automatically removable IR-cut filter |
| Min. Illumination |
Color: 0.5 lux / B&W: 0.04 lux |
| Shutter Speed |
1/28000 s to 2 s |
| PTZ |
360° endless pan, ±90° tilt, 18x optical, 12x digital zoom |
|
64 presets, guard tours, preset accuracy ±0.1° |
| **Video** |
|
| Compression |
H.264 (Baseline/Main), Motion JPEG |
| Resolution |
1920x1080 to 160x90 |
| Frame Rate |
Up to 30/25 fps in all resolutions |
| Streaming |
Multiple H.264/MJPEG, VBR/CBR, controllable bitrate |
| Image Settings |
WDR, overlays, rotation, exposure zones, white balance, fine-tuning |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, FTP, RTSP, SNMP, MQTT, etc. |
| Security |
Passwords, IP filtering, HTTPS, digest auth, signed firmware |
| Connectors |
M25 conduit (standard), 3/4" NPT (UL models) |
| **System Integration** |
|
| API |
VAPIX, ONVIF S/G, ACAP, AXIS Guardian |
| Events |
Motion, edge storage, system status, alarms |
| Actions |
Email, video record/upload, SNMP trap, overlays |
| **Analytics** |
|
| Included |
AXIS Motion Detection, Tampering Alarm |
| Supported |
ACAP 3rd-party analytics |
| **Cybersecurity** |
|
| Storage |
Encrypted microSD/microSDXC, NAS support |
| Certifications |
ATEX, IECEx, UL, Inmetro, CNEX, CCOE, CSA, KCC, EAC, IA |
| **General** |
|
| Casing |
Electropolished 316L stainless steel, IP66/67, IK10 |
| Power |
24V AC (100W) / 110V AC (114W max, UL models) |
| Operating Conditions |
-60°C to 70°C, 10-100% RH (condensing) |
| Dimensions |
475 x 512 x 480 mm |
| Weight |
50 kg (110 lb) |
| Warranty |
5-year warranty |
Q&A
Q1: Is this camera safe for explosive environments? A: Yes, the XP40-Q1765 is certified by ATEX, IECEx, UL, and others for safe operation in hazardous zones.
Q2: What material is the housing made of? A: It is made from SAE 316L stainless steel, offering excellent corrosion resistance.
Q3: Can I use this camera offshore? A: Yes, its IP66/67 and stainless steel design make it ideal for offshore and marine use.
Q4: What analytics are included? A: It comes with AXIS Motion Detection and Tampering Alarm, with support for 3rd-party analytics via ACAP.
Q5: What power options are available? A: It supports 24V AC or 110V AC depending on the certified variant purchased.
