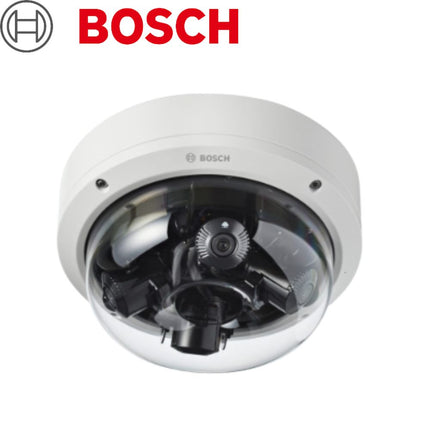

Bosch 12MP Outdoor Multi Imager Dome 7000i Camera, 4x3MP, HDR, IP66, 3.7-7.7mm - BOS-NDM-7702-A

Description

Description

Features

  • Four 3MP imagers at 30fps in one camera
  • 3.7-7.7mm motorised zoom/focus lenses
  • Single IP address
  • Easy and flexible installation
  • High Dynamic Range (HDR)
  • Two-way audio and built-in microphone
  • Built-in Intelligent Video Analytics (IVA) to trigger relevant alerts and quickly retrieve data
  • IP66
  • IK10
  • Up to 30fps
  • H.265 video compression
Datasheet
Tech Specs

Bosch 12MP Outdoor Multi Imager Dome 7000i Camera, 4x3MP, HDR, IP66, 3.7-7.7mm - BOS-NDM-7702-A

Power
Input voltage 30 W (according to PoE+ IEEE 802.3at Type 2,
Class 4)
24 VAC ±10%
PoE+ and auxiliary power can be connected
simultaneously for redundant operation
Power Consumption
(typical / maximum)		 PoE+: 18.02 W
24 VAC: 1.1 A / 16.0 W
Sensor
Sensor type 4x 1/2.7‑inch CMOS
Effective pixels 4x 2048 (H) x 1536 (V)
Sensitivity
Measured according to IEC 62676 Part 5 (1/25, F1.9)
Color 0.091 lx
Mono 0.012 lx
Dynamic range
High Dynamic Range 120 dB WDR
Measured according to
IEC 62676 Part 5		 105 dB WDR
Optical
Lens 3.7 - 7.7 mm
F1.9
Adjustment Motorized zoom/focus
Iris control DC-iris control
Day/Night Switchable IR-cut filter
Viewing angle Wide: 81.9º x 59.8º (H x V)
Tele: 39.5º x 28.9º (H x V)
Viewing angle
(maximum combined)		 Up to 360º coverage (depending on lens position
and tilt)
Platform
Common product
platform		 CPP14
Video streaming
Video compression H.265; H.264; M- JPEG
Streaming Multiple configurable streams in H.264, H.265
and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
Camera latency 120 ms
GOP structure IP, IBP, IBBP
Frame rate 1-30 fps
Signal-to-Noise Ratio
(SNR)		 >55 dB
Video resolution (H x V)
Max. Resolution 4x 2048 x 1536 (4:3) @30 fps
4x 1920 x 1080 (16:9) @30 fps
Multiple lower resolutions available in 4:3 and 16:9 format individually
selectable per stream and imager
Image setup
Mirror image On / Off
Rotate image 0° / 180°
Positioning Coordinates / Mounting height
Video functions
White Balance 2300 to 10000K, 3 automatic modes (Basic,
Standard, Sodium vapor), Manual mode and
Hold mode
Shutter Automatic Electronic Shutter (AES);
Fixed shutter (1/25[30] to 1/15000) selectable;
Default shutter
Day/Night Auto (adjustable switch point), Color,
Monochrome
Noise reduction Dynamic noise reduction with 3 levels: Low,
Medium and High
Scene modes Standard, Sodium lighting, Sensitivity boost,
Backlight, Vibrant, Color only
Privacy Masking Eight independent areas per imager, fully
programmable
Display stamping Name; Logo; Time; Alarm message; fully
programmable per imager
Additional functions Contrast, Saturation level and control,
Brightness, Sharpness, ALC level, Defog
Video content analysis
Analysis type Intelligent Video Analytics, Camera Trainer
Alarm rules
(combinable)		 Any object, Object in field, Line crossing, Enter /
leave field, Loitering, Follow route, Idle /
removed object, Counting, Occupancy, Crowd
density estimation, Condition change, Similarity
search, Flow / counter flow
Number of rules
(simultaneously)		 16 per imager
Object filters Duration, Size, Aspect ratio, Speed, Direction,
Color, Object classes (4)
Tracking modes Standard (2D) tracking, 3D tracking, 3D people
tracking, Ship tracking, Museum mode
Calibration /
Geolocation		 Automatic, based on gyro sensor, focal length
and camera height
Additional functions Tamper detection
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slot Micro SDXC / SDHC / SD card
Industrial SD cards Extreme lifetime and health monitoring support
(if supported by the SD card) that provides early
service indication.
Input/output
Audio line in 0.6 Vrms, 40 kOhm
Audio line out 1.0 Vrms, 10 kOhm
Microphone 1 integrated microphone (can be disabled)
Alarm input 1 input
Alarm input activation Short or DC 5V activation
Alarm output 1 output
Alarm output voltage 30 VDC, max. load 0.5 A
Ethernet RJ-45
USB USB Type C, for use with Wi-Fi dongle for setup
and commissioning (sold separately)
Fiber optics (sold
separately)		 The Fiber Optic Ethernet Media Converter kit
(VG4-SFPSCKT) installed inside a Surveillance
Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-UPA2) provides the fiber optic interface to the
mounted camera.
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 Kbit/s at 16 kHz sampling rate
AAC-LC, 80 Kbit/s at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Network
IP One IP address for all four imagers
Protocols Pv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, APIPA (Auto-IP, link local address), NTP
(SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
digest authentication
Ethernet 10/100/1000 Base-T
Interoperability ONVIF Profile S; ONVIF Profile G; ONVIF Profile T
Data security
Secure Element
(“TPM”)		 RSA 4096 bit, AES/CBC 256 bit
PKI X.509 certificates
Encryption Full end-to-end encryption with supported VMS
Network: TLS1.0/1.1/1.2, AES128, AES256
Local storage: XTS-AES
Video authentication checksum, MD5, SHA-1, SHA-256
Mechanical
Dimensions (D x H) 220 x 111 mm (8.7 x 4.4 in.)
Weight 2.33 kg (5.14 lbs)
Color White (RAL9003)
Gyrosensor Yes, 1 per imager
4-axis lens adjustment Pan: 0º to 360º
Rotate: -20º to 20º
Tilt: 0º to 105º
Roll: -90º to 90º
Dome bubble Polycarbonate, clear with UV blocking antiscratch coating
Housing Aluminum with dehumidifying membrane and
waterproof connection area
Mounting Mounting plate included for surface mount, 4-
inch square junction box, single and double gang
box
Conduit 3/4-inch NPT (M25) conduit side entry (sold
separately)
Environmental
Operating temperature -50 °C to +55 °C (-58 °F to +131 °F) for
continuous operation;
Up to +74 °C (+165 °F) according to NEMA TS
2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test
profile
Storage temperature 40 °C to 70 °C (-40 °F to 158 °F)
Cold start temperature -20 °C (-4 °F)
Operating humidity 5% to 93% RH non condensing
100% RH condensing
Storage humidity Up to 98% RH
Impact protection IK10
Water/dust protection IP66 and NEMA Type 4X

Read more

Product form

Bosch 12MP Outdoor Multi Imager Dome 7000i Camera, 4x3MP, HDR, IP66, 3.7-7.7mm - BOS-NDM-7702-A

SKU: BOS-NDM-7702-A Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$3,036.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Bosch Warranty
