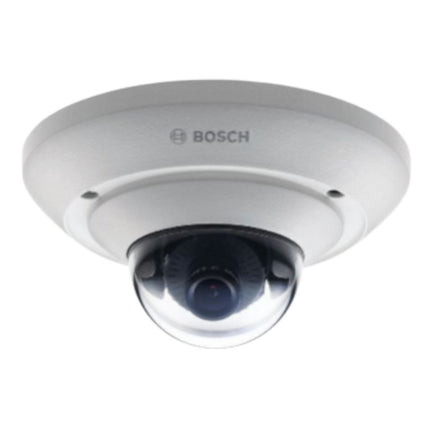

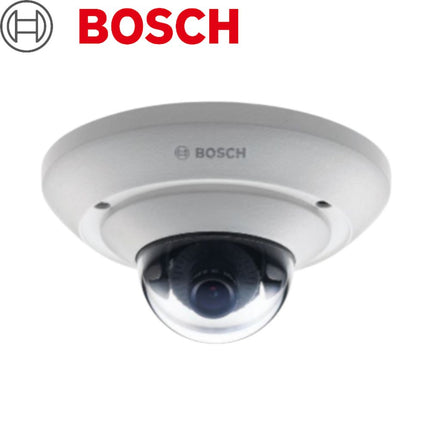

Bosch 2MP Outdoor Micro Dome 5000 Camera, H.264, WDR, IP66, IK08, 2.5mm - BOS-NUC-51022-F2

Description

Description

Features

  • Compact and stylish outdoor microdome
  • Regions of interest and E-PTZ
  • Motion and tamper detection
  • FTP, Dropbox and e-mail applications
Datasheet
Tech Specs

Bosch 2MP Outdoor Micro Dome 5000 Camera, H.264, WDR, IP66, IK08, 2.5mm - BOS-NUC-51022-F2

Power
Input voltage Power-over-Ethernet (48 VDC nominal) or
+12 VDC to +24 VDC (10% tolerance) - not
present on IVM version
Power consumption 3.84 W max.
PoE IEEE 802.3af (802.3at Type 1);
Power level: Class 1
Video
Sensor type 1/2.7-inch CMOS (1080p)
1/3-inch CMOS (5MP)
Sensor pixels 1920 x 1080 (1080p)
2592 x 1944 (5MP)
1080p Sensitivity
(3200 K, reflectivity 89%,
30IRE)		 0.4 lx (3.6 mm F1.6 lens)
1.0 lx (2.5 mm F2.8 lens)
5MP Sensitivity
(3200 K, reflectivity 89%,
30IRE)		 0.8 lx (3.6 mm F1.6 lens)
2.0 lx (2.5 mm F2.8 lens)
Dynamic range 76 dB (1080p)
65 dB (5MP)
Electronic Day/Night Auto, Color, Monochrome
Shutter speed Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/15000 for
1080p)
Fixed (1/12 to 1/15000 for 5MP)
Video resolution 1080p, 720p, 480p, 432p, 240p,
288p, 144p (1080p version)
5 Megapixels, 480p (5MP version)
Aspect ratio 16:9 (1080p)
4:3 (5MP)
Video compression H.264 MP (Main Profile); M-JPEG
Max. frame rate 30 ips (1080p)
12 ips (5MP)
(M-JPEG frame rate can vary
depending on system loading)
Video Settings Video watermarking, Alarm mode
stamping, Image mirror, Image flip,
Contrast, Saturation, Brightness,
White balance, Sharpness level,
Contrast enhancement, Backlight
Compensation, Privacy Mask, Motion
detection, Tamper alarm, Upright
mode, Pixel counter
Lens
Lens type 3.6 mm fixed, F1.6 (NUC-51022-F4,
NUC-51051-F4)
2.5 mm fixed, F2.8 (NUC-51022-F2,
NUC-51051-F2)
Lens mount Board mounted
View angle (H x V) 97° x 50.5° (NUC-51022-F4)
74° x 52° (NUC-51051-F4)
135° x 75° (NUC-51022-F2[M])
105° x 79° (NUC-51051-F2[M])
Connection
Analog video out (not for
IVM version)		 2.5 mm jack for installation only
(NTSC)
Local storage
Internal RAM 10 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (An SD card of Class 6 or
higher is recommended for HD recording)
Recording Continuous recording, ring recording. alarm/
events/schedule recording
Software
Unit Configuration Via web browser or Configuration Manager
Firmware update Remotely programmable
Software viewer Web browser, Bosch Video Client, or third
party software
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link
local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS
(DynDNS.org, selfHOST.de, no-ip.com),
SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS),
LLDP, SOAP, Dropbox, CHAP, digest
authentication
Encryption TLS 1.2, SSL, DES, 3DES
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G ; ONVIF
Profile Q
GB/T 28181
Mechanical
3-axis adjustment
(pan/tilt/rotation)		 ±175º / ±70º / ±180º
Dimensions Diameter: 110 mm (4.33 in)
Height: 55 mm (2.17 in)
Weight 320 g (11.28 oz) approx.
Color RAL 9017, RAL 9003
Environmental
IP protection IP66
Impact protection IK08
Operating
temperature		 -30 ºC to +50 ºC (-22 ºF to +122 ºF) for
continuous operation;
-34 ºC to +74 ºC (-30 ºF to +165 ºF)
according to NEMA TS 2-2003 (R2008),
para 2.1.5.1 using fig. 2.1 test profile
Environmental
Storage temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Humidity 0% to 95% relative humidity (non condensing)

Read more

Bosch 2MP Outdoor Micro Dome 5000 Camera, H.264, WDR, IP66, IK08, 2.5mm - BOS-NUC-51022-F2

Product form

SKU: BOS-NUC-51022-F2

$513.00 Incl. GST
