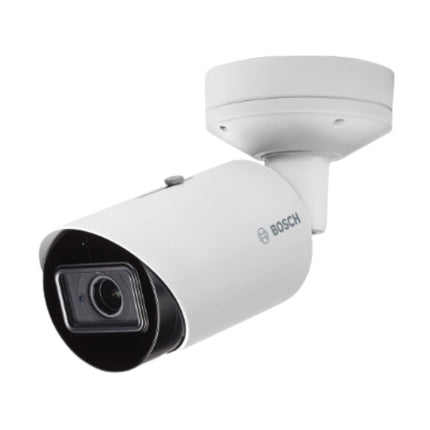

Bosch 5MP Outdoor DINION 3000i IR Bullet Camera, EVA Forensic Search, HDR, IK10, 3.2-10mm - BOS-NBE-3503-AL

Description

Description

Features

  • 5MP resolution
  • Built-in essential video analytics (EVA) to trigger relevant alerts and quickly retrieve data
  • Intelligent bitrate management
  • Data security including a trusted platform module
  • Fully configurable H.265 multi-streaming
  • Built-in IR illuminator with 30m (98 ft) viewing distance
  • Up to 30 fps
  • Two way audio and alarm
Datasheet
Tech Specs

Bosch 5MP Outdoor DINION 3000i IR Bullet Camera, EVA Forensic Search, HDR, IK10, 3.2-10mm - BOS-NBE-3503-AL

Power
Input voltage POE IEEE 802.3af / 802.3 at Type 1, Class 0
12 VDC ±30%
Power consumption
(typical / maximum)		 PoE: 3.5 W / 10.5 W
12 VDC: 3.1 W / 9.5 W
Sensor
2 MP
Sensor type 1/2.8 inch CMOS
Effective pixels 1920 (H) x 1080 (V)
5.3 MP
Sensor type 1/2.9 inch CMOS
Effective pixels 3072 (H) x 1728 (V)
Video performance - Sensitivity
2 MP
Measured according to IEC 62676 Part 5 (1/30, F1.6)
• Color 0.06 lx
• Mono 0.02 lx
• With IR 0.0 lx
5.3 MP
Measured according to IEC 62676 Part 5 (1/30, F1.6)
• Color 0.379 lx
• Mono 0.042 lx
• With IR 0.0 lx
Video performance - Dynamic range
High Dynamic Range 120 dB WD
Measured according to IEC 62676 Part 5
Video performance - Dynamic range
2 MP 103 dB
5.3 MP 101 dB
Optical
Lens type 3.2 to 10 mm, F1.6
Adjustment Motorized zoom/focus
Iris contro DC iris control
Day/Night Switchable IR-cut filter
Field of view
2 MP Wide: 104° x 54° (H x V)
Tele: 33° x 19° (H x V)
5.3 MP Wide: 89° x 47° (H x V)
Tele: 30° x 17° (H x V)
Night vision
Distance 30 m (98 ft)
LED 2 LEDs, 850 nm
IR intensity Adjustable
Video streaming
Video compression H.265; H.264; M- JPEG
Sensor modes
2 MP 30 fps, HDR, 1920 x 1080
25 fps, HDR, 1920 x 1080
5.3 MP 20 fps, HDR, 3072 x 1728 (5.3 MP)
25 fps, HDR, 2720 x 1530 (4.1 MP)
Streaming Multiple configurable streams in H.264 or H.
265 and M-JPEG, configurable frame rate and
bandwidth. Regions of Interest (ROI)
GOP structure IP
Encoding interval
2 MP 1 to 30 fps
5.3 MP 1 to 20 fps (5.3 MP)
1 to 25 fps (4.1 MP)
Signal-to-noise ratio
(SNR)		 >55 dB
Video resolution
2 MP
1080p HD >55 dB
720p HD 1280 x 720
SD 768 x 432
Video resolution
D1 720 x 480
VGA 640 x 480
5.3 MP
5.3 MP 3072 x 1728
4.1 MP 2720 x 1530
3 MP 2304 x 1296
1080p 1920 x 1080
720p 1280 x 720
SD 768 x 432
D1 720 x 480
VGA 640 x 480
Camera installation
Mirror image On / Off
Rotation 0° / 90° upright / 180° / 270° upright
Camera LED Enable / Disable
Camera view wizard Zoom, autofocus
Video functions - color
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium lamp, Dominant color),
Manual mode and Hold mode
Video functions - ALC
Shutter Automatic Electronic Shutter (AES); Fixed
(1/25[30] to 1/15000) selectable;
Default shutter
Day/Night Auto (adjustable switch points), Color,
Monochrome
Video functions - enhance
Sharpness Sharpness enhancement level selectable
Backlight
compensation		 On/off
Contrast
enhancement		 On/off
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Video content analysis
Analysis type Essential Video Analytics
Features Rule based alarms and tracking, Line crossing,
Enter / leave field, Follow route, Loitering,
Idle / removed object, People counting, Crowd
density estimation, 3D tracking
Additional functions
Privacy Masking Eight independent areas, fully programmable
Display stamping Name, Logo, Time; Alarm message
Pixel counter Selectable area
Local storage
Internal RAM up to 5 s pre-alarm recording
Memory card slot microSDHC / microSDXC SD card slot
Industrial SD cards Extreme lifetime and health monitoring
support that provides early service indication
Input/output
Audio line in 10 kOhm typical; max input 1 Vrms
Audio line out 16 Ohm typical; output 0.875 Vrms
Alarm input Short or DC 5 V activation
Alarm output Maximum load: 12 VDC / 50 mA
Ethernet RJ45 connector
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, ARP, DHCP, APIPA (Auto-IP, link local
address), NTP (SNTP), SNMP (V1, V3, MIB-II),
802.1x, DNS, DNSv6, DDNS (DynDNS.org,
selfHOST.de, no-ip.com), SMTP, iSCSI,
UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
Dropbox™, CHAP, digest authentication
Encryption TLS1.0/1.2, AES128, AES256
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G; ONVIF
Profile T: GB/T 28181
Mechanical
Dimensions (Ø x H) 101.5 x 307 mm (4 x 12.1 in.)
Weight (approx.) 1630 g (3.59 lbs)
Mounting Surface mount
Color White (RAL9003)
Environmental
Operating
temperature
(continuous)		 -30 °C to +50 °C (-22 °F to +122 °F)
Storage temperature 30 °C to +70 °C (-22 °F to +158 °F)
Humidity 5% to 100% relative humidity (condensing)
5% to 93% relative humidity (non condensing)
Storage humidity Up to 98% relative humidity
Impact resistance IK10
Water/dust
protection		 IP66
Video

Read more

Bosch 5MP Outdoor DINION 3000i IR Bullet Camera, EVA Forensic Search, HDR, IK10, 3.2-10mm - BOS-NBE-3503-AL

Product form

SKU: BOS-NBE-3503-AL

$978.00 Incl. GST

    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
    📌 Download Datasheet - BOS-NBE-350x-AL_Datasheet_1.pdf
