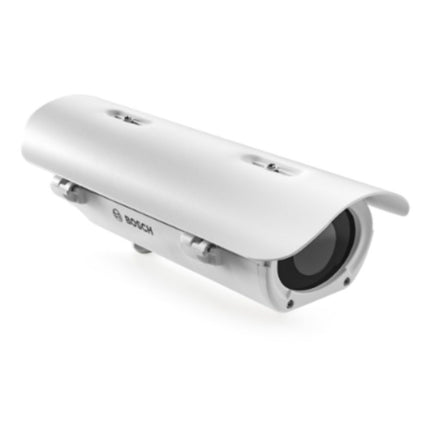

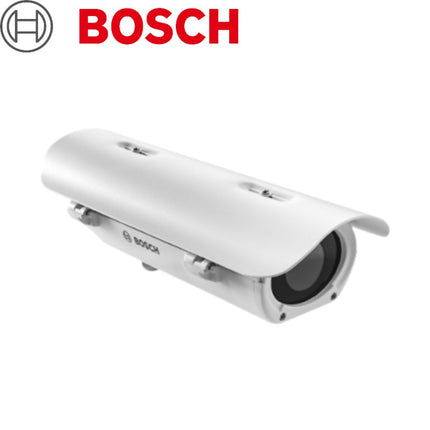

Bosch Dinion IP Thermal 8000 Bullet Camera, VGA (640x480) 30fps, IVA, 35mm - BOS-NHT8001F35VF

Description

Description

Features

  • Thermal imaging IP camera
  • Long detection range (up to 5850 m)
  • Integrated Intelligent Video Analytics
  • 640 x 480 resolution version available for even sharper images
  • High access security for data protection
Datasheet
Tech Specs

Bosch Dinion IP Thermal 8000 Bullet Camera, VGA (640x480), 30fps, IVA, 35mm - BOS-NHT8001F35VF

Power
Input voltage 24 VAC (SELV) ±10% 50/60 Hz
Power consumption 34 W max.
Thermal module
Image sensor Un-cooled vanadium oxide microbolometer
Picture elements 320(H) x 240(V) or 640(H) x 480(V)
Pixel pitch 17 μm
Thermal sensitivity < 50 mK
Video resolution
QVGA 320 x 240 at 9 fps or 60 fps
VGA 640 x 480 at 9 fps or 30 fps
Video functions – color
Adjustable picture
settings		 Contrast
Thermal color
mapping		 12 selectable modes
Lenses FoV (H x V)
QVGA VGA
7.5 mm 41.8° x 30° -
9 mm - 70° x 52°
16.7 mm - 37.5° x 28°
Lenses FoV (H x V)
19 mm 16° x 12° -
35 mm - 17.6° x 13.2°
65 mm - 9.6° x 7.2°
Video streaming
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth.
Regions of Interest (ROI)
Camera processing
latency		 <55 ms
GOP structure IP, IBP, IBBP
Camera installation
Analog output Off, 4:3, 16:9 pillar box, 16:9 crop
Positioning Coordinates / Mounting height
Video content analysis
Analysis type Intelligent Video Analytics
Configurations Silent VCA / Profile1/2 / Scheduled / Event
triggered
Alarm rules
(combinable)		 Any object
Object in field
Line crossing
Enter / leave field
Loitering
Follow route
Counting
Occupancy
Condition change
Similarity search
Flow / counter flow
Object filters Duration
Size
Aspect ratio
Speed
Direction
Object classes (4)
Tracking modes Standard (2D) tracking
Ship tracking
Museum mode
Calibration Automatic based on gyro / accelerometer data
and camera height
Additional functions
Video authentication Off / Watermark / MD5 / SHA-1 / SHA-256
Display stamping Name; Logo; Time; Alarm message
Pixel counter Selectable area
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (A memory card of Class 6
or higher is recommended for HD recording)
Recording Continuous recording, ring recording. alarm/
events/schedule recording
Input/output
Analog video out CVBS (NTSC), 1 Vpp, SMB, 75 Ohm (surge
protected)
Audio connectors 3.5 mm stereo jack (x2)
Audio line in 12 kOhm typical, 1 Vrms max
Audio line out 1 Vrms at 1.5 kOhm typical,
Alarm input
connectors		 Clamp (x2 non-isolated closing contact)
Alarm input
activation voltage		 +5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-up
resistor)
Alarm output
connector		 Clamp
Alarm output voltage 30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
Ethernet RJ45
Data port RS‑232/422/485
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Software
Unit discovery IP Helper
Unit configuration Via web browser or Configuration Manager
Firmware update Remotely programmable
Software viewing Web browser;
Video Security Client;
Video Security App;
Bosch Video Management System;
Bosch Video Client;
or third party software
Latest firmware and
software		 http://downloadstore.boschsecurity.com/
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link
local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS
(DynDNS.org, selfHOST.de, no-ip.com),
SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS),
LLDP, SOAP, Dropbox, CHAP, digest
authentication
Encryption TLS 1.2, SSL
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G;
GB/T 28181
Mechanical
Dimensions
(H x W x L)		 141 x 164 x 430 mm (5.6 x 6.5 x 16.9 in.)
including sunshield
Weight <3.5 kg (7.72 lb)
Construction Aluminum casing, silicone gaskets
Color RAL 9003 White
Window Germanium glass (Ø52 x 3 mm)
Environmental
Operating
temperature		 -40°C to +55°C (‑40°F to +131°F) for
continuous operation;
Storage temperature -55°C to +70°C (-67°F to +158°F)
Operating Humidity 5% to 95% RH non-condensing
Storage Humidity up to 98% RH
Ingress protection IP66, NEMA-4X
Enclosure protection Wind load 150 mph; NEMA TS2 vibration,
shock

Read more

Product form

Bosch Dinion IP Thermal 8000 Bullet Camera, VGA (640x480) 30fps, IVA, 35mm - BOS-NHT8001F35VF

SKU: BOS-NHT8001F35VF Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$15,312.00 Incl. GST
