Description

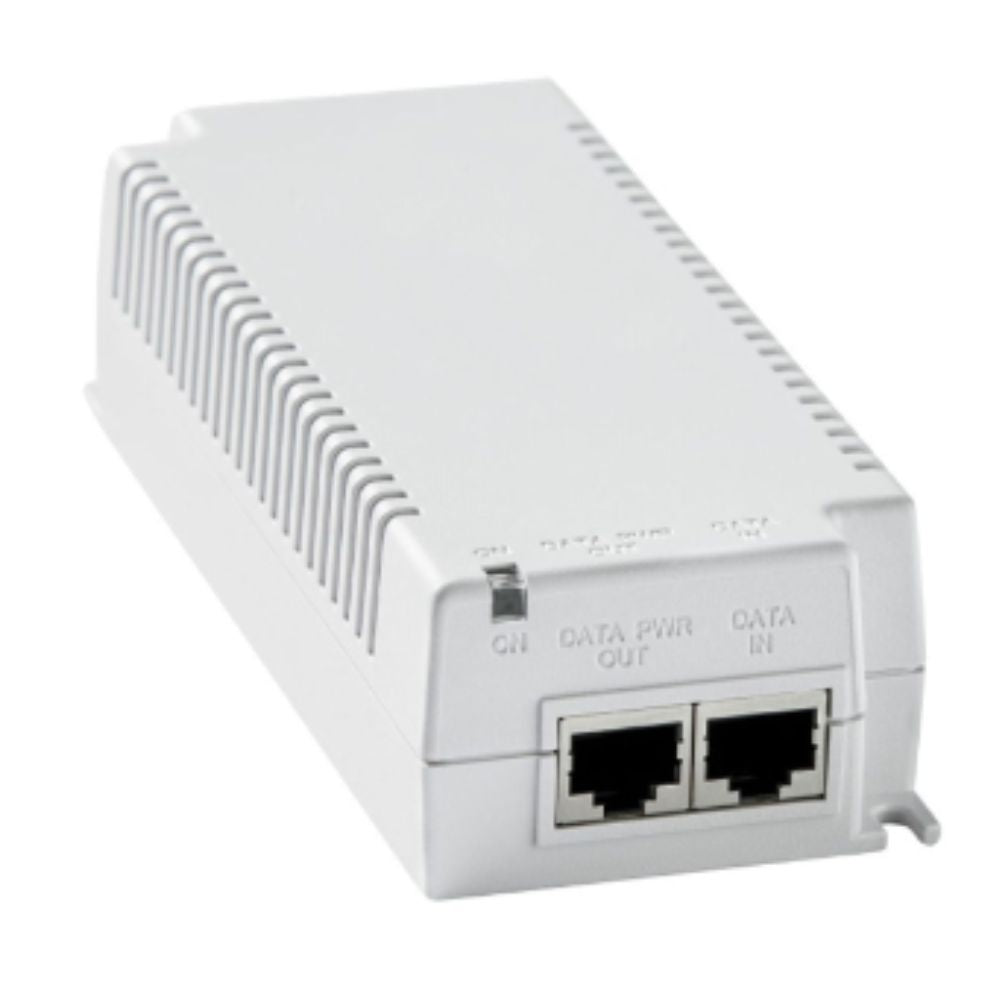

The Bosch BOS-NPD-6001B 60W midspan enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power. Rated for indoor installation only, the midspan can be installed indoors and wired to a camera installed outdoors.
The midspan provides surge protection, optimal for installation of outdoor powered devices. The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs.
Features
- Supports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards
- Lightning protection
- Detects and protects non-standard Ethernet terminals automatically
- Indoor models mount to a wall, shelf, bench or desktop
Parts included with this product:
- 1 x 60W midspan
- 1 x 120 V power cord
- 1 x 230 V power cord
- 1 x Quick installation guide
Datasheet
Tech Specs
| Dimensions (H x W x D) (mm) |
38 x 62 x 151 mm |
| Ethernet type |
10/100BASE-TX |
| Host interface |
Ethernet |
| Input voltage (VAC) |
100 – 240 VAC |
| Mounting type |
Wall-mounted |
| Operating relative humidity, non-condensing (%) |
0 – 90 % |
| Operating temperature (°C) |
-10 – 50 °C |
| Power frequency |
50 Hz; 60 Hz |
| Storage relative humidity (%) |
0 – 95 % |
| Storage temperature (°C) |
-20 – 70 °C |
