Description

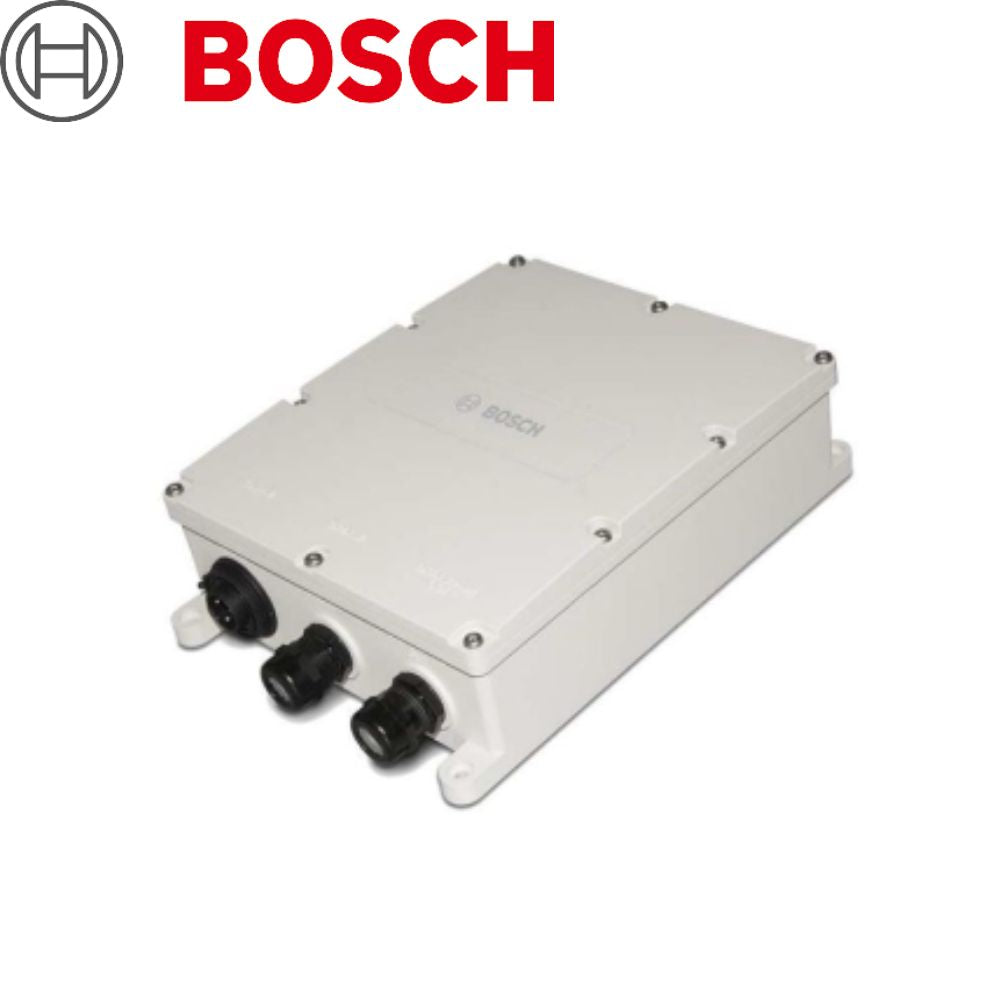

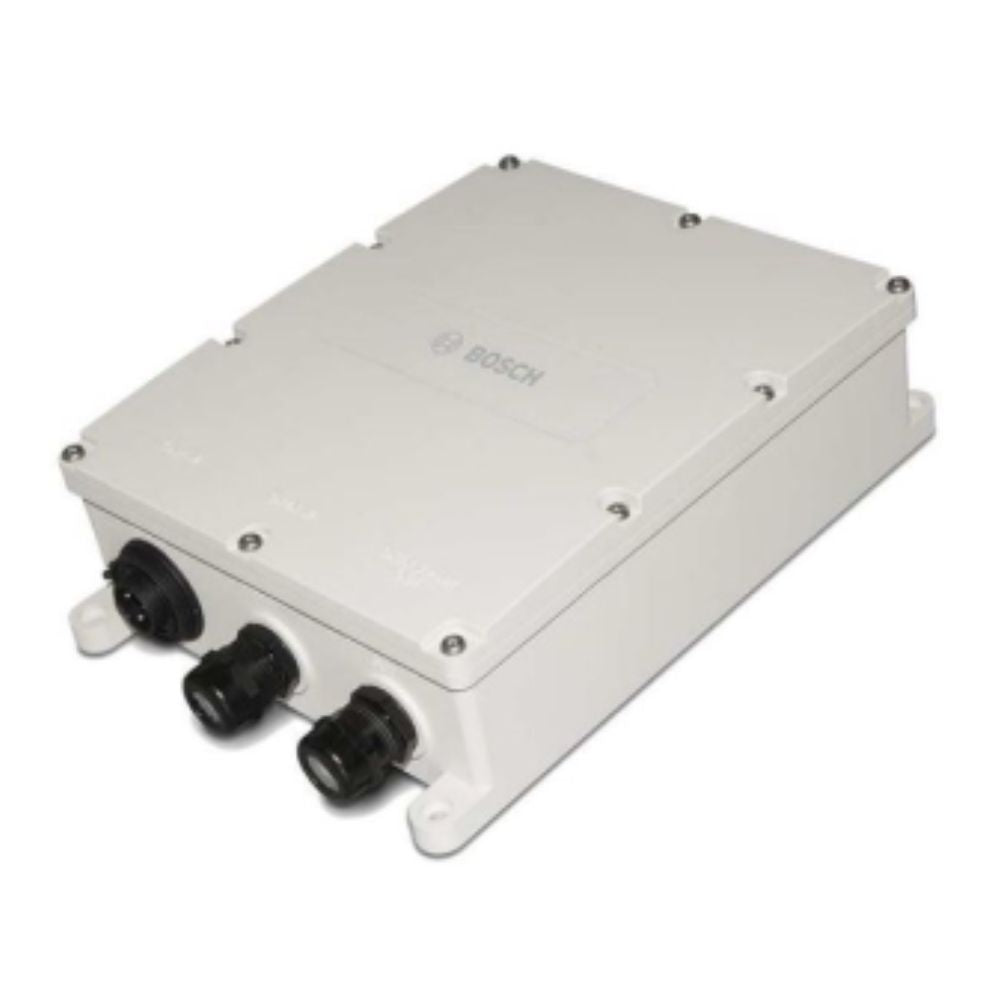

Bosch's BOS-NPD-9501-E is a 95W midspan that acts as a high-power PoH (power over HDBase T) device that provides data and power between an ethernet switch and an IP camera.
Features
- Designed for outdoor installation
- Supports high-power PoE/PoH
- Lightning suppression
- Detects and protects non-standard Ethernet terminals automatically
Parts included with this product:
- 1 x 95W outdoor midspan
- 1 x 120 -240 VAC power plug
- 2 x Waterproof cap covers for male RJ45 port plugs
- 1 x Quick installation guide
Datasheet
Tech Specs
| Color |
Beige |
| Dimensions (H x W x D) (mm) |
72 x 187.7 x 255.4 mm |
| Input voltage (VAC) |
100 – 240 VAC |
| IP rating |
IP67 |
| Mounting type |
Wall-mounted |
| Operating relative humidity, non-condensing (%) |
0 – 95 % |
| Operating temperature (°C) |
-40 – 60 °C |
| Storage relative humidity (%) |
0 – 95 % |
| Storage temperature (°C) |
-40 – 85 °C |
| Weight (kg) |
2.20 kg |
