Description
Dahua's next generation network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. This NVR is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF.
Features
- New 4.0 user interface
- 16-channel decoding@1080p (30 fps); self-adaptive decoding capability
- Access, storage or forwarding at 384 Mbps
- Simultaneous video output for VGA and HDMI1; 4K heterogeneous output for the 2 HDMI ports
- Supports RAID 0/1/5/10Multiple data mode such as Raid0, Raid1, Raid5, Raid6, and Raid10
- Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches
- AI-by-camera functions such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR and 3D behavior analysis
- N+M cluster. When the host fails, the standbydevice will continue to record; once the host recovers,video recorded on the standby device will be transmitted back
Datasheet
Tech Specs

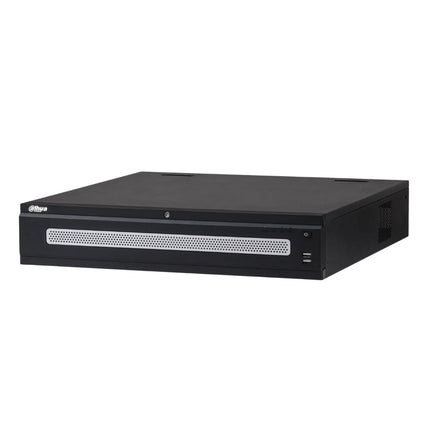

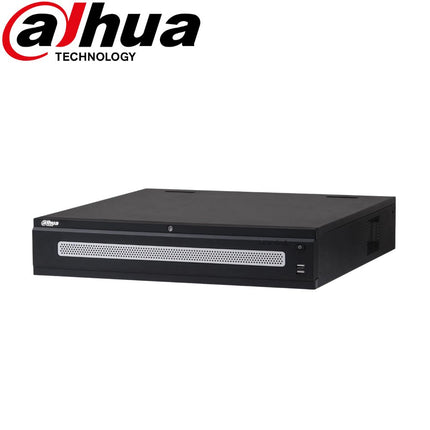

Dahua 128 Channel Network Video Recorder: 12MP (4K) - DHI-NVR608-128-4KS2
| Main Processor |
Industrial embedded micro-processor |
| Operating System |
Embedded LINUX |
| Operating Interface |
Web mode, local GUI |
| Perimeter Protection by Camera |
| Performance |
24 channels |
| AI Search |
Search pictures by channel, time, event type |
| Face Recognition by Camera |
| Performance |
24 channels |
| Face Attributes |
6 attributes: Gender, age, glasses, expression, mouth
mask, and beard |
| AI Search |
Search pictures by channel, time and face attributes |
| Performance |
32 channels |
| AI Search |
Search by target classification (Human, Vehicle) |
| Performance |
12 channels |
| Human Body |
Top, top color, bottom, bottom color, hat, bag, gender,
age, umbrella |
| Vehicle |
Plate No., type, color, vehicle type, logo, plate color,
ornament, calling, seatbelt, region |
| Non-motor Vehicle |
Type, color, number of passengers, helmet |
| AI Search |
Support search target video by metadata |
| Stereo Analysis by Camera |
| Performance |
32 channels |
| AI Search |
Search by target classification (Fall Detection, People
Approach Detection, People No. Exception Detection,
People Staying Detection, Violence Detection) |
| Access Channel |
64/128 |
| Network Bandwidth |
384 Mbps for access, 384 Mbps for storage and 384
Mbps for forwarding |
| Resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/960p/720p/
D1/CIF/QCIF |
| Decoding Capability |
16-ch@1080p (30 fps) |
| Video Output |
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1/HDMI2: 3840 × 2160@30 fps, 3840 × 2160
@25 fps, 1920 × 1080, 1280 × 1024, 1280 × 720
1 channel VGA output, 2 channels HDMI output,
VGA and HDMI 1 homologous output, double HDMI
heterogeneous output. Support 4K display for both
HDMI1 and HDMI2 |
| Multi-screen Display |
1st Screen: 1/4/8/9/16/25/36/64
2nd Screen: 1/4/8/9/16
|
| Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif,
Canon and more |
| Video |
Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/
MJPEG |
| Audio |
MP2/G726/G729/G722/G723/G711A/G711U/PCM |
| Network Protocol |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP,
UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, IP Search (Support Dahua IP camera, DVR,
NVS, etc.), P2P |
| Mobile Phone Access |
iOS, Android |
| Interoperability |
ONVIF (profile T/S/G), CGI, SDK |
| Browser |
Chrome, IE9 or later, Firefox |
| Multi-channel Playback |
1/4/9/16 |
| Record Mode |
Manual, Schedule (General, MD (Motion Detection),
Alarm, MD & Alarm, Intelligent, POS) |
| Storage Method |
Local HDD and network |
| Backup |
Hard drive, USB device, eSATA device |
| Playback Function |
1. Play, pause, stop, fast forward, fast backward, rewind,
play by frame
2. Full screen, backup (cut/file), partially enlarge, audio
on/of |
| Disk Group |
Support |
| Raid Support |
RAID 0/1/5/6/10 |
| General Alarm |
Motion detection, privacy masking, video loss, local
alarm, PIR alarm, IPC alarm |
| Anomaly Alarm |
Camera offline, storage error, full storage, IP conflict,
MAC conflict, login lock, network security anomaly |
| Intelligent Alarm |
Perimeter protection, face detection, face recognition,
SMD, video metadata (human, motor-vehicle, non-motor
vehicle), ANPR, people counting, stereo analysis, crowd
distribution, heatmap |
| Alarm Linkage |
Record, snapshot, IPC external alarm output, buzzer, log,
preset, email |
| Audio Input |
1 channel, RCA connector |
| Audio Output |
1 channel, RCA connector |
| HDD |
8 SATA III ports, up to 10 TB for a single HDD |
| Alarm Input |
16 channels |
| Alarm Output |
8 channels |
| eSATA |
1 eSATA |
| SAS |
1 Mini SAS Port, for Storage Expansion |
| RS-232 |
1 channel, used to debug and pass through serial data |
| RS-485 |
1 channel, used to control PTZ, and it supports multiple
protocols |
| USB |
2 front USB 2.0 ports, 2 rear USB 3.0 ports |
| HDMI |
2 |
| VGA |
1 |
| Network |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| Power Supply |
Single, AC100V–240V, 50–60 Hz |
| Power Consumption |
< 20 W (Without HDD) |
| Net Weight |
9 kg (19.8 lb) (Without HDD) |
| Gross Weight |
10.5 kg (23.1 lb) (Without HDD) |
| Product Dimensions |
444 mm × 459.1 mm × 95 mm (W × L × H)
17.48 inch × 18.08 inch × 3.74 inch (W × L × H) |
| Package Dimensions |
570 mm × 570 mm × 226 mm (W × L × H)
22.44 inch × 22.44 inch × 8.90 inch (W × L × H) |
| Operating Conditions |
–10°C to +55°C (+14°F to +131°F), +35°C (+95°F)
when raid enabled |
| Storage Conditions |
0°C to +40°C (+32°F to +104°F) |
| Operating Humidity |
10%–93% (RH) |
| Storage Humidity |
30%–85% (RH) |
| Operating Altitude |
3000 m (9843 ft) |
| Certifications |
CE: EN55022, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL 60950-1 and CAN/CSA C22.2 No.60950-1 |
3-Years Warranty
Dahua’s 3 year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, SECSOURCE will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please contact our support team at support@secsource.com.au or 1300 049 519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation with one of our team and they have given you an RMA number and return address.
