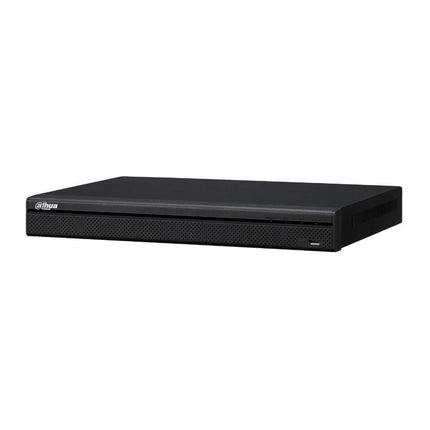

This high-capacity NVR is designed for advanced surveillance setups with up to 16 cameras. With 16 built-in PoE ports, dual hard drive support, and smart AI functions handled by connected cameras, this unit is ideal for commercial buildings, schools, and facilities requiring reliable security, smart detection, and scalable storage.
Key Features
-

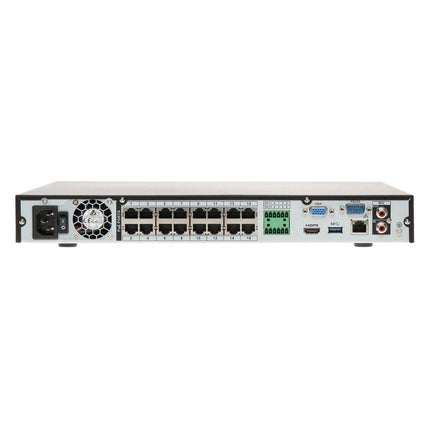

16 PoE Ports Built-in – Power and connect all 16 IP cameras without a switch or additional wiring.
-
Dual HDD Bays – Supports up to 2 SATA drives, 10TB each, for long-term storage or RAID-style backup.
-
AI by Camera Support – Records metadata from camera-based features including Face Detection, IVS, SMD+, and People Counting.
-
Smart H.265+ Compression – Saves bandwidth and storage while maintaining high video quality.
-
4K HDMI Output – Connect directly to a UHD monitor for high-resolution local viewing.
-
Perimeter Protection & SMD+ – Enhanced accuracy in motion detection and intruder alarms with reduced false triggers.
-
DMSS App Integration – Full remote access and alert push via Dahua’s updated mobile platform.
Perfect For:
- Large commercial or office buildings
- School campuses or dormitory surveillance
- Warehouses, distribution centers
- Multi-tenant buildings
- Healthcare and municipal facilities
- Systems with high retention or AI needs
Install Tips
- This model is perfect for sites where full PoE support is needed for all 16 cameras — no extra switch required.
- Ideal for installations where long retention is needed — 20TB max local storage.
- Smart AI features are handled by the camera, not by the NVR, so be sure to pair with Dahua AI models to use features like People Counting, Perimeter, and Face Detection.
- Use Smart H.265+ mode for bandwidth savings while maintaining clear images.
- DMSS replaces Easy4IP and supports all modern Dahua devices — guide clients to install DMSS for mobile alerts and remote playback.
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Channels |
16 IP Cameras |
| PoE Ports |
16 (IEEE802.3af/at) |
| Decoding |
Up to 8ch@1080p |
| Max Bandwidth |
160 Mbps Input & Storage, 64 Mbps Forwarding |
| AI Support by Camera |
Face, People Counting, SMD+, IVS, Heat Map |
| HDD Capacity |
2x SATA III (Up to 10TB each) |
| Video Output |
1x HDMI (4K), 1x VGA |
| Smart Search |
Human/Vehicle/Face Attributes |
| Mobile Access |
DMSS app (iOS, Android) |
| Remote Config |
IPC batch setup, upgrades, config |
| Third-Party Support |
ONVIF (S/T/G), RTSP |
| Audio |
1 RCA IN / 1 RCA OUT |
| Alarms |
4 In / 2 Out |
| USB Ports |
2 (1 front, 1 back) |
| Network Port |
1x RJ45 Gigabit Ethernet |
| Power Usage |
<10W NVR Only / Max 117W for PoE |
Extra Info
AI via Camera – What’s Included
This NVR is designed to record AI-driven events generated by compatible Dahua smart cameras. While it does not process AI analytics itself, it fully supports and logs metadata received from the camera, allowing for advanced search, tagging, and playback features.
AI features supported when using compatible cameras include:
-
Perimeter Protection
Detects and records intrusions based on intelligent rules such as:
-
Tripwire – triggers when an object crosses a virtual line
-
Intrusion detection – triggers when an object enters a designated area
These are ideal for protecting boundaries, entry points, and restricted zones.
-
Face Detection & Attributes
Records faces and captures metadata such as:
-
Gender and age estimation
-
Glasses, mask, and beard detection
These attributes help refine search results and enhance security auditing.
-
SMD+ (Smart Motion Detection Plus)
Differentiates between relevant motion events (such as humans and vehicles) and background movement (e.g., trees, animals, or shadows). This significantly reduces false alarms and improves system reliability.
-
People Counting & Heat Mapping
Provides data visualization tools useful for:
-
Retail analytics, such as customer traffic and conversion rates
-
Crowd control, allowing facilities to track occupancy and flow
Heat maps show high-traffic zones, while people counting supports daily/weekly/monthly metrics.
Dual HDD Design
This NVR supports up to two internal SATA hard drives, with each bay accommodating drives up to 10TB — offering a total capacity of 20TB. Storage configuration options include:
-
Separate (JBOD) mode – use both drives independently to extend video retention time
-
RAID 1 (mirroring) – mirror data between the two drives for redundancy and backup protection
This makes the unit well-suited for both high-volume and mission-critical environments.
Smart H.265+ Compression
Utilizing Dahua’s Smart H.265+ codec, this NVR dynamically adjusts compression based on scene complexity, motion, and lighting conditions. Benefits include:
-
Up to 80% reduction in file size compared to standard H.264
-
Longer recording times on the same storage capacity
-
Improved bandwidth efficiency for remote viewing and backup
This feature is particularly valuable for high-traffic areas or 24/7 surveillance scenarios where storage efficiency is key.
DMSS Mobile App Integration
The DMSS app (available for Android and iOS) gives users full control over their surveillance system from a smartphone or tablet. Key features include:
-
Live view from up to 16 cameras simultaneously
-
Smart playback with AI-based event search, including face detection, perimeter violations, and SMD+ triggers
-
Real-time push alerts for intelligent video analytics and alarm events
-
Camera management, including resolution settings, PTZ control (if applicable), and access logs
The app enhances situational awareness whether you're on-site, off-site, or managing multiple locations.
Q&A
Q: Does this NVR perform AI analytics on its own?
A: No. It records AI data generated by supported Dahua AI cameras.
Q: Can I use third-party IP cameras?
A: Yes. This NVR is ONVIF S, T, G compliant, and also supports RTSP.
Q: Does it support simultaneous HDMI and VGA output?
A: Yes. Both ports can operate at the same time. HDMI supports 4K resolution.
Q: Is DMSS better than Easy4IP?
A: Yes. DMSS is Dahua's newer and more secure mobile platform with better push alert performance and configuration options.
Q: Can I use all 16 PoE ports at full load?
A: Yes. The PoE budget is 117W total, so you can use all ports as long as each device doesn’t exceed 25.5W.
Q: Does it support disk grouping or RAID?
A: It supports disk grouping, but not full RAID. You can separate storage by purpose (e.g., record events to Disk 1, AI to Disk 2).
Q: What browsers can I use for remote access?
A: Chrome, Firefox, and IE9+ are supported.
Q: Does it support batch camera updates or configuration?
A: Yes. You can remotely configure and update cameras of the same model directly from the NVR.
