Description
Equipped with high-performance processor, the digital indoor monitor adopts 7" capacitive touch screen, 2.5D screen glass, and full-screen bezel-less design. It supports standard PoE, 2-wire digital communication, and power over two-wire switch, and has 6-channel alarm input and 1-channel alarm output.
Features
- 7" TFT capacitive touch screen
- 6-channel alarm input and 1-channel alarm output
- Supports standard PoE
- Supports H.265 and H.264 video coding
- Compatible with 2-wire interface & RJ45 interface
- Power over two-wire switch
- Call management center with one tap
- Supports daisy chain topology
- 2.5D screen glass
Datasheet
Tech Specs

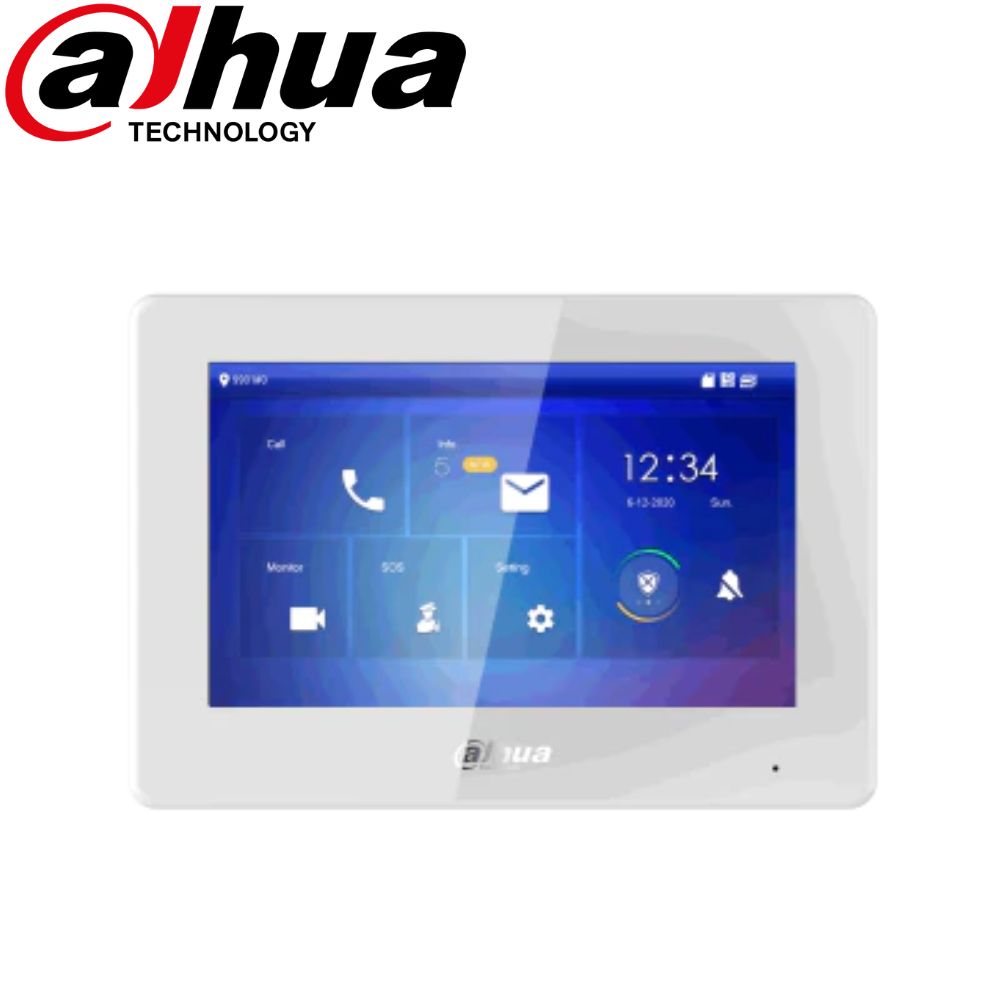

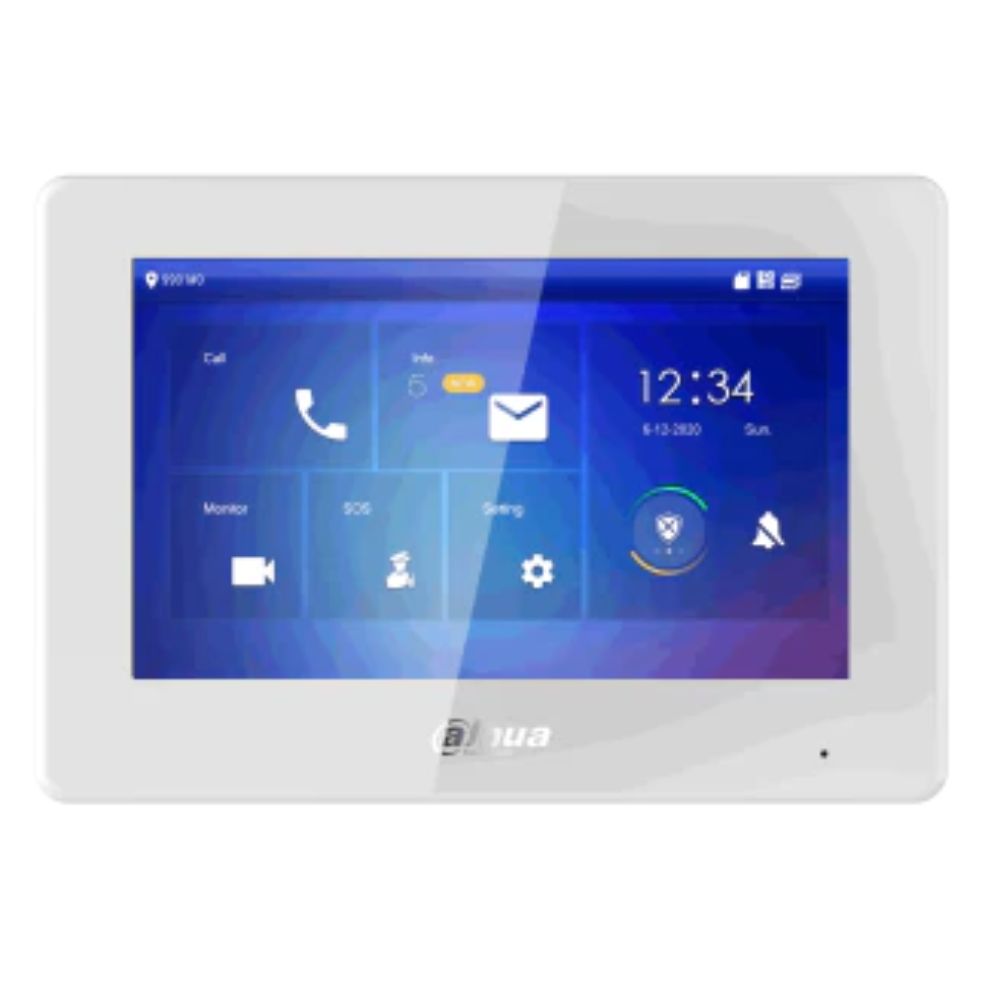

Dahua 2-Wire IP Indoor Monitor - DHI-VTH5422HW
| Main Processor |
Embedded processor |
| Operating System |
Embedded Linux operating system |
| Interoperability |
ONVIF |
| Network Protocol |
SIP; IPv4; RTSP; RTP; TCP; UDP |
| Screen Type |
Capacitive touch screen |
| Display |
7" TFT |
| Screen Resolution |
1024 × 600 |
| Audio Compression |
G.711a; G.711Mu; G.711u; PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression |
| Audio Bit Rate |
16 KHz, 16Bit |
| Communication Mode |
Full digital 2-wire |
| Information Release |
Receive and view text information released by the
management center (After SD card is installed,
picture information can be received and viewed.) |
| Leave Videos |
Yes (insert an SD card into the indoor monitor) |
| DND Mode |
DND period and DND mode can be set. |
| Number of Extension |
Villa: 3; apartment: 3 |
| Storage |
Micro SD card (up to 64 GB) |
| RS-485 |
1 |
| Alarm Input |
6 |
| Alarm Output |
1 |
| Power Output |
1 (12V/100mA) |
| Door Bell |
Yes (use any alarm input port) |
| Network |
One two-wire port and one 10Mbps/100Mbps
Ethernet port (one of them can be selected) |
| Color |
Black or white |
| Power Supply |
Two-wire switch (max power transmission distance:
50 m); Standard PoE |
| Power Adapter |
Not included |
| Installation |
Surface mount |
| Certifications |
CE; FCC; UL |
| Accessory |
Bracket and alarm ribbon cable (included) |
| Dimensions |
189.0 mm × 130.0 mm × 26.9 mm
(7.44" × 5.12" × 1.06") |
| Operating Temperature |
-10°C to +55°C (+14°F to 131°F) |
| Operating Humidity |
20% to 93% (non-condensing) |
| Operating Altitude |
Beneath 3000 m (9842.52 ft) |
| Power Consumption |
Standby ≤ 2W; working ≤ 6W |
| Net Weight |
388 g (0.86 lb) |
| Gross Weight |
741 g (1.63 lb) |
3-Years Warranty
Dahua’s 3-year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
