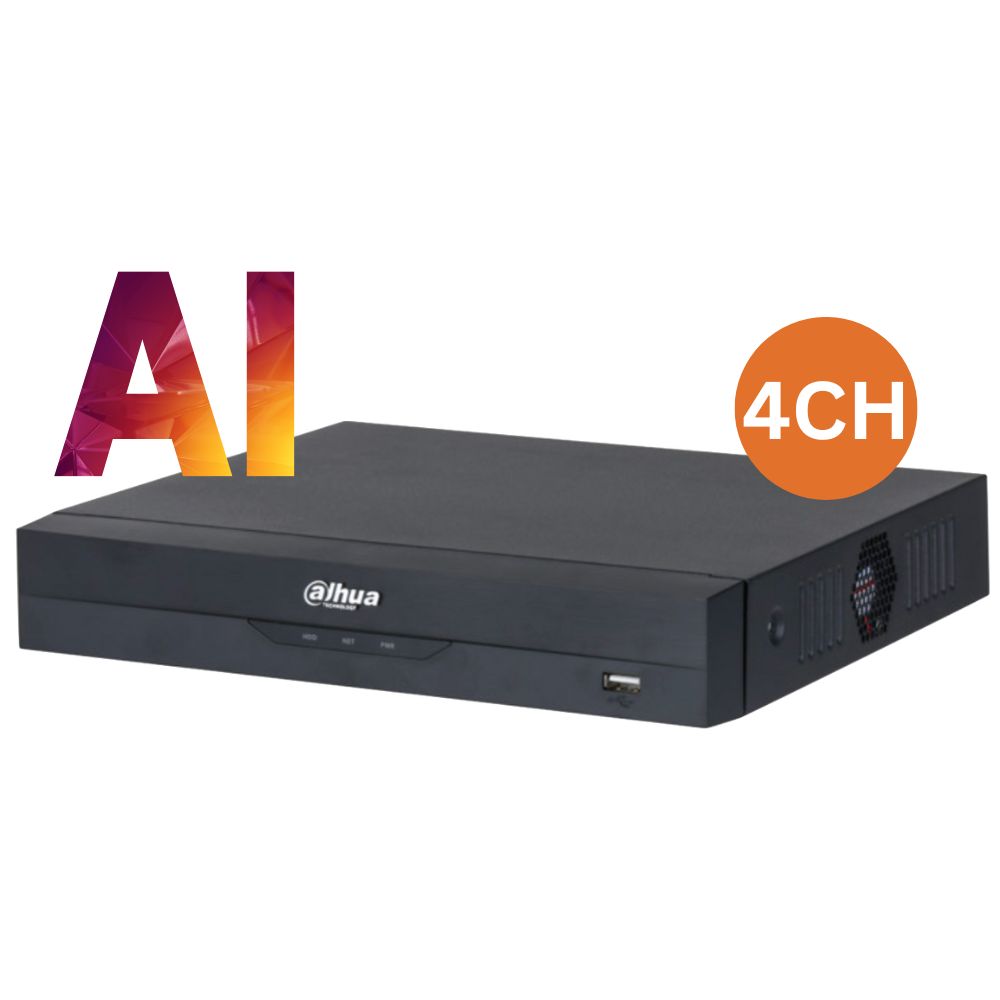

The Dahua DHI-NVR4104HS-P-AI/ANZ is a compact 4-channel NVR designed for small and medium-sized businesses, delivering powerful AI-based surveillance in a space-efficient 1U form factor. With support for up to 4 PoE channels, intelligent video analytics like face recognition, perimeter protection, and SMD Plus, and compatibility with third-party cameras, this NVR provides a high-performance solution for video surveillance that integrates seamlessly with existing systems.
Key Features
-
AI-Powered Surveillance
Supports advanced AI capabilities like face detection, face recognition, perimeter protection, and Smart Motion Detection (SMD Plus), delivering more accurate and reliable alerts.
-
Real-Time Face Recognition
With the ability to manage up to 10 face databases and store up to 200,000 face images, this NVR provides fast and efficient face recognition for security and access control.
-
Perimeter Protection with AI
Automatically filters out false alarms caused by non-relevant objects like animals and leaves, ensuring better detection accuracy for human and vehicle targets.
-
Quick Pick Technology
Integrates with Dahua's Quick Pick feature, making it easy to search and select human or vehicle targets for efficient video retrieval from motion detection events.
-
Supports Third-Party Cameras
With ONVIF support, it is compatible with a wide variety of third-party network cameras, offering flexible integration with existing surveillance setups.
-
Heat Map and ANPR Integration
Offers heat map technology for visualizing crowd density and Automatic Number Plate Recognition (ANPR), enhancing security and traffic monitoring capabilities.
-
Compact and Efficient Design
The 1U compact form factor with 4 PoE ports simplifies installation, saving space and eliminating the need for additional power supplies for cameras.
Perfect For:
-
Small Offices & Retail Stores
-
Parking Lots & Perimeter Fences
-
Warehouses & Storage Areas.
-
Public Spaces & Malls
-
Residential Complexes & Access Control
Install Tips
-
Compact Installation: Due to the 1U form factor, it's best suited for rack or desktop mounting in environments where space is tight.
-
PoE Ports Usage: Utilize the 4 PoE ports to power cameras directly, eliminating the need for separate power supplies and simplifying wiring.
-
Lens Options for Various Areas: Choose appropriate lenses (2.8mm for wide-angle views, 3.6mm for more focused coverage) based on the area being monitored.
-
Optimal Camera Placement for Perimeter Protection: Install cameras at key perimeter points for effective AI perimeter protection—focus on areas where unauthorized access is most likely.
-
AI Features Setup: When configuring face recognition and perimeter protection, ensure proper database management and adjust sensitivity to reduce false positives.
-
Heat Map Setup: For crowded areas, ensure that camera placement covers common traffic zones to maximize the effectiveness of the heat map function.
Downloads
Quick-Read Specs Card
| Feature |
Specification |
| Channels |
4 Channels (PoE) |
| Resolution |
16 MP, 12 MP, 8 MP, 6 MP, 1080p, 720p, D1 |
| Decoding Capability |
AI disabled: 4× 8MP at 30 fps; AI enabled: 4× 5MP at 30 fps |
| AI Features |
Face detection, face recognition, SMD Plus, Perimeter Protection, ANPR |
| Audio |
1-channel RCA Input/Output |
| Storage |
1 SATA port (up to 16 TB) |
| Power |
53 VDC, PoE (max 25.5W per port) |
| Weather Rating |
Not applicable (indoor unit) |
| Network Bandwidth |
80 Mbps incoming, 80 Mbps recording, 80 Mbps outgoing |
| Dimensions (mm) |
260 mm × 232.7 mm × 47.6 mm |
| Weight |
Net weight: 0.86 kg (1.90 lb) |
Extra Info

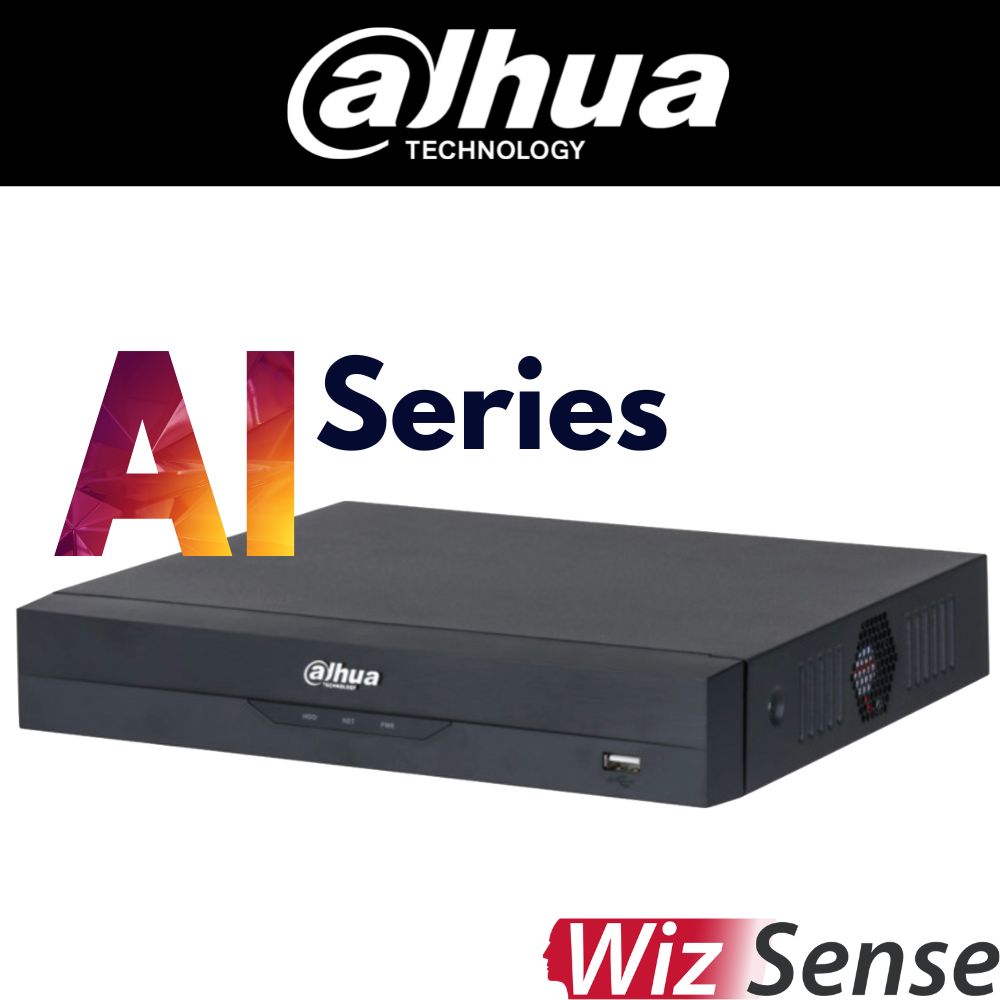

WizSense Technology
The WizSense series is Dahua's AI-powered product lineup, offering an independent AI chip that enables precise human and vehicle detection. This technology ensures fast and accurate surveillance data processing while significantly reducing false alarms. It simplifies security management, making it accessible to businesses with various levels of surveillance needs.
Face Detection & Recognition
With the ability to manage up to 10 face databases and store up to 200,000 images, Dahua’s face recognition technology helps identify individuals based on their facial features. This is perfect for access control, attendance systems, and enhancing security where knowing who is present is critical. It’s paired with face detection, which ensures high-quality snapshots for more reliable recognition.
SMD Plus
Dahua’s SMD Plus technology ensures more accurate motion detection by filtering out irrelevant movements like wind or animals, allowing the system to focus on human or vehicle targets. This helps reduce unnecessary alarms, ensuring that operators are only alerted when significant events occur.
Perimeter Protection
With perimeter protection, the NVR intelligently filters out unwanted triggers like rustling leaves or animals and ensures that human and vehicle movement is accurately detected. This is particularly useful for larger outdoor environments, like parking lots and property boundaries.
AI Search Functionality
Dahua’s AI Search allows you to search video footage by metadata, making it faster to find specific individuals or vehicles. Operators can upload a face image to compare with recorded footage or search by vehicle plate numbers, improving efficiency when reviewing large amounts of footage.
ANPR and Quick Pick
The ANPR (Automatic Number Plate Recognition) function allows for easy vehicle monitoring, supporting up to 20,000 license plates. It also works in conjunction with Quick Pick technology, which helps security teams quickly identify and retrieve vehicle or person events from SMD.
Q&A
Q: What is the maximum number of face images the NVR can store?
A: The NVR can store up to 200,000 face images across 10 face databases, providing a large capacity for recognition and access control.
Q: How many cameras can I connect to this NVR?
A: The DHI-NVR4104HS-P-AI/ANZ supports up to 4 channels and provides PoE support, so you can connect up to 4 PoE-enabled cameras directly.
Q: What AI features are supported by this NVR?
A: This NVR supports face detection and recognition, perimeter protection, SMD Plus, Q: ANPR, people counting, stereo analysis, and heat map when integrated with compatible cameras.
Q: Can I use third-party cameras with this NVR?
A: Yes, this NVR supports third-party ONVIF cameras, allowing you to integrate various brands like Panasonic, Sony, Axis, and others.
Q: Can this NVR record audio?
A: The NVR supports audio input and output via RCA connectors. You can connect external microphones and speakers as needed for audio surveillance.
Q: How is the AI feature enabled?
A: The AI features are available by default on this NVR, with enhanced functionality like face recognition, SMD Plus, and perimeter protection. These features can be toggled on or off in the settings.
Q: Is this NVR suitable for outdoor installations?
A: The NVR is designed for indoor use, but it can be paired with outdoor-rated cameras for perimeter and outdoor surveillance.
