Description
Dahua's new NVR5000-4KS2 network video recorder delivers excellent performance and high recording quality that is ideally suitable for IP video surveillance applications. This professional NVR adopts powerful processor, providing the capability of 4K resolution processing for applications where image details are highly required. Additionally, the NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.
Features
- 16/32/64-channel IP video access
- Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
- Max 320 Mbps incoming bandwidthxUp to 12MP resolution for live view and playback
- 1-channel fisheye dewarping (AI by NVR)
- AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
Datasheet
Tech Specs

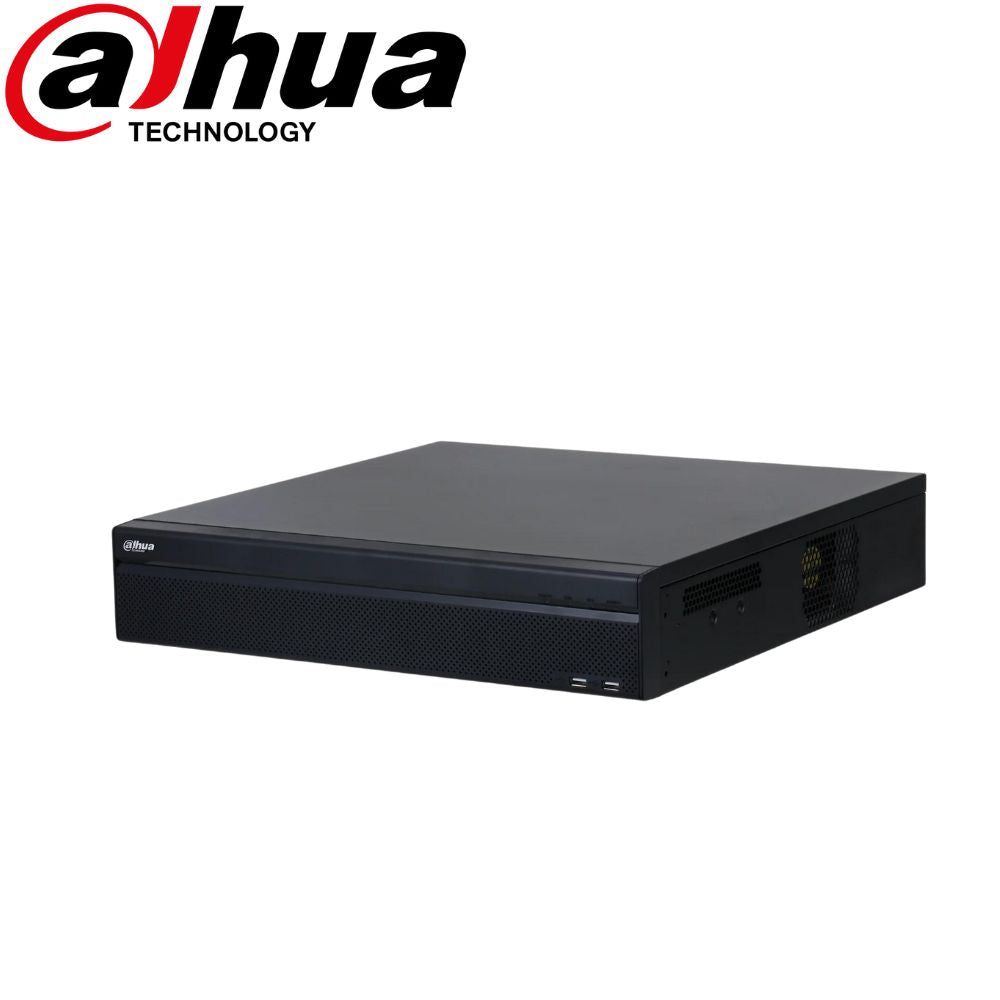

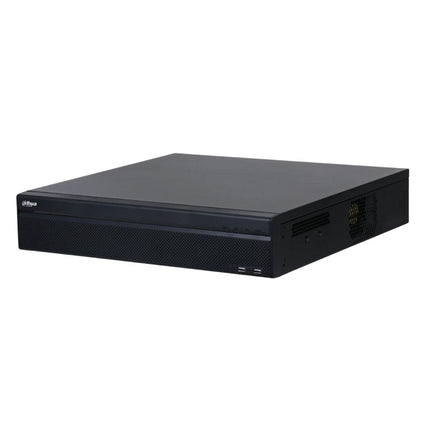

Dahua 64 Channel Network Video Recorder: 24MP - DHI-NVR5864-R-4KS2
| Main Processor |
Industrial embedded micro-processor |
| Operating System |
Embedded LINUX |
| Operating Interface |
Web mode, local GUI |
| Perimeter Protection by Camera |
| Performance |
16/20/20 channels |
| AI Search |
Search pictures by channel, time, event type |
| Face Recognition by Camera |
| Performance |
14 channels |
| Face Attributes |
6 attributes: Gender, age, glasses, expression, mouth
mask, and beard |
| AI Search |
Search pictures by channel, time and face attributes |
| Performance |
16/32/64 channels |
| AI Search |
Search by target classification (Human, Vehicle) |
| Performance |
16 channels |
| Human Body |
Top, top color, bottom, bottom color, hat, bag, gender,
age, umbrella |
| Vehicle |
Plate No., type, color, vehicle type, logo, plate color,
ornament, calling, seatbelt, region |
| Non-motor Vehicle |
Type, color, number of passengers, helmet |
| AI Search |
Support search target video by metadata |
| Stereo Analysis by Camera |
| Performance |
16 channels |
| AI Search |
Search by target classification (Fall Detection, People
Approach Detection, People No. Exception Detection,
People Staying Detection, Violence Detection) |
| Access Channel |
16/32/64 |
| Network Bandwidth |
320 Mbps for access, 320 Mbps for storage and 320
Mbps for forwarding |
| Resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/960p/720p/
D1/CIF/QCIF |
| Decoding Capability |
16-ch@1080p (30 fps) |
| Video Output |
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1/HDMI2: 3840 × 2160@30 fps, 3840 × 2160
@25 fps, 1920 × 1080, 1280 × 1024, 1280 × 720
1 channel VGA output, 2 channels HDMI output,
VGA and HDMI 1 homologous output, double HDMI
heterogeneous output. Support 4K display for both
HDMI1 and HDMI2 |
| Multi-screen Display |
1st Screen: 16-channel: 1/4/8/9/16
32-channel: 1/4/8/9/16/25/36
64-channel: 1/4/8/9/16/25/36/64
2nd screen: 1/4/8/9/16
|
| Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif,
Canon and more |
| Video |
Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/
MJPEG |
| Audio |
PCM; G.711A; G.711U; G.726 |
| Network Protocol |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP,
UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, IP Search (Support Dahua IP camera, DVR,
NVS, etc.), P2P |
| Mobile Phone Access |
iOS, Android |
| Interoperability |
ONVIF (profile T/S/G), CGI, SDK |
| Browser |
Chrome, IE9 or later, Firefox |
| Multi-channel Playback |
1/4/9/16 |
| Record Mode |
Manual, Schedule (General, MD (Motion Detection),
Alarm, MD & Alarm, Intelligent, POS) |
| Storage Method |
Local HDD and network |
| Backup |
Hard drive, USB device, eSATA device |
| Playback Function |
1. Play, pause, stop, fast forward, fast backward, rewind,
play by frame
2. Full screen, backup (cut/file), partially enlarge, audio
on/of |
| Disk Group |
Support |
| Raid Support |
RAID 0/1/5/6/10 |
| General Alarm |
Motion detection, privacy masking, video loss, local
alarm, PIR alarm, IPC alarm |
| Anomaly Alarm |
Camera offline, storage error, full storage, IP conflict,
MAC conflict, login lock, network security anomaly |
| Intelligent Alarm |
Perimeter protection, face detection, face recognition,
SMD, video metadata (human, motor-vehicle, non-motor
vehicle), ANPR, people counting, stereo analysis, crowd
distribution, heatmap |
| Alarm Linkage |
Record, snapshot, IPC external alarm output, buzzer, log,
preset, email |
| Audio Input |
1 channel, RCA connector |
| Audio Output |
2 channels, RCA connector, which supports voice
intercom output |
| HDD |
8 SATA III ports, up to 10 TB for a single HDD |
| Alarm Input |
16 channels |
| Alarm Output |
6 channels |
| eSATA |
1 eSATA |
| SAS |
1 Mini SAS Port, for Storage Expansion |
| RS-232 |
1 channel, used to debug and pass through serial data |
| RS-485 |
1 channel, used to control PTZ, and it supports multiple
protocols |
| USB |
2 front USB 2.0 ports, 2 rear USB 3.0 ports |
| HDMI |
2 |
| VGA |
2 |
| Network |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| Power Supply |
Single, AC100V–240V, 50–60 Hz |
| Power Consumption |
< 16.7W (without HDD) |
| Net Weight |
6.55 kg (14.4 lb) (without HDD) |
| Gross Weight |
9.5 kg (20.94 lb) (without HDD) |
| Product Dimensions |
440.0 mm × 452.5 mm × 94.9 mm (17.3" × 17.8" ×
3.7") |
| Package Dimensions |
–10°C to +55°C (+14°F to +131°F) |
| Operating Conditions |
–10°C to +55°C (+14°F to +131°F), +35°C (+95°F)
when raid enabled |
| Storage Conditions |
0°C to +40°C (+32°F to +104°F) |
| Operating Humidity |
10%–93% (RH) |
| Storage Humidity |
30%–85% (RH) |
| Operating Altitude |
3000 m (9843 ft) |
| Certifications |
CE: EN55022, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL 60950-1 and CAN/CSA C22.2 No.60950-1 |
