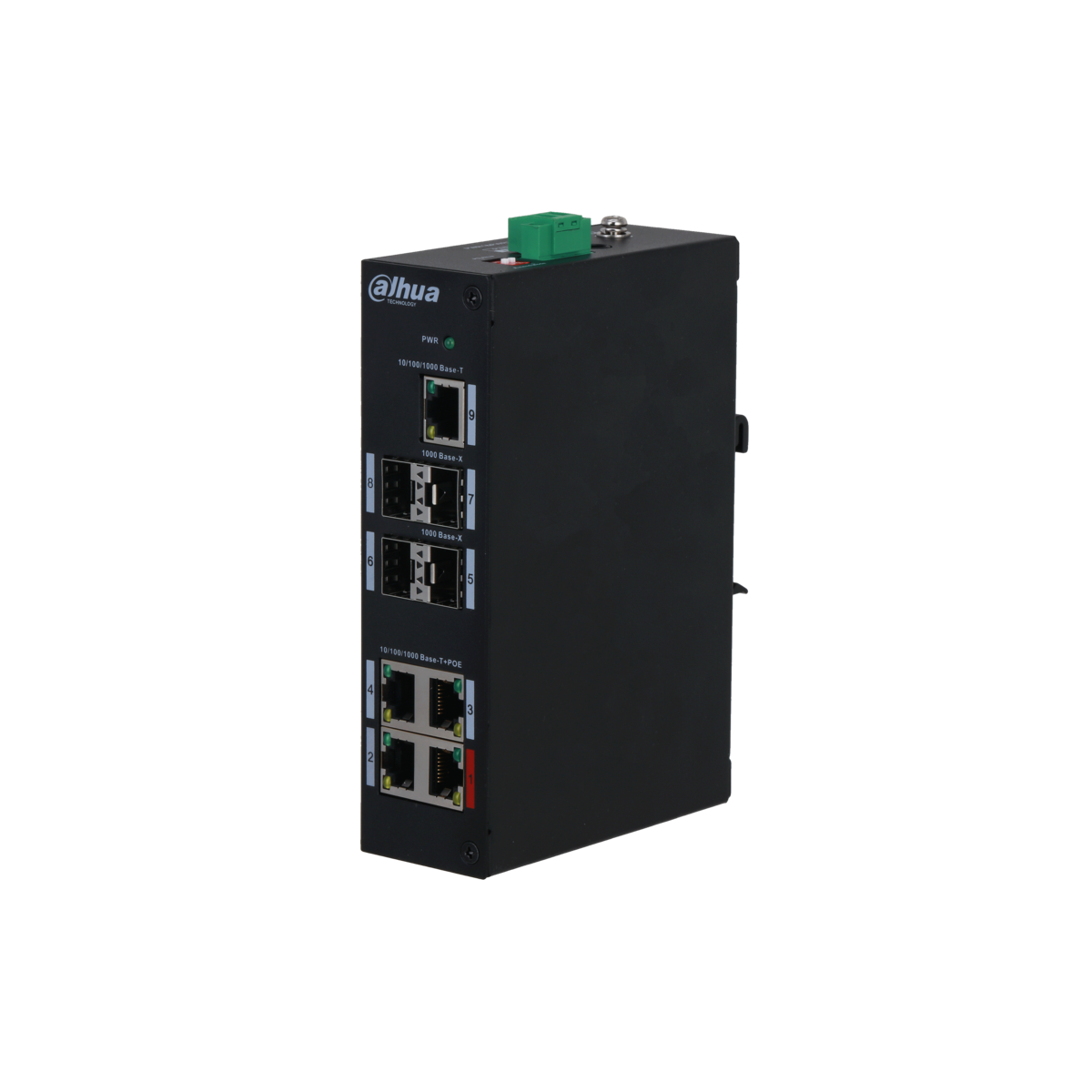

Dahua 8-Port ( 9P) Gigabit PoE+ Switch 120W, 4x SFP, 1x Uplink, L2 Unmanaged - DH-PFS3409-4GT-96-V2

Description

Dahua Desktop PoE Switch | DH-PFS3409-4GT-96

Features:

  • 4 × 10/100/1000 Mbps PoE ports, 4 × 1000 Mbps SFP uplink ports, and 1 × Gigabit uplink port
  • Supports IEEE802.3af / at / bt and Hi-PoE (up to 90W per port)
  • Intelligent PoE power management with real-time monitoring
  • Long-distance PoE transmission up to 250 m (Extend Mode)
  • PoE Watchdog for automatic port recovery
  • 8-pin PoE power supply for improved compatibility and reduced loss
  • All-gigabit ports with 33 Gbps switching capacity
  • Wide operating temperature range (-30°C to +65°C)

Dahua Authorised Dealer Networking Switch

Downloads

Tech Specs

Hardware

Ethernet Port

Port 1–4: 4 × RJ45 10/100/1000 Mbps (PoE)
Port 5–8: 4 × SFP 1000 Mbps (uplink)
Port 9: 1 × RJ45 10/100/1000 Mbps (uplink)

Standards

IEEE802.3 / IEEE802.3u / IEEE802.3X / IEEE802.3az / IEEE802.3ab

PoE

PoE Protocol

IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt / Hi-PoE

PoE Power Output

Port 1 ≤ 90W; Ports 2–4 ≤ 30W; Total ≤ 120W

Power Supply Pins

1,2,4,5 (V+); 3,6,7,8 (V-)

Long Distance

Up to 250 m (10 Mbps in Extend Mode)

PoE Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

33 Gbps

Packet Forwarding Rate

13.39 Mpps

Packet Buffer Memory

1.75 Mbit

Flow Control

Enabled by default

General

Power Input

48–57 V DC

Power Consumption

Idling: 2W
Full Load: 96W

Lightning Protection

Common mode: 4 kV
Differential mode: 2 kV

ESD Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Operating Temperature

-30°C to +65°C (-22°F to +149°F)

Operating Humidity

5%–95% (RH)

Installation

Desktop / Wall-mount

Weight

0.67 kg (1.48 lb)

Dimensions

150 mm × 110 mm × 42 mm (5.91" × 4.33" × 1.65")

Product form

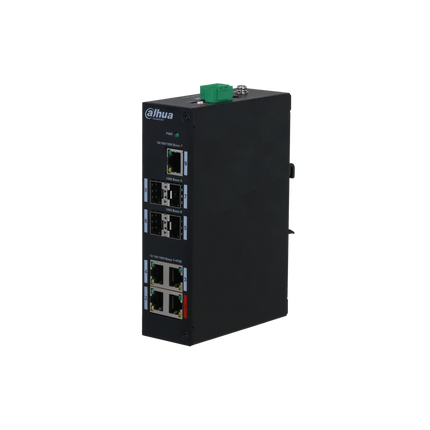

Dahua 8-Port ( 9P) Gigabit PoE+ Switch 120W, 4x SFP, 1x Uplink, L2 Unmanaged - DH-PFS3409-4GT-96-V2

SKU: DH-PFS3409-4GT-96-V2 Datasheet

🟡 LIMITED STOCK
We will reach out with alternatives if no longer available.

$239.00 Incl. GST

5% Off Discount Code: Dahua-2026
Copied!
    PayPalAmerican Express Apple Pay Google Pay Mastercard Shop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Dahua Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    Dahua Desktop PoE Switch | DH-PFS3409-4GT-96

    Features:

    • 4 × 10/100/1000 Mbps PoE ports, 4 × 1000 Mbps SFP uplink ports, and 1 × Gigabit uplink port
    • Supports IEEE802.3af / at / bt and Hi-PoE (up to 90W per port)
    • Intelligent PoE power management with real-time monitoring
    • Long-distance PoE transmission up to 250 m (Extend Mode)
    • PoE Watchdog for automatic port recovery
    • 8-pin PoE power supply for improved compatibility and reduced loss
    • All-gigabit ports with 33 Gbps switching capacity
    • Wide operating temperature range (-30°C to +65°C)

    Dahua Authorised Dealer Networking Switch

    Downloads

    Tech Specs

    Hardware

    Ethernet Port

    Port 1–4: 4 × RJ45 10/100/1000 Mbps (PoE)
    Port 5–8: 4 × SFP 1000 Mbps (uplink)
    Port 9: 1 × RJ45 10/100/1000 Mbps (uplink)

    Standards

    IEEE802.3 / IEEE802.3u / IEEE802.3X / IEEE802.3az / IEEE802.3ab

    PoE

    PoE Protocol

    IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt / Hi-PoE

    PoE Power Output

    Port 1 ≤ 90W; Ports 2–4 ≤ 30W; Total ≤ 120W

    Power Supply Pins

    1,2,4,5 (V+); 3,6,7,8 (V-)

    Long Distance

    Up to 250 m (10 Mbps in Extend Mode)

    PoE Management

    Yes

    PoE Watchdog

    Yes

    Performance

    Switching Capacity

    33 Gbps

    Packet Forwarding Rate

    13.39 Mpps

    Packet Buffer Memory

    1.75 Mbit

    Flow Control

    Enabled by default

    General

    Power Input

    48–57 V DC

    Power Consumption

    Idling: 2W
    Full Load: 96W

    Lightning Protection

    Common mode: 4 kV
    Differential mode: 2 kV

    ESD Protection

    Air discharge: 8 kV
    Contact discharge: 6 kV

    Operating Temperature

    -30°C to +65°C (-22°F to +149°F)

    Operating Humidity

    5%–95% (RH)

    Installation

    Desktop / Wall-mount

    Weight

    0.67 kg (1.48 lb)

    Dimensions

    150 mm × 110 mm × 42 mm (5.91" × 4.33" × 1.65")
