Description

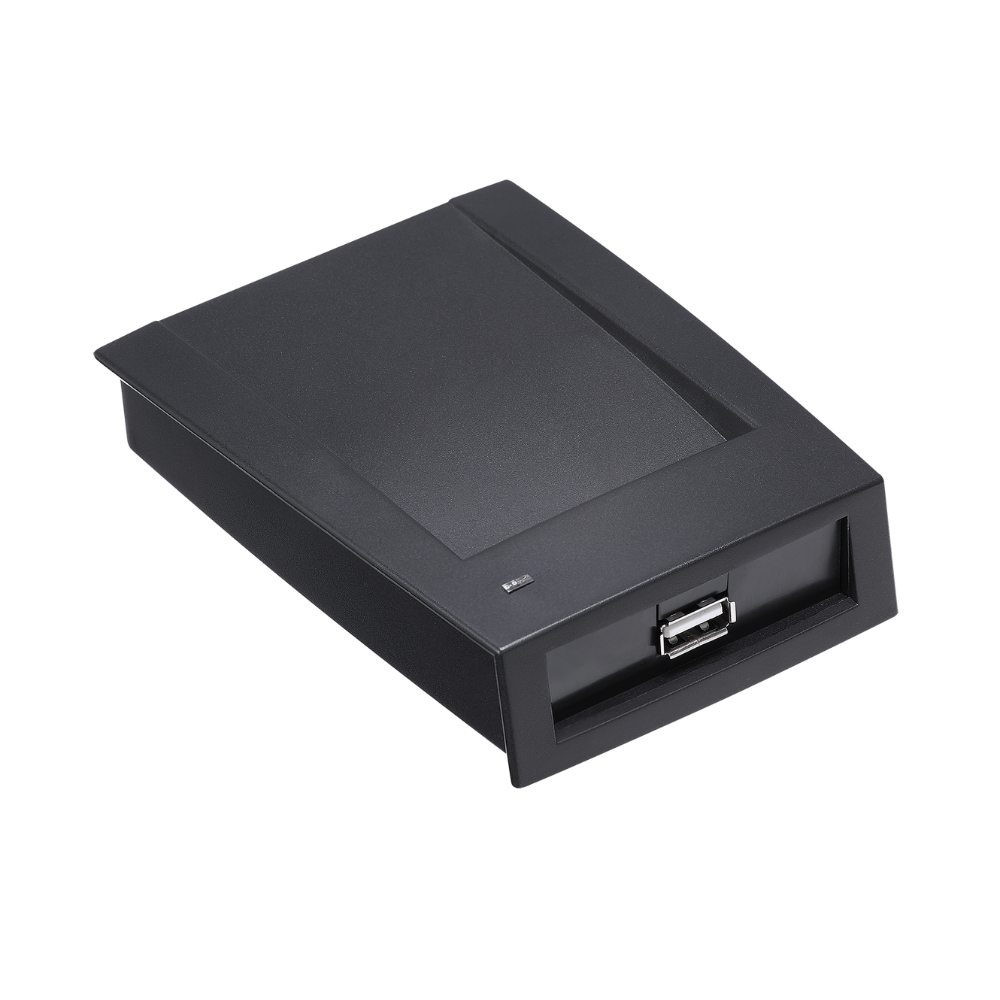

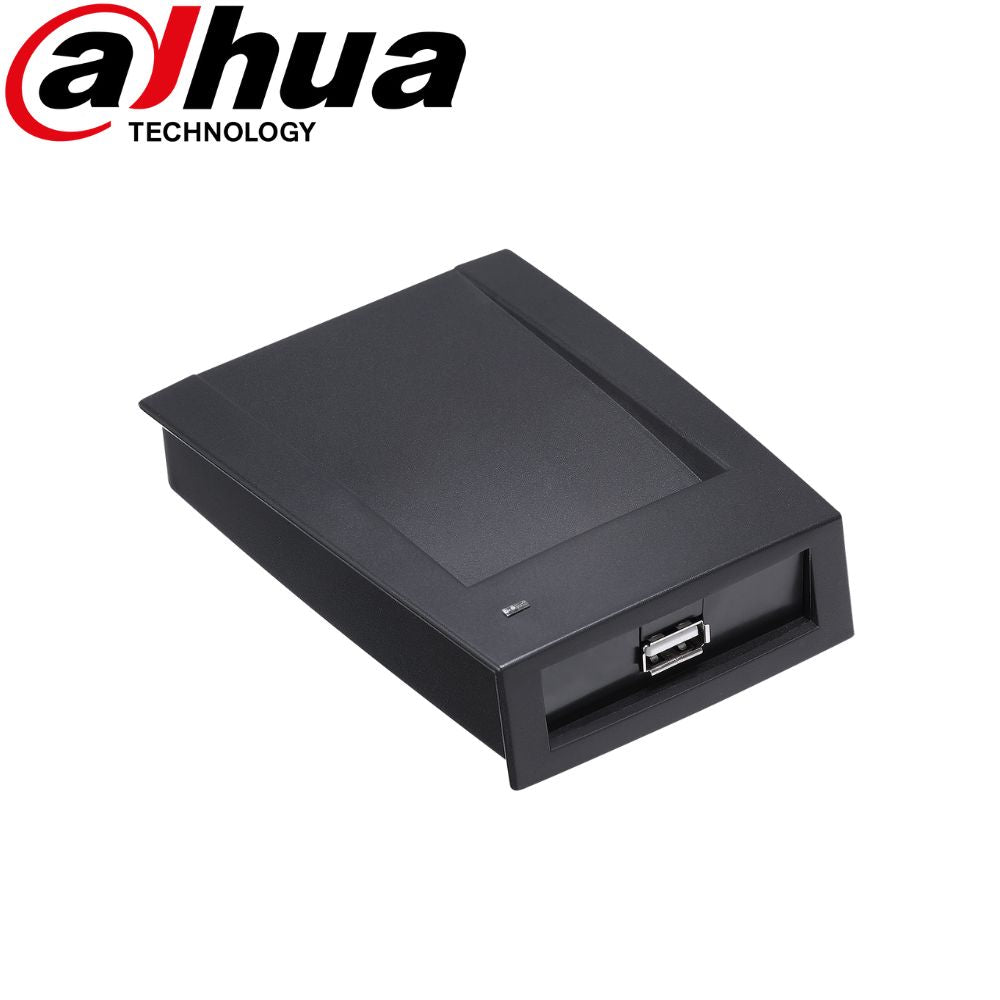

Dahua Card Enrollment Reader
Features
- Default IC (Mifare) card (“-D” means ID EM card)
- No driver installation, plug and play
- USB power supply and communication
- Beep and indicator
Datasheets
Tech Specs
Dahua Card Enrollment Reader - DHI-ASM100
Technical Specification |
Mode |
ASM100 |
ASM100-D |
System |
Main Processor |
32 Bit |
Read |
Read Format |
13.56MHz |
125KHz |
Read Range |
3cm-5cm (max.) |
Interface |
Communication |
USB to PC |
General |
Beep Tone |
Buzzer |
Power Supply |
5V DC/100mA |
Operating Temperature |
-30°C to +60°C |
Working Humidity |
≤95% |
Dimension(W×D×H) |
105mm×75mm×20mm |
Weight |
0.18kg |
Working Environment |
Indoor |
Certificates |
CE |
Yes |
FCC |
Yes |
3-Years Warranty
Dahua’s 3-year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
