Description

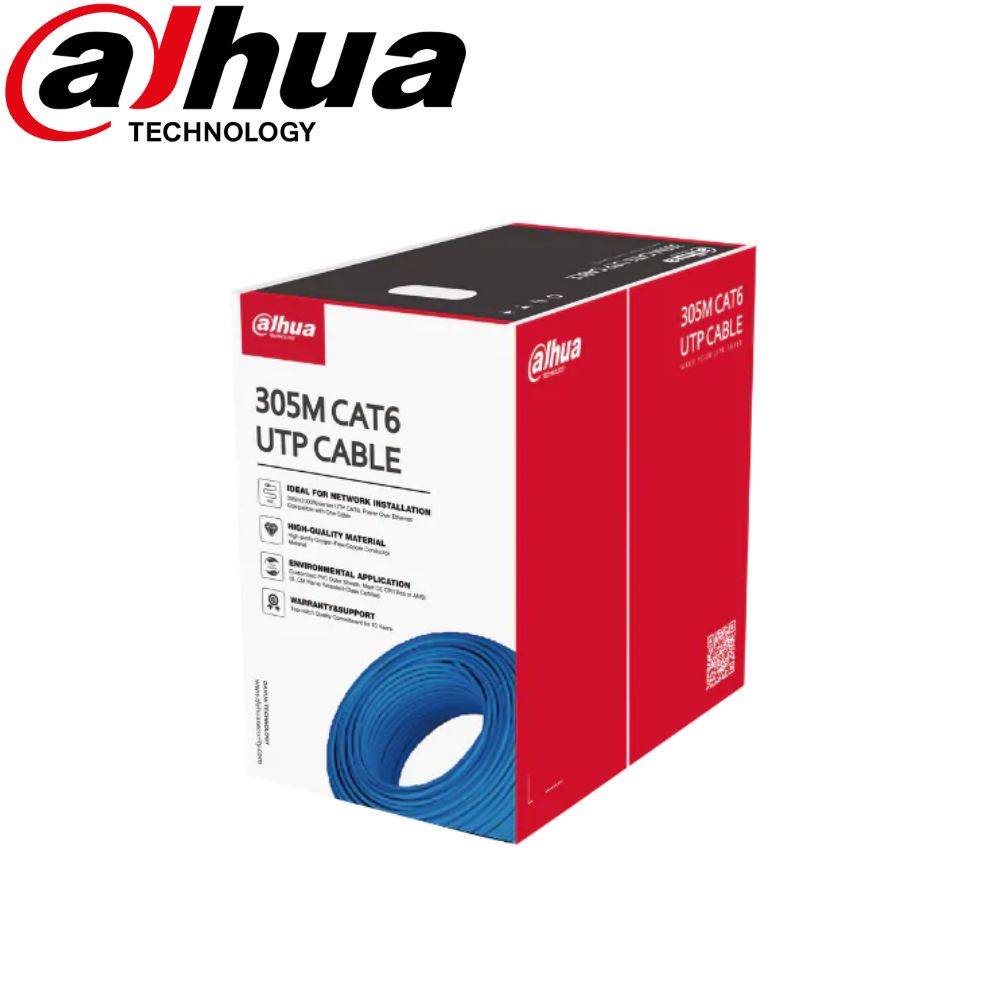

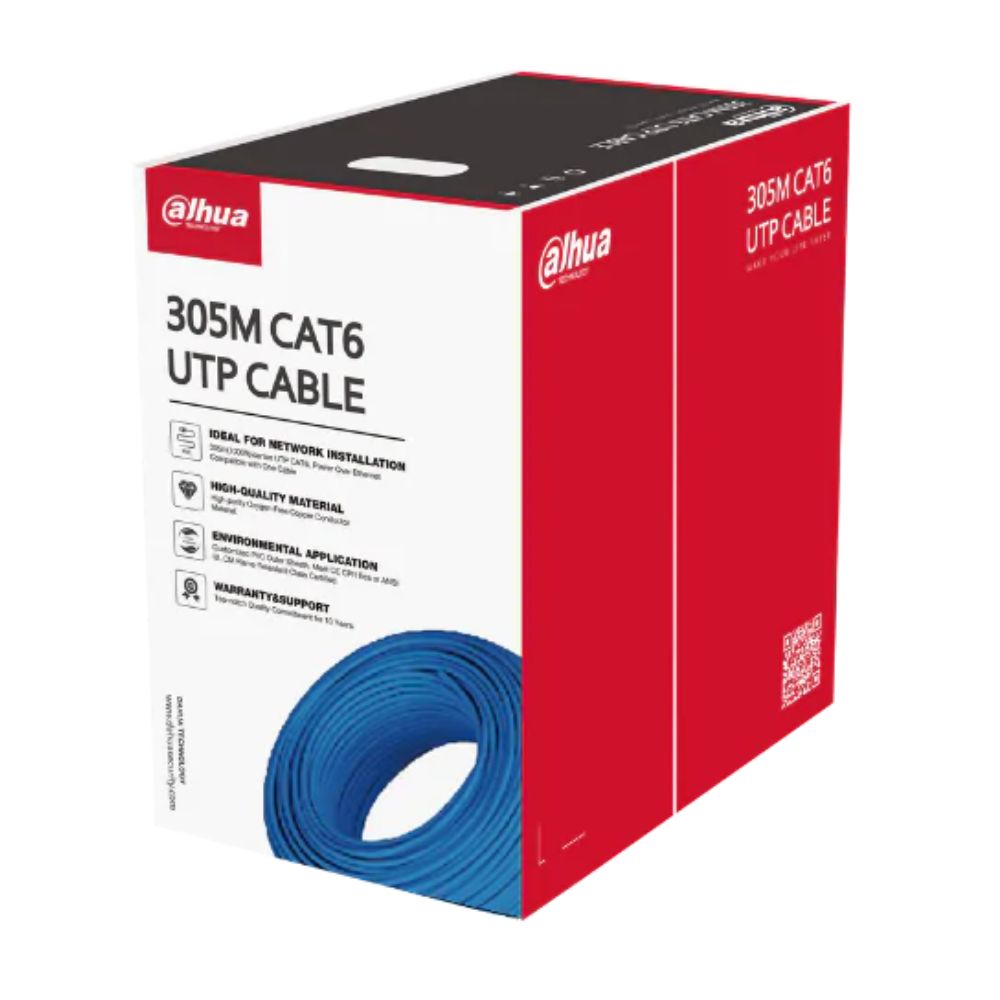

Dahua UTP CAT6 Cable 305M Blue Color
Features
- 305m UTP CAT6;
- Support PoE long-distance transmission;
- Excellent OFC with 99.99% OFC(oxygen free copper) purity;
- Environmentally-friendly outer sheath, meet the CPR E/ UL CM class;
- Top-notch quality guarantee for 10 years.
Downloads
Tech Specs
| Model |
DH-PFM920I-6UN-C |
DH-PFM920I-6UN-U |
| Structure |
| Conductor |
Material |
OFC(oxygen free copper) |
| Structure |
4P*0.53±0.01mm |
| Insulation |
Material |
HDPE |
| Min. average thickness |
0.21mm |
| Diameter |
0.95mm0.05mm |
| Color(4 Pairs) |
Orange, white/orange; green, white/green;
blue, white/blue; brown, white/brown |
| Rip cord |
Yes |
| Jacket |
Material |
PVC, meet the requirement of CPR E class |
PVC, meet the requirement of UL CM class |
| Min. average thickness |
0.40mm |
| Diameter |
6.0±0.50mm |
| surface |
Smooth, full and tight |
| Color |
White |
| General |
Length |
305m(1000.66ft) |
| N.W. |
11.25kg(24.8lb) |
| Packaging dimension |
412mmx412mmx215mm(16.22”x16.22”x8.46”) |
| Weight (with packaging) |
12.75kg(28.11lb) |
| Mechanical properties |
| Insulation |
Tensile strength |
≥16MPa |
| Elongation at break |
≥300% |
| Peeling property |
No damage to insulation or conductor |
| Jacket |
Tensile strength |
Before aging: ≥13.5MPa
After aging: ≥12.5MPa |
Before aging: ≥13.5MPa
Retention rate of tensile strength after aging: ≥85% |
| Elongation at break |
Before aging: ≥150%
After aging: ≥125% |
Before aging: ≥150%
Retention rate of elongation at break after aging: ≥50% |
| Aging condition |
100℃*24h*7d |
| Peeling property |
No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. |
No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking. |
| Electrical performance (20℃) |
| Characteristic impedance (1-250MHz) |
100±15Ω |
| DC resistance |
≤9.38Ω/100m |
| Max. unbalance rate of line pairs’ direct current |
≤5% |
| Time delay |
≤45ns/100m |
| Max. mutual capacitance |
5.6nF/100m |
| Min. insulation resistance |
5000MΩ·km |
