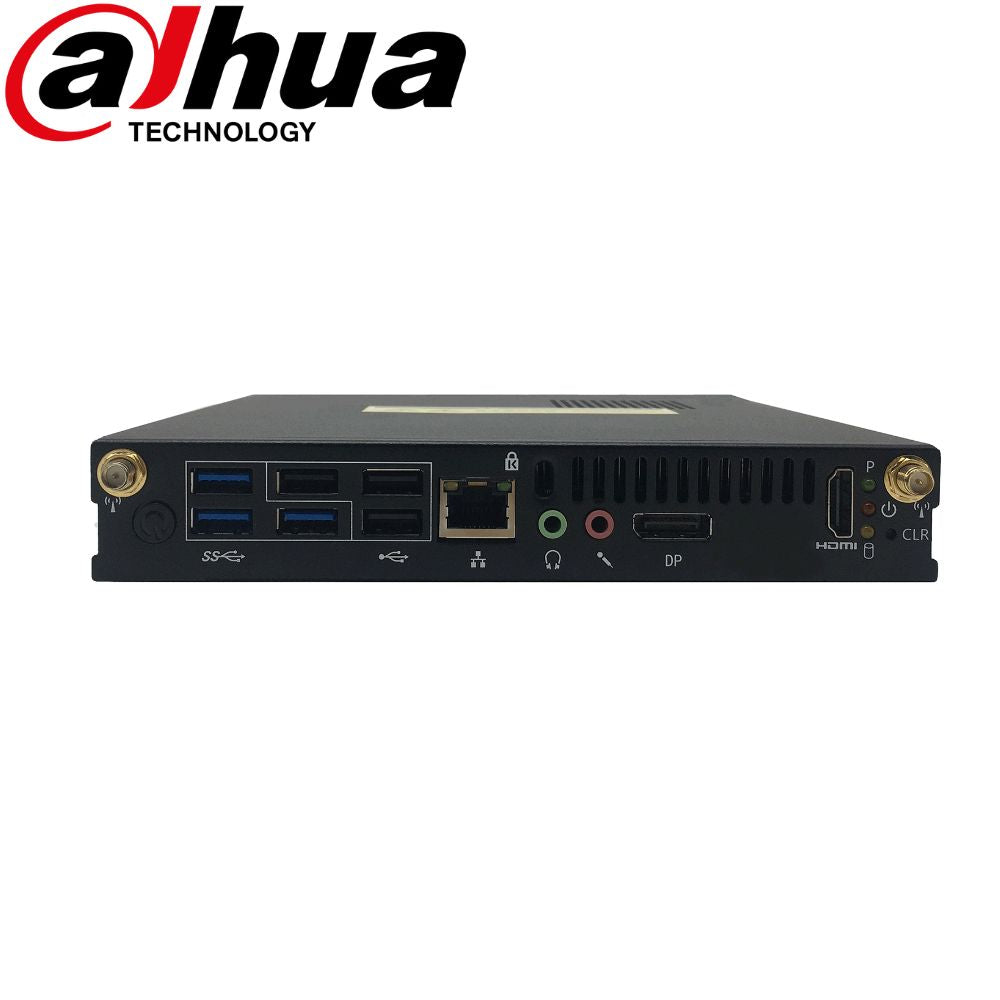

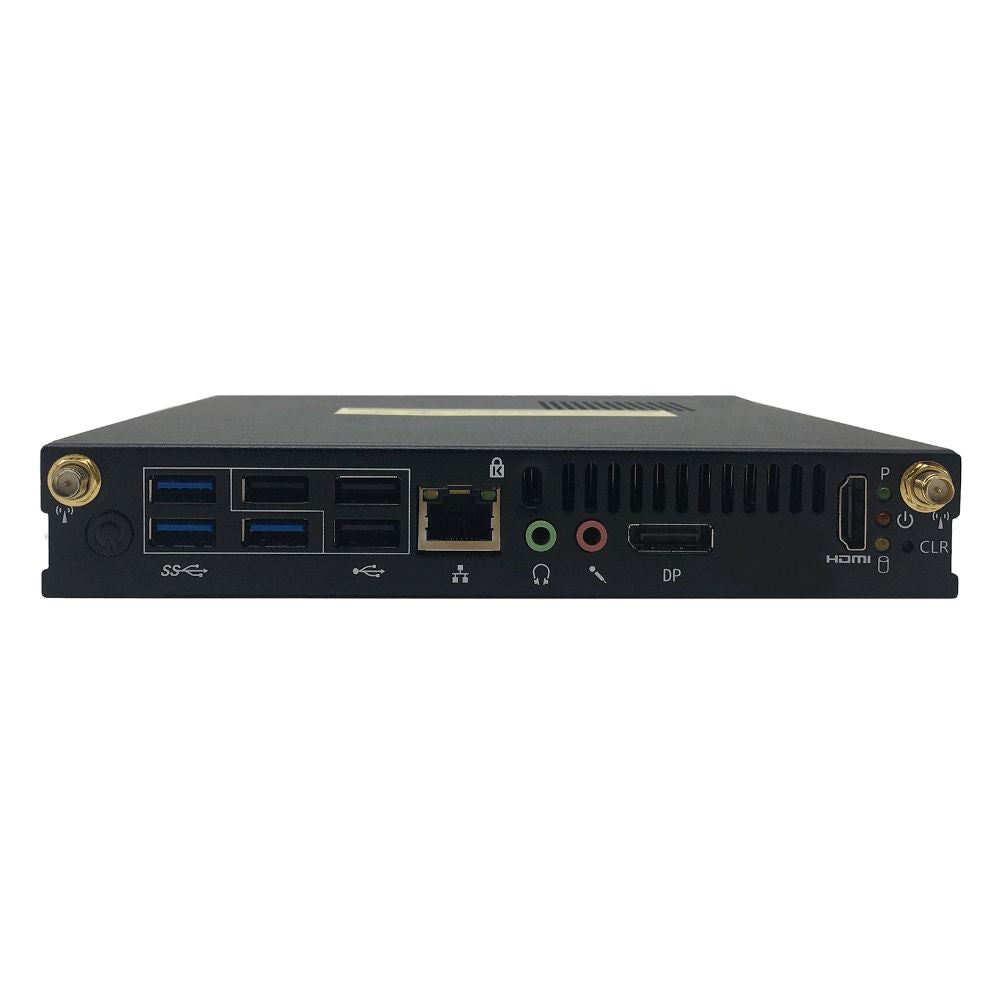

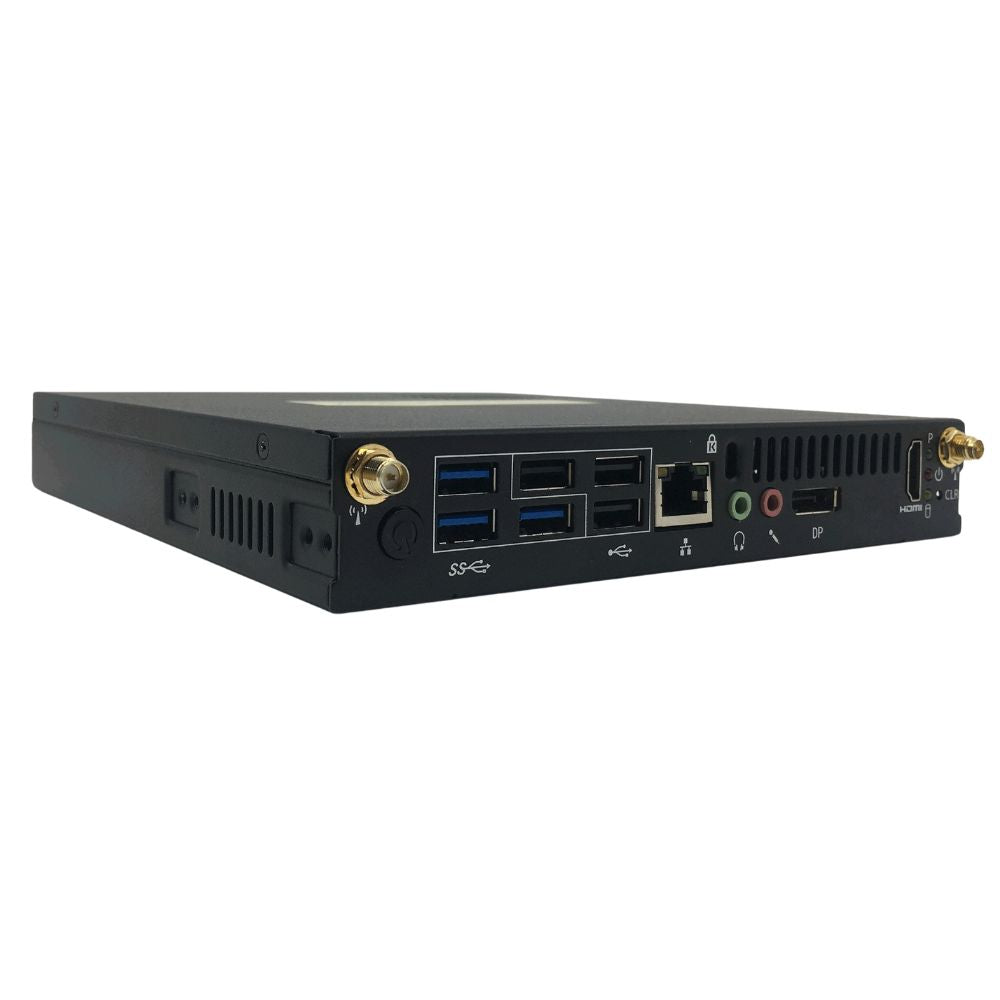

Detachable PC Module is an OPS module that is equipped with Intel i5 CPU. With its ultra-thin design, this easy to plug-in device is used with the Smart Interactive Whiteboard.
Downloads
Tech Specs
Configuration |
CPU |
Intel® Core ™ i5 8400 Processors 2.80GHz |
Mainboard |
Intel® H310C |
Chipset |
Intel® HD Graphics 630 |
RAM |
2 × 4 GB DDR4 |
SSD |
128GB |
WIFI |
Intel AC3165/3168/7265 |
Bluetooth |
Bluetooth 4.2 |
Ports |
Antenna |
2 × Antenna |
USB 3.0 |
3 × USB 3.0 |
USB 2.0 |
3 × USB 2.0 |
HDMI |
1 × HDMI |
DP |
1 × DP |
VGA |
1 × VGA |
Lan Port (RJ45) |
Integrated 10/100/1000M Adaption |
Power Supply |
Power Input |
12–19 VDC |
Max Power |
95 W |
Standby Power |
≤ 0.5 W |
OS |
Version |
Standard: Windows 10;
You can configure Windows 7, Windows 8, Windows 10, and Linux
|
Constructure |
Dimensions |
180 mm × 195 mm × 30 mm (7.08" × 7.68" × 1.18") |
Net Weight |
1.24 kg (2.73 lb) |
Environment |
Operating Temeprature |
0 °C to + 40 °C (+32 °F to +104 °F) |
Storage Temeprature |
–20 °C to +60 °C (–4 °F to 140 °F) |
Humidity |
10%–90% Non-condensing |
3-Years Warranty
Dahua’s 3-year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
