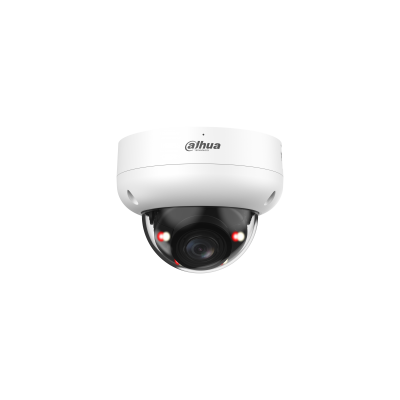

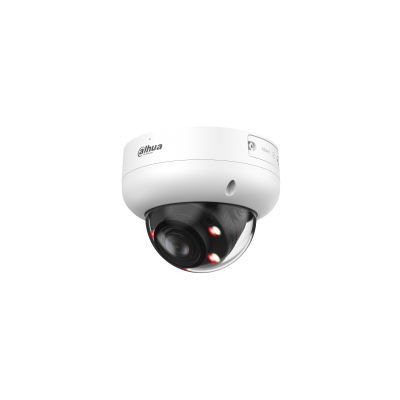

The Dahua DH-IPC-HDBW3467R-ZAS-IL-ANZ is a robust 4MP Smart Dual-Light vari-focal dome camera offering precise surveillance day and night. It features AI-powered functionality, full-color night vision, an adaptable motorized lens, and comprehensive protection with IP67 and IK10 ratings—ideal for demanding indoor and outdoor environments.
Key Features
-
4MP High-Definition Imaging: Captures clear 2688 × 1520 resolution video at 25/30 fps using a 1/2.9" CMOS sensor.
-
Efficient Video Encoding: Supports H.265, Smart H.264+/H.265+, and AI H.264/H.265 for high compression and lower bandwidth/storage requirements.
-
Smart Dual-Light Illumination: Combines IR and warm light, both reaching up to 50 m for vivid night capture and enhanced visibility.
-
Motorized Vari-focal Lens (2.7–13.5 mm): Allows remote adjustment of the viewing angle from wide area coverage to focused zoom, tailored to your monitoring needs.
-
AI & Smart Imaging Enhancements: Features WDR (Wide Dynamic Range), 3D NR (Noise Reduction), Digital ROI, Rotation Mode, HLC, BLC, and digital watermarking for clear, high-contrast video in various lighting and scene conditions.
-
Durable and Weatherproof: Built with IP67-rated housing and IK10-rated dome, offering excellent protection against water, dust, and vandalism.
-
Built-in Audio Capability: Integrated microphone captures synchronized audio alongside video for richer surveillance context.
-
PoE and Power Options: Can be powered via Power over Ethernet (PoE) or 12V DC—flexible installation for various setups.
Downloads
Perfect For:
- Commercial building entrances, lobbies, and storefronts
- Warehouse overhead surveillance and loading zones
- Residential driveways, perimeter monitoring, and access control
- Institutions like schools, offices, and public facilities
- High-risk areas requiring impact-resistant and water-protected monitoring
Installer Tips
-
Optimal Mounting Height: Aim for 2.5–4 meters to balance deterrence effect and coverage angle.
-
Simplified Setup: Use PoE to reduce cabling complexity.
-
Lens Adjustment: Utilize the motorized zoom feature to refine your view remotely.
-
System Integration: Connect to Dahua NVRs to activate AI features like event detection, smart search, and mobile alerts.
-
Audio Alerts: Configure two-way audio or warning messages via Dahua's software or mobile app.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
4MP (2688 × 1520 @25/30 fps) |
| Sensor |
1/2.9″ CMOS |
| Lens |
Motorized 2.7–13.5 mm vari-focal |
| Illumination Distance |
IR: 50 m, Warm Light: 50 m |
| Video Compression |
H.265 / Smart H.264+/H.265+ |
| Imaging Enhancements |
WDR, 3D NR, HLC, BLC, Digital Watermark |
| Protection |
IP67, IK10 |
| Audio |
Built-in Microphone |
| Power |
PoE / 12V DC |
| Warranty |
3 years |
Extra Info
Smart Dual Illumination
This camera is equipped with intelligent dual-light technology. In normal conditions, it relies on infrared (IR) illumination for discreet, non-intrusive monitoring. When it detects motion from a human or vehicle, it automatically switches on its warm LED light to capture full-color footage. This not only provides clearer evidence but also avoids unnecessary light pollution, making it ideal for both residential and commercial areas.
Motorized Vari-Focal Lens (2.7–13.5 mm)
The motorized zoom lens allows you to fine-tune your field of view remotely, whether you need a wide-angle shot to cover large areas or a closer, more detailed view for critical zones. This flexibility makes installation and ongoing adjustments far easier since there’s no need to physically access the camera.
Built-in Microphone with High-Quality Audio
Video alone doesn’t always tell the full story. With its integrated microphone, this camera captures clear audio, providing valuable context during investigations. This is especially useful for disputes, identifying voices, or gathering evidence in noisy environments.
Starlight Technology for Low-Light Excellence
Designed for performance in challenging lighting conditions, the Starlight sensor ensures bright, colorful, and detailed images even in near-dark environments. This feature minimizes grainy video and provides dependable surveillance 24/7.
Rugged Outdoor Protection (IP67 & IK10 Rated)
Built for durability, the camera is both weatherproof and vandal-resistant. The IP67 rating protects it from dust, rain, and extreme weather, while the IK10 rating ensures resistance against impact or tampering attempts. This makes it a reliable choice for outdoor installations where safety and toughness are priorities.
Q&A
Q1: Can this camera capture color images at night?
Yes, thanks to Smart Dual Light and Starlight technology, it provides full-color images in low light.
Q2: Does it support remote zoom and focus?
Yes, the motorized vari-focal lens allows remote zooming (2.7–13.5 mm).
Q3: Is it suitable for outdoor use?
Absolutely. With IP67 waterproofing and IK10 vandal resistance, it’s ideal for outdoor installation.
Q4: Can I use it with my NVR or third-party system?
Yes, it supports ONVIF profiles, ensuring compatibility with Dahua NVRs and many third-party systems.
Q5: Does it have audio recording?
Yes, it has a built-in microphone for real-time audio recording.
