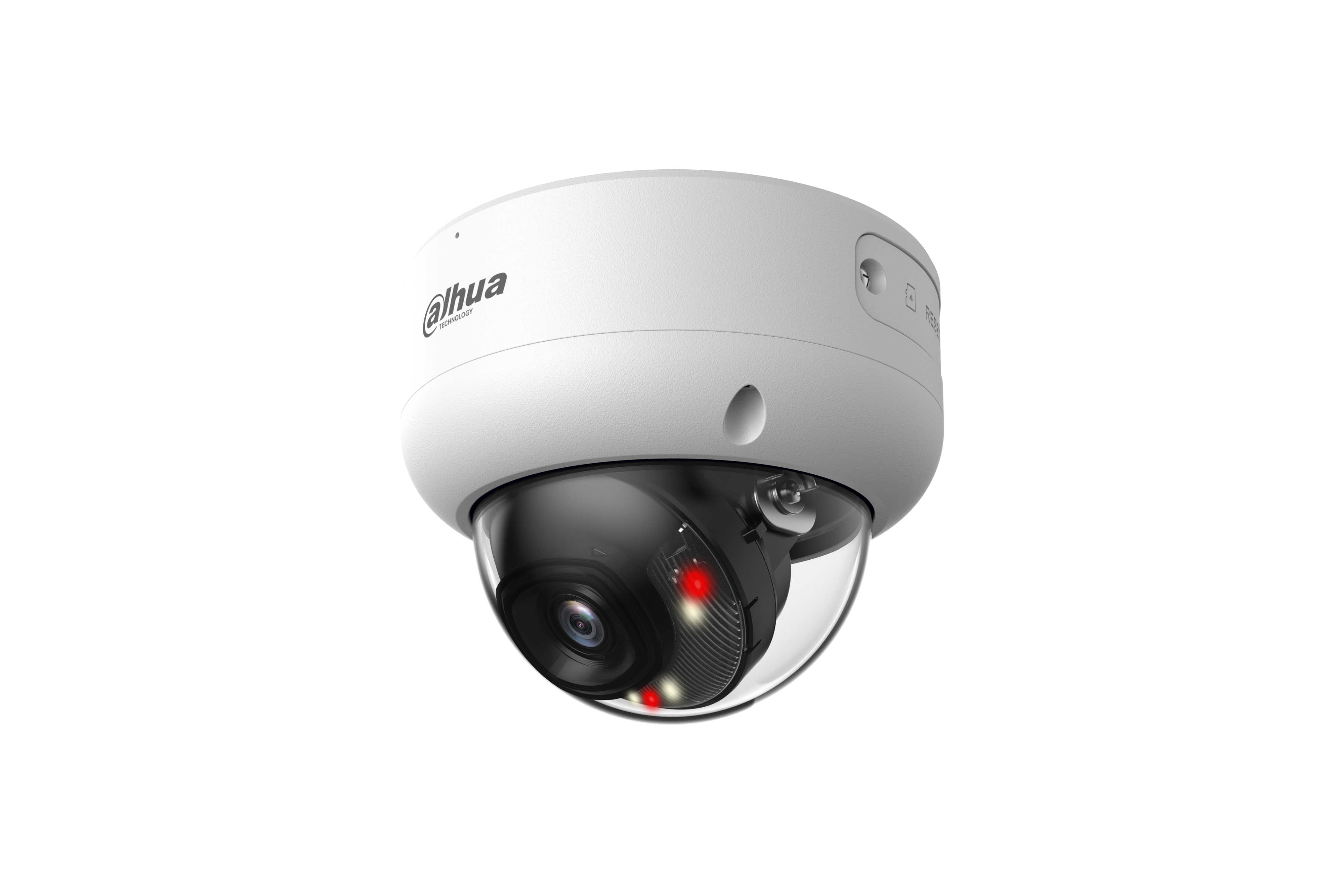

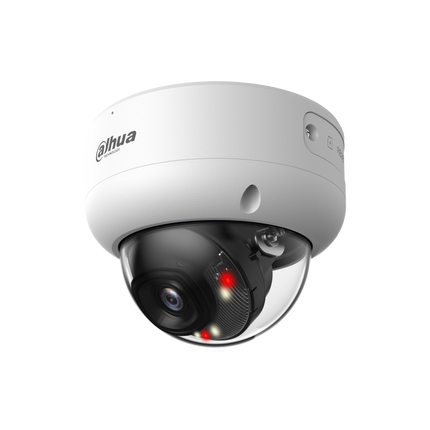

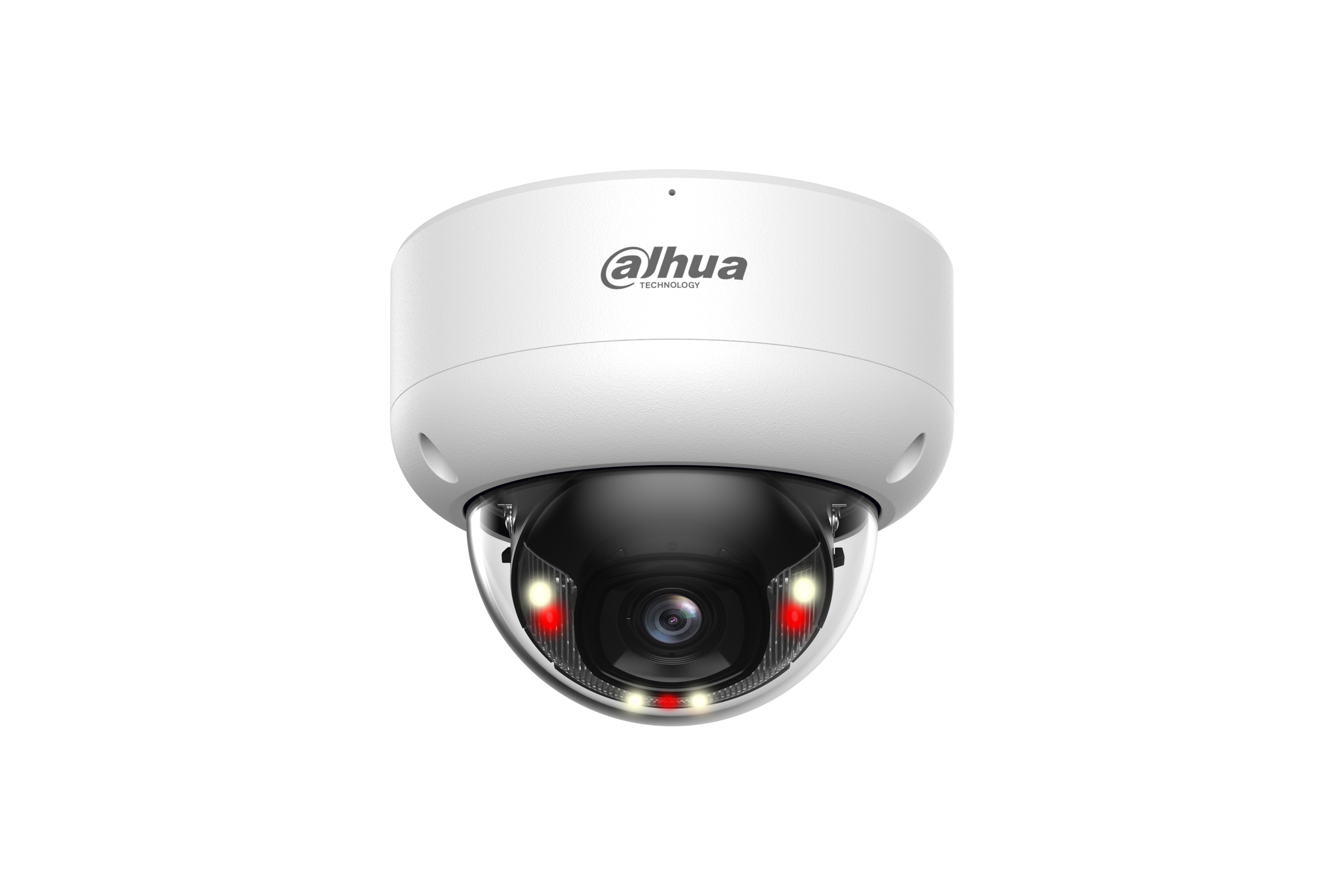

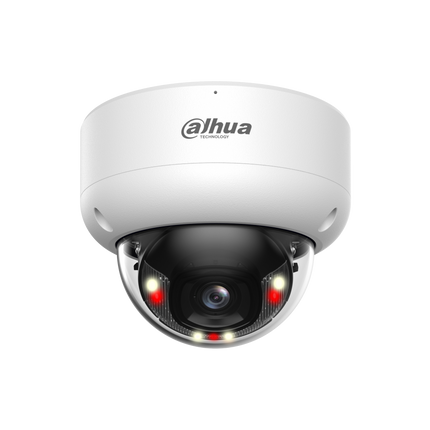

The Dahua DH-IPC-HDBW3667E-AS-IL-ANZ is a robust 6MP WizSense Dome Camera designed for intelligent, round-the-clock surveillance. Equipped with a fixed-focal lens, Smart Dual Light technology, and a built-in microphone, this camera delivers reliable security for both residential and commercial applications. Its vandal-resistant IK10 build and weatherproof IP67 rating ensure consistent performance in challenging outdoor environments.
Key Features
-
High-Resolution Imaging: 6MP CMOS sensor delivers sharp and detailed video at up to 30 fps.
-
Fixed-focal Lens: Available in 2.8mm and 3.6mm options, providing a stable and reliable field of view.
-
Smart Dual Light: Switches between IR illumination for discreet monitoring and warm light for full-color video capture when a target is detected.
-
Starlight Technology: Captures clear, detailed images in very low-light conditions.
-
Built-in Microphone: Records synchronized audio for enhanced situational awareness.
-
Durable & Weather-Resistant: Metal casing with IP67 weatherproofing and IK10 vandal resistance.
-
PoE Support: Power over Ethernet (PoE) simplifies installation by combining power and data over one cable.
-
Micro SD Card Support: Local storage up to 512GB.
-
AcuPick: AI-powered quick target search for human and vehicle footage.
Downloads
Perfect For:
- Residential perimeters and driveways
- Business entrances and storefronts
- Parking lots and loading areas
- Warehouses and logistics facilities
- Schools, offices, and public spaces
Installer Tips
-
Mounting: Fixed-focal design makes installation simple without the need for post-installation lens adjustments.
-
PoE Setup: Use PoE to streamline cabling, reducing the need for separate power sources.
-
Coverage: Choose 2.8mm for wide-area coverage or 3.6mm for more targeted monitoring.
-
Integration: Combine with Dahua AI NVR to unlock AcuPick for advanced human/vehicle searches.
Quick-Read Specs
| Specification |
Details |
| Resolution |
6MP (3288 × 1850) |
| Image Sensor |
1/2.7" CMOS |
| Lens |
Fixed-focal (2.8mm or 3.6mm) |
| Illumination Distance |
30m IR, 30m Warm Light |
| WDR |
120 dB |
| Ingress Protection |
IP67 (weatherproof), IK10 (vandal-resistant) |
| Power Supply |
12V DC / PoE (802.3af) |
| Max. Power Consumption |
7.5W |
| Local Storage |
Micro SD card up to 512GB |
| Operating Temperature |
–40°C to +60°C |
Extra Info
Smart Dual Light
The camera intelligently switches between infrared (IR) and warm light illumination. During normal operation, IR provides discreet night vision. When a human or vehicle target is detected, warm light activates automatically to deliver clear, full-color video only when needed. This ensures accurate identification while reducing light pollution.
Fixed-Focal Lens
Equipped with 2.8 mm or 3.6 mm fixed-focal lens options, the camera offers stable and reliable coverage without the complexity of zoom or focus adjustments. The wide-angle option is ideal for open areas, while the narrower lens option suits focused surveillance points.
Intelligent Monitoring & Detection
Advanced video analytics enhance security monitoring. Intrusion and Tripwire rules allow proactive event detection with human/vehicle classification to minimize irrelevant alerts. SMD 4.0 (Smart Motion Detection) filters out noise like swaying trees or small animals. AI SSA (Scene Self-Adaptation) adjusts parameters in real-time to maintain optimal image quality across varying environments.
Starlight Technology
Thanks to its large aperture lens and high-performance sensor, the camera captures vivid color images even in ultra-low light down to 0.005 lux. This makes it highly effective for night monitoring without relying solely on artificial lighting.
Durable Outdoor Design
With an IP67 rating, the camera is protected against dust and heavy rain. Its IK10 vandal-resistant housing adds strong physical durability, making it suitable for installation in exposed or high-risk areas.
AcuPick
When paired with a compatible Dahua NVR, the AcuPick feature enables fast retrieval of human or vehicle footage. This AI-powered search capability eliminates the need to review hours of recordings manually, saving time during investigations.
Q&A
Q1: What does the fixed lens do?
A1: It provides a consistent field of view, simplifying installation and ensuring stable coverage.
Q2: How does the intelligent detection feature work on this camera?
A2: It uses Intrusion and Tripwire rules with human/vehicle classification, plus SMD 4.0 to filter out non-target objects like animals. AI SSA adjusts imaging for optimal clarity.
Q3: Does this camera have a microphone?
A3: Yes, it has a built-in microphone for audio capture.
Q4: Is it weatherproof and vandal-resistant?
A4: Yes, it is IP67-rated for outdoor use and IK10-rated for impact resistance.
Q5: Can it be powered with PoE?
A5: Yes, it supports standard PoE (802.3af).
Q6: Does it support local storage?
A6: Yes, it supports up to 512GB Micro SD card storage.
Q7: What is Starlight technology?
A7: Starlight enables the camera to capture detailed color images even in extremely low-light environments.
Q8: What is AcuPick?
A8: AcuPick works with AI NVRs to quickly locate human or vehicle footage in stored video, speeding up investigations.
