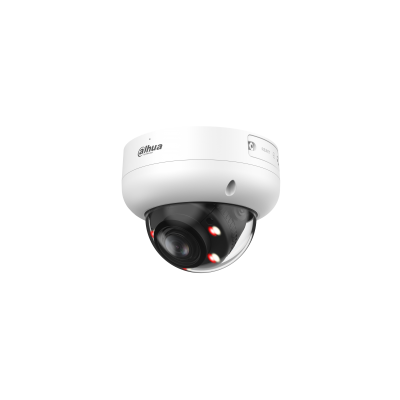

The Dahua DH-IPC-HDBW3667R-ZAS-IL-ANZ is a high-performance 6MP dome camera designed for reliable 24/7 surveillance. Featuring Smart Dual Light, advanced AI-powered detection, and rugged protection (IP67, IK10), it ensures sharp, full-color video in low-light environments while reducing false alarms. Its motorized varifocal lens, AI Scene Self-Adaptation, and active deterrence functions make it ideal for demanding security applications indoors or outdoors.
Key Features
-
6MP 1/2.7" CMOS Sensor – Delivers sharp, detailed video up to 3288 × 1850 @ 30 fps.
-
Smart Dual Light (IR + Warm Light) – IR for standard monitoring, switches to warm light for full-color when motion is detected.
-
Motorized Varifocal Lens (2.7–13.5mm) – Flexible zoom for wide-area or detailed views.
-
AI Functions – SMD 4.0, Perimeter Protection, AcuPick, and AI SSA for accurate human/vehicle detection.
-
Wide Dynamic Range (120 dB WDR) – Balanced imaging in bright and dark scenes.
-
Audio Support – Built-in microphone plus 1-in/1-out audio interface.
-
Rugged Design – IP67 weatherproof, IK10 vandal-resistant metal casing.
-
Flexible Storage – Supports up to 512GB MicroSD, NVR, NAS, and FTP.
-
Smart Compression – H.265+/H.264+ for high-quality video with lower storage use.
-
Secure & Reliable – Cybersecurity protection, power via PoE or 12V DC.
Downloads
Perfect For:
- Business entrances and storefronts
- Warehouses and loading docks
- Carparks and driveways
- Public buildings and school grounds
- High-risk areas requiring vandal-resistant surveillance
Installer Tips
-
Mounting Height: 2.5–4m for optimal coverage and deterrence.
-
Lens Setup: Adjust motorized zoom for wide coverage or detailed focus.
-
Power Options: Use PoE for single-cable installation or 12V DC backup.
-
NVR Integration: Pair with Dahua AI NVRs for advanced search and event playback.
-
Storage: For standalone use, insert a Dahua MicroSD (up to 512GB).
Quick-Read Specs
| Specification |
Detail |
| Resolution |
6MP (3288 × 1850) @ 30 fps |
| Lens |
Motorized 2.7–13.5mm varifocal |
| Illumination |
IR up to 50m / Warm light up to 50m |
| WDR |
120 dB |
| Audio |
Built-in Mic, 1-in/1-out |
| AI Functions |
SMD 4.0, Perimeter Protection, AcuPick, AI SSA |
| Storage |
MicroSD (up to 512GB), NVR, NAS, FTP |
| Protection |
IP67, IK10 |
| Power |
PoE (802.3af) / 12V DC |
| Operating Temp |
–30 °C to +60 °C |
| Warranty |
3 years |
Extra Info
Smart Dual Light
Automatically switches between infrared (IR) for discreet low-light monitoring and warm white light for vivid full-color video when people or vehicles are detected. This smart illumination reduces unnecessary light pollution, saves energy, and ensures that critical events are always recorded in color for accurate identification.
SMD 4.0 (Smart Motion Detection)
Powered by deep learning algorithms, SMD 4.0 intelligently distinguishes between humans, vehicles, and irrelevant objects such as animals, moving leaves, or shadows. This significantly minimizes false alarms and ensures that alerts are both accurate and actionable. When paired with AI-enabled NVRs, it also provides rapid event search and playback.
Perimeter Protection
Supports advanced tripwire and intrusion detection modes with AI-based target classification. By filtering out irrelevant triggers, the system focuses on genuine threats, enhancing security for perimeters, restricted areas, and entry points. This feature makes it especially effective for critical zones that require reliable monitoring.
AI SSA (Scene Self-Adaptation)
Automatically optimizes video settings depending on environmental conditions such as fog, rain, low light, or strong backlighting. This ensures that the camera consistently delivers clear, detailed footage without requiring manual adjustments, even when weather or lighting conditions change suddenly.
High-Resolution Imaging
Delivers 6MP resolution (3288 × 1850) with advanced imaging technologies such as 120 dB Wide Dynamic Range (WDR) for handling bright and dark areas, 3D Noise Reduction (3D NR) for cleaner night footage, and digital watermarking for video integrity. This combination guarantees forensic-quality video suitable for detailed analysis.
Durable Design
Engineered with IP67-rated weatherproofing and IK10-rated vandal resistance, the camera is designed to withstand harsh outdoor environments. Whether exposed to heavy rain, dust, or physical impact, it continues operating reliably with long-term durability.
Advanced Connectivity & Storage
Supports flexible power and data options, including Power over Ethernet (PoE, IEEE 802.3af) and 12V DC. Video can be stored locally with MicroSD cards up to 512GB, or remotely via NAS, FTP, and Dahua NVRs. This ensures flexible storage solutions and seamless system integration.
Q&A
Q1: Can this camera work in total darkness?
A1: Yes, it uses IR and Smart Dual Illumination to capture clear images even in 0 lux conditions.
Q2: Does it support audio?
A2: Yes, it has a built-in microphone and speaker for two-way audio.
Q3: Is it vandal-resistant?
A3: Yes, the dome housing is IK10 rated, protecting against impact and tampering.
Q4: Can it integrate with Dahua NVRs?
A4: Yes, it integrates seamlessly with Dahua NVRs for smart event detection, playback, and remote monitoring.
Q5: What lens does it have?
A5: A motorized 2.7–13.5mm vari-focal lens for flexible coverage.
