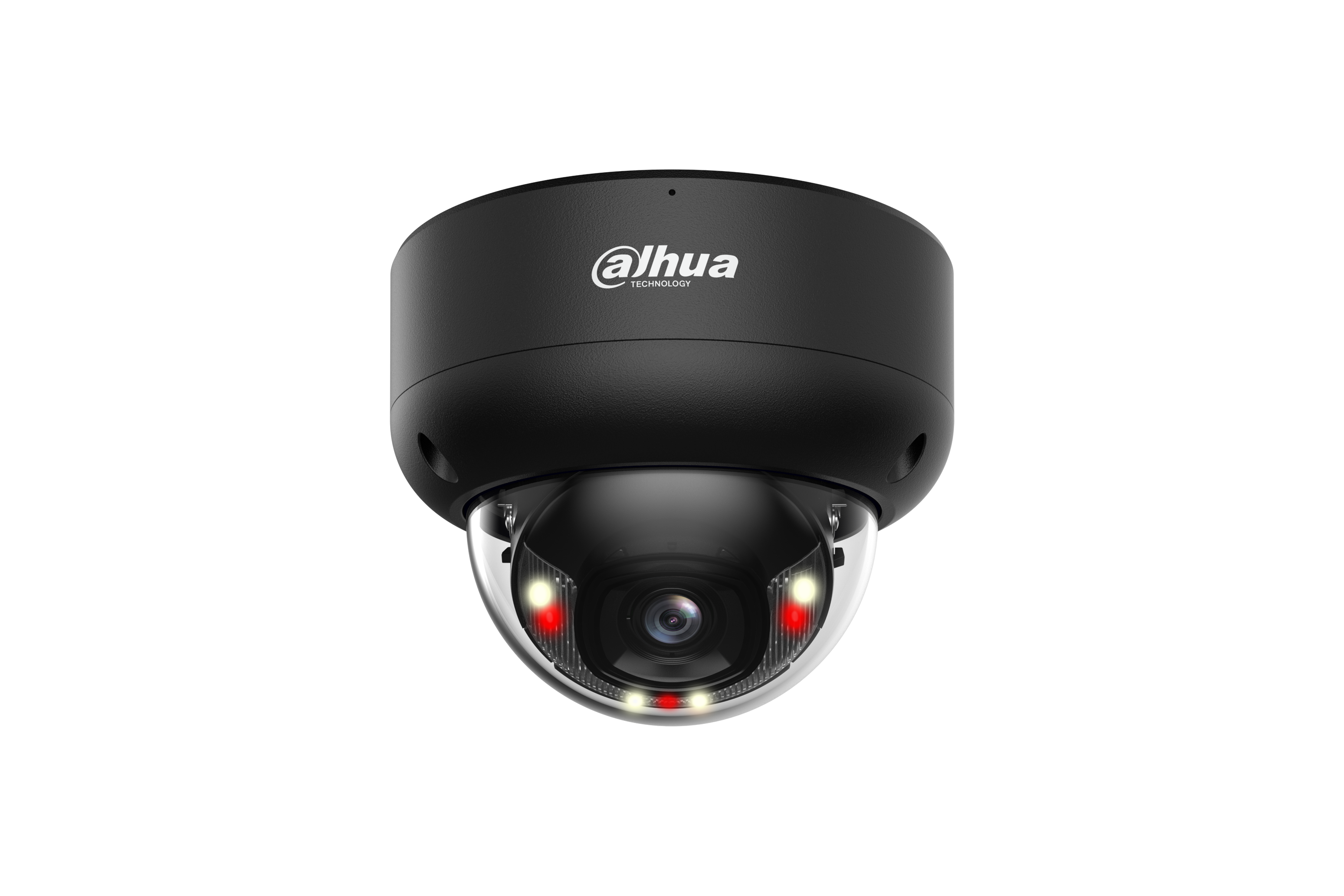

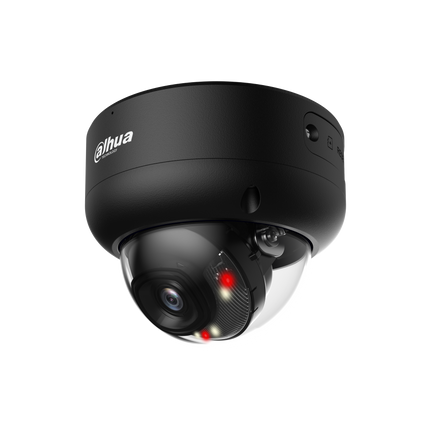

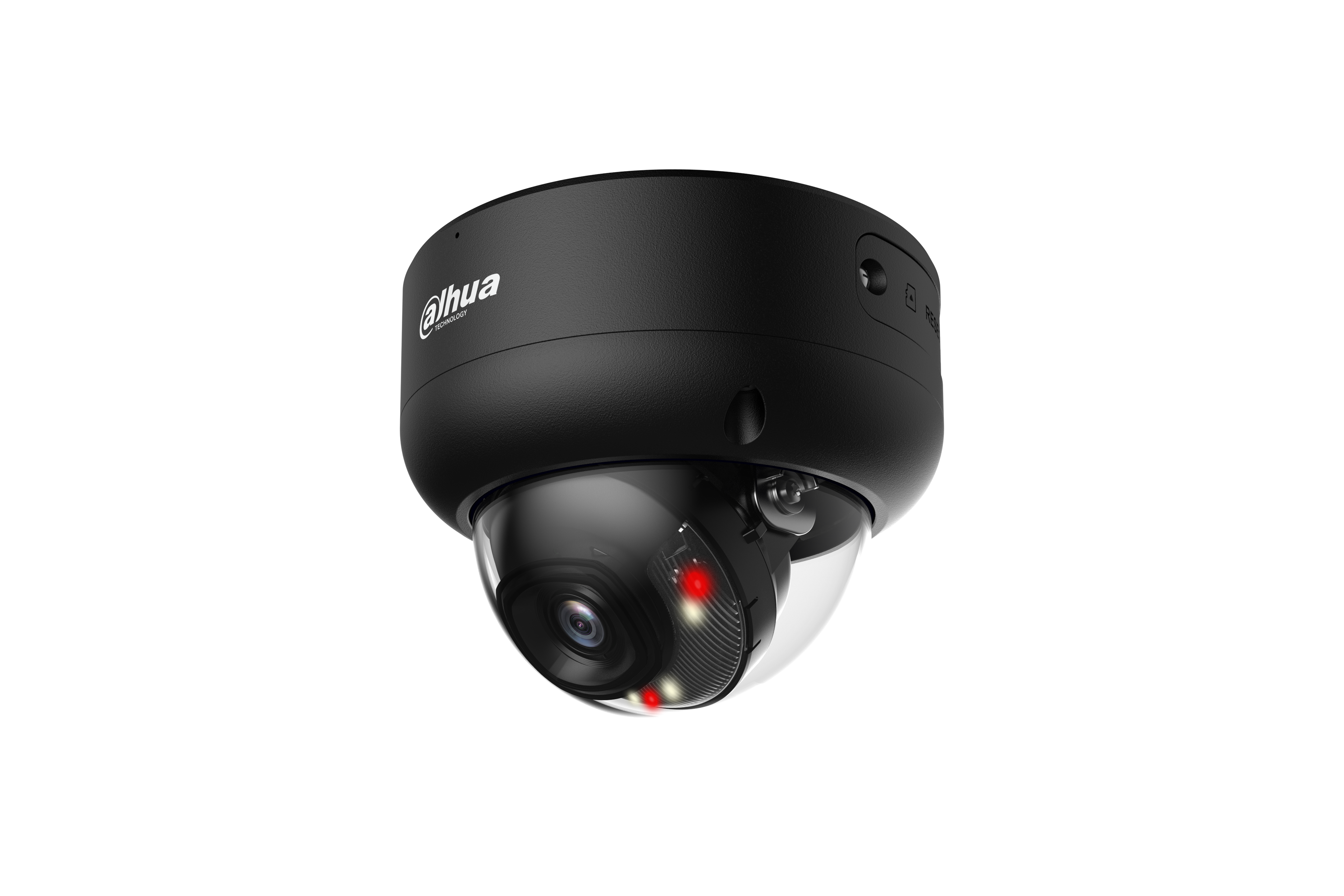

The Dahua DH-IPC-HDBW3867E-AS-IL-ANZ-BLK is a powerful 8MP Smart Dual-Light fixed-lens dome camera designed for professional-grade surveillance. It delivers 4K ultra-HD imaging, AI-powered detection, full-color night vision, and durable outdoor protection with IP67 and IK10 ratings—ideal for critical indoor and outdoor monitoring.
Key Features
-
8MP Ultra-HD Imaging: Captures sharp 3840 × 2160 resolution video at 25/30 fps using a 1/2.8" CMOS sensor.
-
Efficient Video Encoding: Supports H.265, Smart H.264+/H.265+, and AI H.264/H.265 for optimized bandwidth and storage.
-
Smart Dual-Light Illumination: Switches intelligently between IR and warm light, both reaching up to 30 m for vivid, full-color night capture.
-
2.8 mm Fixed Lens: Wide-angle coverage suitable for general monitoring and entrance points.
-
AI & Smart Imaging Enhancements: Includes WDR (120 dB Wide Dynamic Range), 3D NR, HLC, BLC, Region of Interest, Rotation Mode, and digital watermarking for crystal-clear images in diverse lighting.
-
Durable and Weatherproof: Features an IP67-rated metal housing and IK10 impact resistance, ensuring long-lasting protection against harsh weather and vandalism.
-
Built-in Audio Capability: Integrated microphone provides synchronized audio alongside video for enhanced situational awareness.
-
PoE and Power Options: Supports Power over Ethernet (PoE) or 12V DC for flexible installation.
Downloads
Perfect For:
- Commercial building entrances, lobbies, and offices
- Residential properties, including driveways and front doors
- Warehouses and storage facilities
- Schools, healthcare centers, and other institutions
- High-risk areas requiring vandal-resistant monitoring
Installer Tips
-
Mounting Height: Install at 2.5–4 m for balanced coverage and deterrence.
-
Simplified Setup: Use PoE to reduce cabling complexity.
-
Lighting Mode: Configure Smart Dual-Light to automatically switch based on events.
-
System Integration: Pair with Dahua NVRs for advanced AI features like perimeter protection, SMD Plus, and smart search.
-
Audio Alerts: Enable event-based audio playback through Dahua’s software or mobile app.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8MP (3840 × 2160 @25/30 fps) |
| Sensor |
1/2.8″ CMOS |
| Lens |
2.8 mm fixed |
| Illumination Distance |
IR: 30 m, Warm Light: 30 m |
| Video Compression |
H.265 / Smart H.264+/H.265+ |
| Imaging Enhancements |
WDR (120 dB), 3D NR, HLC, BLC, ROI, Digital Watermark |
| Protection |
IP67, IK10 |
| Audio |
Built-in Microphone |
| Power |
PoE / 12V DC |
| Warranty |
3 years |
Extra Info
Smart Dual Illumination
This camera features Dahua’s advanced Smart Dual Illumination technology, which intelligently switches between infrared (IR) and warm LED lighting. By default, the camera uses IR for discreet night monitoring without disturbing the surroundings. Once a human or vehicle is detected, the warm LED light automatically activates to capture clear, full-color images. This ensures accurate identification of people and objects while minimizing unnecessary light pollution.
Starlight Technology
Equipped with Dahua’s Starlight technology, the camera delivers vivid, low-noise color images even in very low-light conditions. With enhanced sensitivity and wide dynamic range (WDR), it provides excellent performance in scenes with strong backlighting or near-darkness, making it ideal for 24/7 monitoring.
Built-in Microphone
The integrated microphone allows the camera to capture synchronized video and audio in real time. This adds an extra layer of evidence for investigations, offering clearer context during incidents and improving situational awareness.
Rugged Outdoor Protection
Designed for harsh environments, this camera is both IP67 weatherproof and IK10 vandal-resistant. It is resistant to rain, dust, and impacts, ensuring long-term reliability in exposed outdoor installations. Whether deployed in residential areas, retail environments, or critical infrastructure, it maintains dependable performance in challenging conditions.
Motorized Vari-Focal Lens
The DH-IPC-HDW3867T-ZS-IL-ANZ-BLK features a motorized vari-focal lens, allowing remote zoom and focus adjustments. This flexibility makes installation easier and enables operators to fine-tune the field of view for wide-area coverage or detailed close-ups without physically adjusting the camera.
AI-Powered Video Analytics
Supporting Dahua’s AI capabilities, the camera provides advanced features such as motion detection, perimeter protection, and smart object classification. This allows it to distinguish between humans and vehicles, reducing false alarms and ensuring accurate event detection.
Q&A
Q1: Can this camera record in color at night?
Yes, thanks to Smart Dual-Light and Starlight, it captures full-color video in low-light environments.
Q2: Does this model have zoom capability?
No, this is a fixed 2.8 mm lens model. For zoom functionality, a vari-focal version such as the ZS or ZAS series would be required.
Q3: Is it outdoor rated?
Yes, with IP67 waterproofing and IK10 vandal resistance.
Q4: Can I use it with third-party systems?
Yes, it supports ONVIF standards, ensuring compatibility with Dahua NVRs and many third-party platforms.
Q5: Does it record audio?
Yes, it has a built-in microphone for live and recorded audio.
