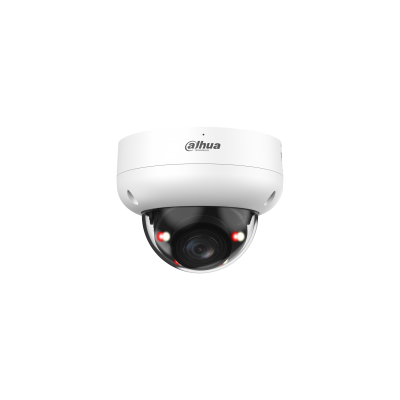

The Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ is a powerful 8MP (4K) Smart Dual-Light vari-focal dome camera built for advanced surveillance applications. It features AI-powered analytics, Starlight technology for low-light performance, a motorized vari-focal lens, and rugged protection with IP67 and IK10 ratings—making it an excellent choice for demanding indoor and outdoor environments.
Key Features
-
8MP Ultra High-Definition Imaging: Delivers 3840 × 2160 resolution video at 25/30 fps with a 1/2.8" CMOS sensor, ensuring ultra-clear detail for critical monitoring.
-
Efficient Video Encoding: Supports H.265, Smart H.264+/H.265+, and AI H.264/H.265 compression for reduced storage and bandwidth requirements.
-
Smart Dual-Light Illumination: Intelligent switching between IR and warm light, both with up to 40–50 m range, for full-color images in darkness.
-
Motorized Vari-focal Lens (2.7–13.5 mm): Enables remote zoom and focus adjustments, allowing flexible coverage from wide-angle views to close-up monitoring.
-
AI & Smart Imaging Enhancements: Features AI-powered perimeter protection, SMD 4.0 (Smart Motion Detection), WDR, 3D NR, HLC, BLC, ROI, and digital watermarking for superior image quality.
-
Rugged and Durable Design: Built with IP67-rated housing and IK10-rated dome for water, dust, and impact resistance.
-
Audio Capability: Integrated microphone captures synchronized audio alongside video.
-
Flexible Power Options: Supports both Power over Ethernet (PoE) and 12V DC for versatile installation.
Downloads
Perfect For:
- Commercial entrances, lobbies, and reception areas
- Warehouses, storage facilities, and industrial sites
- Residential driveways, gated communities, and perimeter monitoring
- Schools, offices, hospitals, and public buildings
- High-security zones requiring vandal-resistant 4K coverage
Installer Tips
-
Mounting Height: Install between 2.5–4 meters for optimal deterrence and field of view.
-
Simplified Setup: Use PoE for minimal cabling.
-
Lens Adjustment: Take advantage of the motorized zoom for remote field-of-view fine-tuning.
-
System Integration: Connect to Dahua NVRs to unlock AI-driven features such as smart search, intrusion detection, and real-time alerts.
-
Audio Setup: Enable the built-in microphone for richer video evidence.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8MP (3840 × 2160 @25/30 fps) |
| Sensor |
1/2.8″ CMOS |
| Lens |
Motorized 2.7–13.5 mm vari-focal |
| Illumination Distance |
IR: up to 50 m, Warm Light: up to 50 m |
| Video Compression |
H.265 / Smart H.264+/H.265+ |
| Imaging Enhancements |
WDR, 3D NR, HLC, BLC, ROI, Digital Watermark |
| Protection |
IP67, IK10 |
| Audio |
Built-in Microphone |
| Power |
PoE / 12V DC |
| Warranty |
3 years |
Extra Info
Smart Dual Illumination
This camera intelligently switches between infrared (IR) mode and warm LED light depending on detected activity. During normal low-light conditions, it uses IR for discreet monitoring. When motion from a human or vehicle is detected, it switches to warm light, capturing detailed full-color images. This ensures better evidence collection while avoiding unnecessary light pollution.
Motorized Vari-Focal Lens (2.7–13.5 mm)
The motorized lens allows you to remotely adjust zoom and focus, offering wide-area surveillance or close-up detail as needed. This makes setup and post-installation adjustments faster and more flexible without manual handling.
Built-in Microphone with Clear Audio
With its integrated microphone, the camera captures synchronized audio, adding valuable context to surveillance footage. This is crucial in investigations, enabling identification of voices and enhancing situational awareness.
Starlight Technology for Low-Light Excellence
Equipped with advanced Starlight sensors, this camera provides bright, clear, and colorful images even in extremely low-light conditions, reducing video noise and ensuring reliable surveillance 24/7.
Rugged Outdoor Protection (IP67 & IK10 Rated)
The housing is built to withstand tough environments. The IP67 rating ensures resistance to dust and rain, while the IK10 rating provides strong protection against physical impact or tampering. Perfect for outdoor and high-risk installations.
Q&A
Q1: Can this camera record color at night?
Yes, Smart Dual-Light and Starlight technology ensure full-color images even in low-light environments.
Q2: Does it support remote zoom and focus?
Yes, the 2.7–13.5 mm motorized vari-focal lens allows remote zoom and focus adjustments.
Q3: Is it suitable for outdoor use?
Absolutely. With IP67 weatherproofing and IK10 vandal resistance, it’s built for demanding outdoor installations.
Q4: Can it work with my NVR or third-party systems?
Yes, it supports ONVIF profiles, ensuring compatibility with Dahua NVRs and many third-party systems.
Q5: Does it have built-in audio recording?
Yes, it includes a built-in microphone for real-time audio capture.
