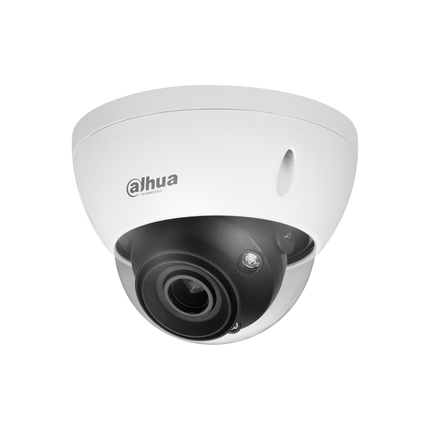

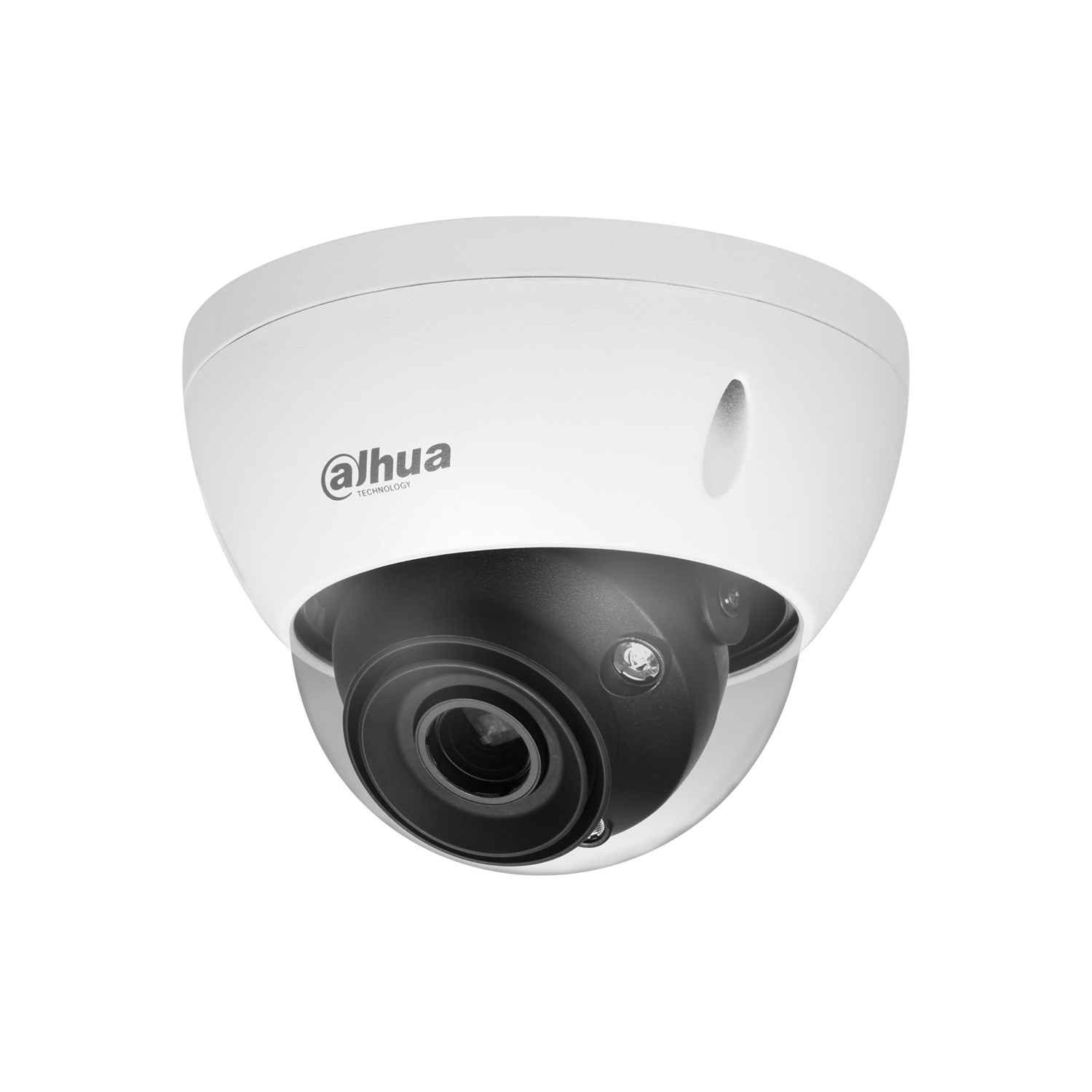

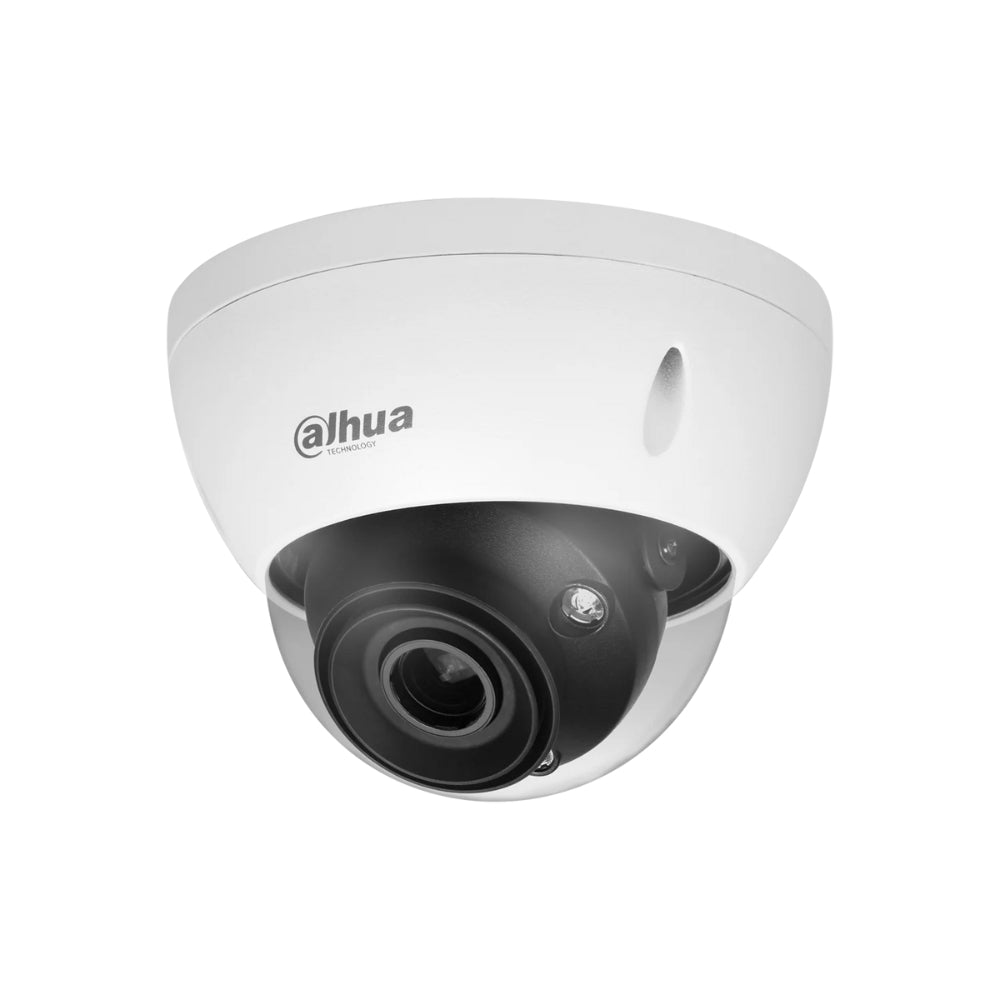

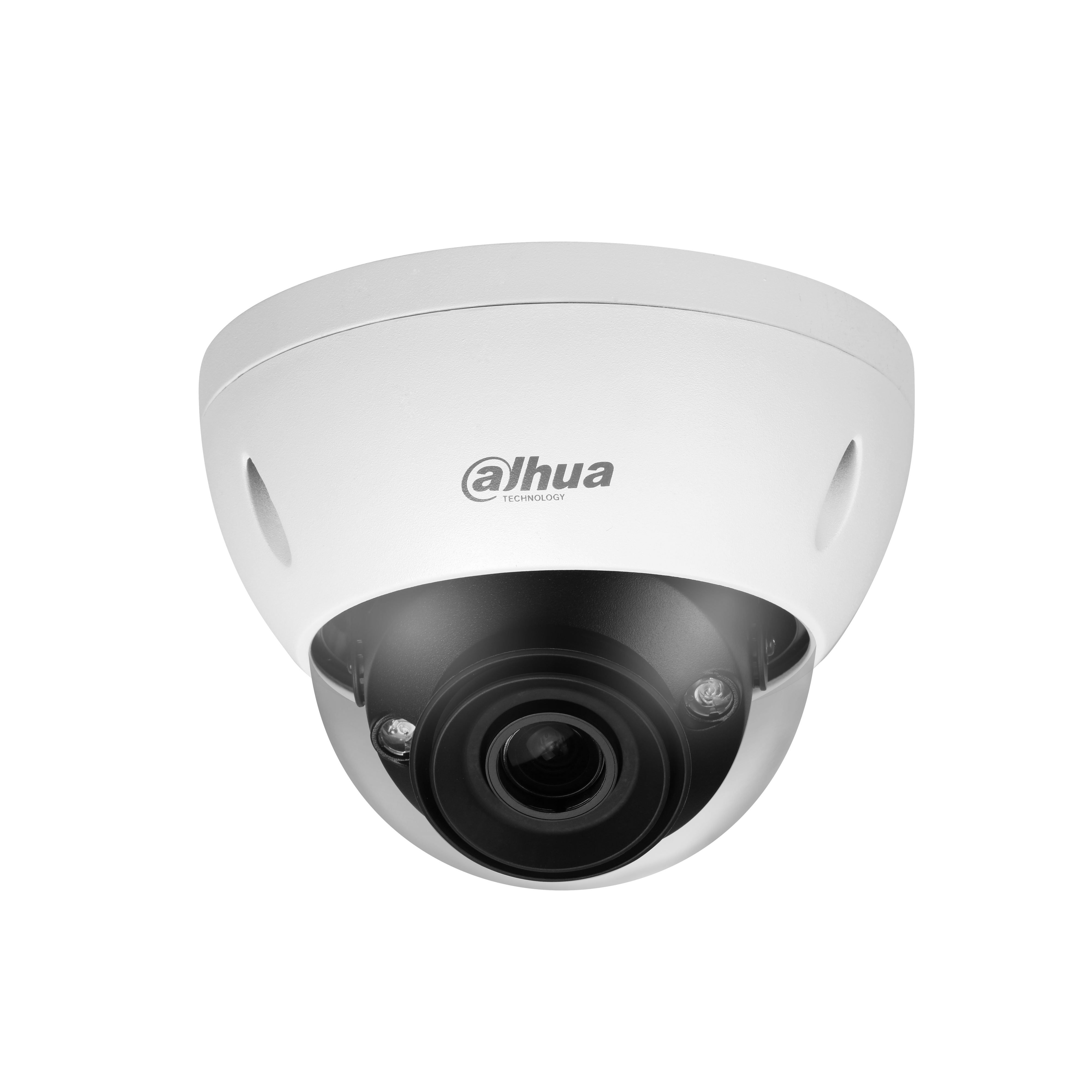

The Dahua IPC-HDBW5441E-ZE-HDMI is a robust 4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera designed for reliable outdoor and indoor surveillance. It's ideal for those needing intelligent monitoring with advanced AI features like face detection, people counting, and perimeter protection. This camera delivers clear images, even in low light, and offers flexible installation options with its durable, weather-resistant build.
Key Features
-
WizMind AI: Benefit from advanced deep learning algorithms for highly accurate detection of people and vehicles, significantly reducing false alarms.
-
Motorized Vari-focal Lens: Adjust the camera's zoom and focus remotely to perfectly cover your desired area, from wide views to specific points of interest.
-
Long-Range Infrared Night Vision: See clearly up to 40 meters (131.23 ft) in complete darkness, ensuring continuous monitoring day and night.
-
Built-in Microphone: Capture crucial audio along with video, adding another layer of situational awareness to your surveillance.
-
HDMI Output: Directly connect the camera to a monitor, providing a live feed without needing a recorder, perfect for local viewing.
-
Vandal-proof & Weatherproof (IK10 & IP67): Install with confidence in exposed environments; the camera is protected against impacts, dust, and water.
-
Smart Motion Detection (SMD 3.0): Get precise alerts for actual threats by distinguishing between human and vehicle movements, filtering out irrelevant triggers like animals or falling leaves.
-
Flexible Storage Options: Record directly to a Micro SD card (up to 512 GB) or network-attached storage (NAS), offering versatile data management.
Perfect For:
-
Commercial Building Exteriors: Monitor entrances, loading docks, and parking lots.
-
Retail Store Entrances: Track customer flow and enhance security with people counting and face detection.
-
Educational Campuses: Secure common areas, hallways, and outdoor spaces.
-
Warehouses & Industrial Sites: Monitor large interior spaces and critical entry points.
-
Public Spaces: Observe crowd density and manage access in high-traffic areas.
-
Residential Complexes: Secure shared amenities, lobbies, and perimeter fences.
Installer Tips
Optimal Mounting Height: For accurate AI features like face detection and people counting, mount the camera at a height that provides a clear, unobstructed view of faces and upper bodies. Refer to the installation manual for specific recommendations.
PoE Simplifies Installation: Use Power over Ethernet (PoE) to power the camera and transmit data over a single Ethernet cable. This simplifies wiring, reduces installation costs, and provides more flexibility in camera placement.
Adjust Lens for Coverage: The motorized vari-focal lens allows you to fine-tune the field of view remotely. For wide areas like parking lots, use the wider angle (2.7mm). For narrower corridors or specific points, zoom in (13.5mm) to capture more detail.
Pair with WizMind NVRs: For optimal performance and to fully utilize advanced AI features like AcuPick and Video Metadata search, pair this camera with a Dahua WizMind NVR. This allows for efficient searching and analysis of recorded video based on extracted attributes.
Utilize HDMI for Local Monitoring: The direct HDMI output is excellent for connecting to a local monitor or display in a security room or reception area, providing immediate live viewing without requiring a complex network setup for that specific display.
Leverage AI for Efficient Monitoring: Configure IVS (Intelligent Video System) rules for perimeter protection (e.g., tripwire, intrusion) and smart object detection. This helps reduce false alarms and focuses your attention on genuinely important events, rather than constantly sifting through footage.
Downloads
Quick-Read Specs
| Feature |
Details |
| Resolution |
4 Megapixel (2688 × 1520) |
| Lens Options |
Motorized Vari-focal 2.7 mm–13.5 mm |
| Night Vision |
IR up to 40 meters (131.23 ft) |
| Deterrence |
N/A (No built-in strobe/siren) |
| AI Features |
IVS (Perimeter Protection), Smart Object Detection, SMD 3.0, AcuPick, Face Detection, People Counting, Heat Map, Video Metadata |
| Audio |
Built-in Microphone, Audio In (1), Audio Out (1) |
| Storage |
Micro SD card (up to 512 GB), FTP, SFTP, NAS |
| Power |
12 VDC / PoE (802.3af) / ePoE |
| Weather/Vandal Rating |
IP67 (Dust & Water), IK10 (Vandal-proof) |
Extra Info
The Power of WizMind AI
The Dahua IPC-HDBW5441E-ZE-HDMI is part of the Dahua WizMind 5 Series, which leverages industry-leading deep learning algorithms to deliver highly accurate and intelligent surveillance. This isn't just about detecting motion; it's about understanding what's happening in the scene. Features like Perimeter Protection can precisely distinguish between humans and vehicles, dramatically cutting down on false alarms from swaying trees or animals. For example, you can set a tripwire rule, and the system will only alert you if a person or vehicle crosses it, not if a cat walks by. This level of precision saves valuable time and resources, allowing you to focus on real security threats.
Advanced Video Analytics for Business Intelligence
Beyond security, the Video Metadata function extracts attributes of motor vehicles, non-motor vehicles, faces, and human bodies. Imagine being able to search your recorded footage for "red car, sedan" or "person, male, wearing a blue shirt." This capability is incredibly powerful for forensic analysis after an event. Similarly, People Counting can track entries and exits in real-time or analyze crowd density with Heat Map technology. For businesses, this translates into valuable insights for optimizing staffing, understanding customer flow, and even improving store layouts. The generated reports (daily, weekly, monthly, yearly) can be exported, providing tangible data for operational decisions.
Seamless Integration and Accessibility
This camera is designed for broad compatibility and easy access. It supports ONVIF (Profile S, G, & T), ensuring it can integrate with a wide range of third-party NVRs and VMS platforms, though for full AI functionality, a Dahua WizMind NVR is recommended. You can access live feeds and recordings from anywhere using the SmartPSS Lite or DSS management software on your PC, or via the DMSS mobile client on iOS and Android devices. This means you can keep an eye on your property even when you're away, receiving real-time alerts directly to your phone. The camera also boasts robust Cyber Security measures, including video and firmware encryption, protecting your data and device from external threats.
Q&A
Q1: Can this camera record in color at night?
A1: The IPC-HDBW5441E-ZE-HDMI primarily uses infrared (IR) illumination for night vision, meaning it records in black and white in total darkness to achieve its 40-meter range. It has a very low minimum illumination of 0.002 lux in color mode, so it can maintain a color image in extremely dim light conditions before switching to IR.
Q2: What is the maximum resolution for the HDMI output?
A2: The camera supports a maximum HDMI output resolution of 2560 × 1440 at 25/30 frames per second (fps). For 1080p and 720p resolutions, it supports up to 50/60 fps, providing smooth live viewing directly on a connected display.
Q3: How much local storage can this camera support?
A3: The camera has a Micro SD card slot that supports cards up to a maximum capacity of 512 GB. This provides a convenient local storage option for recordings and snapshots.
Q4: Does this camera have a speaker for two-way audio or alerts?
A4: The camera has a built-in microphone for audio input. It also has an audio output (RCA port), which means you can connect an external speaker for two-way audio communication, though a speaker is not built-in.
Q5: Can the AI features distinguish between pets and people?
A5: Yes, the SMD 3.0 (Smart Motion Detection) and IVS (Intelligent Video System) features are designed with deep learning algorithms that can accurately classify targets. This means the camera can differentiate between humans and vehicles, significantly reducing false alarms caused by animals, leaves, or other non-threats.
Q6: Is this camera suitable for extreme weather conditions?
A6: Absolutely. The camera boasts an IP67 weatherproof rating, meaning it's fully protected against dust and can withstand being submerged in 1 meter of water for 30 minutes. It also has an IK10 vandal-proof rating, offering excellent protection against impacts. The operating temperature range of –30 °C to +60 °C (–22 °F to +140 °F) makes it suitable for a wide variety of climates.
Q7: What is ePoE, and how does it benefit me?
A7: ePoE (extended Power over Ethernet) is a Dahua technology that allows for longer cable runs compared to standard PoE, which is typically limited to 100 meters (328 feet). With ePoE, you can extend the power and data transmission distance up to 800 meters (2624 feet) using a single Ethernet cable and compatible ePoE switches. This is especially beneficial for large installations where cameras need to be deployed far from the main network switch, reducing the need for additional power sources and network infrastructure.
Comparison Table
IPC-HDBW5441E-ZE-HDMI vs. Previous Generation WizMind 5 Series
| Category |
Previous Generation WizMind 5 Series Dome |
IPC-HDBW5441E-ZE-HDMI |
| Image Sensor |
1/3" or smaller CMOS |
1/2.9" CMOS (larger sensor for improved light capture)
|
| Max. Resolution |
4MP (2560 × 1440) or lower |
4MP (2688 × 1520) |
| Min. Illumination (Color) |
Typically 0.005 lux@F1.6 |
0.002 lux@F1.6 (superior low-light performance)
|
| Illumination Distance |
Up to 30 m IR |
Up to 40 m IR |
| Lens Type |
Motorized Vari-focal 2.7 mm–12 mm (typical) |
Motorized Vari-focal 2.7 mm–13.5 mm (slight increase in focal range)
|
| AI Features |
IVS, Face Detection, People Counting (earlier versions) |
Comprehensive Deep Learning AI (Video Metadata, IVS, Face Detection, Smart Object Detection, People Counting, Heat Map, SMD 3.0, AcuPick) |
| Audio |
Optional External Mic/Speaker or Basic Built-in Mic |
Built-in MIC, Audio In (1), Audio Out (1) |
| Local Storage |
Micro SD card (up to 256 GB) |
Micro SD card (up to 512 GB) |
| Power Supply |
12 VDC / PoE (802.3af) |
12 VDC / PoE (802.3af) / ePoE |
| Protection |
IP67, IK10 |
IP67, IK10 |
| HDMI Output |
Not typically available on standard dome models |
Supports HDMI 1.4a (max. 2560 × 1440@25/30 fps) |
| Dual Power Backup |
Not common or specified |
Yes (device continues to work if one power source disconnects)
|
Summary Recommendation
Choose the IPC-HDBW5441E-ZE-HDMI if you need:
- Enhanced low-light image quality and detail
- Extended IR illumination distance
- More advanced and accurate AI features, including SMD 3.0 and AcuPick
- Larger local storage capacity and HDMI output for direct display
- Dual power backup for increased reliability
Consider a previous generation model if you need:
- A more budget-friendly option for standard surveillance needs
- Basic perimeter protection and detection features are sufficient
- HDMI output or the most advanced AI features are not critical for your application
