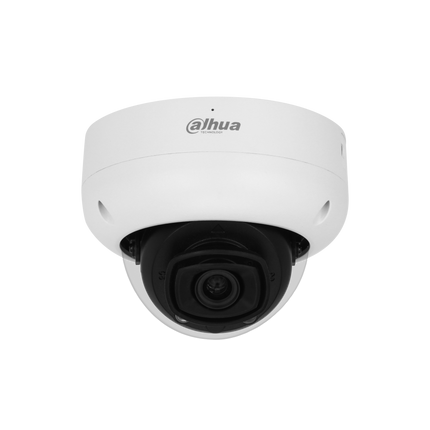

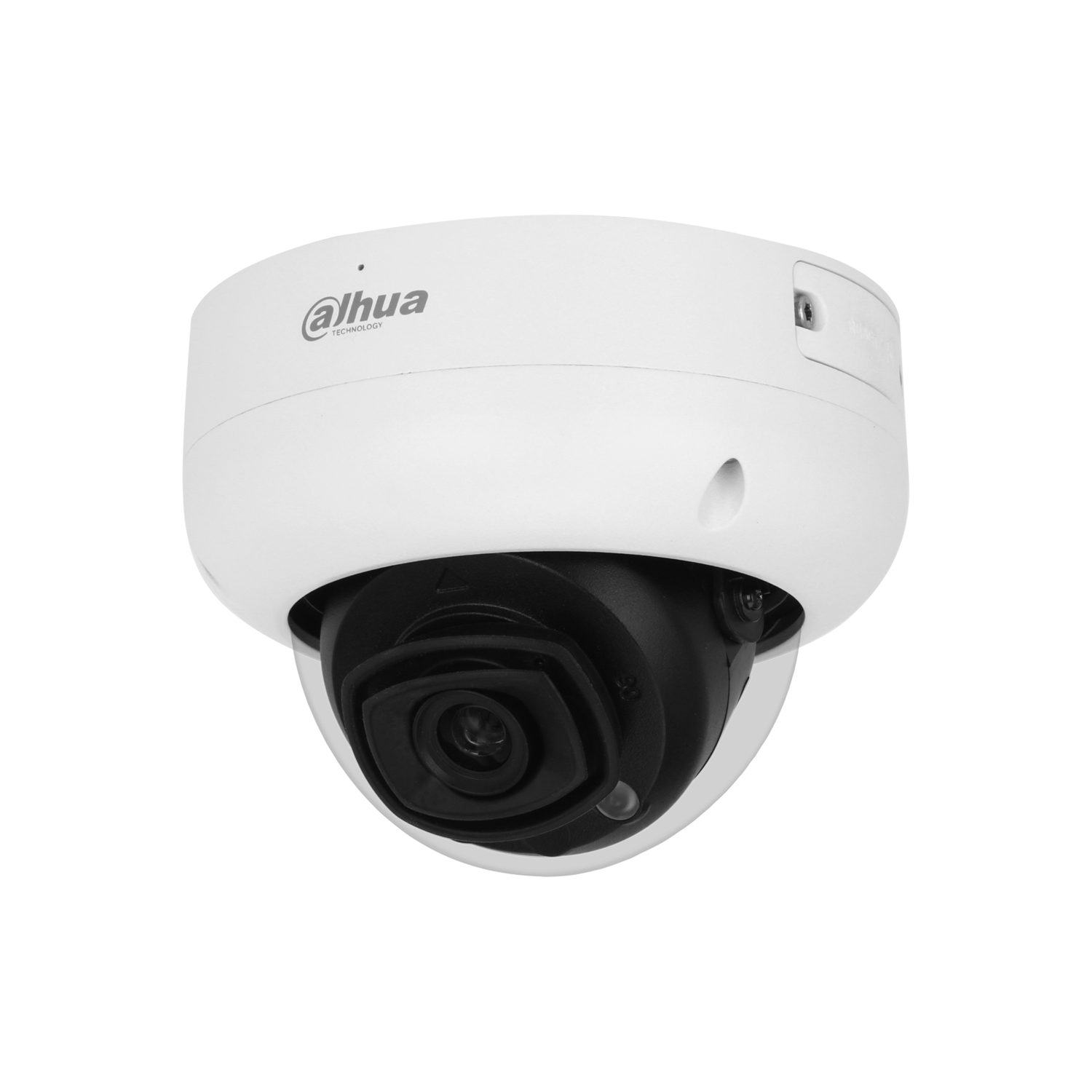

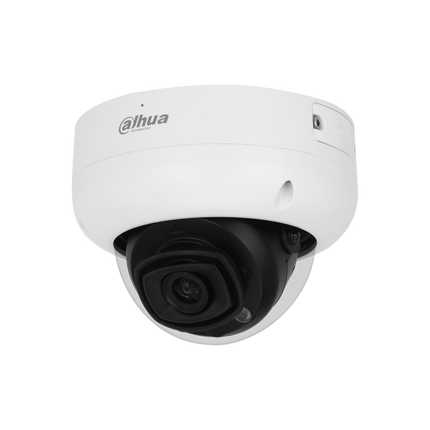

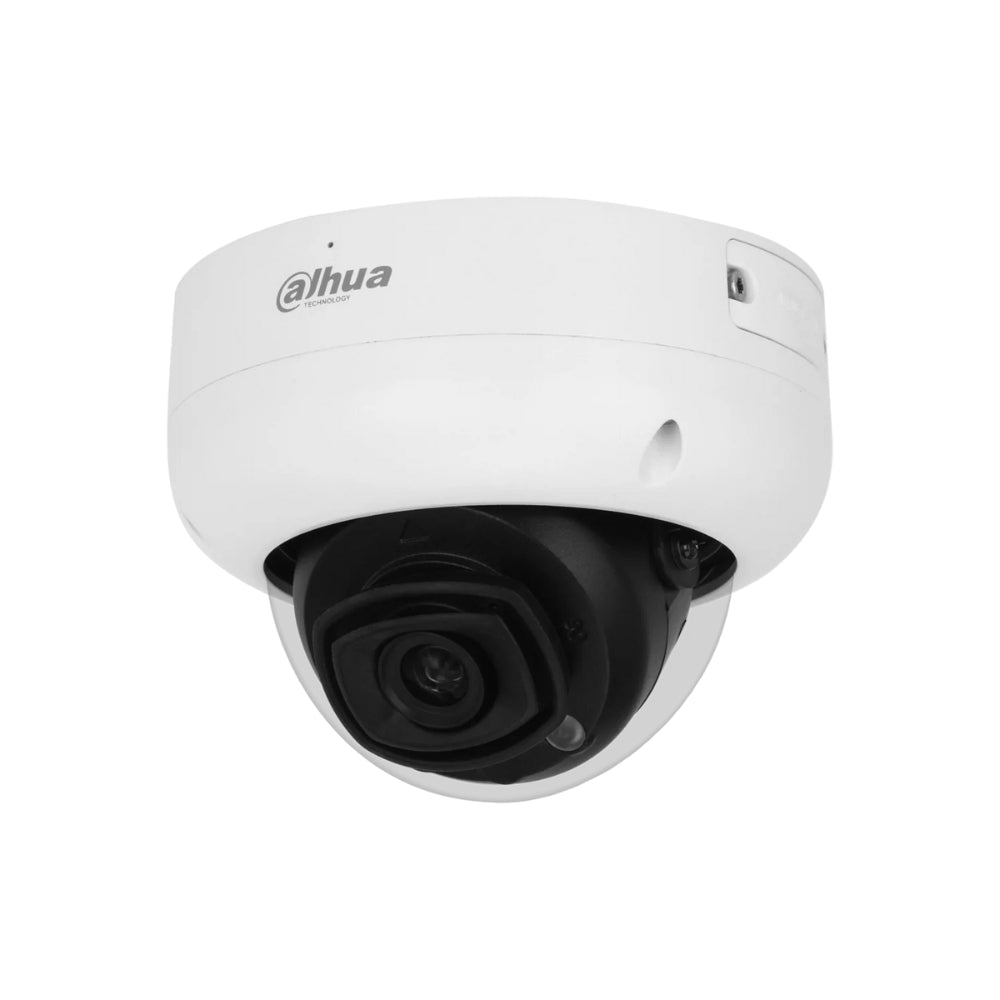

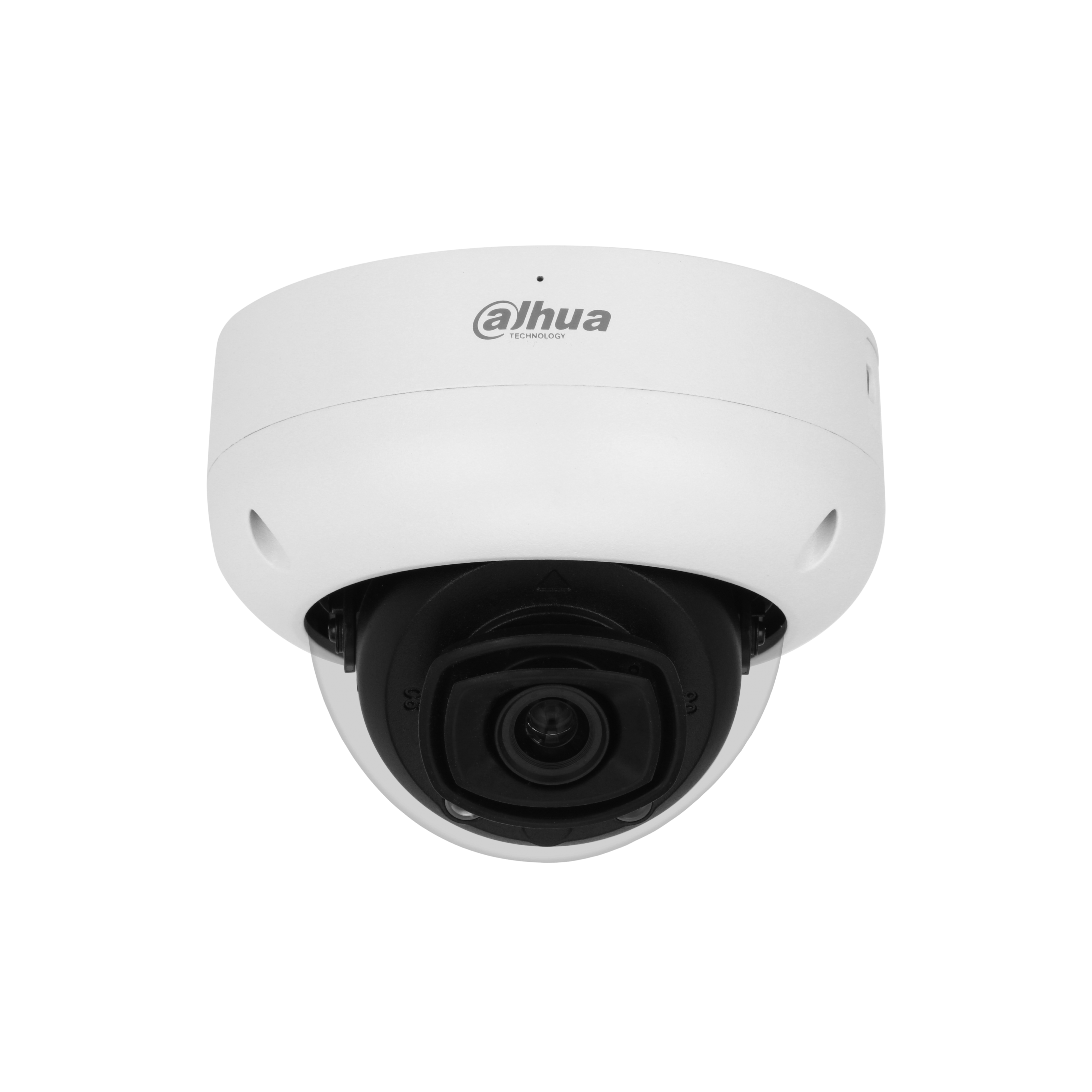

Dahua IPC-HDBW5441R-ASE-HDMI – Your Smart Security Solution
This advanced 4MP dome camera is designed to provide crystal-clear surveillance for a variety of environments. With its intelligent deep learning algorithms, it excels at accurately detecting and categorizing objects, offering precise monitoring and detailed insights. It’s perfect for anyone seeking reliable, smart protection that goes beyond basic video recording.
Key Features
-
Advanced AI Detection: Accurately identifies humans and vehicles, significantly reducing false alarms from environmental factors.
-
Built-in Microphone: Captures clear audio, adding a crucial layer of context to your video surveillance.
-
HDMI Output: Connects directly to a monitor for local viewing without needing a separate recorder.
-
Infrared Night Vision: Provides clear black and white video in complete darkness up to 50 meters (164 feet).
-
WDR (120 dB): Ensures balanced image quality in challenging lighting, preventing overexposed or underexposed areas.
-
Flexible Storage Options: Supports up to a 512 GB microSD card for local recording, with options for FTP/SFTP and NAS.
-
Durable & Vandal-Proof: Features IK10 vandal resistance and IP54 protection, making it tough enough for exposed locations.
-
Smart H.265+/H.264+: Efficiently compresses video to save bandwidth and storage space without sacrificing quality.
Perfect For:
- Commercial office entrances
- Retail store interiors
- School hallways and common areas
- Residential garages and workshops
- Small business back entrances
- Indoor public spaces require intelligent monitoring
Installer Tips
Lens Selection: Choose the 2.8mm lens for wide-angle coverage in open spaces, the 3.6mm lens for general surveillance, or the 6mm lens for narrower corridors or focused views.
PoE Advantage: Utilize Power over Ethernet (PoE) for simplified installation, allowing both power and data to run over a single Ethernet cable, reducing wiring complexity.
Optimal Placement: For optimal human and vehicle detection, install the camera at a height and angle that provides a clear, unobstructed view of the detection area, keeping DORI distances in mind.
NVR Pairing: For best results and access to advanced features like AcuPick, pair this camera with a Dahua WizMind NVR that supports deep learning analytics.
Micro SD Card: While optional, installing a 512GB Micro SD card provides robust local storage backup, ensuring recording continues even if network connectivity is lost.
HDMI Direct View: Take advantage of the HDMI output for direct connection to a local monitor, which can be useful for live viewing in reception areas or security rooms without a full NVR setup.
Downloads
Quick-Read Specs
| Feature |
Details |
| Resolution |
8MP (3840 × 2160 @ 25/30fps) |
| Illumination |
Smart Dual Light (IR + Warm Light) |
| Night Range |
Up to 30m IR / 30m White Light |
| AI Features |
SMD 4.0, AcuPick, Tripwire, Intrusion |
| Deterrence |
Flashing Red/Blue Strobe Lights + Built-in Siren |
| Audio |
Two-way audio (Built-in Mic + Speaker) |
| Weather Rating |
IP67 – Dustproof and Waterproof |
| Power |
12VDC or PoE |
| Local Storage |
MicroSD up to 256GB |
| Lens Options |
Fixed 2.8mm (106° FOV) or 3.6mm (85° FOV) |
Extra Info
WizMind Intelligence and Deep Learning
The IPC-HDBW5441R-ASE-HDMI camera is part of Dahua's WizMind series, which leverages advanced deep learning algorithms to provide highly accurate and intelligent video analytics. This isn't just about motion detection; it means the camera can precisely distinguish between humans and vehicles, drastically cutting down on false alarms caused by animals, leaves, or rain. The deep learning also powers features like Face Detection for identifying individuals, People Counting for managing occupancy, and Video Metadata to extract detailed attributes of detected objects, offering rich data for forensic searches and business intelligence.
Enhanced Surveillance with IVS and SMD 3.0
This camera features Intelligent Video System (IVS) functions, including Perimeter Protection for setting virtual tripwires and intrusion zones. When a human or vehicle crosses these lines, you get an accurate alert. The SMD 3.0 (Smart Motion Detection) further refines alerts by focusing only on human and vehicle movement, ignoring irrelevant disturbances. This means you'll only be notified about what truly matters, making your monitoring more efficient and less prone to "noise" from non-threats.
Flexible Video Compression and Storage
With support for Smart H.265+ and Smart H.264+, this camera significantly optimizes video compression. This smart encoding adapts to the scene, saving up to 70-90% on bandwidth and storage requirements compared to standard H.264, without compromising image quality. This is crucial for managing large video files, especially when recording 4MP footage, and helps extend the life of your storage devices. You can record directly to a Micro SD card (up to 512 GB), an FTP/SFTP server, or a Network Attached Storage (NAS) device for versatile backup options.
Seamless Display with HDMI Self-Adaptation
The integrated HDMI 1.4a port allows you to connect the camera directly to a display, offering a convenient way to view live feeds. The HDMI self-adaptation feature is particularly useful, as it automatically adjusts the output resolution to match the highest resolution supported by both the camera and your display. This ensures you always get the best possible picture quality on your monitor, whether it's 2560 × 1440, 1080p, or 720p, optimizing your viewing experience.
Q&A
Question: Can this camera record in color at night?
Answer: No, this camera uses infrared (IR) night vision, which provides clear black and white images in low-light or no-light conditions up to 50 meters. It does not have full-color night vision capabilities.
Question: Does the camera have a speaker for two-way audio?
Answer: This model has a built-in microphone for audio input, allowing you to hear what's happening at the camera's location. However, it does not have a built-in speaker, so it does not support two-way audio communication directly from the camera.
Question: How long can the SD card record for?
Answer: The recording duration on the 512 GB Micro SD card depends on several factors, including the video resolution, frame rate, compression settings (Smart H.265+ is highly efficient), and the amount of motion in the scene. With optimal settings, it can store many days, or even weeks, of continuous or motion-activated footage.
Question: What makes this camera different from a "Pro" version?
Answer: This camera is part of the WizMind 5 Series, offering robust AI features like SMD 3.0, face detection, and people counting. A "Pro" version (e.g., WizMind 7 Series) might include more advanced AI functionalities, such as wider attribute recognition, ANPR (Automatic Number Plate Recognition), or more specialized deep learning features for specific vertical applications.
Question: Will the camera's AI features work with my existing NVR from another brand?
Answer: The camera's basic video stream (ONVIF Profile S/G/T) should work with most ONVIF-compliant NVRs. However, the advanced AI features (like SMD 3.0, face detection data, video metadata) typically require a Dahua WizMind NVR to fully utilize their capabilities for smart search and event triggering.
Question: Is this camera suitable for outdoor use?
Answer: The camera has IP54 protection, meaning it's protected against dust ingress and splashing water from any direction. It also has IK10 vandal resistance. While it can handle some outdoor exposure, for direct heavy rain or very harsh outdoor conditions, a camera with an IP67 rating might offer better long-term protection.
Question: Can I access the camera feed from my phone?
Answer: Yes, you can access the live feed and recorded footage using Dahua's mobile client app (available for iOS and Android), such as DMSS. This allows you to monitor your property remotely from anywhere with an internet connection.
Comparison Table
IPC-HDBW5441R-ASE-HDMI - Key Differentiators
| Category |
IPC-HDBW5441R-ASE-HDMI |
Typical 4MP WizMind 5 Series Dome Camera (Conceptual) |
| Resolution & Sensor |
4MP (2688×1520) with 1/2.9" CMOS sensor. |
4MP (2688×1520) with standard 1/2.9" CMOS sensor. |
| Illumination |
Built-in IR LED (50m range), 2 IR LEDs. |
Built-in IR LED (typical 30-50m range). |
| Minimum Illumination (Color) |
0.002 lux@F1.6 (Color, 30 IRE) for excellent low-light performance. |
Typically 0.005 lux or higher @F1.6. |
| Key Output Port |
Supports HDMI 1.4a (max 2560×1440@25/30 fps, with 1080p/720p@50/60 fps) for direct monitor connection. |
No direct HDMI output. |
| AI Features |
Deep learning algorithms for Video Metadata, IVS (Perimeter Protection with human/vehicle classification), Face Detection, Smart Object Detection, People Counting, Heat Map. Features SMD 3.0. |
SMD 3.0, IVS (Perimeter Protection). May have more basic versions of other AI. |
| Audio Capabilities |
Built-in MIC; Audio In/Out (1 in, 1 out). |
Built-in MIC (some models); may or may not have Audio In/Out. |
| Storage |
Supports max. 512 GB Micro SD card. |
Supports up to 256 GB Micro SD card (common). |
| Compression |
Smart H.265+/H.264+, AI H.264/H.265 for efficient encoding. |
Smart H.265+/H.264+. |
| Protection Rating |
IP54 and IK10 vandal protection. |
Typically IP67 and IK10 for outdoor dome cameras. (Note: This specific model is IP54, which is less than IP67) |
| Power |
12 VDC/PoE power supply; ePoE support. Dual Power Backup. |
12 VDC/PoE power supply. ePoE less common on older models. May not have dual power backup. |
| DORI Distance (3.6mm lens) |
Detect: 85.4 m, Observe: 34.2 m, Recognize: 17.1 m, Identify: 8.5 m. |
Comparable DORI distances for similar lens and resolution. |
Summary Recommendation
The IPC-HDBW5441R-ASE-HDMI is an excellent choice for applications requiring:
- Direct local monitoring via HDMI output.
- Advanced WizMind 5 Series AI features like Video Metadata and precise object detection.
- Enhanced low-light performance with a low minimum illumination value.
- Larger 512 GB Micro SD card support for extended local storage.
- Reliable dual power backup for continuous operation.
Consider other WizMind 5 series models if:
- A higher IP (Ingress Protection) rating (e.g., IP67) is required for harsher outdoor environments.
- HDMI output or other specific features of this model are not essential for your installation.
