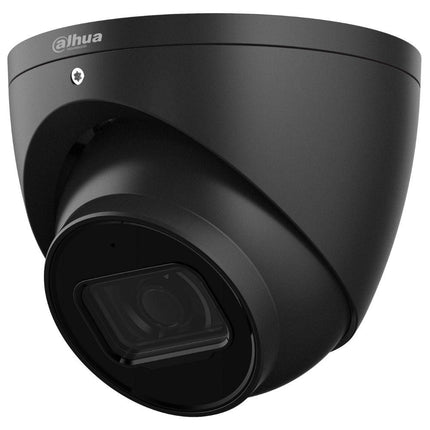

This 4MP fixed-lens eyeball camera combines clear image quality, smart motion detection, and a built-in mic in a vandal-resistant housing. It's great for homes or small business security setups where two-way audio isn't needed but audio recording is a plus. The starlight feature improves night performance, and its tough IP67/IK10 rating means it’s ready for harsh outdoor use.
Key Features
-
4MP Resolution – Clear video detail for faces, vehicles, and surroundings.
-
Starlight + IR Night Vision (30m) – Captures more color at night; IR for total darkness.
-
Smart Motion Detection (IVS) – Intrusion & tripwire help filter out false alerts.
-
Built-in Mic – Records audio for better event context and evidence.
-
Fixed 2.8mm or 3.6mm Lens – Choose wider view or more focused zone.
-
MicroSD Slot (up to 256GB) – Record locally even if the network goes down.
-
Strong Build – IP67 & IK10 – Weatherproof and vandal-resistant for outdoor use.
-
Smart H.265+ Compression – Saves storage and bandwidth without losing clarity.
Perfect For:
- Front porches or doorways
- Indoor/outdoor retail shops
- Covered carports
- Apartment block entries
- Backyards and garden areas
- Cafes or small office lobbies
Install Tips
- Choose 2.8mm lens for wide-area viewing (e.g. front porch).
- Choose 3.6mm lens for tighter monitoring (e.g. entry gates).
- Use Smart PSS or DMSS app for easy remote monitoring and audio playback.
- Install under eaves or ceilings for downward-angled views.
- Pair with PFA130-E junction box for cleaner, protected cabling.
- Ensure mic laws in your region allow recording in public-facing spaces.
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Resolution |
4MP (2688 × 1520) @ 20fps |
| Lens Options |
Fixed: 2.8mm or 3.6mm |
| Night Vision |
IR up to 30m + Starlight Color Mode |
| AI Features |
IVS (Tripwire, Intrusion) |
| Audio |
Built-in Microphone |
| Alarms |
No alarm I/O |
| Storage |
MicroSD up to 256GB |
| Power |
PoE (802.3af) / 12V DC |
| Weather Rating |
IP67 |
| Vandal Rating |
IK10 |
Extra Info
Starlight Low-Light Imaging – See Color Longer at Night
Equipped with Dahua’s advanced Starlight technology, this camera offers outstanding visibility in dim conditions. It captures full-color images longer before switching to black-and-white IR mode, unlike typical night vision cameras. This is essential for identifying important scene details such as clothing color, vehicle paint, or facial features, even when ambient light is minimal—making it perfect for alleyways, entrances, or early evening surveillance.
Smart IVS Motion Detection – Smarter Alerts, Less Noise
This model supports Intelligent Video System (IVS) functions, including tripwire and intrusion detection. These virtual boundaries allow you to define specific zones or lines in the camera’s field of view. When motion is detected in these zones—especially from a human or vehicle—the system triggers an alert. This helps eliminate false notifications from irrelevant movement like leaves, shadows, or animals, ensuring your attention is only drawn to real threats.
Built-in Microphone – Audio Included
The integrated microphone allows for ambient sound recording without the need for extra wiring. It’s ideal for areas like interview rooms, storefronts, or reception areas where voice recording or ambient sound can support incident verification, identify disturbances, or complement visual footage during playback.
Smart Codec with H.265+ – Efficient Video Storage
The camera uses Smart H.265+ compression, which dynamically adjusts based on motion and scene complexity. During calm periods, less data is recorded, and during activity, important details are preserved. This intelligent encoding helps reduce both bandwidth usage and storage requirements by up to 70%, making it a cost-effective solution for long-term recording or when using limited-capacity NVRs or SD cards.
Tough Exterior Protection – Built for Real-World Environments
With IP67 weatherproofing, the camera is sealed against rain, dust, and harsh climates, ensuring year-round outdoor performance. Meanwhile, its IK10-rated metal housing offers strong protection against vandalism or impact, making it ideal for public areas, building exteriors, or locations prone to tampering. It’s designed to perform reliably—even in rugged or high-traffic environments.
Q&A
Q: Does this camera record audio?
A: Yes, it has a built-in microphone for audio recording.
Q: Can it be installed outdoors?
A: Yes, it's IP67 rated and vandal-resistant (IK10), perfect for outdoor use.
Q: What’s the difference between the 2.8mm and 3.6mm lens?
A: 2.8mm gives a wider view (great for porches), while 3.6mm focuses on narrower spaces (like hallways or gates).
Q: Can I use it without an NVR?
A: Yes, it has a MicroSD slot for direct recording (up to 256GB).
Q: Does it work at night?
A: Yes. It uses IR LEDs for black-and-white vision up to 30m, plus Starlight tech for better low-light color.
Q: Can it notify me when someone walks in a specific zone?
A: Yes, you can set up tripwire or intrusion detection zones for alerts.
Q: What apps can I use to view it?
A: You can use Dahua’s DMSS mobile app or Smart PSS desktop software.
