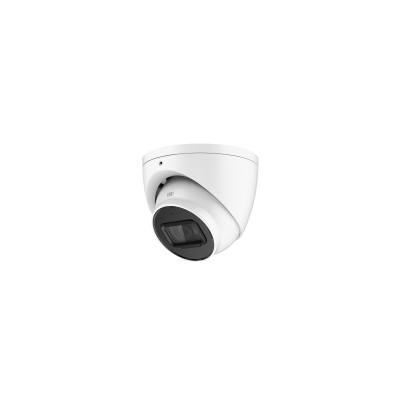

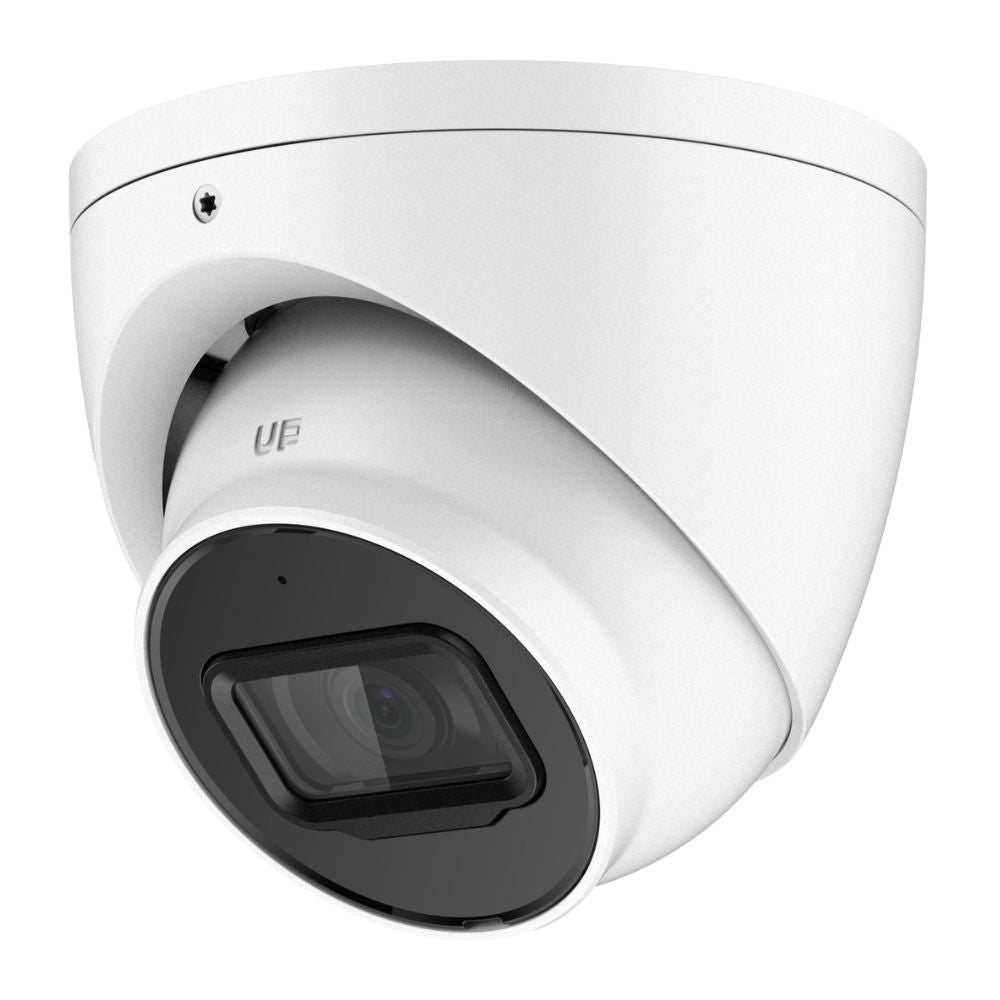

The DH-IPC-HDW2541EMP-AS-ANZ is a 5MP fixed-lens eyeball camera designed for reliable, high-performance surveillance in both residential and commercial settings. With IR night vision up to 30m, advanced AI features like SMD Plus and Perimeter Protection, and a rugged IP67-rated housing, it delivers accurate detection and clarity even in challenging environments.
Key Features
-
5MP Resolution: Captures sharp, detailed video up to 2960×1668 for clear image analysis.
-
SMD Plus: Filters out false motion alarms by distinguishing people and vehicles from irrelevant movement.
-
Perimeter Protection: Intrusion and tripwire detection with AI classification to reduce false triggers.
-
IR Night Vision (30m): Provides clear black-and-white footage in complete darkness.
-
Built-in Microphone: Enables audio recording for enhanced situational awareness.
-
Smart H.265+/H.264+ Compression: Saves bandwidth and storage without sacrificing image quality.
-
IP67 Rated: Fully weatherproof for reliable outdoor use in rain, dust, and extreme temperatures.
-
MicroSD Support: Onboard storage up to 256GB for standalone recording.
Perfect For:
- Driveways and front yards
- Warehouses and loading bays
- Schools and campus perimeters
- Office entrances and corridors
- Retail storefronts
-
Apartment complexes
Install Tips
-
Choose 2.8mm lens for wider coverage like yards or storefronts; 3.6mm is ideal for tighter scenes like hallways.
- Works well with Dahua NVRs or ONVIF-compliant recorders for full AI integration.
- Use the SmartPSS Lite or DMSS app for remote configuration and alerts.
- Mount at 2.5–3m height for optimal angle and detection accuracy.
- Use MicroSD card for backup recording in case of network dropouts.
-
Suitable for both indoor ceiling mounts and outdoor wall installations with optional brackets.
Downloads
Quick-Read Specs
| Feature |
Details |
| Resolution |
5MP (2960×1668 @ 20fps) |
| Lens Options |
2.8mm (111° FOV), 3.6mm (92° FOV) |
| Night Vision |
IR up to 30m |
| Deterrence |
None (IR only, no lights or siren) |
| AI Features |
SMD Plus, Perimeter Protection (Tripwire/Intrusion) |
| Audio |
Built-in microphone |
| Storage |
MicroSD card (up to 256GB) |
| Power |
12VDC / PoE (802.3af) |
| Weather Rating |
IP67 |
Extra Info
SMD Plus for False Alarm Reduction
This camera includes Dahua's Smart Motion Detection (SMD Plus), which uses AI to differentiate people and vehicles from irrelevant motion (like trees, rain, or animals). The result is fewer false alarms and more reliable alerts.
AI Perimeter Protection
Advanced tripwire and intrusion detection algorithms can identify human or vehicle targets specifically, greatly improving alarm accuracy in monitored zones.
Efficient Smart Compression
With Smart H.265+ and H.264+ support, this model delivers high-efficiency encoding to reduce video file sizes without reducing video quality, saving both storage and bandwidth.
Built-in Audio Monitoring
A built-in microphone adds another layer of surveillance by capturing ambient audio — perfect for entrances, reception areas, or high-risk retail zones.
Starlight Low-Light Performance
Thanks to a sensitive 1/2.7" sensor and F1.6 lens, the camera captures usable colour images in low light and seamlessly switches to IR in near-total darkness.
Durable IP67 Housing
Fully weatherproof for harsh environments, including outdoor poles, carparks, and entry gates. It operates in extreme temperatures from –40 °C to +60 °C.
Q&A
Q: Can this record in full colour at night?
A: No, it uses IR for black-and-white night vision. However, it performs very well in low light before switching to IR.
Q: Does it support audio recording?
A: Yes, it has a built-in microphone for capturing ambient sound.
Q: How far can it see at night?
A: The IR range is up to 30 metres in complete darkness.
Q: Will this work with other NVR brands?
A: Yes, it supports ONVIF, making it compatible with most third-party NVRs.
Q: Can I store footage without an NVR?
A: Yes, you can insert a MicroSD card (up to 256GB) for onboard storage.
Q: What AI features are included?
A: SMD Plus (filters false alarms) and Perimeter Protection with tripwire and intrusion detection.
Q: Is this camera good for outdoor use?
A: Yes, it's IP67 rated and built to withstand harsh weather.
Q: What app should I use to view footage?
A: DMSS for mobile viewing or SmartPSS Lite for PC-based management.
