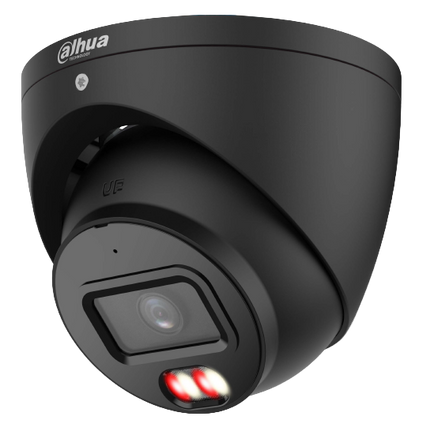

The Dahua DH-IPC-HDW3467EM-S-IL-ANZ-BLK is a WizSense 3 Series AI-powered network camera designed for reliable day and night monitoring. With a 4MP CMOS sensor, Smart Dual Light technology, and advanced AI features such as Perimeter Protection, SMD 4.0, and AI SSA, it delivers crystal-clear imaging and reduces false alarms. Built with IP67 weatherproof housing and a durable metal body, it ensures dependable operation even in harsh environments.
Key Features
-
4MP High-Definition Imaging: 2688 × 1520 resolution @ 25/30 fps using a 1/2.9″ CMOS sensor.
-
Smart Dual-Light Illumination: Infrared and warm light up to 50 m, with automatic switching for full-color capture when people or vehicles are detected.
-
Multiple Fixed Lens Options: Available in 2.8 mm, 3.6 mm, and 6 mm focal lengths for flexible surveillance coverage.
-
AI Functions: Includes Perimeter Protection, SMD 4.0, AcuPick for rapid target search, and AI Scene Self-Adaptation (AI SSA).
-
Starlight Low-Light Technology: 0.005 lux (color) sensitivity for vivid images in low-light conditions.
-
Built-in Microphone: Captures real-time audio to complement video surveillance.
-
Robust Protection: IP67-rated weather resistance with metal housing for outdoor installations.
-
Flexible Powering Options: Supports PoE (802.3af) and 12V DC with low power consumption.
Downloads
Perfect For:
- Residential driveways, garages, and perimeter protection
- Office buildings, retail storefronts, and entrances
- Schools, hospitals, and government facilities
- Parking lots and loading zones requiring 24/7 monitoring
Installer Tips
-
Mounting Height: Recommended 2.5–4 meters for best coverage.
-
Power Setup: Use PoE for simplified cabling and faster deployment.
-
Angle Adjustment: Adjust the turret manually for the optimal field of view.
-
System Integration: Pair with Dahua NVRs to enable AI-powered event detection, alerts, and smart search.
-
Audio Use: Enable microphone recording for added surveillance context.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
4MP (2688 × 1520 @ 25/30 fps) |
| Sensor |
1/2.9″ CMOS |
| Lens Options |
Fixed 2.8 mm / 3.6 mm / 6 mm |
| Field of View |
2.8 mm: H 100° / V 56° / D 117°3.6 mm: H 83° / V 44° / D 98°6 mm: H 51° / V 28° / D 60° |
| Illumination |
IR: up to 50 m, Warm Light: up to 50 m |
| Low Light Performance |
Starlight (0.005 lux @F1.4 color, 0.0005 lux B/W) |
| AI Functions |
Perimeter Protection, SMD 4.0, AcuPick, AI SSA |
| WDR |
120 dB Wide Dynamic Range |
| Compression |
H.265 / H.264 / AI H.265 / AI H.264 |
| Audio |
Built-in Microphone (PCM, G.711a/u, G.726, G.723) |
| Storage |
MicroSD (up to 512 GB), NAS, FTP, NVR |
| Power |
12V DC / PoE (802.3af), Max. 9.2 W |
| Protection |
IP67 (metal housing) |
| Operating Temp |
–40 °C to +60 °C |
| Dimensions |
93.6 × Ø106 mm |
| Weight |
0.53 kg |
Extra Info
Smart Dual Illumination
The camera is equipped with Dahua’s Smart Dual Illumination technology, which intelligently switches between infrared (IR) and warm LED light. During normal night monitoring, it relies on IR to remain discreet and energy efficient. When a human or vehicle enters the detection area, the warm LED automatically activates to capture sharp, full-color images. This dual-mode design enhances identification accuracy while reducing unnecessary light pollution in residential or public areas.
Starlight Technology
Powered by Dahua’s advanced Starlight solution, the camera achieves excellent low-light performance. With a sensitivity as low as 0.005 lux in color mode, it can produce bright, vivid images even in near-dark environments. This makes it ideal for critical applications such as perimeters, parking lots, and warehouses where lighting may be minimal. Combined with 120 dB Wide Dynamic Range (WDR), it delivers detailed images even when facing challenging lighting conditions like glare, headlights, or shadows.
AI-Powered Detection
This model belongs to Dahua’s WizSense series, featuring AI-driven video analytics. Key functions include Perimeter Protection for detecting intrusions or line crossings, SMD 4.0 (Smart Motion Detection) that distinguishes between humans and vehicles to minimize false alarms, AcuPick for rapid target search across recordings, and AI SSA (Scene Self-Adaptation) that automatically adjusts image settings for optimal clarity based on the scene. These features make surveillance smarter and reduce the workload for security operators.
Flexible Lens Options
To suit different monitoring needs, the camera is available with three fixed lens choices: 2.8 mm, 3.6 mm, and 6 mm. The 2.8 mm lens offers wide-angle coverage, perfect for entrances or open areas. The 3.6 mm option provides a balanced field of view, suitable for general surveillance. The 6 mm lens delivers a narrower angle with greater detail, ideal for focusing on specific zones such as gates or corridors. This flexibility ensures the right fit for various installation scenarios.
Built-in Audio
An integrated microphone enables real-time audio capture alongside video. This provides an additional layer of evidence, helping operators understand the full context of an event rather than relying on visuals alone. The audio function is especially useful in environments where verbal interactions or unusual sounds may need to be monitored, such as retail shops, building lobbies, or outdoor entrances.
Cyber Security
Recognizing the importance of data protection, the camera includes multiple cybersecurity safeguards. It supports secure encryption, user access control, trusted boot processes, and firmware validation to prevent unauthorized tampering or hacking attempts. These features ensure that the device remains resilient against modern cybersecurity threats while keeping sensitive video data protected.
Durability
Designed for demanding environments, the camera’s housing is constructed from durable metal and rated IP67 against water and dust. This ensures reliable performance in rain, humidity, or dusty conditions. It also maintains operation in temperatures ranging from –40 °C to +60 °C, making it suitable for both extreme cold and hot climates. Combined with its solid build, the camera is a dependable solution for long-term outdoor deployments.
Q&A
Q1: Can this camera capture full-color video at night?
Yes. Smart Dual Light and Starlight technology allow vivid color imaging even in low-light or nighttime conditions.
Q2: Does it have a motorized zoom lens?
No. This model uses fixed lenses (2.8 mm, 3.6 mm, or 6 mm).
Q3: Is it suitable for outdoor environments?
Yes. With IP67 protection and a metal body, it’s built for harsh outdoor conditions.
Q4: Does it include audio recording?
Yes. It features a built-in microphone for synchronized audio and video capture.
Q5: Can it integrate with third-party systems?
Yes. It supports ONVIF (Profiles S, G, T, M), ensuring compatibility with Dahua NVRs and many third-party platforms.
