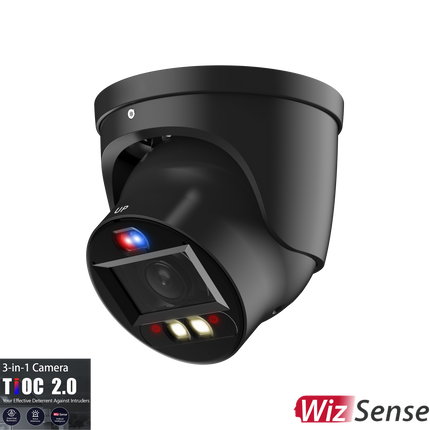

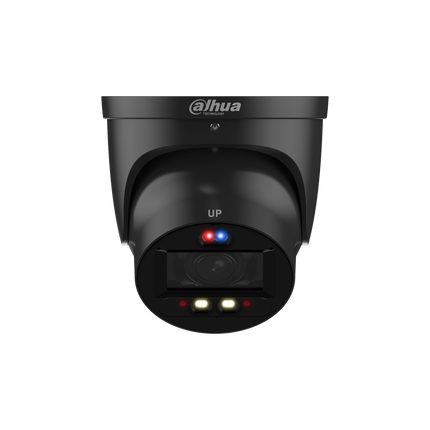

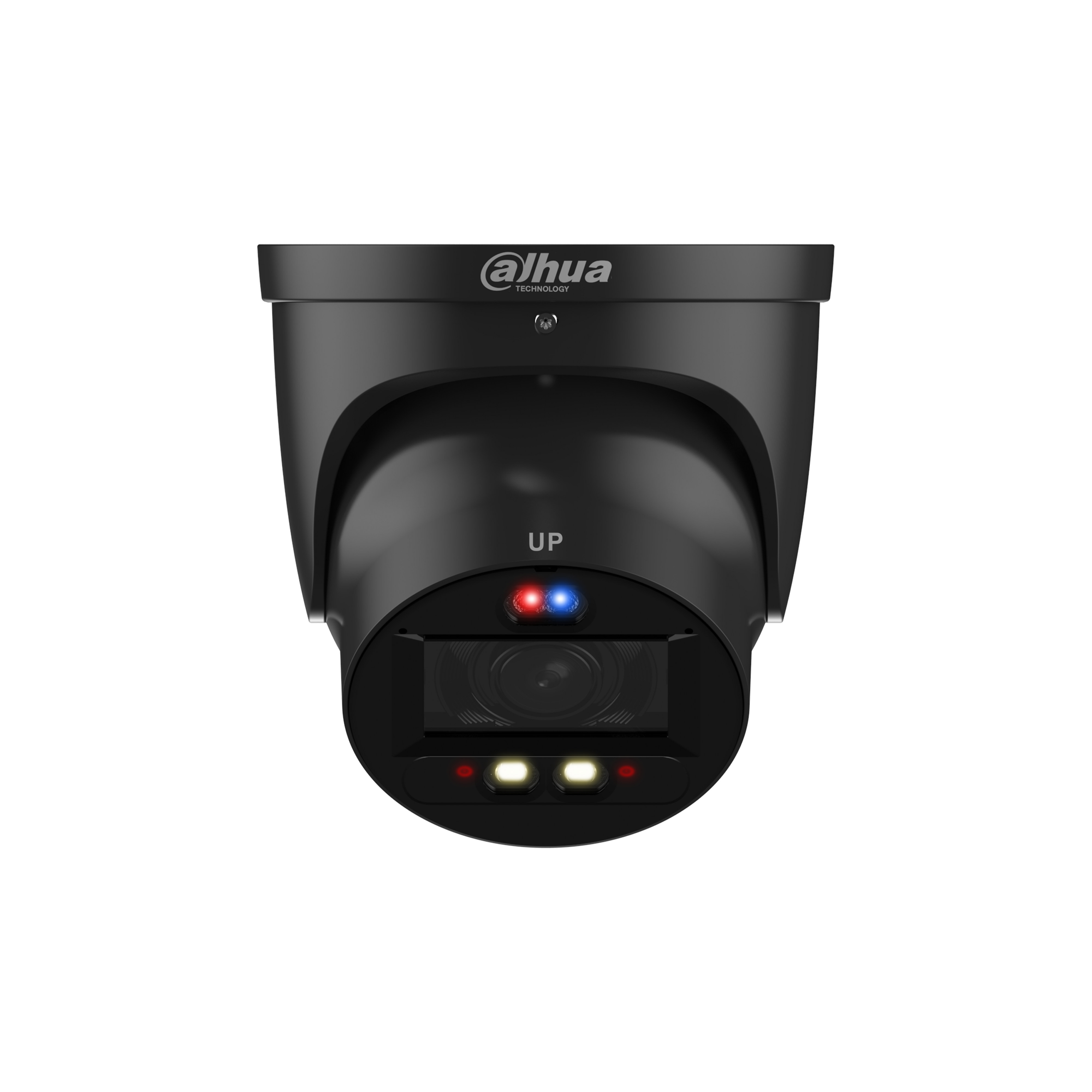

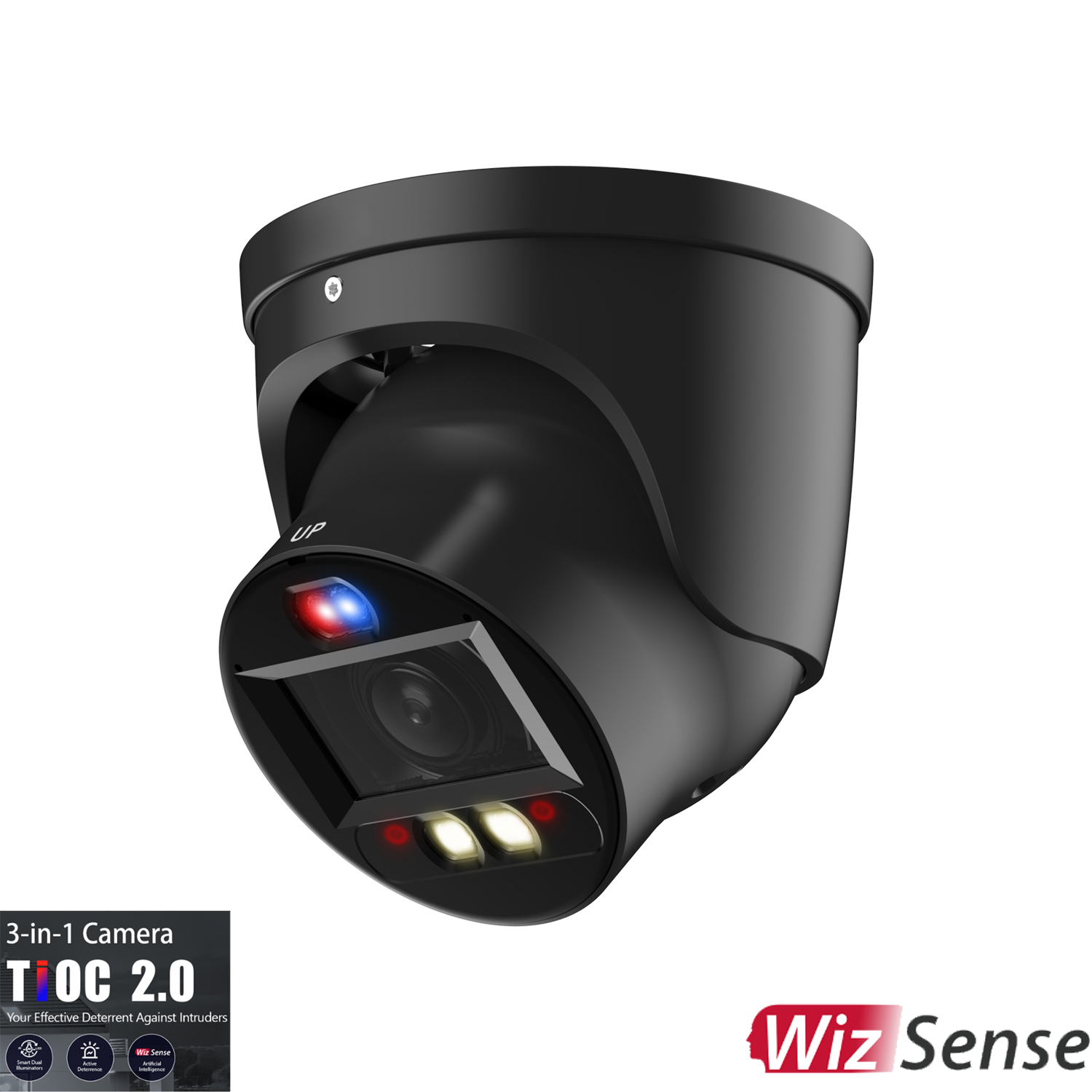

The Dahua IPC-HDW3649H-ZAS-PV-ANZ-S2-BLK is a versatile 6MP WizSense network camera designed for reliable outdoor surveillance. It provides clear imaging day and night with smart illumination, and actively deters intruders using integrated sound and light alarms. This camera is ideal for users seeking intelligent detection and proactive security for a wide range of properties.
Key Features
-
8MP 4K Ultra HD Imaging: Delivers crisp, high-resolution footage (3840 × 2160 @ 25/30fps) to capture essential detail in any scene.
-
Smart Dual Illumination: Switches between IR and white light for discreet monitoring with full-colour evidence when motion is detected.
-
Active Deterrence: Built-in strobe lights and siren trigger on AI events to ward off intruders in real time.
-
Human & Vehicle Detection: Reduces false alarms with SMD 4.0 by filtering out irrelevant motion like pets or shadows.
-
AI-Powered Search: AcuPick technology works with Dahua NVRs to quickly find human or vehicle events in recorded footage.
-
Weatherproof IP67 Housing: Fully sealed against dust and water for reliable outdoor performance in any season.
-
Two-Way Audio: Built-in microphone and speaker support live communication or automated voice alerts.
-
Scene Self-Adaption (SSA): Automatically optimises image settings based on ambient conditions for clearer footage.
Perfect For:
Residential driveways & entryways - deter would-be intruders before they approach.
Retail storefronts & carparks - capture critical events and warn off loiterers.
Warehouse loading zones - protect access points after hours.
Staff-only or restricted areas - visual and audible deterrence reduces trespassing.
Perimeter fence lines or alleyways - high clarity + AI alerts for vulnerable zones.
Schools and childcare centres - safely monitor outdoor areas with built-in audio.
Install Tips
Mount Height: For deterrence and best facial capture, install at 2.5–3m height.
Positioning: Angle camera to face likely approach paths (walkways, driveways) to maximise AI detection.
Audio Customisation: Upload custom voice alerts via the NVR for location-specific deterrence.
Downloads
Quick-Read Specs
| Feature |
Details |
| Resolution |
8MP (3840 × 2160 @ 25/30fps) |
| Illumination |
Smart Dual Light (IR + Warm Light) |
| Night Range |
Up to 30m IR / 30m White Light |
| AI Features |
SMD 4.0, AcuPick, Tripwire, Intrusion |
| Deterrence |
Flashing Red/Blue Strobe Lights + Built-in Siren |
| Audio |
Two-way audio (Built-in Mic + Speaker) |
| Weather Rating |
IP67 – Dustproof and Waterproof |
| Power |
12VDC or PoE |
| Local Storage |
MicroSD up to 256GB |
| Lens Options |
Fixed 2.8mm (106° FOV) or 3.6mm (85° FOV) |
What is TIOC?
TiOC stands for Three-in-One Camera, combining Full-Colour Video, Active Deterrence, and AI Detection into one powerful security solution.
With TiOC cameras, you get:
-
Full-Colour Footage 24/7 – even at night, thanks to Smart Dual Illuminators.
-
Smart AI Detection – accurately identifies humans and vehicles, filtering out false
alarms caused by animals, trees, or shadows.
-
Active Deterrence – red and blue warning lights plus a loud siren to stop intruders in their tracks.
These features work together to give you fast, accurate alerts and clear footage any time of day.
How Does It Work?
1. Full-Colour Night Vision with Smart Dual Illuminators
TiOC cameras automatically switch between infrared and LED lighting. When no threat is detected, they use discreet IR. When a person or vehicle enters the scene, the LED lights activate to record in full colour—helping you capture every detail clearly.
2. AI-Powered Detection
Using SMD 4.0 (Smart Motion Detection) and Perimeter Protection, the camera can tell the difference between a person, vehicle, animal, or object. This means:
- You get alerts only when it matters.
- False alarms are reduced to less than 1%.
3. Active Deterrence
When a genuine threat is detected, the camera activates built-in red and blue strobe lights along with a loud audible siren to immediately deter intruders. This proactive response helps prevent incidents before they occur. Users can schedule deterrence features to operate during specific hours—such as overnight—or customise them to suit their needs. For added convenience, a one-touch disarm function allows quick cancellation of the siren when necessary.
Extra Info
Smart Dual Illumination
The Smart Dual Light feature is a game-changer for night surveillance. Under normal low-light conditions, the camera uses its invisible IR illuminators to provide clear black and white video, minimizing light pollution. However, the moment its intelligent algorithms detect a human or vehicle in the monitoring area, the warm white light automatically activates. This illuminates the scene, allowing the camera to capture full-color video of the key event. Once the detected target leaves the area, the white light turns off, and the camera reverts to IR mode. This not only provides richer, more evidential footage but also helps conserve energy and avoid constant bright illumination in quiet periods.
SMD 4.0
SMD 4.0, or Smart Motion Detection 4.0, represents a significant leap in intelligent alarm filtering. Unlike traditional motion detection that can be triggered by anything from a passing animal to falling leaves, SMD 4.0 leverages deep learning algorithms to precisely classify targets as either humans or vehicles. This drastically reduces false alarms, ensuring that you only receive notifications for events that truly matter. Installers can even define specific "SMD areas" within the warm light zones, allowing for targeted alarm triggers in illuminated spaces.
AcuPick
AcuPick is a powerful post-event search tool that works in conjunction with compatible Dahua back-end devices (like Smart NVRs). After an event, instead of sifting through hours of footage, AcuPick uses deep learning to quickly and accurately match targets, such as specific people or motor vehicles, across live and recorded videos. This feature is invaluable for rapidly locating evidence, streamlining investigations, and saving significant time for security personnel.
AI Scene Self-Adaption (SSA)
AI SSA uses advanced deep learning algorithms to constantly analyze the scene and automatically adjust the camera's image parameters. This means the camera intelligently optimizes settings like brightness, contrast, and exposure to suit the changing conditions, whether it's bright daylight, a foggy morning, or deep twilight. The result is consistently clear and balanced images without the need for manual adjustments, ensuring optimal video quality around the clock.
Active Deterrence (Lights + Audio)
The IPC-HDW3649H-ZAS-PV-ANZ-S2 takes security beyond passive monitoring with its active deterrence capabilities. Upon detecting an intrusion or tripwire event (specifically by a human or vehicle), the camera can automatically trigger bright, attention-grabbing red and blue flashing lights. Simultaneously, its built-in speaker can emit a loud siren or play a pre-recorded custom voice message. This immediate, multi-sensory response acts as a powerful deterrent, often preventing incidents before they escalate and providing an early warning system. The ability to upload customized audio messages allows users to tailor the deterrence message to their specific needs, for example, "Warning! This area is under surveillance, please leave immediately."
Integration with AI NVRs and Mobile Apps
This camera is designed to integrate seamlessly within the Dahua ecosystem. When paired with a Dahua Smart NVR, advanced features like AcuPick and Smart Search become available, enabling intelligent event extraction and merged event videos for efficient review. For day-to-day management and remote access, the camera is fully compatible with Dahua's SmartPSS Lite, DSS, and DMSS mobile client (iOS and Android). These applications allow users to view live feeds, receive real-time alerts, review recorded footage, and even utilize the one-tap arming/disarming function for convenient control from anywhere.
Cybersecurity Protections
Dahua builds in strong cybersecurity protections including encrypted video streams, secure firmware updates, and access controls. This guards against data breaches or unauthorized remote access — a key consideration for business and home networks alike.
More About AcuPick - Smart Video Search with Precision AI
Dahua’s AcuPick technology revolutionises video surveillance by using advanced AI to pinpoint people or vehicles across recorded footage with remarkable speed and accuracy. Instead of scrubbing through hours of video manually, AcuPick enables users to filter footage by specific targets, drastically cutting down search times and boosting operational efficiency. Integrated into a range of Dahua cameras (including TiOC series) and compatible NVRs, AcuPick delivers a seamless and intelligent search experience.
Highlights of AcuPick:
AI-Driven Precision:
AcuPick leverages intelligent algorithms to differentiate between human and vehicle activity, refining search results to what truly matters.
Smart Filtering:
Search footage using key attributes like clothing colour or vehicle type—no need to know the exact time an incident occurred.
Instant Video Recall:
With just a few clicks, users can zero in on critical moments, improving response times and streamlining investigations.
False Alarm Reduction:
By filtering out irrelevant motion, AcuPick helps reduce nuisance alerts, leading to more reliable monitoring.
Flexible Deployment:
Whether through Dahua's smart cameras or NVR integration, AcuPick fits into a wide range of security setups.
Practical Applications:
-
Retail & Offices: Track customer flow or monitor for unauthorized access.
-
Car Parks & Garages: Instantly retrieve footage of accidents or suspicious activity.
-
Public Spaces: Quickly find persons of interest using visual identifiers.
-
Residential Estates: Enhance safety by identifying vehicle movements or visitors.
AcuPick transforms surveillance from reactive monitoring to proactive intelligence, saving time while elevating security across the board.
Q&A
Q: Can this camera record in full colour at night?
A: Yes. Thanks to Smart Dual Illumination, it switches to full-colour recording when a person or vehicle enters the scene.
Q: Is it suitable for outdoor use?
A: Absolutely. The camera is IP67-rated for full dust and water resistance, making it ideal for all weather conditions.
Q: Does it support audio?
A: Yes, it includes a built-in microphone and speaker for two-way communication or event-based audio alerts.
Q: What storage options does it support?
A: You can use a microSD card (up to 256GB), FTP/SFTP servers, NAS devices, or connect it to a compatible NVR.
Q: What’s the difference between this and a basic motion detection camera?
A: This model uses AI to recognise and respond to people and vehicles only, significantly reducing false alarms caused by pets, shadows, or wind-blown objects.
Q: How is it powered?
A: The camera supports 12VDC and PoE (Power over Ethernet), giving flexibility depending on your installation setup.
Q: What is AcuPick?
A: AcuPick works with Dahua AI NVRs to quickly locate specific people or vehicles in video recordings using intelligent metadata.
Q: Can I arm/disarm the alarm system remotely?
A: Yes, the Dahua mobile app allows you to enable or disable alarm notifications with a single tap, ideal for business hours control or home arrival.
Comparison Table
TiOC 2.0 vs. TiOC 3.0 - What’s New?
| Category |
TiOC 2.0 |
TiOC 3.0 |
| Illumination |
Single warm + IR LED lights. |
Upgraded multi-core warm & IR lights — brighter, more efficient. |
| Low-Light Performance |
Excellent, using larger sensors and F1.0 lenses. |
Enhanced Starlight performance with improved sensors and image tuning. |
| Active Deterrence |
Red/blue strobe + customizable voice alerts. |
Same deterrence functions, but louder speakers and improved light visibility.
|
| Lens Type (Pro Models) |
M12 or fixed lens, typical 2.8/3.6 mm. |
Motorised varifocal lens available on some 3.0 models (e.g., PTZ and turret). |
| AI Features |
SMD 3.0/4.0 (human/vehicle filtering), AcuPick, perimeter protection. |
Same features, but improved AI accuracy and faster AcuPick retrieval.
|
| Smart Dual Illumination |
Switches between IR and white light on detection. |
Smarter light control and better synchronisation with AI events. |
| WizSense Platform |
Based on Dahua’s early WizSense chip. |
Upgraded chipset and enhanced image signal processing (ISP). |
| Cybersecurity & Stability |
Basic protections, standard hardening. |
Enhanced trusted boot, upgrade integrity, dual power failover (Pro models).
|
| Mounting/Build |
Typically smaller housing, fewer commercial options. |
More Pro variants, enhanced cooling, and weather resilience. |
TIOC Standard Vs TIOC Pro
| Feature |
DH-IPC-HDW3849H-AS-PV-ANZ-S2(Standard Model) |
DH-IPC-HDW3849H-AS-PV-PRO-ANZ(Enhanced PRO Version) |
| Image Sensor |
1/2.7" CMOS |
1/1.8" CMOS (larger sensor = improved low-light clarity)
|
| Min. Illumination (Colour) |
0.004 Lux @ F1.0 |
0.0008 Lux @ F1.0 (superior night colour)
|
| Field of View (2.8mm lens) |
H: 106°, V: 55°, D: 125° |
H: 109°, V: 59°, D: 131° (wider coverage)
|
| IR & Warm Light Range |
30m (IR) / 30m (Warm light) |
30m (IR) / 30m (Warm light) |
| Illuminator Type |
1x IR + 1x Warm light |
2x Multi-core IR/Warm lights (brighter and smarter)
|
| MicroSD Card Support |
Up to 256GB |
Up to 512GB |
| Built-in Mic |
Yes (Dual Mic) |
Yes (Dual Mic) |
| Speaker |
Yes |
Yes |
| Deterrence |
Red/blue strobe + built-in siren |
Same |
| Privacy Masking |
4 areas |
8 areas |
| Lens Mount |
M12 |
M16 (larger lens interface)
|
| DORI (Detect/Identify Range) |
78m detect / 7.8m identify (3.6mm lens) |
100m detect / 10m identify (3.6mm) |
| Power Consumption (Max) |
10.1W (PoE) |
10W (PoE) |
| Dual Power Backup |
Not specified |
Yes – 12VDC & PoE failover supported |
| Dimensions |
Ø122 × 110.9 mm |
Ø122 × 116.1 mm (slightly deeper)
|
| Weight (Net) |
0.75 kg |
0.8 kg |
| Audio I/O |
1 in / 1 out (RCA) |
1 in / 1 out (RCA) |
| Smart Features |
SMD 4.0, AcuPick, AI SSA, One-tap Disarm |
Same |
| Video Streams |
3 Streams |
3 Streams |
| Resolution Options |
Up to 8MP, substreams down to CIF |
Same (adds 6M @ 3200×1800) |
| Use Case Summary |
Reliable active deterrence with smart detection |
Enhanced clarity, low-light vision & professional-grade range |
Summary Recommendation
Choose the PRO model (DH-IPC-HDW3849H-AS-PV-PRO-ANZ) if you need:
- Superior low-light colour performance
- Greater SD card capacity
- Wider field of view and improved identification distances
- More privacy zones or dual power reliability
Choose the S2 model (DH-IPC-HDW3849H-AS-PV-ANZ-S2) if you need:
- Reliable active deterrence and AI functions at a better price point
- Solid coverage for general residential or small business use
