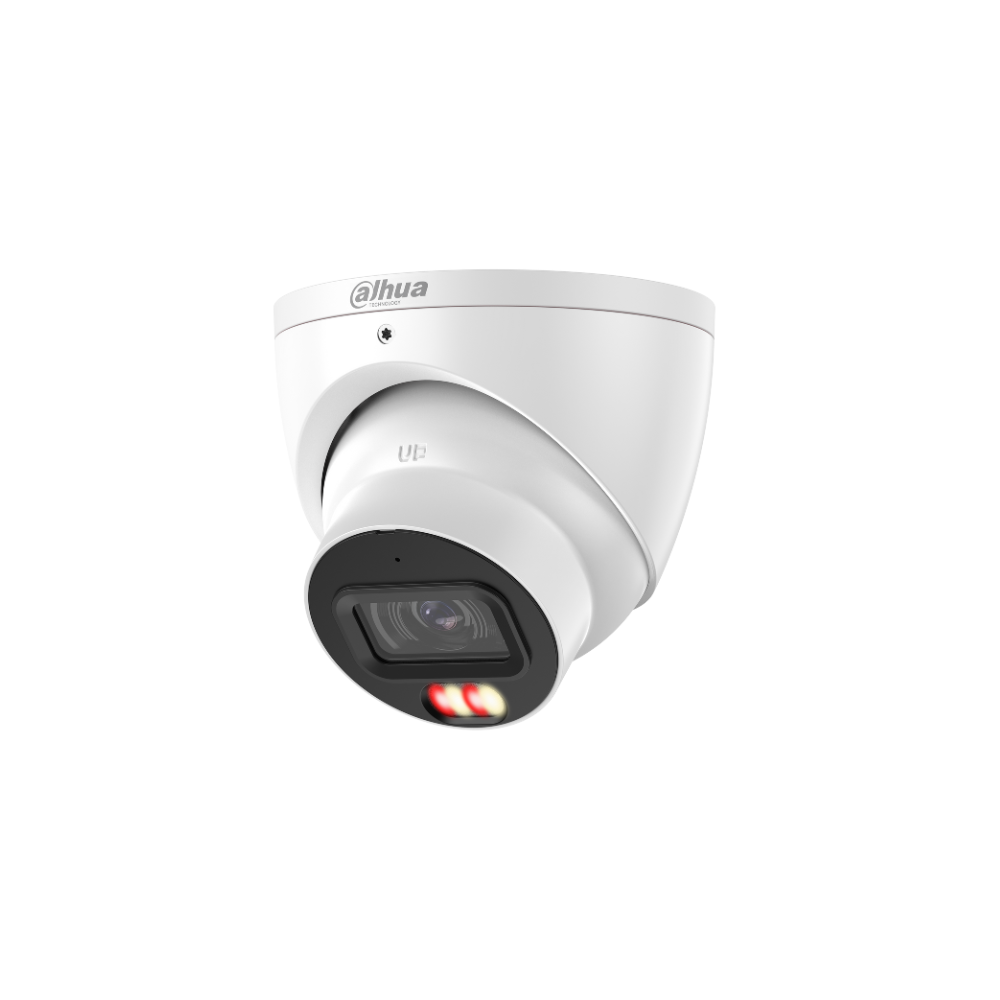

The Dahua DH-IPC-HDW3667EM-S-IL-ANZ is part of the WizSense 3 Series, powered by advanced AI and deep learning algorithms. Designed for reliable outdoor surveillance, it delivers clear 6MP video, smart event detection, and efficient monitoring for residential, commercial, and industrial applications.
Key Features
-
6MP High-Resolution Video – Captures up to 3288 × 1850 @ 30fps with sharp detail.
-
Smart Dual Light Technology – Automatically switches between IR and warm light. IR remains on for discreet night monitoring, while warm light activates when a target is detected for full-color recording.
-
Starlight Technology – Excellent low-light performance down to 0.005 lux in color mode.
-
Perimeter Protection – Accurate detection of humans and vehicles using deep learning, reducing false alarms.
-
SMD 4.0 (Smart Motion Detection) – Classifies human and vehicle movement, filtering out irrelevant objects such as animals.
-
Flexible Storage Options – Supports up to 512GB Micro SD card, FTP, NAS, and Dahua NVRs.
-
Audio Support – Built-in microphone for synchronized audio and video.
-
Rugged Design – Metal housing with IP67 weather protection and wide voltage tolerance.
Downloads
Perfect For:
- Residential perimeters and driveways
- Business entrances and shopfronts
- Parking lots and building perimeters
- Warehouses and logistics facilities
- School and office outdoor areas
Installer Tips
-
Mounting Height: Install at 2.5–4 meters for optimal deterrence visibility.
-
PoE Setup: Use PoE to reduce cabling and simplify installation.
-
Coverage: The 2.8mm fixed lens is best suited for wide-area surveillance.
-
Integration: Works seamlessly with Dahua NVRs for smart event detection and mobile monitoring.
-
Audio Warnings: Configure pre-recorded messages or alarms for deterrence.
Quick-Read Specs
| Specification |
Detail |
| Camera |
6MP (3288 × 1850 @ 30fps) |
| Lens Options |
Fixed 2.8 mm (H: 110°) / 3.6 mm (H: 86°) |
| Illumination |
Smart Dual Light: IR up to 30m / Warm Light up to 30m |
| Low Light Performance |
Starlight (0.005 lux, F1.6) |
| WDR |
120 dB Wide Dynamic Range |
| Compression |
H.265 / H.264 / AI Coding |
| Audio |
Built-in Microphone (PCM, G.711a/u, G.726, G.723) |
| Smart Features |
Perimeter Protection, SMD 4.0, AI SSA, AcuPick |
| Storage |
Micro SD (up to 512GB), NAS, FTP, Dahua NVR |
| Power Supply |
12V DC / PoE (802.3af), Max. 9.5W |
| Protection |
IP67 (metal housing) |
| Operating Temp |
–40 °C to +60 °C |
| Dimensions |
93.6 × Ø106 mm |
| Weight |
0.53 kg |
| Warranty |
3 Years |
Extra Info
Smart Dual Light
The camera uses IR for standard night monitoring and switches to warm light only when a human or vehicle is detected, providing full-color video for key events while reducing light pollution.
Perimeter Protection & SMD 4.0
Advanced AI algorithms accurately detect and classify humans and vehicles. Tripwire and intrusion detection minimize false alarms, and SMD 4.0 filters out irrelevant objects such as animals.
High-Resolution Imaging
6MP resolution (3288 × 1850) with up to 30fps delivers sharp, detailed video. Features like 120 dB WDR, 3D Noise Reduction, and digital watermarking enhance image quality for surveillance and forensic review.
Durable Outdoor Design
Metal housing with IP67 protection withstands dust, rain, and extreme temperatures (–40 °C to +60 °C), ensuring reliable long-term outdoor performance.
Advanced Connectivity & Storage
Supports PoE (802.3af) for simplified installation and multiple storage options, including Micro SD cards (up to 512GB), NAS, FTP, and Dahua NVRs for intelligent event management.
AI Scene Self-Adaptation (AI SSA)
Automatically adjusts image parameters in challenging environments such as fog, rain, backlight, and low-light conditions, ensuring consistently clear images.
Q&A
Q1: Can this camera record in low-light conditions?
A1: Yes. With Starlight technology and Smart Dual Light, the camera captures clear full-color video at night. IR provides discreet night monitoring, while warm light activates for detected humans or vehicles.
Q2: Does it support audio recording?
A2: Yes. The camera has a built-in microphone for synchronized audio along with video.
Q3: How does the smart detection work?
A3: It uses AI algorithms for Perimeter Protection and SMD 4.0 to detect and classify humans and vehicles, while filtering out irrelevant objects like animals, reducing false alarms.
Q4: Can the camera adapt to challenging environments?
A4: Yes. AI Scene Self-Adaptation (AI SSA) automatically adjusts image parameters for conditions like fog, rain, backlight, low light, and flicker.
Q5: Is it suitable for outdoor use?
A5: Absolutely. The metal housing is IP67-rated, protecting against dust, rain, and extreme temperatures from –40 °C to +60 °C.
Q6: How is it powered and connected?
A6: It supports 12V DC and PoE (802.3af), allowing a single cable for power and data, simplifying installation.
Q7: What storage options are available?
A7: Video can be stored on a Micro SD card (up to 512GB), NAS, FTP servers, or Dahua NVRs.
