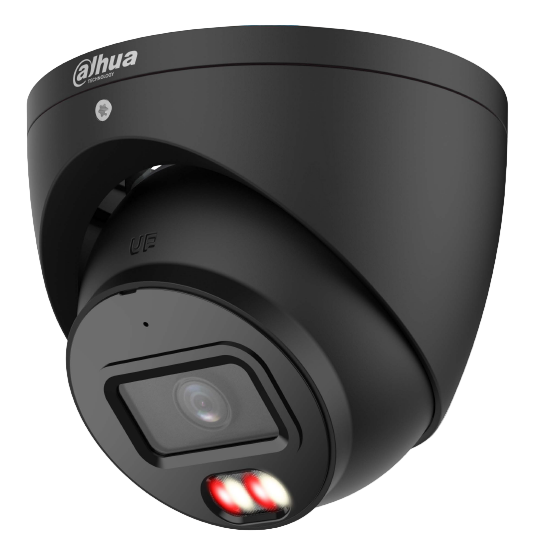

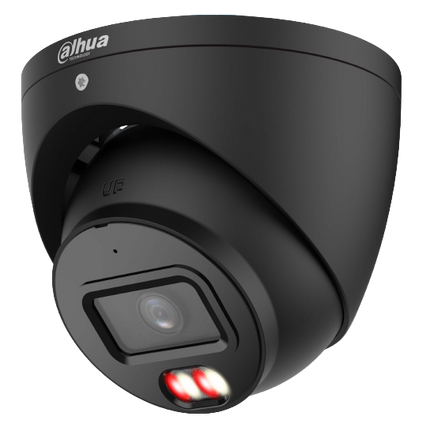

The Dahua DH-IPC-HDW3867EM-S-IL-ANZ-BLK is an 8MP WizSense network camera with Smart Dual Light technology, designed for outdoor surveillance with advanced AI-powered human and vehicle detection. It combines deep learning algorithms, full-colour night vision, and perimeter protection to provide accurate, actionable security monitoring in a wide range of conditions.
Key Features
-
8MP 1/2.7" CMOS Sensor: Delivers 3840 × 2160 video at 25/30 fps for ultra-clear surveillance.
-
Smart Dual Light: IR light for night monitoring with white light activation for full-color video when motion is detected.
-
Perimeter Protection: Tripwire and intrusion detection classify humans and vehicles, reducing false alarms.
-
SMD 4.0 (Smart Motion Detection): Filters non-target motion (e.g., animals) to reduce false alarms; integrates with AI NVR for Quick Pick target search.
-
AI Scene Self-Adaption (AI SSA): Dynamically adjusts image settings for changing conditions like rain, fog, or low light.
-
Smart H.265+/H.264+ Compression: Reduces storage and bandwidth without compromising quality.
-
Built-in Microphone: Captures audio alongside video.
-
IP67-rated Housing: Weatherproof and durable for outdoor use.
Perfect For:
- Home driveways and entrances
- Commercial storefronts and forecourts
- Perimeter fences in industrial lots
- Outdoor corridors, alleys, and parking lots
- Low-light and mixed-light environments
Install Tips
-
Mounting: Supports wall, ceiling, pole, and junction mounting.
-
Lens Choice: Use 2.8 mm for wider areas; 3.6 mm for detailed monitoring.
-
SMD Configuration: Assign SMD areas within the warm light zones for accurate alarm triggering.
-
Power Options: 12 VDC or PoE (802.3af) with dual power backup.
-
NVR Integration: For AI features like Quick Pick, pair with a compatible Dahua AI NVR.
Downloads
Quick-Read Specs
| Spec |
Details |
| Resolution |
8MP (3840 × 2160) |
| Sensor |
1/2.7" CMOS |
| Lens Options |
2.8 mm or 3.6 mm fixed |
| Night Vision |
IR + Warm Light, up to 30 m |
| Deterrence |
Smart Dual Light (IR default / white light on motion) |
| AI Features |
SMD 4.0, AI SSA, Perimeter Protection, Quick Pick (with AI NVR) |
| Audio |
Built-in microphone |
| Storage |
Max 512 GB MicroSD, FTP/SFTP, NAS |
| Power |
12V DC / PoE (802.3af) |
| Weather Rating |
IP67 |
| Video Compression |
Smart H.265+/H.264+ |
| Operating Temp |
–40 °C to +60 °C |
| Dimensions |
105.5 × Φ122 mm |
| Weight |
0.53 kg |
Extra Info
Smart Dual Light
IR illuminator stays on by default to minimize light pollution. When a human or vehicle enters the detection area, white light activates to capture full-color video and key event snapshots.
SMD 4.0 (Smart Motion Detection)
AI-powered detection filters non-target motion (animals, leaves, or rain) to reduce false alarms. Works with Dahua AI NVRs to enable Quick Pick, allowing fast search of human or vehicle targets in recorded footage.
AI Scene Self-Adaption (AI SSA)
Automatically adjusts exposure, contrast, and other image settings to compensate for environmental changes such as fog, glare, or low light, ensuring consistently clear images.
Perimeter Protection
Accurately identifies human and vehicle activity in restricted areas such as pedestrian walkways or parking lots, supporting tripwire and intrusion detection.
Cybersecurity Ready
Video and firmware encryption, trusted boot, encrypted storage, secure protocols, and access controls protect the device from external threats.
Flexible Installation
Supports wall, ceiling, pole, and junction mounting. Can operate in extreme temperatures (–40 °C to +60 °C).
More About AcuPick - Smart Video Search with Precision AI
Dahua’s AcuPick technology revolutionises video surveillance by using advanced AI to pinpoint people or vehicles across recorded footage with remarkable speed and accuracy. Instead of scrubbing through hours of video manually, AcuPick enables users to filter footage by specific targets, drastically cutting down search times and boosting operational efficiency. Integrated into a range of Dahua cameras (including TiOC series) and compatible NVRs, AcuPick delivers a seamless and intelligent search experience.
Highlights of AcuPick:
AI-Driven Precision:
AcuPick leverages intelligent algorithms to differentiate between human and vehicle activity, refining search results to what truly matters.
Smart Filtering:
Search footage using key attributes like clothing colour or vehicle type—no need to know the exact time an incident occurred.
Instant Video Recall:
With just a few clicks, users can zero in on critical moments, improving response times and streamlining investigations.
False Alarm Reduction:
By filtering out irrelevant motion, AcuPick helps reduce nuisance alerts, leading to more reliable monitoring.
Flexible Deployment:
Whether through Dahua's smart cameras or NVR integration, AcuPick fits into a wide range of security setups.
Practical Applications:
-
Retail & Offices: Track customer flow or monitor for unauthorized access.
-
Car Parks & Garages: Instantly retrieve footage of accidents or suspicious activity.
-
Public Spaces: Quickly find persons of interest using visual identifiers.
-
Residential Estates: Enhance safety by identifying vehicle movements or visitors.
AcuPick transforms surveillance from reactive monitoring to proactive intelligence, saving time while elevating security across the board.
Q&A
Q: Can this camera record in colour at night?
Yes, the smart dual-light technology switches to white light when a person or vehicle is detected, capturing full-colour video.
Q: Is the microphone built in or external?
It has a built-in microphone for audio recording.
Q: Does it support audio recording laws compliance?
Yes, audio can be disabled if not legally permitted in your region.
Q: What storage options are available?
Supports up to 512GB MicroSD, FTP/SFTP, and NAS recording.
Q: Can it work with third-party NVRs?
Yes, the camera supports ONVIF profiles S, G, T, and M for wide compatibility.
Q: Will the lights always stay on at night?
No, the camera uses IR light until motion is detected, then activates the white light briefly to minimize light pollution.
Q: What’s the benefit of using a Dahua AI NVR with this?
You unlock AcuPick, which allows rapid video searching by target type (person or vehicle) using deep learning.
Q: How weatherproof is the unit?
It’s IP67-rated, fully dustproof, and can be submerged in 1 meter of water for up to 30 minutes.
