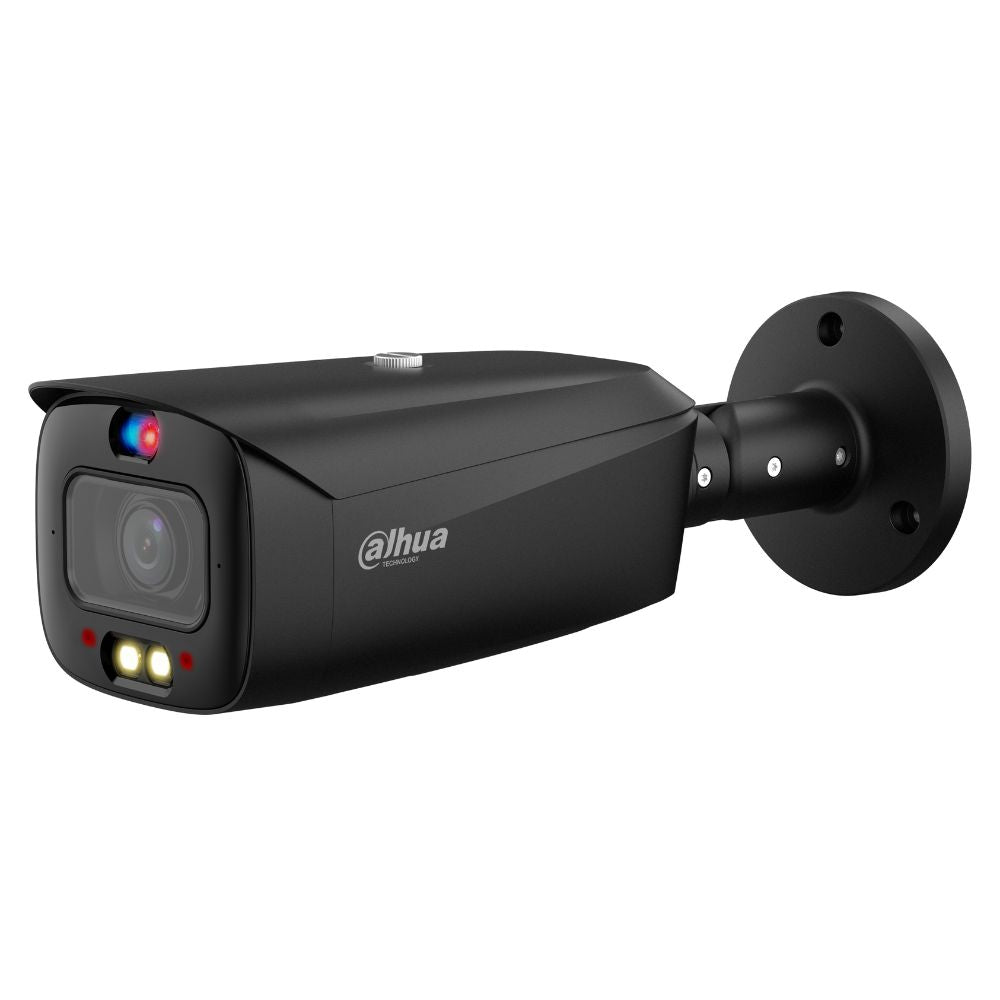

This fixed-lens bullet camera combines AI detection, active deterrence, and dual-light night vision to deliver smart, responsive security. Ideal for outdoor monitoring, it alerts to intrusions with red/blue strobe lights and custom audio. Smart Motion Detection filters out false alarms, while two-way audio lets you intervene in real time. Easy to install and built to withstand the elements, it’s a reliable choice for keeping high-risk areas secure day and night.
Key Features
-
Smart Motion Detection 4.0 (SMD 4.0): Accurately detects and classifies people and vehicles to reduce false alarms.
-
Active Deterrence (Lights + Audio): Red/blue strobe lights and customizable voice alerts scare off intruders before they enter.
-
Dual Illumination (IR + Warm Light): Switches between infrared and full-colour night vision when motion is detected, ensuring clear recordings.
-
Built-in Two-Way Audio: Built-in speaker and dual microphones allow two-way talk and custom audio warnings.
-
Perimeter Protection (IVS): Human/vehicle detection for intrusion and tripwire events with AI-powered precision.
-
Scene Self-Adaption (SSA): Automatically adjusts image settings for optimal clarity in different environments.
-
MicroSD Support (up to 512GB): Local recording with generous onboard storage and network fallback.
-
IP67 Weatherproof Housing: Built for extreme heat, cold, rain, and dust — perfect for tough outdoor jobs.
Perfect For:
- Residential driveways and front yards
- Small business entrances and shopfronts
- Warehouse perimeters
- Alleyways or side access areas
- School or daycare gates
- Parking lots and garages
Installer Tips
-
Choose 2.8mm for wide coverage on driveways or open yards; 3.6mm for narrower fields like alleys or hallways.
-
Mount 8–10 feet high for optimal detection and deterrence coverage.
-
Use PoE for faster setup and fewer cables when running multiple cameras.
-
Upload custom voice alerts via the DMSS app or Smart PSS software to suit your needs.
-
Pair with an AI-compatible Dahua NVR for best use of SMD 4.0 and AcuPick features.
-
Aim warm light zones at key entry points — adjust in-app to trigger only in important areas.
Downloads
Quick-Read Specs
| Feature |
Details |
| Resolution |
6MP (3072 × 2048 @30fps) |
| Lens Options |
2.8mm (97° FOV) or 3.6mm (78° FOV) fixed-focal |
| Night Vision |
IR + Warm Light, up to 30m (full-colour on motion) |
| Deterrence |
Red/blue strobe lights + customizable voice alerts |
| AI Features |
SMD 4.0, AcuPick, IVS (tripwire, intrusion), AI SSA |
| Audio |
Dual built-in mics + 1-channel speaker, 2-way audio |
| Storage |
microSD up to 512GB; FTP, NAS, or NVR |
| Power |
12VDC / PoE (802.3af), Max 9.4W |
| Weather Rating |
IP67 (dust and water resistant) |
What is TIOC?
TiOC stands for Three-in-One Camera, combining Full-Colour Video, Active Deterrence, and AI Detection into one powerful security solution.
With TiOC cameras, you get:
-
Full-Colour Footage 24/7 – even at night, thanks to Smart Dual Illuminators.
-
Smart AI Detection – accurately identifies humans and vehicles, filtering out false
alarms caused by animals, trees, or shadows.
-
Active Deterrence – red and blue warning lights plus a loud siren to stop intruders in their tracks.
These features work together to give you fast, accurate alerts and clear footage any time of day.
How Does It Work?
1. Full-Colour Night Vision with Smart Dual Illuminators
TiOC cameras automatically switch between infrared and LED lighting. When no threat is detected, they use discreet IR. When a person or vehicle enters the scene, the LED lights activate to record in full colour—helping you capture every detail clearly.
2. AI-Powered Detection
Using SMD 4.0 (Smart Motion Detection) and Perimeter Protection, the camera can tell the difference between a person, vehicle, animal, or object. This means:
- You get alerts only when it matters.
- False alarms are reduced to less than 1%.
3. Active Deterrence
When a genuine threat is detected, the camera activates built-in red and blue strobe lights along with a loud audible siren to immediately deter intruders. This proactive response helps prevent incidents before they occur. Users can schedule deterrence features to operate during specific hours—such as overnight—or customise them to suit their needs. For added convenience, a one-touch disarm function allows quick cancellation of the siren when necessary.
Extra Info
Smart Dual Illumination — Clear Color at the Right Time
This camera intelligently switches between infrared and warm white light based on motion detection. While IR maintains discreet, low-light monitoring by default, warm white light activates when a person or vehicle enters the frame. This ensures crucial footage is captured in vivid full colour when it matters most — ideal for identifying suspects, license plates, or clothing. After the subject leaves, the system returns to IR mode to reduce light pollution and energy use.
SMD 4.0 — Smarter Motion, Fewer False Alarms
Dahua’s Smart Motion Detection 4.0 uses deep-learning algorithms to distinguish humans and vehicles from irrelevant movement like animals, shadows, and blowing leaves. SMD 4.0 significantly reduces false alerts, making it more dependable for real-world environments. When paired with a Dahua AI NVR, the system also enables Quick Pick, letting you search recorded events by human or vehicle targets within seconds.
Active Deterrence — Prevent Crime, Not Just Record It
Equipped with dual flashing red and blue strobe lights plus a built-in speaker, this camera doesn’t just observe — it acts. You can set the camera to automatically trigger these deterrents when detecting motion, tripwire breaches, or intrusions. Customize audio messages via the DMSS app or Smart PSS software, letting you use warnings like “You are being recorded” or site-specific instructions. It's perfect for deterring loitering, theft, or trespassing.
AcuPick — Smart Search for Faster Review
Reviewing hours of footage is a thing of the past. AcuPick combines front-end AI detection with backend NVR search intelligence. By tagging humans or vehicles as they appear on video, the system lets you search for specific targets instantly. Need to find when a car entered your parking lot yesterday? AcuPick delivers it in seconds, eliminating blind fast-forwarding through endless timelines.
AI SSA (Scene Self-Adaption) — Set It and Forget It
Lighting conditions constantly change — shadows shift, day turns to night, or car headlights flare into view. With AI SSA, this camera adjusts brightness, contrast, white balance, and exposure automatically in real-time. The result? You always get balanced, clear images without needing manual tuning, even in mixed lighting environments like underground garages or streetfronts with variable light sources.
Cybersecurity & Data Protection — Built for Peace of Mind
Dahua includes professional-grade cybersecurity features like encrypted video streams, firmware authentication, user access controls, and HTTPS support. Your footage and configurations are protected from tampering or unauthorized access. Whether used in commercial, residential, or institutional settings, this camera is hardened against common cyber threats.
Built for the Elements — IP67 Certified
With an IP67-rated weatherproof body, this bullet camera resists dust, rain, and even water immersion up to 1 meter for 30 minutes. Whether installed in hot sun, freezing snow, or coastal rain, it’s engineered for harsh environments. The sturdy casing and wide voltage tolerance make it suitable for industrial sites, parking lots, or remote outdoor areas with unstable power.
App Integration & Remote Access
The camera is fully supported by the DMSS mobile app (iOS/Android), which allows users to view live feeds, playback recordings, receive push notifications, and control deterrence settings remotely. With support for smart event filtering, voice alert management, and one-tap disarming, it provides homeowners and installers alike with hands-on control from anywhere in the world.
Cybersecurity Protections
Dahua builds in strong cybersecurity protections including encrypted video streams, secure firmware updates, and access controls. This guards against data breaches or unauthorized remote access — a key consideration for business and home networks alike.
More About AcuPick - Smart Video Search with Precision AI
Dahua’s AcuPick technology revolutionises video surveillance by using advanced AI to pinpoint people or vehicles across recorded footage with remarkable speed and accuracy. Instead of scrubbing through hours of video manually, AcuPick enables users to filter footage by specific targets, drastically cutting down search times and boosting operational efficiency. Integrated into a range of Dahua cameras (including TiOC series) and compatible NVRs, AcuPick delivers a seamless and intelligent search experience.
Highlights of AcuPick:
AI-Driven Precision:
AcuPick leverages intelligent algorithms to differentiate between human and vehicle activity, refining search results to what truly matters.
Smart Filtering:
Search footage using key attributes like clothing colour or vehicle type—no need to know the exact time an incident occurred.
Instant Video Recall:
With just a few clicks, users can zero in on critical moments, improving response times and streamlining investigations.
False Alarm Reduction:
By filtering out irrelevant motion, AcuPick helps reduce nuisance alerts, leading to more reliable monitoring.
Flexible Deployment:
Whether through Dahua's smart cameras or NVR integration, AcuPick fits into a wide range of security setups.
Practical Applications:
-
Retail & Offices: Track customer flow or monitor for unauthorized access.
-
Car Parks & Garages: Instantly retrieve footage of accidents or suspicious activity.
-
Public Spaces: Quickly find persons of interest using visual identifiers.
-
Residential Estates: Enhance safety by identifying vehicle movements or visitors.
AcuPick transforms surveillance from reactive monitoring to proactive intelligence, saving time while elevating security across the board.
Q&A
Q: Can this camera record in colour at night?
Yes — the warm light activates on motion to deliver full-colour night footage, switching back to IR when idle.
Q: How loud is the built-in speaker?
Loud enough to be heard clearly in outdoor environments, suitable for verbal warnings and pre-recorded messages.
Q: Can I disable the lights or siren if I want a stealth setup?
Yes, both lights and audio deterrents can be turned off or scheduled through the DMSS app or NVR interface.
Q: Does it work with non-Dahua NVRs?
Yes, it supports ONVIF (Profiles S/G/T) and RTSP streams, so it's compatible with most third-party NVRs.
Q: How much video can the microSD card store?
With AI coding and a 512GB card, you can expect several weeks of footage, depending on bitrate and motion activity.
Q: What’s the difference between this and the PRO model?
The PRO version often includes higher bitrate support, more advanced analytics, or additional lenses — this model is optimized for smart detection and deterrence at a mid-tier price point.
Q: Will the camera trigger the siren automatically?
Yes, you can set it to activate lights and sound on specific events like human detection, tripwire, or intrusion alerts.
Q: Can I view and control it via mobile app?
Absolutely. It works with the Dahua DMSS app for live viewing, playback, push alerts, and configuration.
Comparison Table
DH-IPC-HFW3649T1-AS-PV-ANZ-S2 vs. DH-IPC-HFW3649T1-AS-PV-ANZ-S1 - What’s New?
| Category |
DH-IPC-HFW3649T1-AS-PV-ANZ-S1 |
DH-IPC-HFW3649T1-AS-PV-ANZ-S2 |
| Max. Resolution |
6 MP (3200 × 1800) |
6 MP (3072 × 2048) |
| RAM |
512 MB |
1 GB |
| Micro SD Card Support |
Up to 256 GB |
Up to 512 GB |
| Min. Illumination (Color) |
0.003 lux@F1.0 (Color, 30 IRE) |
0.003 lux@F1.0 (Color, 30 IRE) (Same for S2) |
| Illuminator Number |
2 (IR LED); 2 (Warm light) |
2 (IR LED); 2 (Warm light) (Same for S2) |
| Field of View (2.8mm lens) |
H: 101°; V: 53°; D: 120° |
H: 97°; V: 70°; D: 128° (Slightly adjusted vertical and diagonal for S2)
|
| Privacy Masking |
8 areas |
4 areas (Reduced for S2)
|
| Power Consumption (Max) |
Max. 6.8 W (12 VDC); 8.2 W (PoE) |
Max. 8.3 W (12 VDC); 8.8 W (PoE) (Higher for S2)
|
| AI Coding Compression Rate |
AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%) |
AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%) (Same) |
| Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade (Similar, potentially minor internal enhancements not listed in public specs) |
DH-IPC-HFW3649T1-AS-PV-ANZ-S1 Vs DH-IPC-HFW3649T1-AS-PV-ANZ-S2
| Feature |
DH-IPC-HFW3649T1-AS-PV-ANZ-S1 |
DH-IPC-HFW3649T1-AS-PV-ANZ-S2 |
| Image Sensor |
1/2.7" CMOS |
1/2.7" CMOS |
| Max. Resolution (H x V) |
3200 × 1800 |
3072 × 2048 |
| ROM |
128 MB |
256 MB |
| RAM |
512 MB |
1 GB |
| Min. Illumination (Color) |
0.003 lux@F1.0 (Color, 30 IRE) |
0.003 lux@F1.0 (Color, 30 IRE) |
| Illumination Distance |
Up to 30 m (IR), Up to 30 m (Warm light) |
Up to 30 m (IR), Up to 30 m (Warm light) |
| Illuminator Number |
2 (IR LED); 2 (Warm light) |
2 (IR LED); 2 (Warm light) |
| Field of View (2.8mm lens) |
H: 101°; V: 53°; D: 120° |
H: 97°; V: 70°; D: 128° |
| DORI Distance (2.8mm lens) |
Detect: 66.0 m, Observe: 26.4 m, Recognize: 13.2 m, Identify: 6.6 m |
Detect: 66.0 m, Observe: 26.4 m, Recognize: 13.2 m, Identify: 6.6 m |
| MicroSD Card Support |
Up to 256 GB |
Up to 512 GB |
| Built-in Mic |
Yes (Dual MICs) |
Yes (Dual Mic) |
| Speaker |
Yes (1-ch) |
Yes (1-ch) |
| Privacy Masking |
8 areas |
4 areas |
| Power Consumption (Max) |
6.8 W (12 VDC); 8.2 W (PoE) |
8.3 W (12 VDC); 8.8 W (PoE) |
| AI SSA |
Supports AI SSA |
Supports AI SSA |
| One-tap Arming/Disarming |
Supports One-click arming/disarming through alarm input |
Supports one-tap arming and disarming |
| SMD Area in Warm Light |
SMD area can be set in warm light areas that support triggering alarms. |
SMD area can be set in warm light areas that support triggering alarms. |
| Dimensions (L × W × H) |
288.4 mm × 94.4 mm × 84.7 mm |
288.4 mm × 94.4 mm × 84.7 mm |
| Net Weight |
1.0 kg |
1.0 kg |
| Operating Temperature |
–40 °C to +60 °C |
–40 °C to +60 °C |
Summary Recommendation
Choose the DH-IPC-HFW3649T1-AS-PV-ANZ-S2 model if you need:
- Increased RAM for potentially smoother operation and future updates.
- Larger Micro SD card capacity (up to 512 GB) for extended recording.
- The latest iteration of the model for potential minor internal optimizations.
Choose the DH-IPC-HFW3649T1-AS-PV-ANZ-S1 model if you need:
- A slightly higher horizontal field of view (2.8mm lens).
- More privacy masking areas (8 vs 4).
- A potentially more cost-effective option while still offering robust features.
