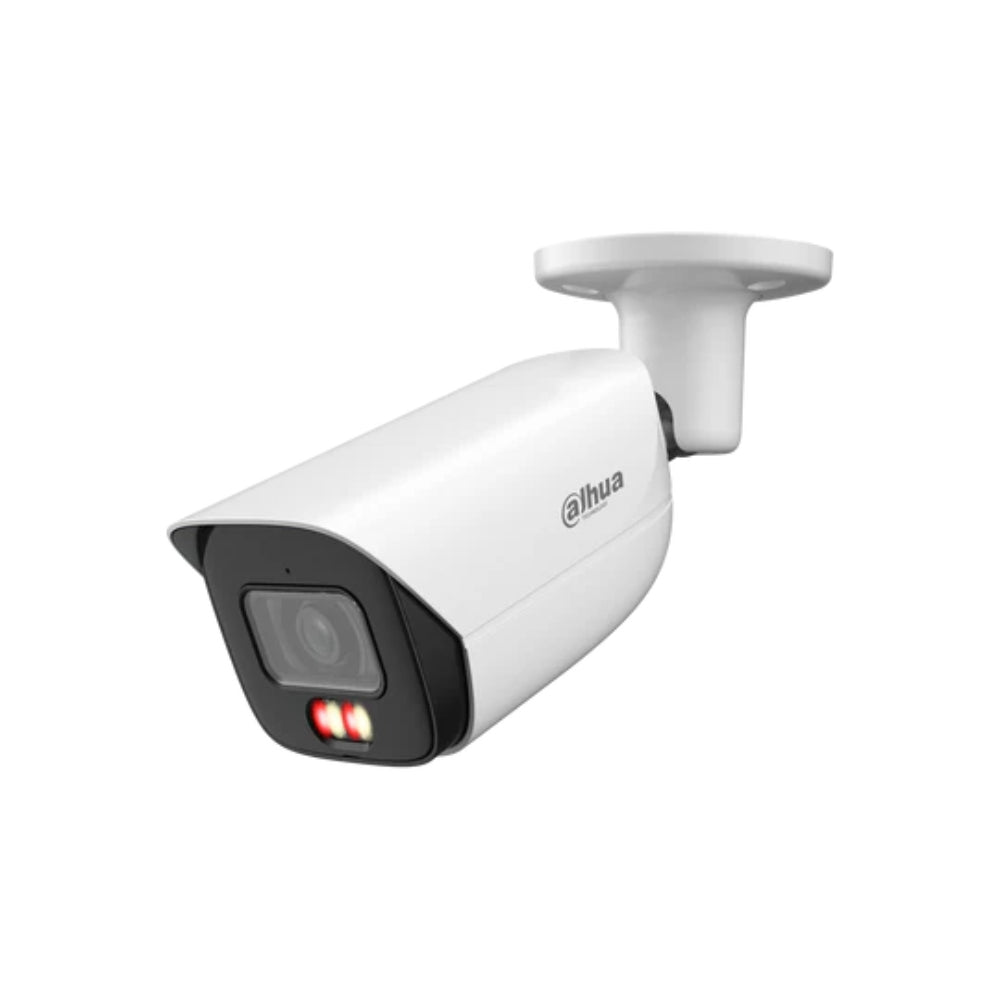

The Dahua DH-IPC-HFW3867E-AS-IL-ANZ, Dahua WizSense camera, provides intelligent surveillance for homes and businesses. It uses advanced AI to accurately detect people and vehicles, significantly reducing false alarms from other movements. With its unique Smart Dual Light technology, it can capture clear, full-color video even in complete darkness when activity is detected, providing crucial details for event analysis. This camera is ideal for those seeking reliable, smart monitoring without constant notifications from irrelevant motion.
Key Features
-
8MP Ultra-HD Imaging: Captures crisp 3840 × 2160 resolution at up to 30 fps using a 1/2.7" CMOS sensor.
-
Smart Dual-Light Illumination: Automatically switches between IR and warm light up to 30 m for discreet monitoring or vivid full-color images at night.
-
AI-Powered Functions: Supports SMD 4.0, perimeter protection, AcuPick, and AI Scene Self-Adaptation (AI SSA) for accurate detection of humans and vehicles.
-
Starlight Technology: Delivers excellent low-light performance, ensuring brighter, clearer video with minimal noise in dark conditions.
-
Built-in Audio: Integrated microphone captures synchronized audio alongside video for improved situational awareness.
-
Rugged Outdoor Protection: IP67-rated weatherproof housing ensures reliable performance in harsh outdoor conditions.
-
Flexible Connectivity & Storage: PoE/12V DC power options, edge storage with MicroSD (up to 512 GB), and seamless integration with Dahua NVRs.
Downloads
Perfect For:
- Perimeter security of commercial & industrial sites
- Driveways, parking lots, and residential monitoring
- Warehouses, logistics hubs, and outdoor storage areas
- Schools, healthcare, and public institutions
Install Tips
-
Optimal Mounting Height: For best human/vehicle detection, install the camera between 2.5 to 4 meters (8 to 13 feet) high, angled slightly downwards.
-
PoE for Simplicity: Utilize Power over Ethernet (PoE) for a single cable solution for both power and data, simplifying installation and reducing wiring complexity.
-
Lens Choice for Coverage: Choose the 2.8mm lens for wider areas like driveways or open yards, and the 3.6mm lens for more focused monitoring of narrow pathways or specific entry points.
-
Pair with AI NVR: For advanced features like AcuPick (quick target search) and consolidated event management, pair this camera with a compatible Dahua AI NVR.
-
Avoid Obstructions: Ensure the camera's field of view is free from moving obstructions like tree branches or dense foliage to prevent unnecessary motion triggers.
-
SD Card Reliability: For continuous recording or as a backup, use a high-endurance microSD card specifically designed for security cameras.
Quick-Read Specs
| Specification |
Detail |
| Camera |
8MP (3840 × 2160 @ 25/30 fps) |
| Sensor |
1/2.7″ CMOS |
| Lens Options |
Fixed 2.8 mm (H: 110°) / 3.6 mm (H: 86°) |
| Min. Illumination |
0.007 lux (Color), 0.0007 lux (B/W), 0 lux with IR/Warm Light |
| Illumination |
Smart Dual Light: IR up to 30 m / Warm Light up to 30 m |
| WDR |
120 dB Wide Dynamic Range |
| Compression |
H.265 / H.264 / Smart H.265+ / Smart H.264+ / AI Coding |
| Audio |
Built-in Mic (PCM, G.711a/u, G.726, G.723) |
| Smart Features |
Perimeter Protection, SMD 4.0, AcuPick, AI SSA |
| Storage |
MicroSD up to 512 GB, NAS, FTP, Dahua NVR |
| Power |
12V DC / PoE (802.3af), Max. 10W |
| Protection |
IP67 (metal housing) |
| Operating Temp |
–40 °C to +60 °C |
| Dimensions |
192.7 × 70.5 × 66.4 mm |
| Weight |
0.61 kg |
| Warranty |
3 Years |
Extra Info
WizSense Technology
The camera belongs to Dahua’s WizSense series, powered by AI chips and deep learning algorithms. It focuses on human and vehicle detection with high accuracy, reducing false alarms and enabling faster response to events.
AI SSA (Scene Self-Adaptation)
Automatically adjusts image parameters based on environmental conditions such as rain, fog, backlight, or flicker. This ensures clear and optimized images in all lighting scenarios.
SMD 4.0 (Smart Motion Detection)
Filters out irrelevant objects like animals or leaves, focusing only on human and vehicle targets. When paired with an AI NVR, Quick Pick technology allows efficient searching of event footage to quickly locate key targets.
Perimeter Protection
Supports advanced intrusion detection features like tripwire, loitering, and gathering detection. It can accurately distinguish between humans and vehicles, reducing false alerts in restricted areas.
Smart Dual Light
Combines IR and warm LED illumination. The camera normally uses IR for discreet night monitoring, and automatically switches to warm light when a person or vehicle is detected, capturing full-color images for better identification.
Starlight Technology
Delivers high-quality, low-noise images even in very low-light environments. With 0.007 lux sensitivity and 120 dB WDR, it provides sharp details in challenging lighting conditions.
Smart Encoding
With Smart H.265+/H.264+ and AI coding, the camera achieves higher compression efficiency, saving bandwidth and storage while maintaining video quality.
Cyber Security
Equipped with strong protection features such as encrypted transmission, security authentication, and trusted boot. These safeguard the device against external cyber threats.
Rugged Design
Built with an IP67-rated metal housing, ensuring dust- and water-resistance. It can withstand outdoor environments, temperature extremes (–40 °C to +60 °C), and unstable voltages, ensuring long-term durability.
Q&A
Q: What is the maximum resolution of this camera?
A: The camera supports up to 8MP (3840 × 2160) at 30fps.
Q: Does this camera support full-color night vision?
A: Yes. With Smart Dual Light technology, it switches between IR and warm light for clear full-color imaging when human or vehicle motion is detected.
Q: Can it store footage locally without an NVR?
A: Yes. It supports a MicroSD card up to 512GB, in addition to NAS and FTP storage.
Q: What lens options are available?
A: Fixed lens options include 2.8mm (110° FoV) and 3.6mm (86° FoV).
Q: Is the camera weatherproof?
A: Yes. It is IP67-rated, suitable for outdoor use in harsh conditions.
Q: Does it have built-in audio support?
A: Yes. It includes a built-in microphone and supports audio compression formats like PCM, G.711, and G.726.
Q: What smart AI features does it support?
A: It includes Perimeter Protection, SMD 4.0, AI SSA, AcuPick, and Smart Search when paired with compatible AI NVRs.
Q: What is the power supply method?
A: It supports 12V DC or PoE (802.3af) with max. power consumption of about 10W.
