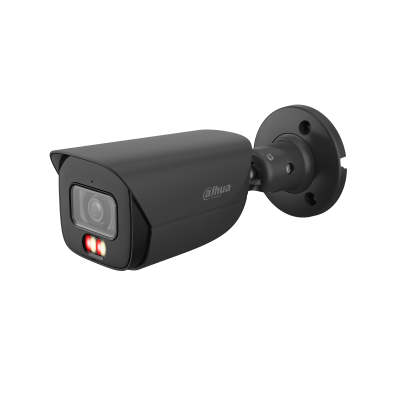

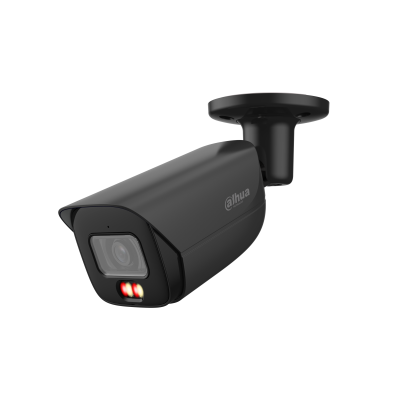

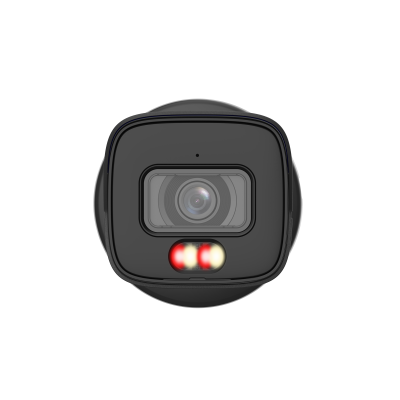

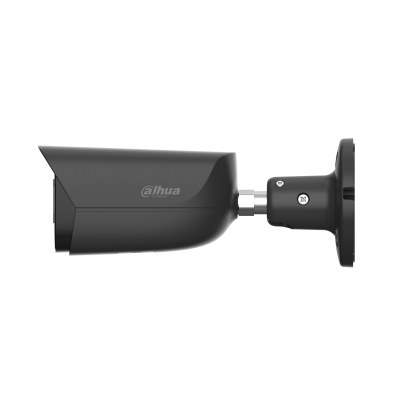

The Dahua DH-IPC-HFW3867E-AS-IL-ANZ-BLK is a powerful 8MP Smart Dual-Light fixed-lens bullet camera designed for professional surveillance in all conditions. With AI-powered features, full-color night vision, integrated audio, and durable IP67 weatherproof housing, it delivers dependable performance for both commercial and residential environments.
Key Features
-
8MP Ultra High-Definition Imaging: Captures detailed 3840 × 2160 resolution video at 25/30 fps using a high-performance 1/2.8" CMOS sensor.
-
Efficient Video Encoding: Supports H.265, Smart H.264+/H.265+, and AI codecs for reduced bandwidth and storage while maintaining image quality.
-
Smart Dual-Light Illumination: Equipped with IR and warm LED light, each reaching up to 40 m, ensuring clear night vision in monochrome or vivid full color.
-
Fixed 2.8 mm Lens: Offers a wide field of view for comprehensive area monitoring, ideal for entrances, open spaces, and perimeters.
-
AI & Smart Imaging Enhancements: Includes WDR (Wide Dynamic Range), 3D NR (Noise Reduction), BLC, HLC, ROI, and digital watermarking for optimal clarity in diverse lighting conditions.
-
Rugged and Weatherproof: IP67-rated housing ensures reliable protection against water and dust, making it suitable for challenging outdoor conditions.
-
Built-in Audio Capability: Integrated microphone delivers real-time audio alongside video for enhanced situational awareness.
-
Flexible Power Options: Supports both Power over Ethernet (PoE) and 12V DC input, simplifying installation.
Downloads
Perfect For:
- Retail storefronts and entrances
- Parking lots and perimeter security
- Residential driveways and property boundaries
- School grounds, office buildings, and institutions
- Outdoor areas requiring wide-angle coverage with color night vision
Installer Tips
-
Optimal Mounting Height: For best human/vehicle detection, install the camera between 2.5 to 4 meters (8 to 13 feet) high, angled slightly downwards.
-
PoE for Simplicity: Utilize Power over Ethernet (PoE) for a single cable solution for both power and data, simplifying installation and reducing wiring complexity.
-
Lens Choice for Coverage: Choose the 2.8mm lens for wider areas like driveways or open yards, and the 3.6mm lens for more focused monitoring of narrow pathways or specific entry points.
-
Pair with AI NVR: For advanced features like AcuPick (quick target search) and consolidated event management, pair this camera with a compatible Dahua AI NVR.
-
Avoid Obstructions: Ensure the camera's field of view is free from moving obstructions like tree branches or dense foliage to prevent unnecessary motion triggers.
-
SD Card Reliability: For continuous recording or as a backup, use a high-endurance microSD card specifically designed for security cameras.
Quick-Read Specs
| Specification |
Detail |
| Camera |
8MP (3840 × 2160 @ 25/30 fps) |
| Sensor |
1/2.7″ CMOS |
| Lens Options |
Fixed 2.8 mm (H: 110°) / 3.6 mm (H: 86°) |
| Min. Illumination |
0.007 lux (Color), 0.0007 lux (B/W), 0 lux with IR/Warm Light |
| Illumination |
Smart Dual Light: IR up to 30 m / Warm Light up to 30 m |
| WDR |
120 dB Wide Dynamic Range |
| Compression |
H.265 / H.264 / Smart H.265+ / Smart H.264+ / AI Coding |
| Audio |
Built-in Mic (PCM, G.711a/u, G.726, G.723) |
| Smart Features |
Perimeter Protection, SMD 4.0, AcuPick, AI SSA |
| Storage |
MicroSD up to 512 GB, NAS, FTP, Dahua NVR |
| Power |
12V DC / PoE (802.3af), Max. 10W |
| Protection |
IP67 (metal housing) |
| Operating Temp |
–40 °C to +60 °C |
| Dimensions |
192.7 × 70.5 × 66.4 mm |
| Weight |
0.61 kg |
| Warranty |
3 Years |
Extra Info
WizSense Technology
The camera belongs to Dahua’s WizSense series, powered by AI chips and deep learning algorithms. It focuses on human and vehicle detection with high accuracy, reducing false alarms and enabling faster response to events.
AI SSA (Scene Self-Adaptation)
Automatically adjusts image parameters based on environmental conditions such as rain, fog, backlight, or flicker. This ensures clear and optimized images in all lighting scenarios.
SMD 4.0 (Smart Motion Detection)
Filters out irrelevant objects like animals or leaves, focusing only on human and vehicle targets. When paired with an AI NVR, Quick Pick technology allows efficient searching of event footage to quickly locate key targets.
Perimeter Protection
Supports advanced intrusion detection features like tripwire, loitering, and gathering detection. It can accurately distinguish between humans and vehicles, reducing false alerts in restricted areas.
Smart Dual Light
Combines IR and warm LED illumination. The camera normally uses IR for discreet night monitoring, and automatically switches to warm light when a person or vehicle is detected, capturing full-color images for better identification.
Starlight Technology
Delivers high-quality, low-noise images even in very low-light environments. With 0.007 lux sensitivity and 120 dB WDR, it provides sharp details in challenging lighting conditions.
Smart Encoding
With Smart H.265+/H.264+ and AI coding, the camera achieves higher compression efficiency, saving bandwidth and storage while maintaining video quality.
Cyber Security
Equipped with strong protection features such as encrypted transmission, security authentication, and trusted boot. These safeguard the device against external cyber threats.
Rugged Design
Built with an IP67-rated metal housing, ensuring dust- and water-resistance. It can withstand outdoor environments, temperature extremes (–40 °C to +60 °C), and unstable voltages, ensuring long-term durability.
Q&A
Q: What is the maximum resolution of this camera?
A: The camera supports up to 8MP (3840 × 2160) at 30fps.
Q: Does this camera support full-color night vision?
A: Yes. With Smart Dual Light technology, it switches between IR and warm light for clear full-color imaging when human or vehicle motion is detected.
Q: Can it store footage locally without an NVR?
A: Yes. It supports a MicroSD card up to 512GB, in addition to NAS and FTP storage.
Q: What lens options are available?
A: Fixed lens options include 2.8mm (110° FoV) and 3.6mm (86° FoV).
Q: Is the camera weatherproof?
A: Yes. It is IP67-rated, suitable for outdoor use in harsh conditions.
Q: Does it have built-in audio support?
A: Yes. It includes a built-in microphone and supports audio compression formats like PCM, G.711, and G.726.
Q: What smart AI features does it support?
A: It includes Perimeter Protection, SMD 4.0, AI SSA, AcuPick, and Smart Search when paired with compatible AI NVRs.
Q: What is the power supply method?
A: It supports 12V DC or PoE (802.3af) with max. power consumption of about 10W.
