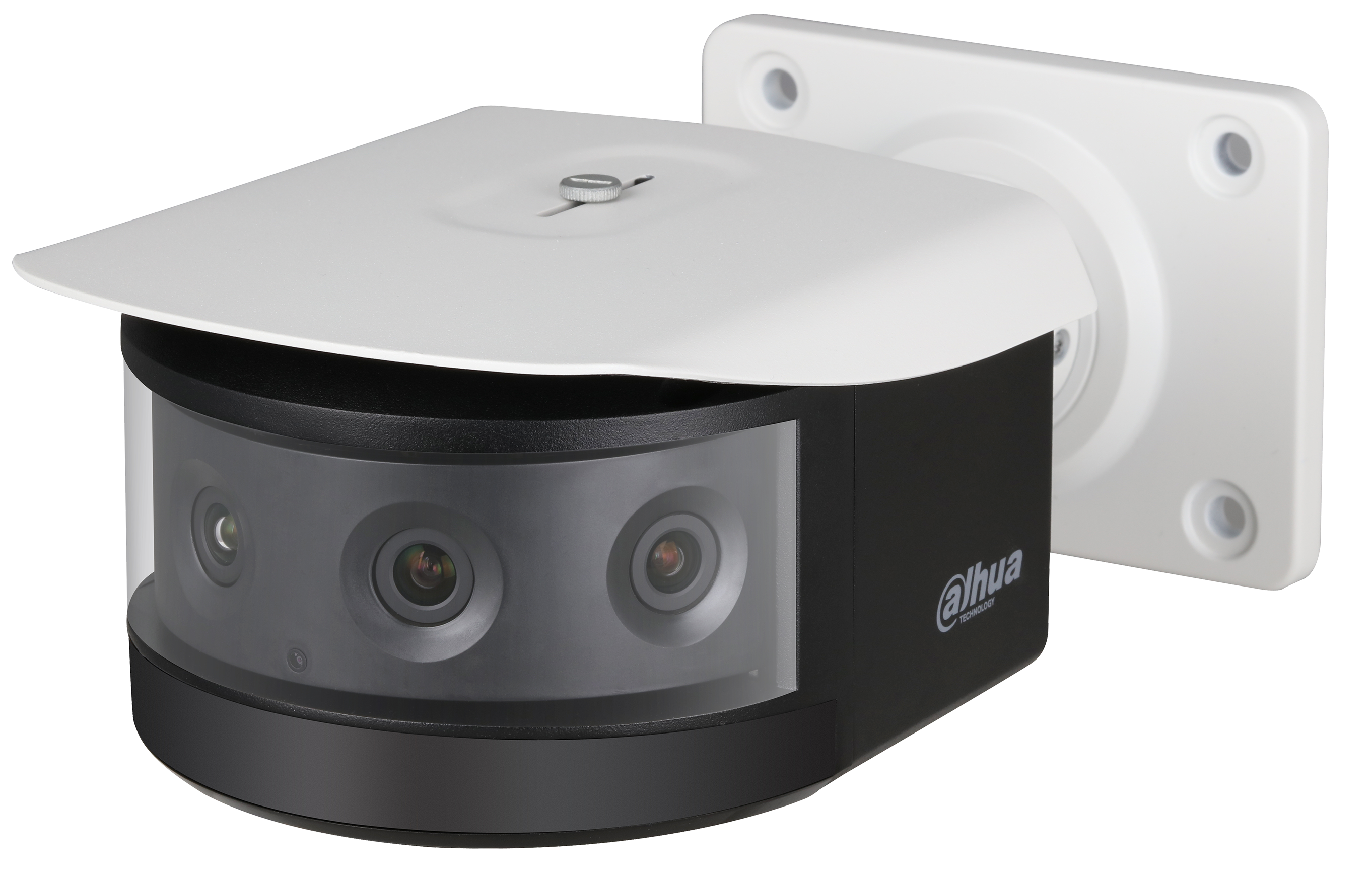

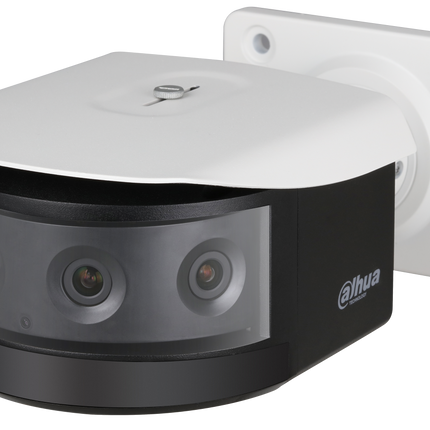

This multi-sensor panoramic camera delivers a full 180° field of view using four 2MP sensors working together. Designed to replace multiple single-lens cameras, it provides wide area coverage without gaps. With smart detection, built-in IR, and a rugged build, it's perfect for large spaces needing high visibility, all in one unit.
Key Features
-
180° Panoramic View (4x2MP) – Captures wide scenes with no blind spots.
-
Smart Detection & IVS – Detects tripwire, intrusion, abandoned/missing objects.
-
IR Night Vision (30m) – Delivers clear images in complete darkness.
-
Starlight Technology – Gives usable color footage in ultra-low-light conditions.
-
Smart IR Control – Prevents overexposure when objects come close.
-
IK10 Vandal-Resistant Metal Body – Withstands tough outdoor environments.
-
Smart Codec (H.265+) – Saves up to 70% on storage and bandwidth.
-
Built-in Audio I/O + SD Storage – Supports real-time audio and edge recording.
Perfect For:
- Car parks and public plazas
- Stadiums or sports venues
- School and campus courtyards
- Airports and train stations
- Perimeter fences or wall lines
- Industrial loading zones
Install Tips
- Ideal for wide wall lines or rooftops where one unit replaces multiple cams.
- Use the included Smart PSS software for aligning the sensors.
- Pair with Dahua NVRs for full IVS event support and heatmap features.
- Wall, pole, or corner mount options available with accessories (PFA120, PFA150, PFA151).
- Ensure PoE+ switch (802.3at) is used due to higher power consumption (<25.5W).
- Adjust contrast and brightness individually for each lens to fine-tune the panorama.
Downloads
Quick-Read Specs Card
| Spec |
Details |
| Resolution |
4x2MP sensors (4096×1800 combined) |
| Lens |
Fixed 5.0mm (per sensor) |
| View Angle |
Horizontal: 180°, Vertical: 80° |
| Night Vision |
Smart IR up to 30m |
| AI Features |
IVS: Tripwire, Intrusion, Abandoned |
| Audio |
1 In / 1 Out audio channel |
| Storage |
MicroSD up to 128GB |
| Power |
PoE+ (802.3at) / 24V AC |
| Weather Rating |
IP67 / IK10 Vandal Resistant |
Extra Info
Multi-Sensor Panoramic Coverage:
This camera combines four 2MP sensors to give you a seamless 180° panoramic view, making it perfect for large open spaces. You get the coverage of multiple cameras — with just one install point and one cable.
Smart Detection & IVS (Intelligent Video System):
Set up intelligent rules like tripwire, intrusion, and object monitoring. The camera can alert you when someone enters a restricted zone or leaves an item behind. Great for securing perimeters or monitoring public areas.
Starlight + Smart IR:
Low-light scenes aren’t a problem. Starlight keeps the image in color longer, and once it’s too dark, Smart IR kicks in — giving you up to 30 meters of clear black-and-white video without white-out or overexposure.
Robust for Outdoors:
With an IP67 rating and an IK10 vandal-proof housing, this camera is made for tough environments — from dusty construction zones to wet stadium stands. Lightning protection and wide voltage support ensure it stays running in rough conditions.
Smart Codec Compression:
H.265+ reduces storage costs and network load while keeping the video clear. If you’re recording 24/7, this makes a big difference in long-term storage needs.
Q&A
Q: Can this camera cover an entire parking lot?
A: Yes, its 180° view is designed for wide areas like car parks and open lots.
Q: Is this one camera or four cameras?
A: It has four built-in sensors working as one unit to deliver a stitched panoramic view.
Q: Can I record directly to an SD card?
A: Yes, it supports MicroSD cards up to 128GB.
Q: What power does it need?
A: It uses PoE+ (802.3at) or 24V AC. Standard PoE won't work.
Q: Will it work with third-party NVRs?
A: Yes, it's ONVIF compliant and supports integration with most NVR brands.
Q: How do I mount this camera on a pole or corner?
A: You’ll need optional accessories like the PFA150 (pole) or PFA151 (corner).
Q: Can I adjust each camera lens individually?
A: Yes, each sensor can be tuned for brightness and contrast to align the panorama.
Q: Does it support smart features like intrusion alerts?
A: Absolutely — tripwire, intrusion, object removal and more are all built-in.
