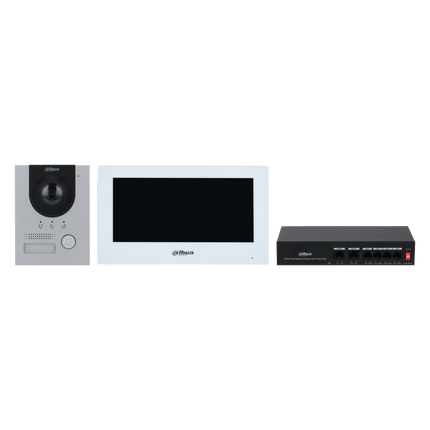

The Dahua DHI-KTP01L(F)-AUS-S2 is a complete IP video intercom solution designed for villas, apartments, and small offices. This cost-effective kit includes a 7″ indoor monitor, a villa door station, and a networking device, providing reliable two-way communication, video monitoring, remote door unlocking, and alarm integration. With a wide-angle 2MP camera, H.265 support, and mobile app connectivity, it delivers a secure and convenient entry solution for residential and commercial applications.
Kit Contents:
1 × IP Villa Door Station (VTO)
- 2MP CMOS camera with 1/2.9" sensor
- Wide field of view: H:168.6° / V:87.1° / D:176.7°
- WDR 120 dB for clear backlit images
- Mechanical button design
- Two-way audio with built-in microphone and speaker
- Video compression: H.265 / H.264
- Supports video intercom, remote unlock, leave videos, and web configuration
- Power: 12 VDC, 2 A, or PoE (802.3af/at)
- Aluminum casing, IK07 and IP65 protection (sealant recommended per quick start guide)
- Dimensions: 130 × 96 × 28.5 mm
- Operating temperature: –30 °C to +60 °C
1 × IP Indoor Monitor (VTH)
- 7″ TFT capacitive touchscreen, 1024 × 600 resolution
- Two-way audio with echo suppression
- 6-channel alarm input & 1-channel alarm output
- DND (Do Not Disturb) mode supported
- Supports video monitoring, visitor messages, and information release
- Standard PoE or 12 VDC, 1 A power supply
- Dimensions: 189.6 × 134.6 × 26 mm
- Surface mount installation
- Operating temperature: –10 °C to +55 °C
1 × Networking Device (Switch)
- 4 × PoE ports (10/100 Mbps Base-TX)
- 2 × uplink ports (10/100 Mbps Base-TX)
- Built-in power supply: 100–240 VAC
- Dimensions: 194 × 108.1 × 35 mm
- Operating power consumption: Idle 0.5 W; Full load 36 W
Intercom Functions
- Two-way audio communication
- Video monitoring and visitor recording (SD card required)
- Remote door unlock via monitor or mobile app
- Tamper alarm and door status detection
- Supports multiple monitors and extensions
- Mobile app support (DMSS) for remote communication
Includes
- 1 × Villa Door Station DHI-VTO (flush mount box included)
- 1 × Indoor Monitor DHI-VTH (bracket & alarm ribbon cable included)
- 1 × Networking Device (PoE switch, built-in power supply)
Downloads
Perfect For
- Single homes and villa entrances
- Apartments and townhouses
- Small offices and reception areas
- Shops and clinics requiring secure access
Tech Specs
| Component / Category |
Specification |
| — IP Villa Door Station (VTO) |
|
| System |
Embedded processor, Embedded Linux |
| Camera |
2 MP CMOS, 168.6° (H), 87.1° (V), 176.7° (D), WDR 120 dB, 3D NR |
| Video |
H.265/H.264, Main stream up to 720p, Sub stream up to 1080p @ 25 fps |
| Audio |
G.711a/u, PCM | Two-way audio with noise reduction |
| Ports |
1 × RJ-45, RS-485, 1 × alarm output, lock control, door status, exit button, 12 V output (600 mA) |
| General |
Power 12 VDC/PoE, IK07 & IP65, Dimensions: 130 × 96 × 28.5 mm |
| — IP Indoor Monitor (VTH) |
|
| System |
Embedded processor, Embedded Linux |
| Display |
7″ TFT capacitive touchscreen, 1024 × 600 resolution |
| Audio |
G.711a/u, PCM | Two-way audio with echo suppression |
| Functions |
DND, text info release, alarm input/output, doorbell reuse |
| Ports |
1 × RJ-45 10/100 Mbps, 6 × alarm input, 1 × alarm output |
| General |
Power 12 VDC/PoE, Dimensions: 189.6 × 134.6 × 26 mm, Operating temp –10 °C to +55 °C |
| — Networking Device |
|
| Ports |
4 × PoE 10/100 Mbps, 2 × uplink 10/100 Mbps |
| Power |
Built-in 100–240 VAC supply |
| General |
Dimensions 194 × 108.1 × 35 mm, Full load power ≤36 W |
3-Years Warranty
Dahua’s 3 year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please contact our support team at support@SpyMonkey.com.au or 1300 049 519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation with one of our team and they have given you an RMA number and return address.
