The Dahua DHI-KTP01L(F) is a reliable and cost-effective IP video intercom kit designed for residential and small commercial applications. It includes a 7″ indoor monitor and an outdoor villa door station with a 2 MP camera, enabling clear two-way communication, live video monitoring, and convenient door unlocking. With support for multiple monitors and extensions, this kit offers flexible expansion for villas, apartments, and small offices.

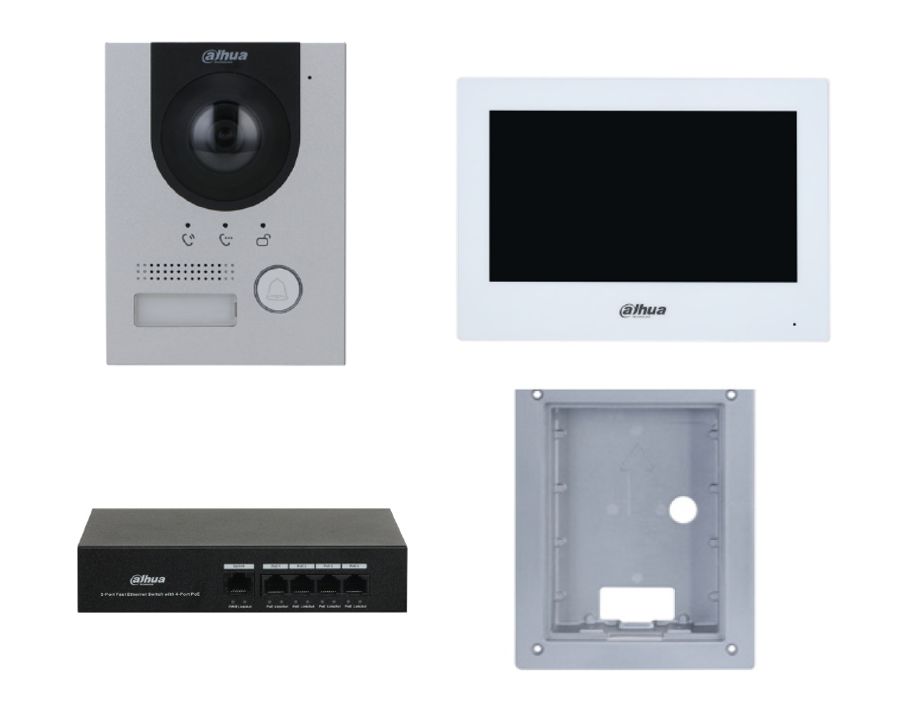

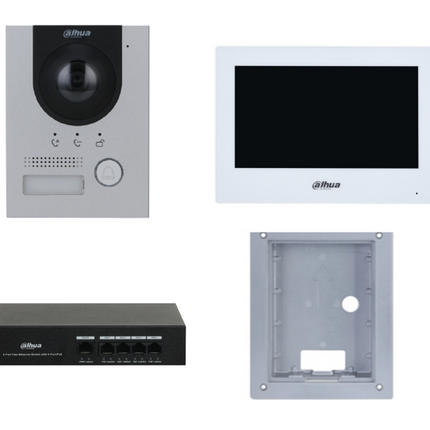

Kit Contents:
1 × Indoor Monitor (DHI-VTH2621GW-P)
- 7″ TFT capacitive touchscreen (1024 × 600 resolution)
- Two-way audio with echo suppression
- Supports 6-channel alarm input and 1-channel alarm output
- Supports 8 GB SD card storage
- Standard PoE or 12 VDC, 1 A power supply
- Dimensions: 119.6 × 221.5 × 21.5 mm
1 × Outdoor Villa Door Station (DHI-VTO2201F-P)
- 2 MP CMOS camera with auto IR and ICR day/night
- Wide field of view: H: 168.6° / V: 87.1° / D: 176.7°
- Two-way audio with built-in microphone and speaker
- Aluminum casing with IK08 & IP65 protection (sealant recommended)
- Supports H.265 and H.264 video compression
- Powered via 48 VDC or PoE (802.3af/at)
- Dimensions: 200 × 98 × 35.4 mm
1 × Networking Device (Switch)
- 4 × PoE ports (10/100 Mbps)
- 2 × uplink ports (10/100 Mbps)
- Built-in 100–240 VAC power supply
- Dimensions: 119.6 × 221.5 × 23.5 mm
Intercom Functions
- Two-way audio communication
- Video monitoring and visitor recording (SD card required)
- Remote door unlock via monitor or mobile app
- Tamper alarm and door status detection
- Supports multiple monitors and extensions
- Mobile app support (DMSS) for remote communication
Includes
- 1 × Indoor Monitor (DHI-VTH2621GW-P)
- 1 × Outdoor Villa Door Station (DHI-VTO2201F-P)
- 1 × Networking Device (PoE switch)
Downloads
Perfect For
- Villas and apartments
- Office reception areas
- Clinics, shops, and small businesses needing entry control
Tech Specs
| Category |
Specification |
| Indoor Monitor (DHI-VTH2621GW-P) |
|
| Display |
7″ TFT capacitive touchscreen, 1024 × 600 resolution |
| Audio |
Built-in 1.5 W loudspeaker, 1-channel all-direction microphone, two-way audio, echo suppression |
| Alarm Input |
6 channels |
| Alarm Output |
1 channel |
| Network |
1 × RJ-45 port |
| Storage |
8 GB SD card |
| Power Supply |
12 VDC, 1 A / PoE |
| Power Consumption |
Standby ≤ 4 W, Working ≤ 6 W |
| Dimensions |
119.6 × 221.5 × 21.5 mm |
| Operating Temp |
-10°C to +55°C |
| Certifications |
CE; FCC; UL |
| Outdoor Villa Door Station (DHI-VTO2201F-P) |
|
| Camera |
1/2.9" 2 MP CMOS |
| Field of View |
H: 168.6°; V: 87.1°; D: 176.7° |
| Video Compression |
H.265; H.264 |
| Video Resolution |
Main: 720p/WVGA/D1/CIF; Sub: 1080p/WVGA/D1/QVGA/CIF |
| Frame Rate |
25 fps |
| Audio |
Built-in speaker, 1 channel, two-way audio |
| Unlock Mode |
Remote |
| Storage |
Supports micro SD card (up to 256 GB) |
| Power Supply |
48 VDC, 0.4 A; PoE (802.3af/at) |
| Dimensions |
200 × 98 × 35.4 mm |
| Protection |
IK08, IP65 |
| Operating Temp |
-40°C to +60°C |
| Certifications |
CE |
| Networking Device (Switch) |
|
| Ports |
4 × PoE 10/100 Mbps, 2 × uplink 10/100 Mbps |
| Power Supply |
Built-in 100–240 VAC |
| Dimensions |
119.6 × 221.5 × 23.5 mm |
| Certifications |
CE; FCC |
