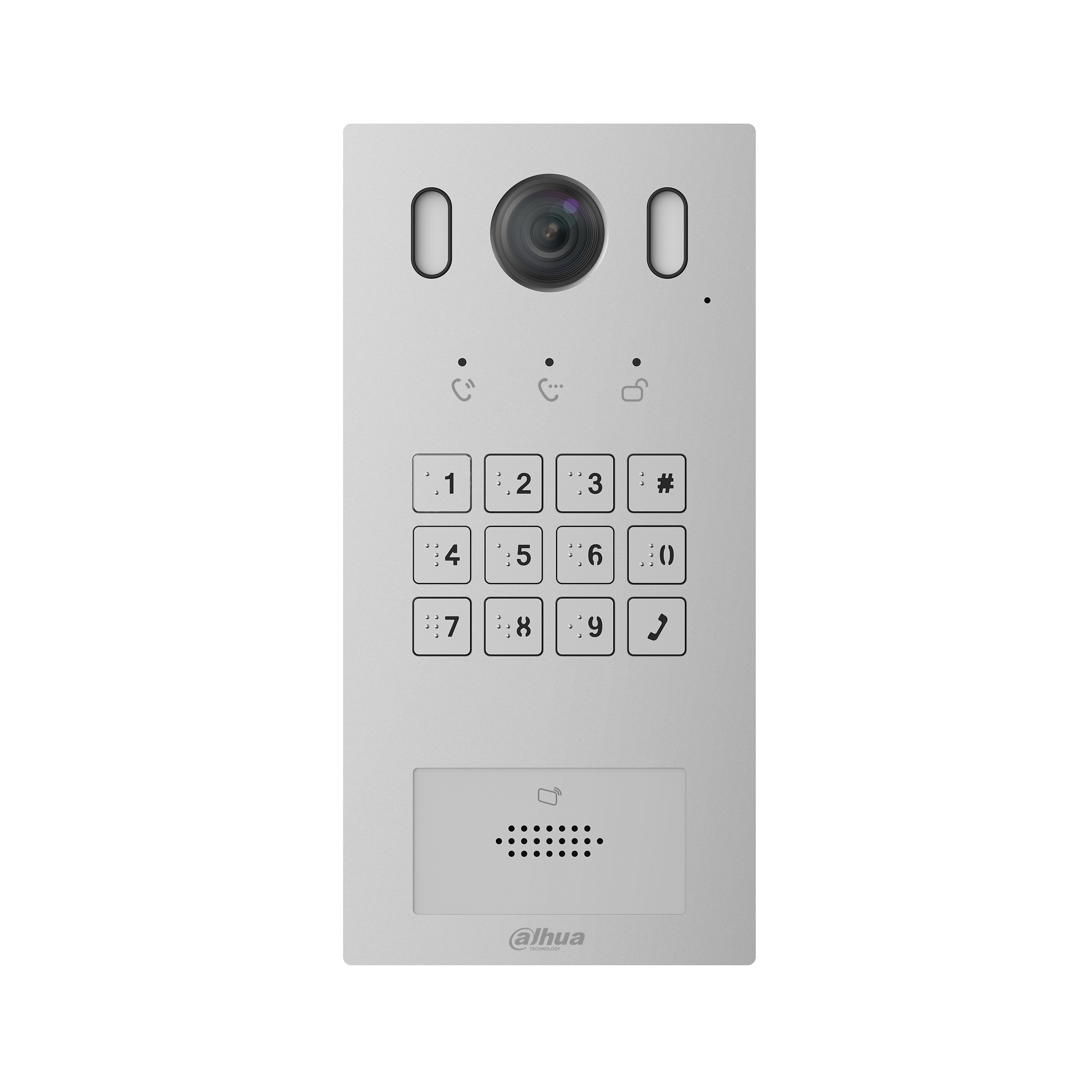

Dahua DHI-VTO3222E-P 2-Wire / IP Villa Outdoor Station

Description

The Dahua DHI-VTO3222E-P Villa Outdoor Station is part of Dahua’s VTO Series. VTO series devices are designed for high-performance and elegant video intercom and access control at villa entrances. The DHI-VTO3222E-P integrates HD video, mechanical keypad access, multi-method unlocking, storage options, and robust outdoor protection—all over IP or 2-wire communication—to provide reliable, secure, and user-friendly intercom operations.

2 MP Villa Outdoor Station (Keypad) – DHI-VTO3222E-P

  • 2 MP HD CMOS camera with 120 dB WDR and 3D noise reduction
  • Aluminum panel with built-in mechanical keypad (12 buttons)
  • Supports 5,000 users and 10,000 cards (Mifare)
  • Unlock options: password, IC card, and remote (via app or monitor)
  • Integrates via Wiegand, includes RS-485, alarm I/O, lock control, exit button, and doorbell ports
  • Auto snapshot and video message storage via Micro SD (up to 256 GB)
  • IP65 rated (requires silicone sealant), IK08 vandal resistant
  • Power options: Standard PoE (802.3af/at) or 48 VDC, 0.4 A; provides 12 VDC at 600 mA output

Downloads

Datasheet Dahua VTO3222E-P Villa Outdoor Station – Datasheet
Accessory Guide Dahua Accessory Guide 2022


Perfect For

  • Gated residential villas and homes
  • Apartment and condominium entrances
  • Office reception and small business entry systems
  • Smart building intercom and access solutions

Dahua_Authorised_Dealer_333a45af-778b-47f6-929e-ddec274416c0 shutterstock_285981290_2_copy_4

Tech Specs

Category Specification
System Embedded Processor; Embedded Linux OS; Mechanical keypad (12 buttons)
Camera 1/2.9" 2 MP CMOS; Field of View: H 140°, V 80°, D 160°; WDR 120 dB; 3D Noise Reduction; Light Compensation via auto white light; Day/Night modes: Color/B/W
Video Compression H.264, H.265
Video Resolution Main: 720p, WVGA, D1, CIF; Sub: 1080p, WVGA, D1, QVGA, CIF
Frame Rate 25 fps
Audio Compression: G.711a, G.711u, PCM; Input: 1 microphone channel; Output: Built-in speaker; Enhancement: Echo suppression, DNR; Mode: Two-way audio; Bit Rate: 16 KHz, 16-bit
Functionality 2-wire digital communication; Unlock via card, password, remote; Supports Mifare cards; Auto-snapshot; Video/message storage to SD; Web configuration; RFID at 13.56 MHz up to 10 m with 42 dBuA/m; Supports up to 10,000 cards; Card reading distance 0–3 cm; Tamper alarm; Motion detection via snapshot
Ports & Interfaces RS-485 ×1; Wiegand ×1; Alarm Input ×1; Alarm Output ×1; Power Output (12 V/600 mA) ×1; Door Bell ×1; Exit Button ×1; Lock Control ×1; RJ-45 (10/100 Mbps)
Build Aluminum housing, silver finish; Protection: IK08, IP65 (sealant required)
Installation Flush or surface mount (accessories optional)
Dimensions 200.0 × 98.0 × 35.4 mm (7.87″ × 3.86″ × 1.39″)
Operating Conditions −40 °C to +60 °C (−40 °F to +140 °F); 10%–90% RH, non-condensing; Outdoor; Altitude below 3000 m
Power & Consumption Power: 48 VDC 0.4 A or PoE (802.3af/at); Power Output: 12 VDC/600 mA; Power Consumption: ≤5 W (standby), ≤7 W (working)
Weight 692 g (1.53 lb)
Certifications CE

Read more

Product form

Dahua DHI-VTO3222E-P 2-Wire / IP Villa Outdoor Station

SKU: DHI-VTO3222E-P Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$452.00 $418.00 Incl. GST

5% Off Discount Code: Dahua-2025
Copied!
    PayPalAmerican Express Apple Pay Google Pay MastercardShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Dahua Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    The Dahua DHI-VTO3222E-P Villa Outdoor Station is part of Dahua’s VTO Series. VTO series devices are designed for high-performance and elegant video intercom and access control at villa entrances. The DHI-VTO3222E-P integrates HD video, mechanical keypad access, multi-method unlocking, storage options, and robust outdoor protection—all over IP or 2-wire communication—to provide reliable, secure, and user-friendly intercom operations.

    2 MP Villa Outdoor Station (Keypad) – DHI-VTO3222E-P

    • 2 MP HD CMOS camera with 120 dB WDR and 3D noise reduction
    • Aluminum panel with built-in mechanical keypad (12 buttons)
    • Supports 5,000 users and 10,000 cards (Mifare)
    • Unlock options: password, IC card, and remote (via app or monitor)
    • Integrates via Wiegand, includes RS-485, alarm I/O, lock control, exit button, and doorbell ports
    • Auto snapshot and video message storage via Micro SD (up to 256 GB)
    • IP65 rated (requires silicone sealant), IK08 vandal resistant
    • Power options: Standard PoE (802.3af/at) or 48 VDC, 0.4 A; provides 12 VDC at 600 mA output

    Downloads

    Datasheet Dahua VTO3222E-P Villa Outdoor Station – Datasheet
    Accessory Guide Dahua Accessory Guide 2022


    Perfect For

    • Gated residential villas and homes
    • Apartment and condominium entrances
    • Office reception and small business entry systems
    • Smart building intercom and access solutions

    Dahua_Authorised_Dealer_333a45af-778b-47f6-929e-ddec274416c0 shutterstock_285981290_2_copy_4

    Tech Specs

    Category Specification
    System Embedded Processor; Embedded Linux OS; Mechanical keypad (12 buttons)
    Camera 1/2.9" 2 MP CMOS; Field of View: H 140°, V 80°, D 160°; WDR 120 dB; 3D Noise Reduction; Light Compensation via auto white light; Day/Night modes: Color/B/W
    Video Compression H.264, H.265
    Video Resolution Main: 720p, WVGA, D1, CIF; Sub: 1080p, WVGA, D1, QVGA, CIF
    Frame Rate 25 fps
    Audio Compression: G.711a, G.711u, PCM; Input: 1 microphone channel; Output: Built-in speaker; Enhancement: Echo suppression, DNR; Mode: Two-way audio; Bit Rate: 16 KHz, 16-bit
    Functionality 2-wire digital communication; Unlock via card, password, remote; Supports Mifare cards; Auto-snapshot; Video/message storage to SD; Web configuration; RFID at 13.56 MHz up to 10 m with 42 dBuA/m; Supports up to 10,000 cards; Card reading distance 0–3 cm; Tamper alarm; Motion detection via snapshot
    Ports & Interfaces RS-485 ×1; Wiegand ×1; Alarm Input ×1; Alarm Output ×1; Power Output (12 V/600 mA) ×1; Door Bell ×1; Exit Button ×1; Lock Control ×1; RJ-45 (10/100 Mbps)
    Build Aluminum housing, silver finish; Protection: IK08, IP65 (sealant required)
    Installation Flush or surface mount (accessories optional)
    Dimensions 200.0 × 98.0 × 35.4 mm (7.87″ × 3.86″ × 1.39″)
    Operating Conditions −40 °C to +60 °C (−40 °F to +140 °F); 10%–90% RH, non-condensing; Outdoor; Altitude below 3000 m
    Power & Consumption Power: 48 VDC 0.4 A or PoE (802.3af/at); Power Output: 12 VDC/600 mA; Power Consumption: ≤5 W (standby), ≤7 W (working)
    Weight 692 g (1.53 lb)
    Certifications CE
