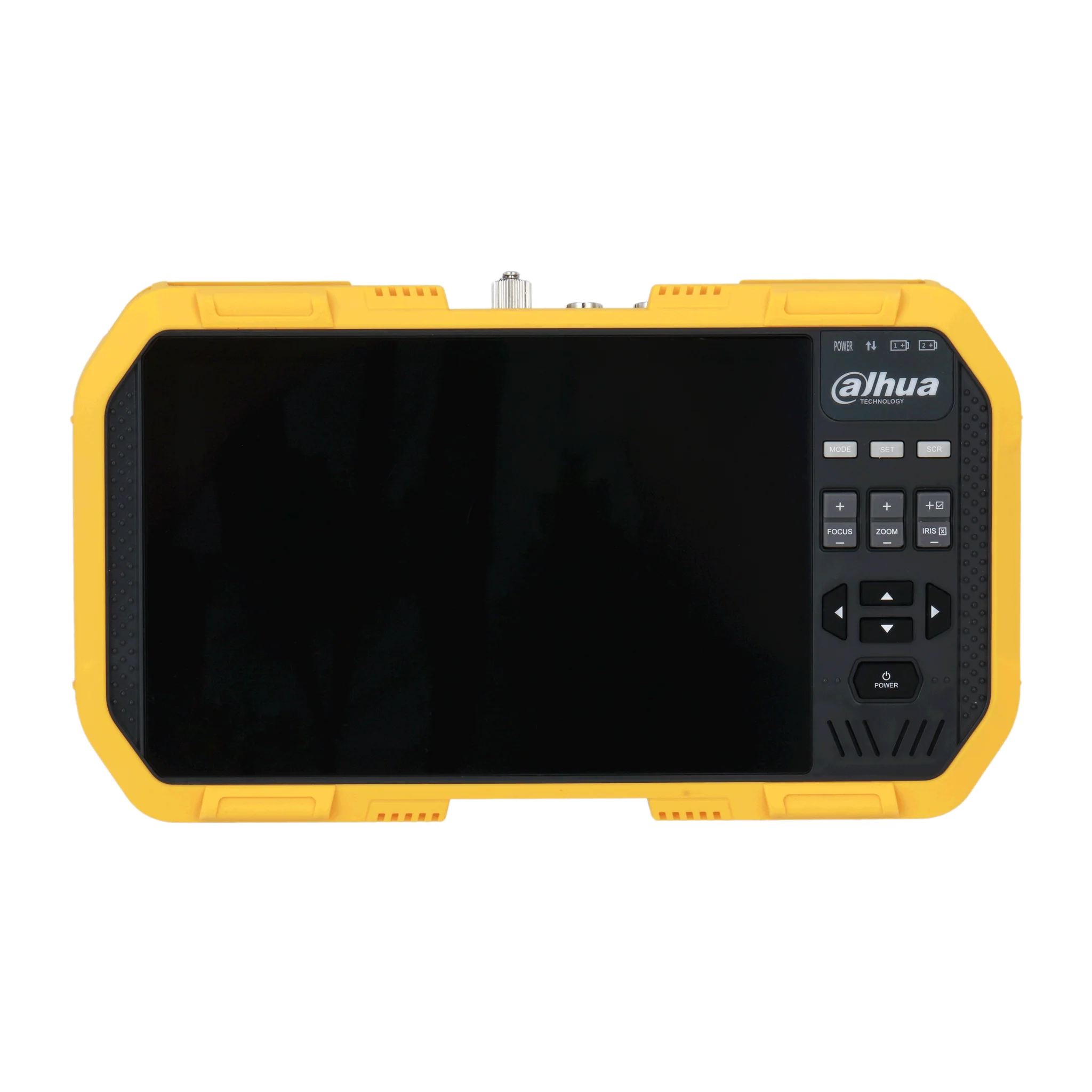

| Dahua Integrated Mount Tester - DH-PFM907-E |
| System |
| Operation System |
Linux |
| Language |
13 languages including Chinese and English |
| Operation mode |
Touchscreen |
| Auto Standby/Power Off |
Off/5–60min |
| Keyboard Sound |
On/Off |
| Display Screen |
7-in 16.7M color TFT touch screen,
RGB interface lcd display: 1920 ×1200, backlight
brightness adjustable |
| Button |
Keypad: 14 keys |
| Others: Power and on-off button |
| LED |
2 |
| Wi-Fi |
Frequency: 2.4G |
| Protocol: IEEE 802.11a/n/ac |
| Update |
Supports online and local update |
| Structure&Environment |
| Net Weight |
0.93kg (2.05 lb) |
| Product Dimensions |
235.0 mm × 135.0 mm × 45.0 mm (9.25'' × 5.31'' ×
1.77'') (L × W × H) |
| Operating Temperature |
–10 °C to +55 °C (14 °F to 131 °F ) |
| Operating Humidity |
30%–90% (RH) |
| IPC Test |
| Camera Access |
ONVIF and Dahua private protocol |
| Resolution |
2 MP (only supports 1920 × 1080@25 fps, 1920 ×
1080@30 fps); 4 MP; 6 MP; 4K |
| Initialization |
Yes |
| Image |
Live view, snapshot and recording, zoom, and
H.264/H.265 decoding |
| Function Control |
Modify the IPC resolution, IP address and account
password. Control IPC to restore factory defaults |
| Analog Video Test |
| Video Format |
HDCVI; HDTVI; AHD; CVBS (NTSC, PAL) |
| Resolution |
HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps,
2560 ×1440@25/30 fps, 2880 × 1620@25/30 fps |
HDTVI: 720p@25/30/50/60 fps, 1080p@25/30fps,
2048×1536@18 fps, 2560 × 1440@25/30 fps |
AHD: 720p@25/30 fps, 1080p@25/30fps, 2048 ×
1536@ 18/25/30 fps, 2560 × 1440@25/30 fps |
| CVBS: 720 × 576@25 fps, 720 × 480@30 fps |
| Function Control |
OSD menu; PTZ control |
| Image |
Live view, snapshot and recording, zoom |
| Video Signal Generator |
PAL; NTSC viedo test signal |
| HDCVI; HDTVI; AHD viedo test signal (720p/1080p) |
| UTC |
| UTC |
Switches from CVBS mode to CVI/TVI/AHD mode; |
Switches from one HD format (up to 1080p) to
another HD format |
| DMM |
| DC Voltage |
Limit: 2/20/200/600 V |
| Reading range: ±19999 |
| Min. Resolution: 0.1 mV |
| Accuracy: ±0.1%+8 |
| AC Voltage |
Limit: 20/200/600 V |
| Reading range: ±1999 |
| Min. Resolution: 1 V |
| Accuracy: ±1.2%+3 |
| DC Current |
Limit: 20/200/2000 mA |
| Reading range: ±19999 |
| Min. Resolution: 1 uA |
| Accuracy: ±0.1%+8* |
| AC Current |
Limit: 20/200/2000 mA |
| Reading range: ±1999 |
| Min. Resolution: 1 uA |
| Accuracy: ±1.2%+3 |
| Resistance Test |
Limit: 2 kΩ/20 kΩ/200 kΩ/2 mΩ/20 mΩ |
| Reading range: 0–19999 |
| Min. Resolution: 0.1 Ω |
| Accuracy: ±0.1%+8 |
| Capacitance Test |
Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF |
| Reading range: 0–1999 |
| Min. Resolution: 1 pF |
| Accuracy: ±4%+5 |
| Diode Voltage Drop |
Limit: 2 V |
| Reading range: 0–19999 |
| Min. Resolution: 0.1 mV |
| Accuracy: ±0.1%+20 |
| Continuity Test |
Limit: 2 kΩ |
| Reading range: 0–19999 |
| Min. Resolution: 0.1 Ω |
| Accuracy: ±0.1%+20 |
| Others |
| RS-485 Control |
Communication protocol: More than 30 protocols
including Pelco–D/P, Samsung, Panasonic, Lilin, and
Yaan |
Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps,
2400 bps, 4800 bps, 9600bps, 19200 bps |
| Wireless |
Spectrum Test; Wi-Fi Test; Signal Monitoring |
| Cable Test |
Network Cable Test: Test network cable pair length,
attenuation and delay deviation.
Test two or more network cables. The connection
sequence and network cable number will be
displayed on the screen. |
| HDMI Test |
1-ch HDMI video input (720p and 1080p) ; |
| 1-ch HDMI video output (1920 ×1080p) |
| Audio Test |
1 × audio input, and 1 audio output |
| Power Supply for Camera |
12 VDC 2A |
| Network Test |
Features IP address scanning and PING test. |
| Protocol Code Acquisition |
Built–in serial port tool, can receive and display
RS485 protocol code data sent by control device,
and can also send hexadecimal codes. |
| Optical Power Meter |
Detector Type: InGaAs |
| Calibrated Wavelength: 1625/1550/1480/1310n/1300/850 nm |
| Power Test Range: –70 dBm to +10 dBm |
| Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F) |
| Resolution: Linear: 0.1%, logarithmic : 0.01 dBm |
| Connector: FC/PC |
| Port |
| Power |
1 × charge port, 12 VDC |
| 1 × power output port, 12 VDC 2A |
| Audio Port |
1 × audio input port, 1 × audio output port |
| USB |
1 × USB, 1 × Micro-USB |
| Network Port |
2 × RJ45 10M/100M/1G network port |
| SD Card |
N/A |
| HDMI |
1 × HDMI input port |
| 1 × HDMI output port |
| RS-232 |
NA |
| RS-485 |
1 |
| VLS |
N/A |
| OPM |
1 |
| Multimeter |
4 |
| Power Supply |
| Power Supply |
12 VDC 1A/POE 48 V–0.5 A |
| Battery |
Two battery compartments.
Each battery compartment can hold a dedicated
lithium battery pack with a capacity of 18.5Wh.
The combined working time is about 10 hours. (can
operate on a single battery). |
| Certifications |
| Certifications |
CE: EN 55032: 2015, EN 55032: 2017, EN 61000–3–
2: 2014, EN 61000–3–3: 2013, EN 61010-1: 2010, EN
62321–1: 2013 |
| FCC: FCC Part 15 Subpart B: 2016 |
