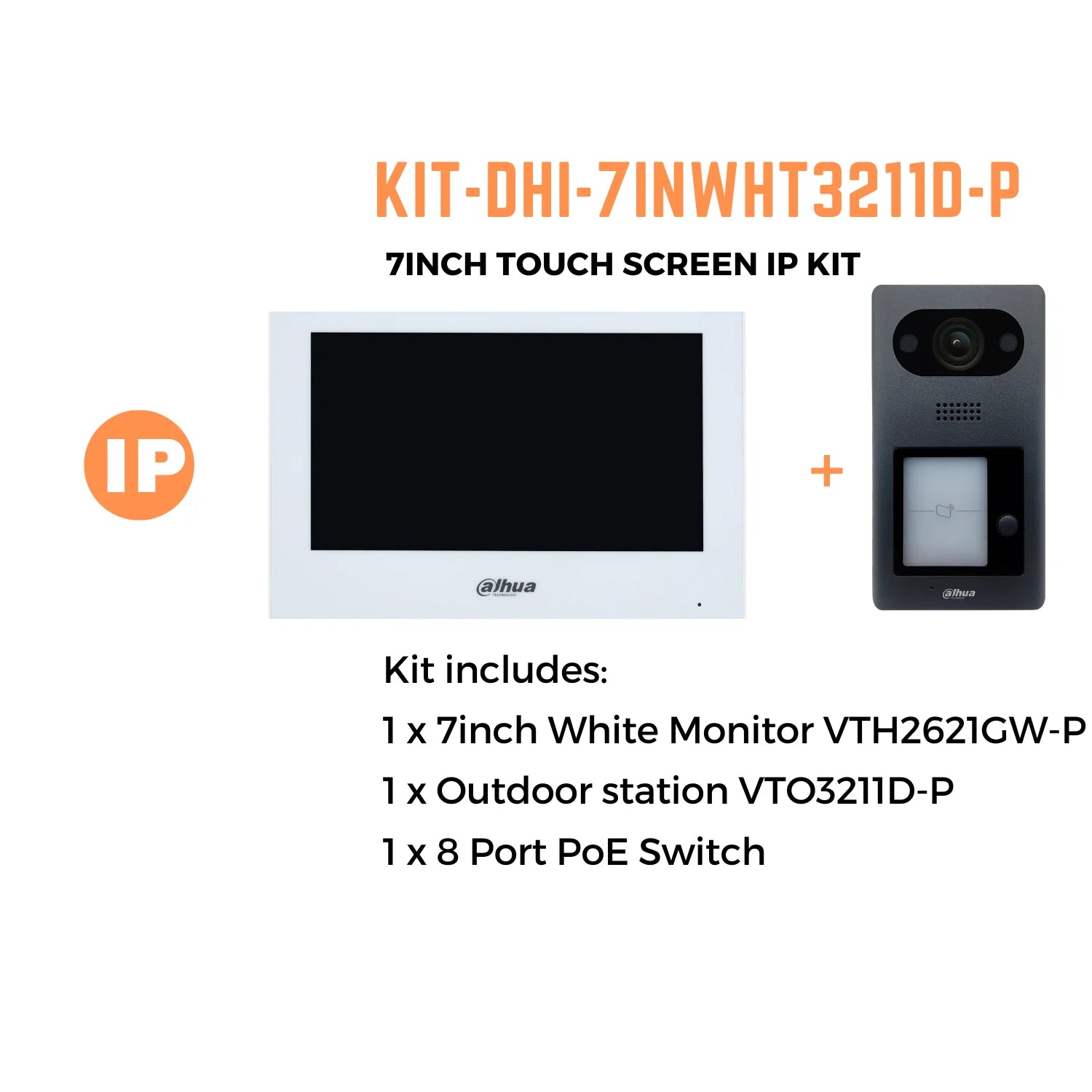

Dahua KIT-DHI-7INWHT3211D-P Intercom Kit is part of Dahua's VTH Series. VTH series products are digital video intercom home stations that integrate monitoring, two-way communication, and door management. The VTH devices use an IP network, SNMP (Simple Network Management Protocol) technology, and network encryption technology to achieve a stable system, robust functionality, convenient operation, and safer data transmission. These devices allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor.
7" Touch Screen Monitor (White) - VTH2421FW-P
IP Villa Outdoor Station - VTO3211D-P
4-Port PoE Switch - PFS3005-4ET-60
Includes:
7" Touch Screen Monitor - VTH2421FW-P
Technical Speci?cation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
High performance embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded LINUX OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type |
Capacitive screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display |
7-inch TFT screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1024 × 600 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711A/G.711U/PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel all-direction microphone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in 1.5W loudspeaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode |
Support dual-way bidirectional talk |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement |
Support echo cancellation/DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
16 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Information Release |
Support to receive and view notifications issued by centre |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos or Text Messages |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DND Mode |
Support to set DND period |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub-station Quantity |
9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
6 channel (switch quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 RJ-45 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SOS Alarm |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
PC+ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
Appearance Color |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Standard PoE DC 12V 1A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessories |
Default bracket Default alarm cable |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%RH-95%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Standby?4W, work?6W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.35 Kg (0.77 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power supply mode |
PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
IP Villa Outdoor Station - VTO3211D-P
Ethernet |
10M/100Mbps Self-adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
TCP/IP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
IP65, IK08 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Switch |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Surface |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
Aluminium |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
DC 12V, PoE(802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Standby ?1W, Work ?7W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
?40°C~+60°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Relative Humidity |
10%~90%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
182.0mm×30.0mm×101.0mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
0.8Kg |
4-Port PoE Switch - PFS3005-4ET-60
Hardware Feature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port |
Port 1-4: 4 × RJ-45 10/100M (PoE) Port 5: 1 × RJ-45 10/100M (uplink) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Consumption |
Port 1 ? 60 W (Hi-PoE) port 2-4 ? 30 W total ? 60 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Idling: 0.8 W Full load: 60 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Protocol |
IEEE802.3af/ IEEE802.3at/ Hi-PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Pin |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Long Distance |
250 m long-distance PoE transmission |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Management |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Watchdog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity |
1.8 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate |
744 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Memory |
1 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flow Control |
Enable by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Application Humidity |
5%– 95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Input |
48 V - 57 V DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lighting Protection |
Common mode: 4 kV Differential mode: 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ESD Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wall-mount Installation |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-theft Lock Hole |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
0.30 kg (0.64 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
