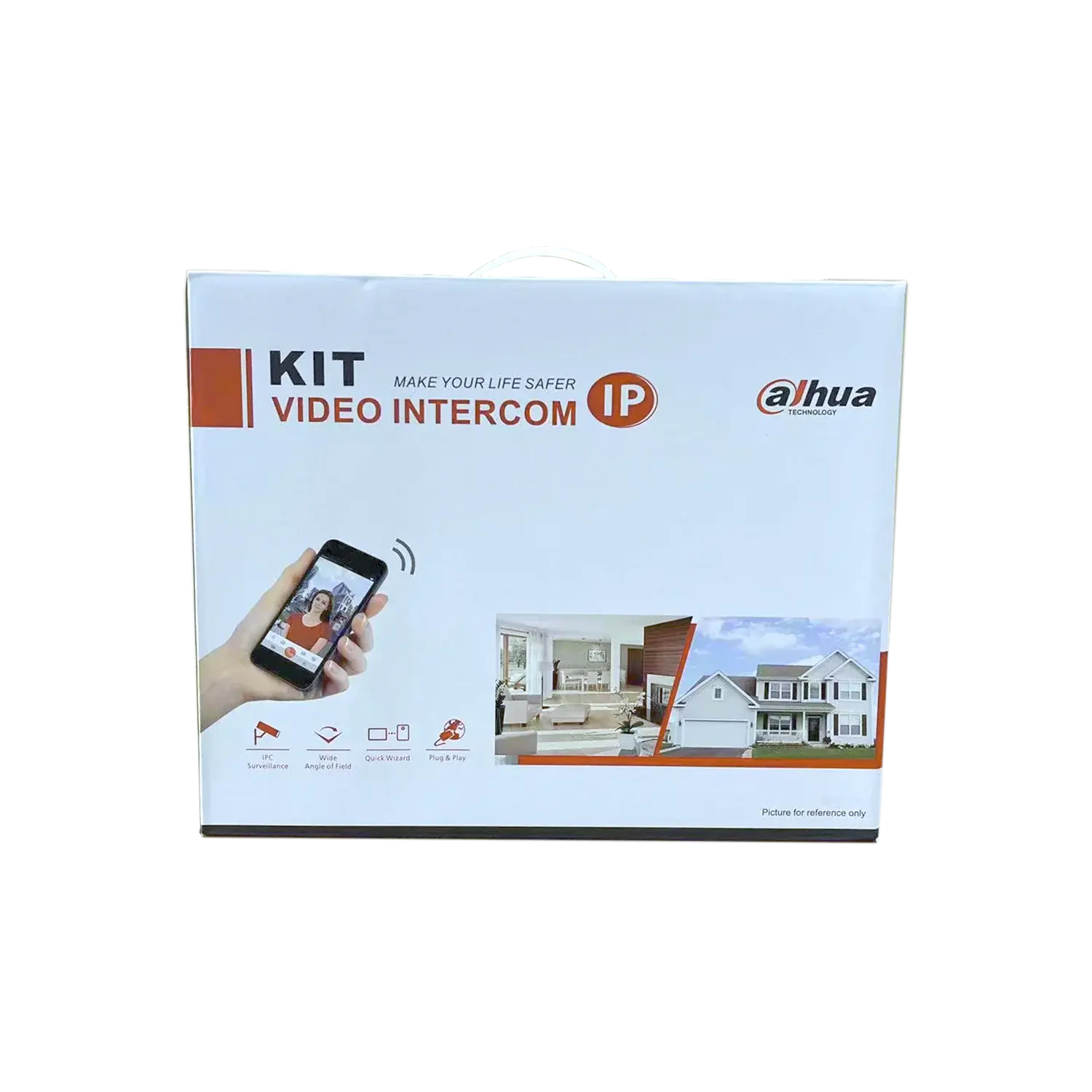

The Dahua DHI-KTP03 is a complete IP intercom solution designed for villas, homes, and small offices. This kit combines advanced security, convenience, and reliability with an indoor monitor, villa door station, PoE switch, and rain cover for all-weather protection.
1 x IP Indoor Monitor DHI-VTH2621G-P
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Door station and IPC monitor
H.265 and H.264 video decoding
High performance & cost-effective
1 x IP Villa Station DHI-VTO2111D-P-S2
High definition camera; WDR
Operating temperature -30 degree centigrade to +60 degree centigrade
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
Control two locks2-Wire Switch - DHI-VTNS1001B-2 A
1 x PoE Switch DH-PFS3006-4ET-36
Support four 10/100M PoE power supply ports, and two 10/100M uplink ports
Support 802.3af and 802.3at standards
OperatingTemperature: -10 degree centigrade to +55 degree centigrade
Support 250 m long distance PoE transmission
Support PoE watchdog
Intercoms
Supports connecting through RJ45 port
Supports guide rail mount
Surface-mounted Rain Cover - VTM05R
Surface-mounted rain cover for VTO2202F
Includes:
Downloads
Tech Specs
Technical Specification
IP Indoor Monitor DHI-VTH2621G-P
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Interoperability
ONVIF; SDK
CPU
Dual core 1.2 GHz
ROM
128 MB
Basic
Screen Type
Capacitive touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a; G.711u; PCM
Audio Input
Audio Output
Built-in speaker
Video Mode
2-way audio
Storage
Micro SD Card, Max 64 GB (reserved for software)
General
Appearance Color
Por
RS485
Black
Alarm Output
1
Power Output
1-ch 12 VDC 100mA
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
One RJ45 10M/100M network port
General
Appearance color
Silver
Power Supply
12 VDC 1A;
Installation
Surface Mount
Certifications
CE; FCC
Dimensions
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")
Operating Temperature
–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity
10%–95% (RH) (non-condensing)
Protection
IK07; IP65
Operating Temperature
–30°C to +60°C (–22°F to 140°F)
Operating Humidity
10%–90% (RH, non-condensing)
Operating Altitude
Beneath 3,000 m (9,842.52 ft)
Power Consumption
Standby ≤ 2 W; working ≤ 6 W
Net Weight
0.34 kg (0.74 lb)
Gross Weight
0.58 kg (1.27 lb)
IP Villa Station DHI-VTO2111D-P-S2
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
RTSP; RTMP; HTTP/HTTPS; DNS; FTP; UPnP; RTP; SIP; SSH;
Basic
Camera
1/2.7“ 1MP CMOS
Angle of View
H: 107°; V: 61°; D: 122°
Focal Length
2.0 mm
WDR
120 dB
Noise Reduction
3D NR
Video Compression
Built-in speaker
Video Resolution
50 Hz:
Frame Rate
25 fps
Video Bit Rate
256 kbps to 4 Mbps
Light Compensation
Auto IR
D/N
Yes
Audio Compression
G.711a; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way Audio
PoE Switch DH-PFS3006-4ET-36
Main Processor
Embedded processor
Network Protocol
IEEE802.3af, IEEE802.3at
Function
Communication Mode
Full digital
Performances
Casing
SECC
Port
Network Port
4 PoE ports with 10/100 Mbps Base-TX
Storage
Micro SD Card, Max 64 GB (reserved for software)
General
Appearance color
Black
Power Supply
100–240 VAC
Certifications
CE; FCC; UL
Accessory
power cable included
Product Dimensions
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38")
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–95% (RH, non-condensing)
Operating Altitude
Beneath 3,000 m (9,842.52 ft)
Power Consumption
Idling: 0.5 W Full load: 36 W
Net Weight
0.56 kg (1.23 lb)
Gross Weight
1.11 kg (2.15 lb)
