Description

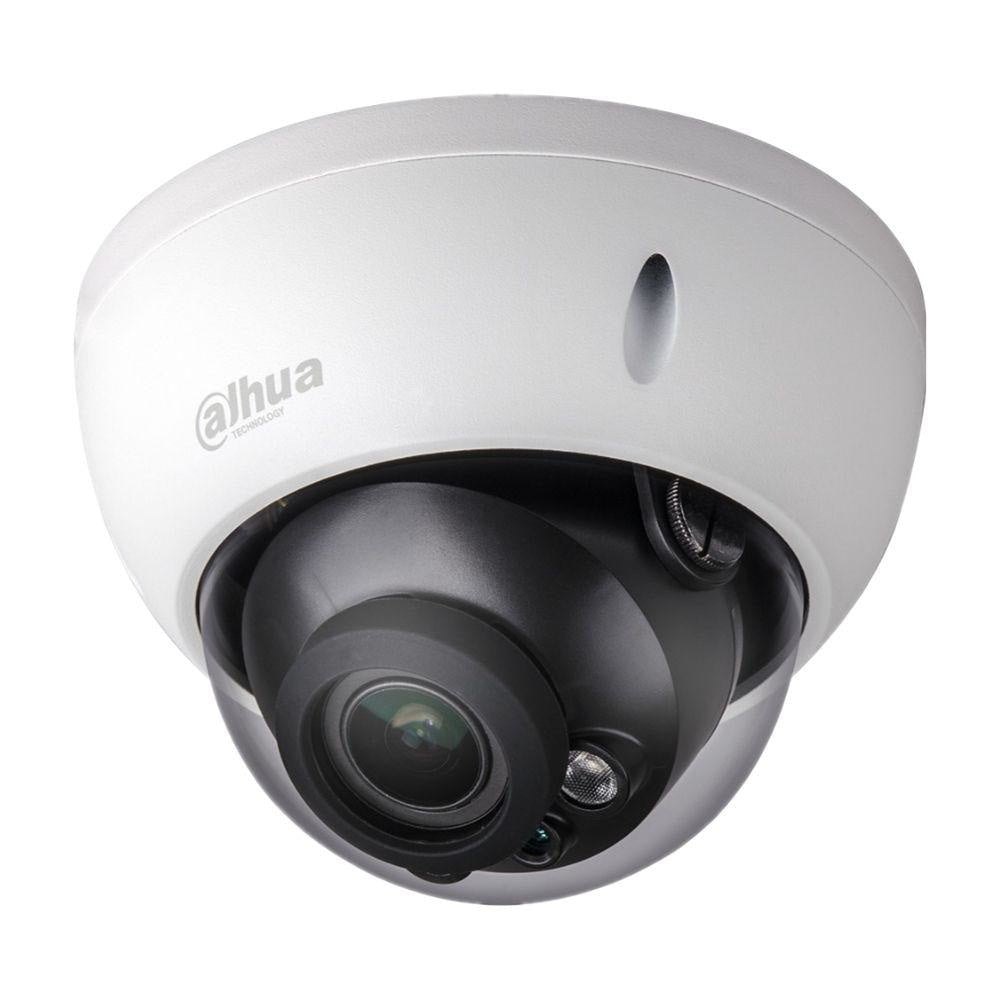

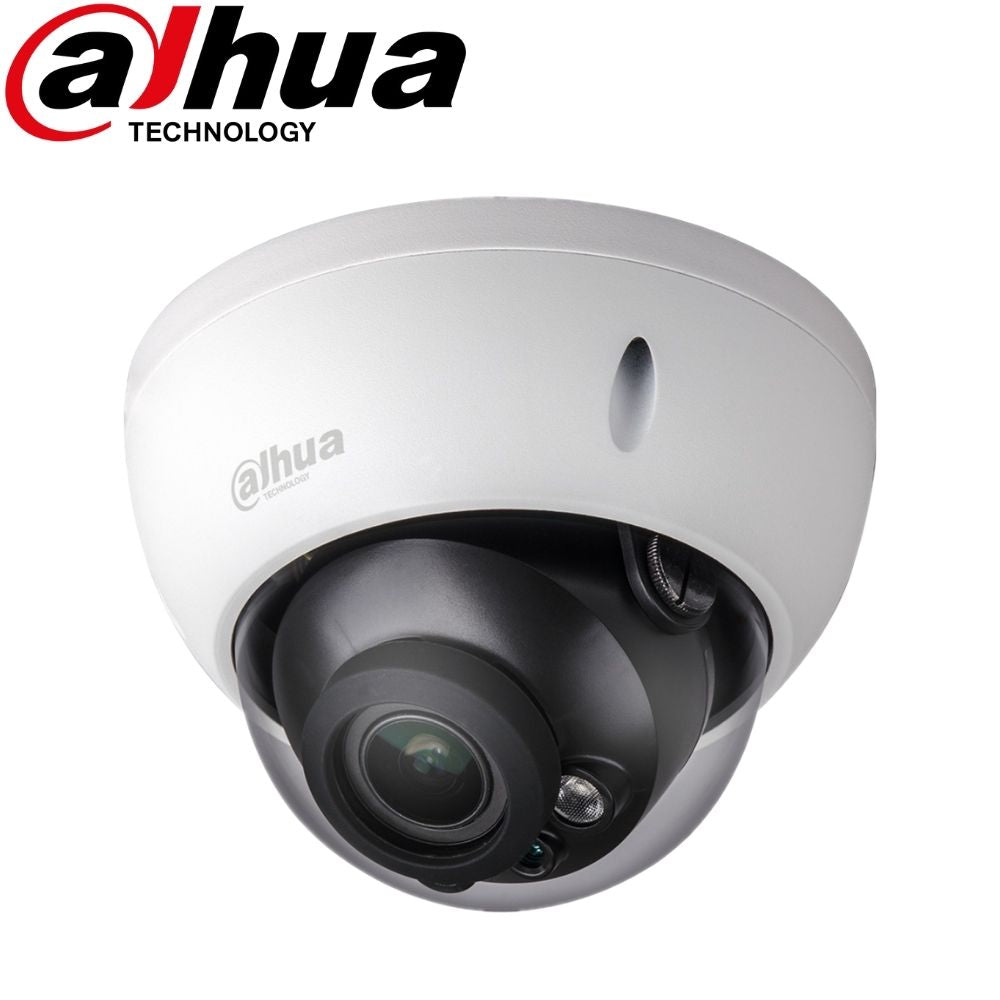

Dahua IPC-HDBW2831R-ZS Security Camera
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Records up to 8 Megapixel (4K Ultra HD) resolution.
- Equipped with a 3.7~11mm Motorized lens.
- Supports up to 3840 × 2160 resolution.
- Features up to H.265+ high-efficiency video encoding and Dual-Streaming.
- Capable of up to 16x Digital Zoom
- Supports Starlight technology, generates clear images in near-complete darkness.
- 120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
- Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
- Supports Power-Over-Ethernet (PoE) installations.
- Built-in Infrared LED, with a maximum range of 30 meters.
- Supports MicroSD Card Storage up to 128 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- Durable "Vandal-Proof" Impact Protection Rating (IK10).
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua IPC-HDBW2831R-ZS Security Camera
Camera |
Image Sensor |
1/1.8” 8Megapixel progressive CMOS |
Effective Pixels |
3840(H) x2160(V) |
RAM/ROM |
512MB/128MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Minimum Illumination |
0.004Lux/F1.9( Color, 1/3s, 30IRE)
0.09Lux/F1.9 Color, 1/30s, 30IRE)
0Lux/F1.9(IR on)
|
S/N Ratio |
More than 50dB |
IR Distance |
Distance up to 30m(98ft) |
IR On/Off Control |
Auto/ Manual |
IR LEDs |
2 |
Lens |
Lens Type |
Motorized |
Mount Type |
Board-in |
Focal Length |
3.7mm~11mm |
Max. Aperture |
F1.9 |
Angle of View |
H:112°~46°, V:60°~26° |
Focus Control |
Fixed |
Close Focus Distance |
0.2m(0.66ft) |
PTZ |
Pan/Tilt Range |
Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355° |
Intelligence |
Event Trigger |
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly |
IVS |
Tripwire, Intrusion |
Video |
Compression |
H.265/H.264H/MJPEG(Sub Stream) |
Smart Codec |
Support H.265+/H.264+ |
Streaming Capability |
2 Streams |
Resolution |
4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/
3M(2048x1536)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)
|
Frame Rate |
Main Stream: 4K (1~25/30fps) |
Sub Stream: D1(1~25/30fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 32Kbps~8192Kbps
H.265: 16Kbps~8192Kbps
|
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / WDR(120dB) |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detection |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization(EIS) |
N/A |
Smart IR |
Support |
Digital Zoom |
16x |
Flip |
0°/90°/180°/270° |
Mirror |
Off / On |
Privacy Masking |
Off / On (4 Area, Rectangle) |
Audio |
Compression |
N/A |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; NFS; SSH |
Interoperability |
ONVIF, PSIA, CGI |
Streaming Method |
Unicast / Multicast |
Max. User Access |
10 Users / 20 Users |
Edge Storage |
NAS
Local PC for instant recording
Micro SD Card 128GB
|
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |
Smart PSS, DSS, DMSS |
Smart Phone |
IOS, Android |
Certifications |
Certifications |
CE (EN 60950:2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B
|
Interface |
Video Interface |
N/A |
Audio Interface |
N/A |
RS485 |
N/A |
Alarm |
N/A |
Electrical |
Power Supply |
DC12V PoE (802.3af)(Class 0) |
Power Consumption |
<10.9W |
Environmental |
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection |
IP67 |
Vandal Resistance |
IK10 |
Construction |
Casing |
Metal |
Dimensions |
122mm×88.9mm (4.80''x3.50'') |
Net Weight |
0.49Kg (1.09lb) |
Gross Weight |
0.66Kg(1.46lb) |
Videos
Sample 8MP Videos from a similar Dahua camera
