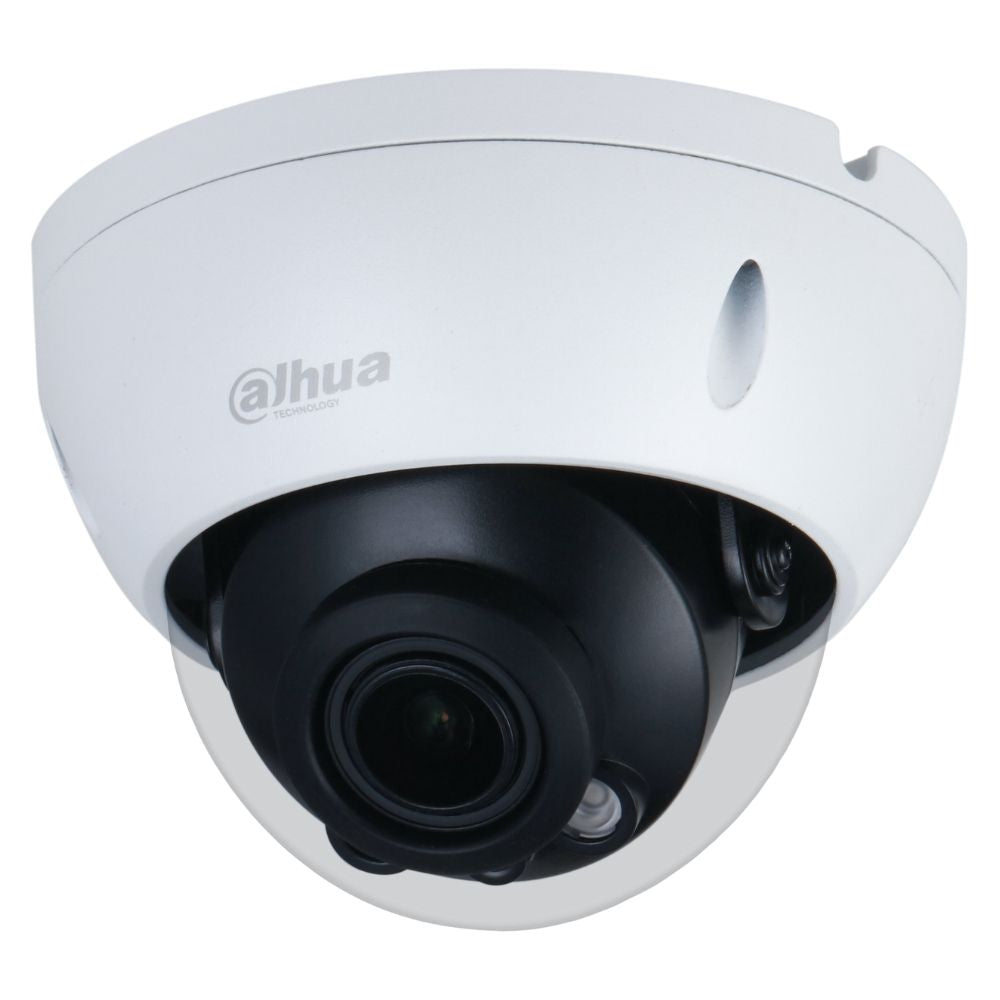

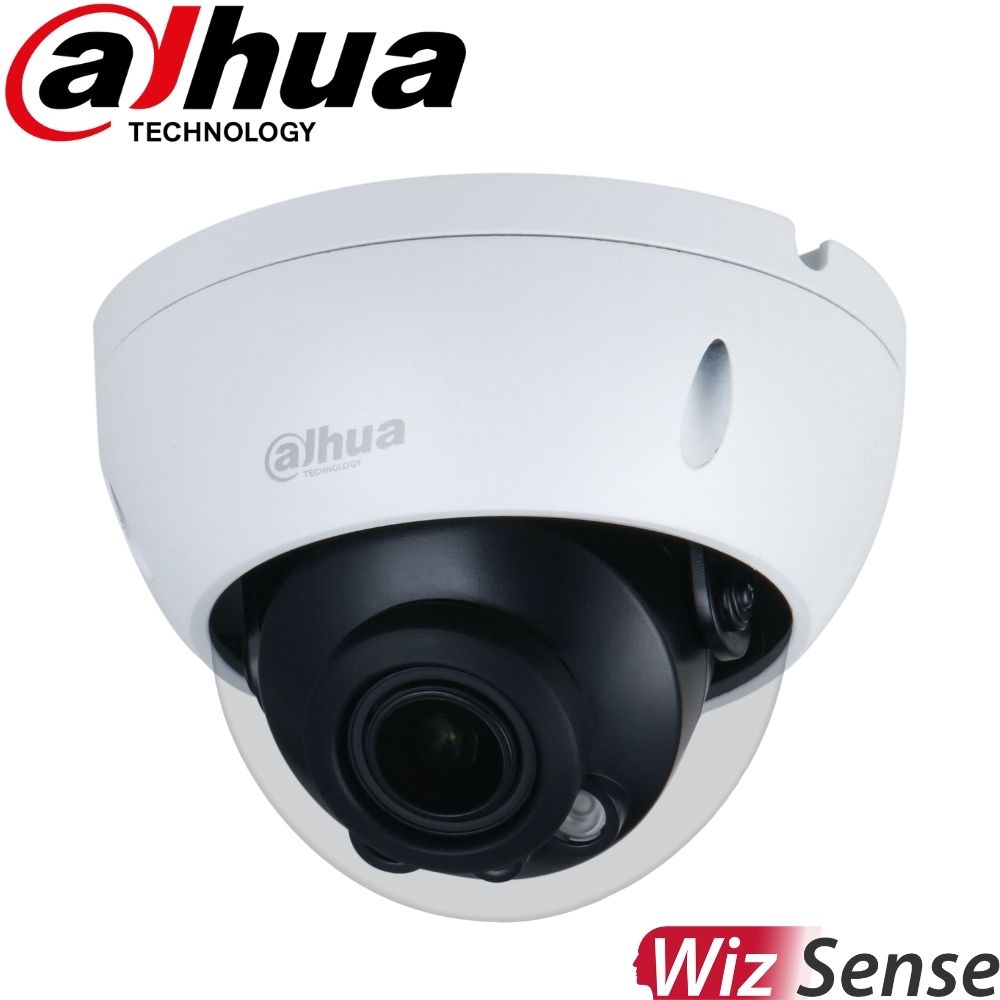

A compact yet rugged 5MP dome camera designed for indoor or outdoor security. Part of the Dahua WizSense AI series, it delivers intelligent detection for human and vehicle motion, crystal-clear image quality, and reliable audio and alarm integration. With IR up to 50 meters, audio in/out, and IP67 + IK10-rated housing, it’s built to perform in tough environments.
Key Features
-
5MP High-Resolution Video – Delivers detailed footage for forensic-level monitoring.
-
SMD+ (AI Motion Detection) – Smarter alerts by filtering out non-human/non-vehicle movement.
-
IVS Analytics – Tripwire and Intrusion detection with human/vehicle classification.
-
Audio In/Out – RCA ports for 2-way audio communication or recording.
-
Alarm I/O – Supports alarm triggers from external devices.
-
Smart Codec (H.265+/H.264+) – Save bandwidth and storage space.
-
Weatherproof & Vandal Resistant – IP67 for rain/dust and IK10-rated metal housing.
-
MicroSD Support – Up to 256GB local recording.
Perfect For:
- Entrances & hallways
- Reception or lobby areas
- Warehouses or garages
- Banks and commercial buildings
- Schools or retail shops
- Outdoor areas exposed to tampering or impact
Install Tips
- Choose 2.8mm lens for wide coverage like reception areas.
- Use 6mm lens for tight corridors or distant object monitoring.
- Use alarm input to trigger events (e.g., door sensor), and output to activate devices (e.g., sirens).
- Best mounted with junction box (PFA136) or wall mount (PFB203W) for easy install.
- For vandal-prone areas, its IK10 rating makes it a solid choice.
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Resolution |
5MP (2592 × 1944) @ 20fps |
| Lens Options |
Fixed 2.8mm / 3.6mm / 6mm |
| Night Vision |
Up to 50m IR range |
| AI Detection |
Intrusion, Tripwire (Human/Vehicle) |
| SMD+ |
Smart Motion Detection |
| Audio |
1 in / 1 out (RCA) |
| Alarms |
1 in / 1 out |
| Storage |
MicroSD (up to 256GB), NAS, FTP |
| Build |
IP67, IK10 metal dome casing |
| Power |
12V DC or PoE |
Extra Info
SMD+ Smart Motion Alerts
This camera uses Dahua's AI-powered SMD+ to reduce false alarms by detecting only people or vehicles, filtering out wind, light changes, or animals.
Starlight + IR Vision
Equipped with Starlight technology for low-light colour performance, and IR LEDs for up to 50m night vision when lighting is absent.
Audio and Alarm Ports
Connect microphones, speakers, or alarm devices via RCA and trigger actions with the 1 alarm input and output, ideal for active security scenarios.
Strong Build – IP67 + IK10
-
IP67-rated: dust-tight and rainproof
-
IK10-rated: resistant to vandalism and impacts – great for public or risky spaces
-
Wide voltage support ensures it runs stable even when power fluctuates
Smart Recording & Triple Streaming
This camera supports up to 3 video streams at once—great for local recording, live viewing, and remote access. Smart compression keeps file sizes low.
Q&A
Q: Can this camera record at night?
A: Yes, it has IR LEDs for night vision up to 50 meters.
Q: What’s the difference between SMD+ and regular motion detection?
A: SMD+ uses AI to detect only humans or vehicles—so you don’t get false alerts from tree movement or rain.
Q: Does it support audio?
A: Yes. It has 1 audio input and 1 output (RCA)—ideal for adding microphones or speakers.
Q: Can I trigger alarms with it?
A: Yes. It has 1 alarm input and 1 output, useful for door sensors, lights, or sirens.
Q: Is it vandal-proof?
A: Yes. It has IK10 protection, meaning it resists strong impact—perfect for exposed or public installations.
Q: What mounting options are available?
A: You can use junction box (PFA136), wall mount (PFB203W), or pole mount (PFA152-E) depending on your setup.
Q: How does it handle low light?
A: With Starlight and IR, it performs well even in very dark areas.
