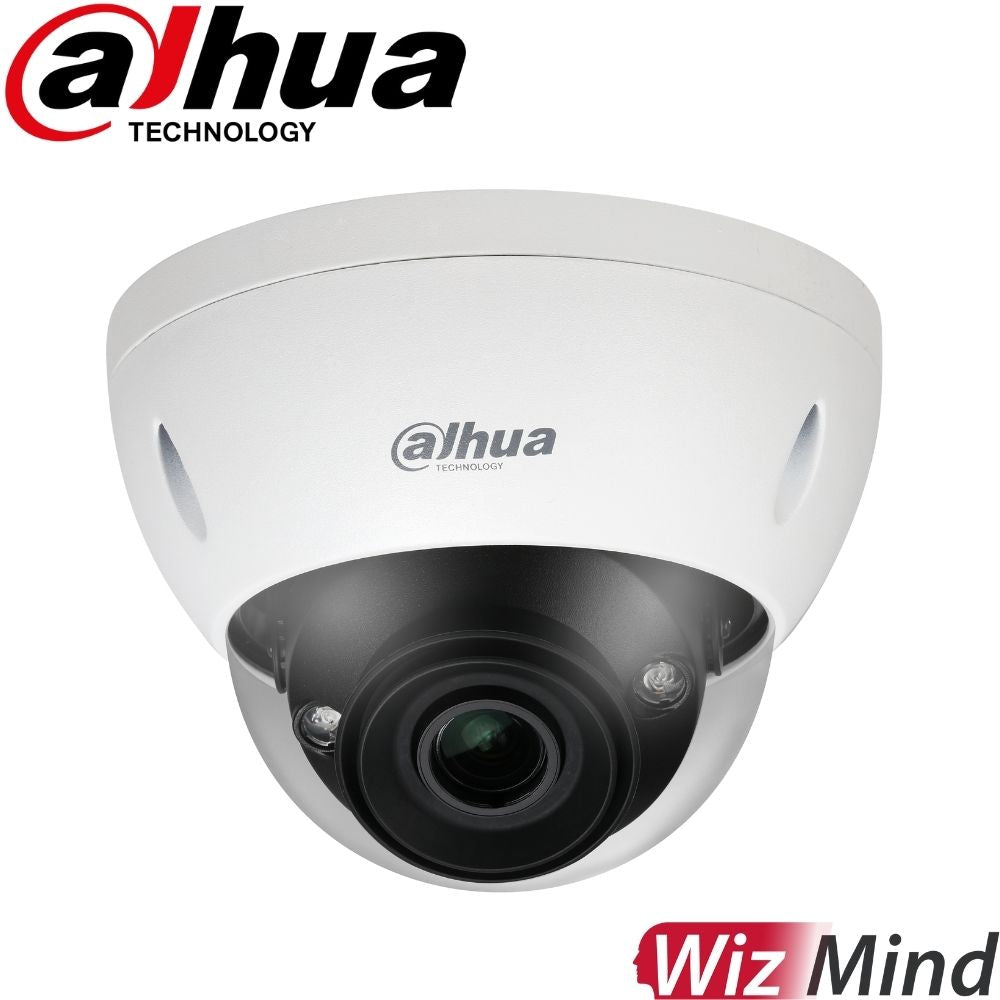

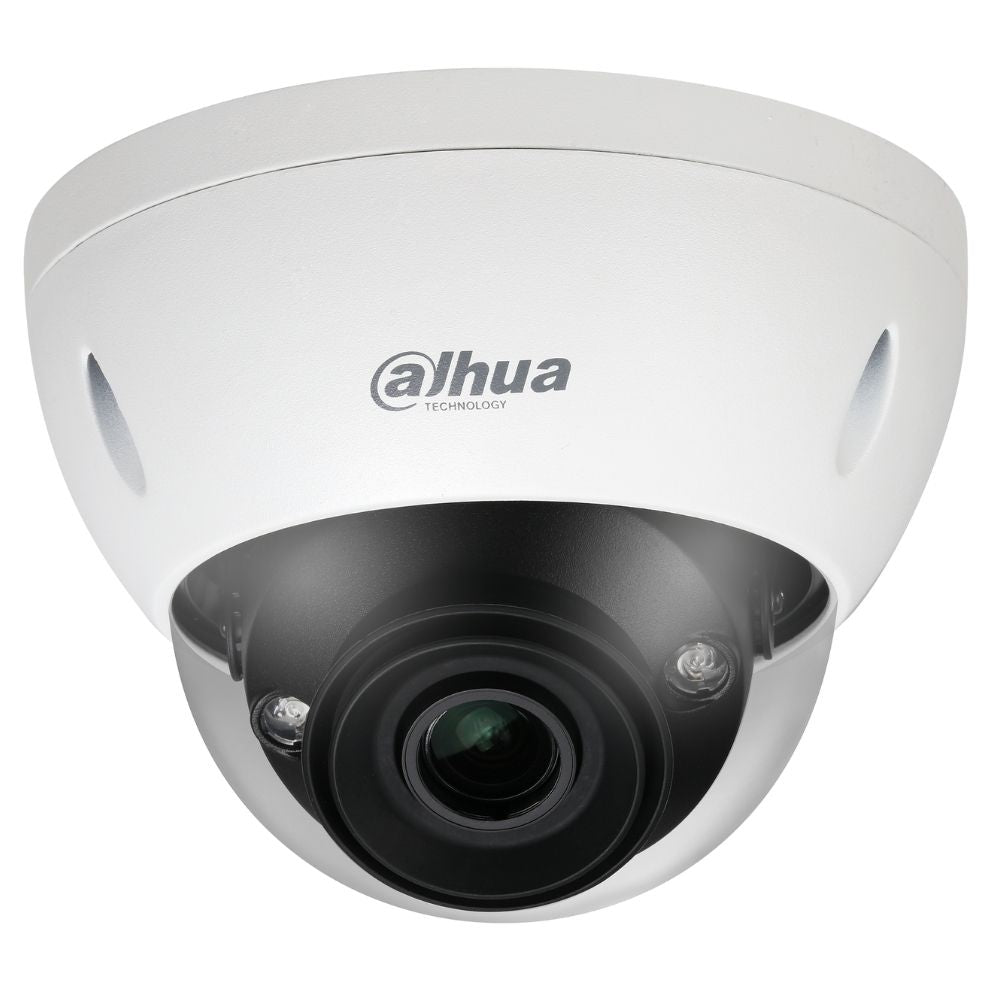

The Dahua DH-IPC-HDBW5541E-ZE is a vandal-resistant dome camera designed for environments requiring advanced analytics and durable hardware. It combines smart AI features—such as face detection, people counting, and perimeter protection—with motorized zoom and rugged IP67/IK10 construction. Ideal for smart surveillance in schools, businesses, and public spaces where accurate monitoring and longevity matter.
Key Features
-
Motorized 2.7–13.5 mm Lens – Zoom and focus remotely to precisely cover different zones.
-
AI Face Detection & Attributes – Captures faces and records details like age, gender, mask, and expressions.
-
People Counting & Queue Analysis – Enables venue management with real-time stats and reporting.
-
Perimeter AI – Filters out false alarms using smart tripwire and intrusion detection with human/vehicle classification.
-
Starlight Low-Light Imaging – Maintains clear color information down to 0.005 Lux before IR activates.
-
ePoE Long-Range Power/Data Up to 800 m – Simplifies cabling and supports distant deployments.
-
Smart H.265+ Compression – Reduces bandwidth and storage use by up to 70%.
-
Rugged IP67 & IK10 Housing – Built to resist dust, water, and impact in tough public settings.
Perfect For:
- School & university entrances
- Bank or retail lobbies
- Airport and transit terminals
- Corporate office front desks
- Parking garages
- Public facilities with vandal-risk
Install Tips
-
Mount at 2.5–4 m height to optimize face and people detection accuracy.
-
Use ePoE when run distance exceeds 100 m—simplifies long cable runs.
-
Zoom remotely after install to fine-tune frame without ladders.
-
Configure perimeter rules (tripwire, intrusion, loitering) via PSS/DSS for accurate alerts.
-
Enable queue-count reports in management software to track peak times.
-
Use IK10-rated mounts in high-vandal areas like public buildings.
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Resolution |
5 MP (2592 × 1944 @20 fps) |
| Lens Options |
Motorized 2.7–13.5 mm |
| Night Vision |
IR up to 40 m |
| Deterrence |
❌ No siren or lights |
| AI Features |
Face Detection, People Counting, Perimeter AI |
| Audio |
1 in / 1 out RCA ports |
| Storage |
microSD up to 256 GB, NAS/FTP/SFTP |
| Power |
12 VDC / AC24V / PoE / ePoE |
| Weather Rating |
IP67 / IK10 |
Extra Info
Advanced AI Analytics – Smarter Surveillance Insights
This camera supports intelligent analytics beyond standard video recording. Face detection captures and stores snapshots along with facial attributes like age and gender, while people counting and queue monitoring offer real-time data for managing crowd flow. These statistics can be compiled into daily, monthly, or yearly reports, making the camera a valuable tool for high-traffic areas such as office lobbies, retail spaces, schools, or transportation hubs.
Motorized Lens Convenience – Remote Zoom & Focus
Equipped with a motorized varifocal lens, users can remotely adjust zoom and focus through a network video recorder (NVR) or mobile app. This eliminates the need for physical adjustments after installation, simplifying setup and enabling fine-tuning of the field of view to match surveillance needs without climbing ladders or accessing difficult areas.
Rugged Protection – Built for Harsh Conditions
Housed in a durable metal enclosure, the camera features IK10 vandal resistance to withstand physical impacts and tampering attempts, along with an IP67 weatherproof rating to protect against dust, rain, and harsh outdoor environments. Whether mounted in public areas, on exterior walls, or in industrial zones, it provides reliable operation in tough conditions.
Starlight Low-Light Imaging – Color in the Dark
Dahua’s Starlight technology enables exceptional low-light performance, capturing clear color images in lighting as low as ≤0.005 Lux — far beyond what standard cameras can handle. This ensures visibility and subject identification during twilight hours or dim conditions, even before infrared night vision activates.
Simplified Cabling with ePoE – Long-Distance Installation Made Easy
With Enhanced Power over Ethernet (ePoE) support, the camera can transmit power and data up to 800 meters using standard Cat5 or coaxial cable. This makes it highly suitable for wide-area deployments such as school campuses, industrial facilities, warehouses, or multi-building properties — all while reducing infrastructure costs by avoiding the need for multiple switches or power extenders.
Efficient Smart Codec – Storage Optimized, Quality Maintained
Utilizing Smart H.265+ compression, the camera automatically adjusts encoding based on scene activity and motion. It reduces bitrate and file size during low activity while preserving high-quality video when needed, maximizing storage efficiency without sacrificing image clarity. Ideal for environments requiring continuous recording with minimal bandwidth usage.
While the DH-IPC-HDBW5541E-ZE does not have built-in AcuPick, it is fully compatible with Dahua NVRs that support AcuPick AI search. When connected to a compatible AI-enabled NVR, the camera’s metadata (e.g., human and vehicle classification from perimeter protection or face detection) can be used for smart search filtering.
What You Get with AcuPick (via NVR):
- AI-filtered playback based on human or vehicle presence
- Search video using traits like gender, mask, or clothing color
- Faster incident review and fewer missed events
- Direct playback jumping to detected occurrences
Q&A
Q: Does it record people counts and queues?
A: Yes—captures entry, exit, area headcount, and queue durations with reporting through Smart PSS or DSS.
Q: Will the lens adjust remotely?
A: Yes—the motorized lens can be zoomed and focused via network GUI.
Q: Does it work in vandal-prone areas?
A: Absolutely—rated IK10 with tough metal housing for high-impact protection.
Q: Can it detect face attributes like mask or gender?
A: Yes—it captures age, gender, facial expression, glasses, beard, and mask status.
Q: Is the camera weatherproof for outdoor use?
A: Yes—IP67 ensures it withstands dust, rain, and outdoor conditions.
Q: How long does the microSD support?
A: Supports up to 256 GB local recording; durations depend on resolution and motion levels, but Smart H.265+ optimizes storage use.
Q: Does it work with other NVR brands?
A: Yes—it supports ONVIF and major platforms like Genetec and Milestone.
Q: Can I do long runs over 200 m?
A: Yes—With ePoE, you can power and transmit data up to 800 m over Cat5 or coax cable.
