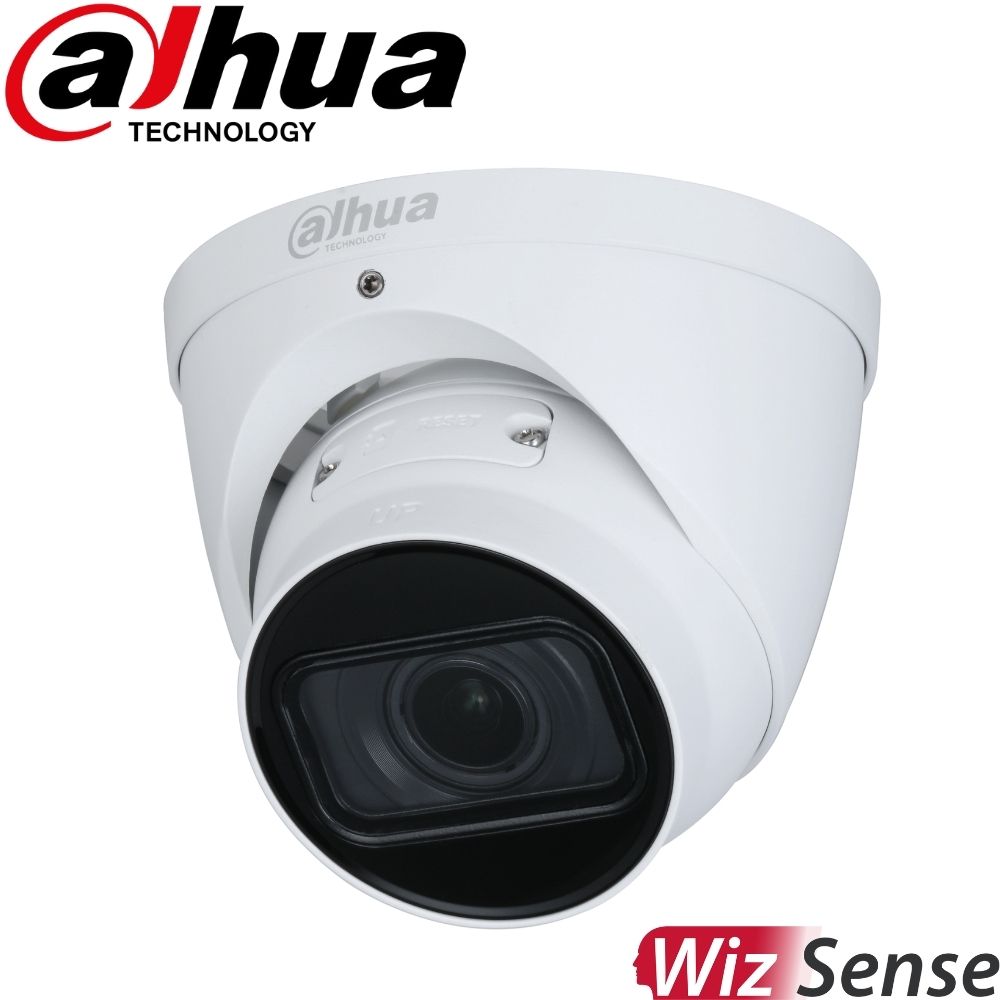

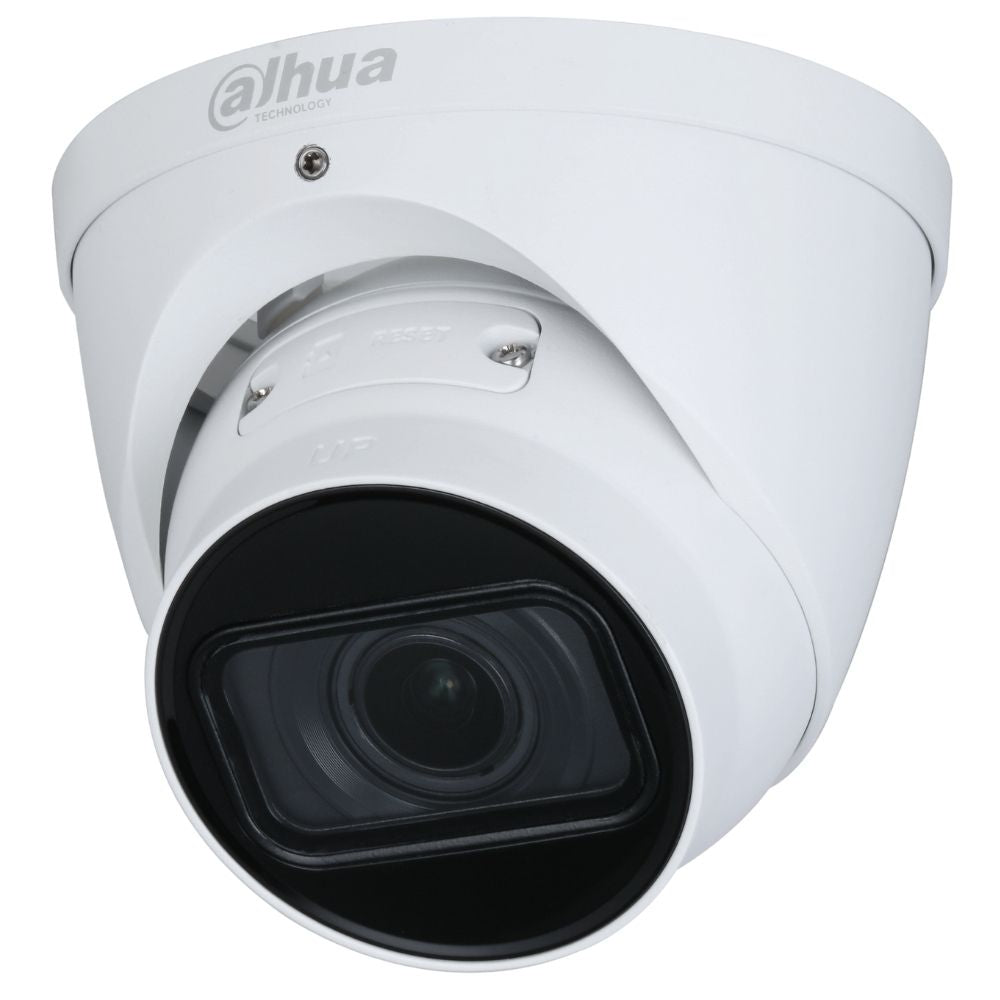

Dahua IPC-HDW3541T-ZAS Security Camera: 5MP (Full HD) Turret, Motorized 2.7~13.5mm, WizSense + Starlight
- Records up to 5 Megapixel (Full HD) resolution.
- Equipped with a 2.7~13.5mm Motorized lens.
- Supports up to 2592 × 1944 pixels Full High Definition resolution.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
- With suitable devices, WizSense Technology provides smart security features like Smart Motion Detection+, Thermal Imaging, Perimeter Protection, Face Recognition, Active-Deterrence, AI Coding, and more!
- Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
- Supports PoE "Power-Over-Ethernet" installations.
- 120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
- Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- 3 Years Back-to-Base Manufacturer Warranty!
- Product SKU: DH-IPC-HDW3541TP-ZAS-27135
- Order within
Dahua IPC-HDW3541T-ZAS Security Camera
Through a powerful AI Chip and self-developed Deep-Learning algorithm, Dahua's WizSense Technology is engineered and developed to provide a smart, simple, and affordable security intelligence. On capable devices, this technology enables you features like these: Eliminate false alarms and improve human and vehicle monitoring with its Smart Motion Detection+. With the Thermal Imaging capabilities of the Perimeter Protection, maintain your security all day and in any weather. Aside from guaranteeing safety, the precise Face Recognition can also identify VIP customers creating greater business values for you! Ward off any intruders with Active-Deterrence, and be alerted with Push Notifications enabling you to respond situation. The AI Coding function prioritizes clearer images on vehicles and people, save storage costs and get better quality images where it matters!
Dahua's Starlight Technology generates crystal clear images in near-complete darkness. A high-performing sensor and special Dahua algorithms combine to capture images in low-light and no-light environments. The innovation behind Dahua’s Starlight technology provides the best image capture to help maximize your security solution.
Features
- Records up to 5 Megapixel (Full HD) resolution.
- Equipped with a 2.7~13.5mm Motorized lens.
- Supports up to 2592 × 1944 pixels Full High Definition resolution.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
- With suitable devices, WizSense Technology provides smart security features like Smart Motion Detection+, Thermal Imaging, Perimeter Protection, Face Recognition, Active-Deterrence, AI Coding, and more!
- Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
- Supports PoE "Power-Over-Ethernet" installations.
- 120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
- Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- 3 Years Back-to-Base Manufacturer Warranty!
Dahua IPC-HDW3541T-ZAS Security Camera
Through a powerful AI Chip and self-developed Deep-Learning algorithm, Dahua's WizSense Technology is engineered and developed to provide a smart, simple, and affordable security intelligence. On capable devices, this technology enables you features like these: Eliminate false alarms and improve human and vehicle monitoring with its Smart Motion Detection+. With the Thermal Imaging capabilities of the Perimeter Protection, maintain your security all day and in any weather. Aside from guaranteeing safety, the precise Face Recognition can also identify VIP customers creating greater business values for you! Ward off any intruders with Active-Deterrence, and be alerted with Push Notifications enabling you to respond situation. The AI Coding function prioritizes clearer images on vehicles and people, save storage costs and get better quality images where it matters!
Dahua's Starlight Technology generates crystal clear images in near-complete darkness. A high-performing sensor and special Dahua algorithms combine to capture images in low-light and no-light environments. The innovation behind Dahua’s Starlight technology provides the best image capture to help maximize your security solution.
Features
- Records up to 5 Megapixel (Full HD) resolution.
- Equipped with a 2.7~13.5mm Motorized lens.
- Supports up to 2592 × 1944 pixels Full High Definition resolution.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
- With suitable devices, WizSense Technology provides smart security features like Smart Motion Detection+, Thermal Imaging, Perimeter Protection, Face Recognition, Active-Deterrence, AI Coding, and more!
- Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
- Supports PoE "Power-Over-Ethernet" installations.
- 120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
- Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- 3 Years Back-to-Base Manufacturer Warranty!
Dahua IPC-HDW3541T-ZAS Security Camera
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7” 5Megapixel progressive CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2592 (H) ×1944 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
512 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.005 Lux@F1.5 (Color, 30IRE) 0.0005 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
40 m (131.2 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
2 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized vari-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
?14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.7 mm–13.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: 99°–26° Vertical: 72° –20° Diagonal: 133° –33° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed |
Professional, Intelligent |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
Tripwire; intrusion (Recognition of human and vehicle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream (2592 × 1944@1–20 fps) (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720@1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest(RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711Mu; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (Total bandwidth: 64 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE8, IE9, IE11 Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<8.0W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
108.3 mm × ?122 mm (4.3" × ?4.8") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
685g (1.5 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
828 g (1.8 lb) |
Dahua IPC-HDW3541T-ZAS Security Camera
These datasheets may provide more information regarding the product.
Dahua IPC-HDW3541T-ZAS Security Camera
The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.
Dahua Technology Company Introduction
Dahua Company Introduction
Dahua WizSense Technology
Dahua Starlight Technology
